ESR215MkII – The Ultimate, Full Range, Large Scale System
The ESR215MkII is a large scale full-range 3-way loudspeaker system with a wide horizontal dispersion of 110 degrees. Designed for use with the ESR3000MkII tri-amplified stereo electronic control pack, the ESR215MkII loudspeaker system features two 15″ woofers, an 8″ mid-range driver and the same large scale NPVD 3″ compression driver found in KV2 Audio’s VHD mid-hi enclosures. With a wide and smooth frequency response the ESR215MkII is ideal for theatre or stadium applications. Like the ESR212, it incorporates multiple M10 fly points and various brackets and flyware are also available.
Applications
Intentionally designed for use in Theatres and Cultural Centers to provide the highest audio quality from single Column enclosures for stage sides and prosceniums for medium to larger venues
- Fixed Installations
- Music venues
- Classical and opera concerts
Product code
KVV 987 245
ESR215S – The Ultimate, Full Range, Large Scale System, Slim version
The ESR215S is a slim version of large scale full-range 3-way loudspeaker system with a wide horizontal dispersion of 110 degrees. Designed for use with the ESR3000MkII tri-amplified stereo electronic control pack, the ESR215S loudspeaker system features two 15″ woofers, an 8″ mid-range driver and the same large scale NPVD 3″ compression driver found in KV2 Audio’s VHD mid-hi enclosures. With a wide and smooth frequency response the ESR215S is ideal for theatre or stadium applications. Like the ESR212, it incorporates multiple M10 fly points and various brackets and flyware are also available.
Applications
Intentionally designed for use in Theatres and Cultural Centers to provide the highest audio quality from single Column enclosures for stage sides and prosceniums for medium to larger venues
- Fixed Installations
- Music venues
- Classical and opera concerts
Product code
KVV 987 424
ESR106 – Active Driven 3 Way System
The ESR106 is an active driven 3 way system employing a unique column array of multiple 6“ woofers for unparalleled high quality vocal and music reproduction in challenging acoustical spaces and ambient environments. Utilising 8 x 6“ woofers, 2 x 6“ mid bass woofers and a single 1“ high frequency driver mounted on a wide dispersion horn, the ESR106 is constructed to represent one large point source, with each part of the system positioned so that it is proportional in size to the wavelength it produces, thus the radiated power of each band remains consistent and balanced throughout the system’s overall frequency range. The ESR106 has a controlled coverage at low and mid frequencies to reduce indoor reflections. The ESR106 is controlled and driven by a dedicated ESR2600D amplifier, using KV2 Audio proprietary SLA technology.
Product code
KVV 987 511

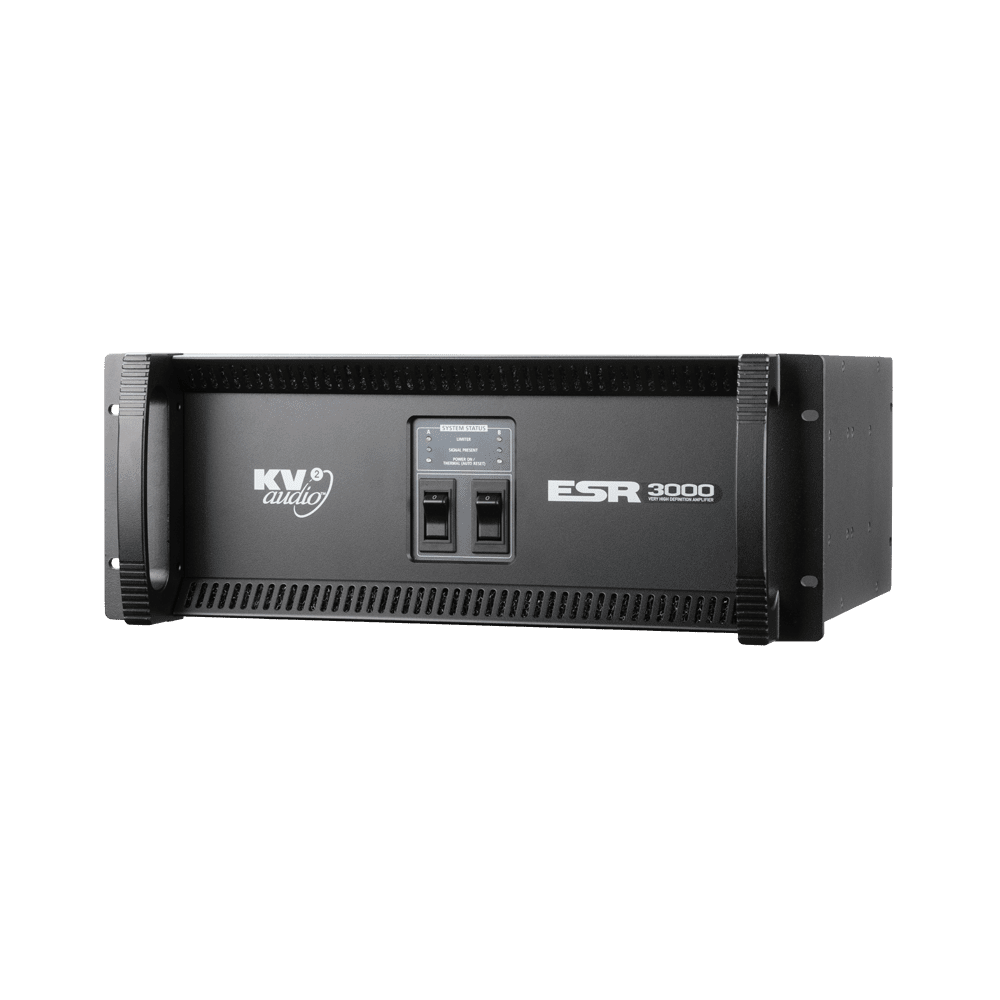

ESR3000MkII Amplifier – Rack mounted
The ESR3000MkII is three-way, active control and amplification system specially designed for the KV2 Audio ESR full range series loudspeaker systems. It houses all signal processing and amplification, as well as providing control and crossover function an external subwoofer cabinet if needed utilizing an external amplifier. The ESR3000MkII powers the ESR215MkII. Each unit incorporates six amplifiers consisting of two 100-watt, Class AB, push pull, low intermodulation amplifier for high frequencies, two 200-watt, Class AB, push pull, low intermodulation design for mids and two a 1000-watt, high-efficiency, current- enhancing switch mode technology amplifier for bass. The ESR3000MkII stereo configuration powers two ESR cabinets accordingly.
Applications
Intentionally designed for use in Theatres and Cultural Centers to provide the highest audio quality from single Column enclosures for stage sides and prosceniums for medium to larger venues
- Fixed Installations
- Music venues
- Classical and opera concerts
Product code
- KVV 987 277 – ESR3000MkII Amplifier – 250V
- KVV 987 276 – ESR3000MkII Amplifier – 230V
- KVV 987 275 – ESR3000MkII Amplifier – 115V

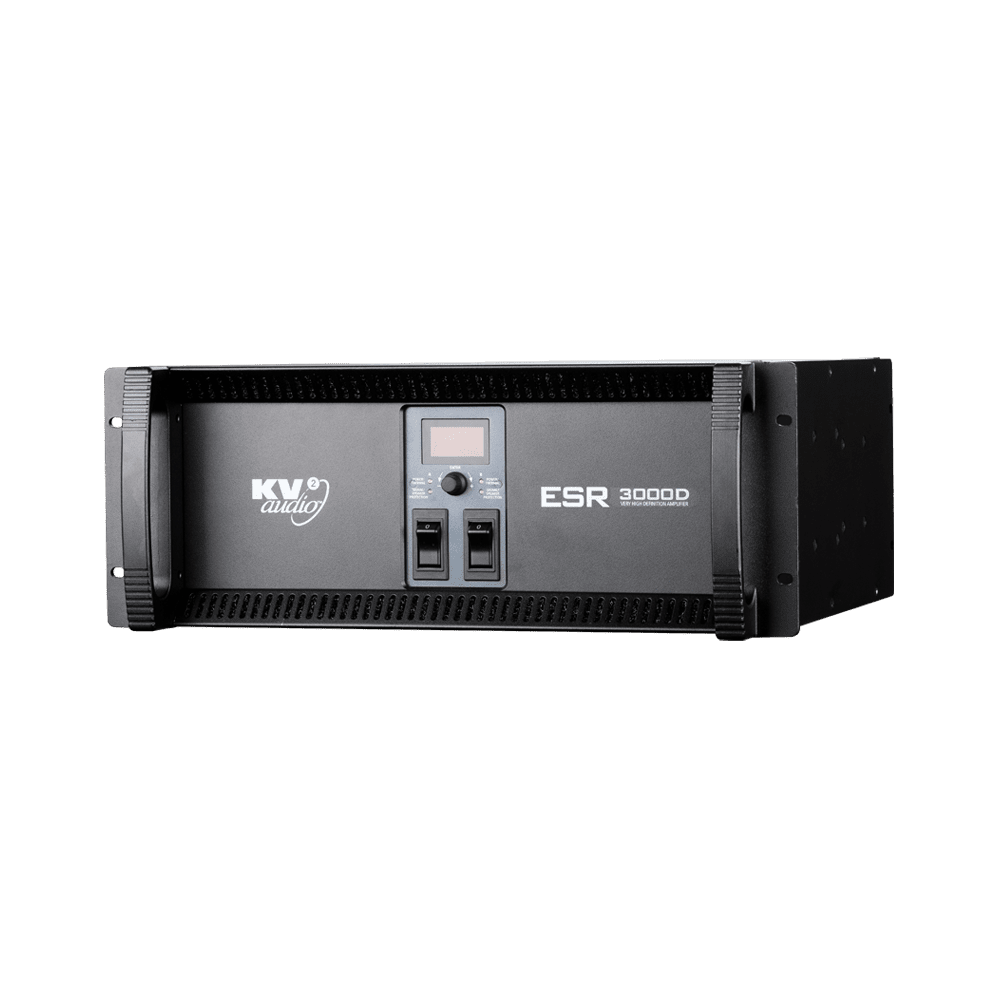

ESR3000D Amplifier with Control & Diagnostics Tool
The ESR3000D is three-way, active control and amplification system specially designed for the KV2 Audio ESR215 full range series loudspeaker systems. It houses all signal processing and amplification, as well as providing control and crossover function for an external subwoofer cabinet, (utilizing an external amplifier). ESR3000D is now configurable via the front panel or remotely using KV2 Control & Diagnostics Tool.
Applications
Specifically designed as the amplification and control elements for the ESR215 loudspeaker system in a 4RU mount module with Control & Diagnostics tool
- Fixed Installations
- Music venues
- Classical and opera concerts
Product code
- KVV 987 433 – ESR3000D (250V)
- KVV 987 432 – ESR3000D (230V)
- KVV 987 431 – ESR3000D (115V)

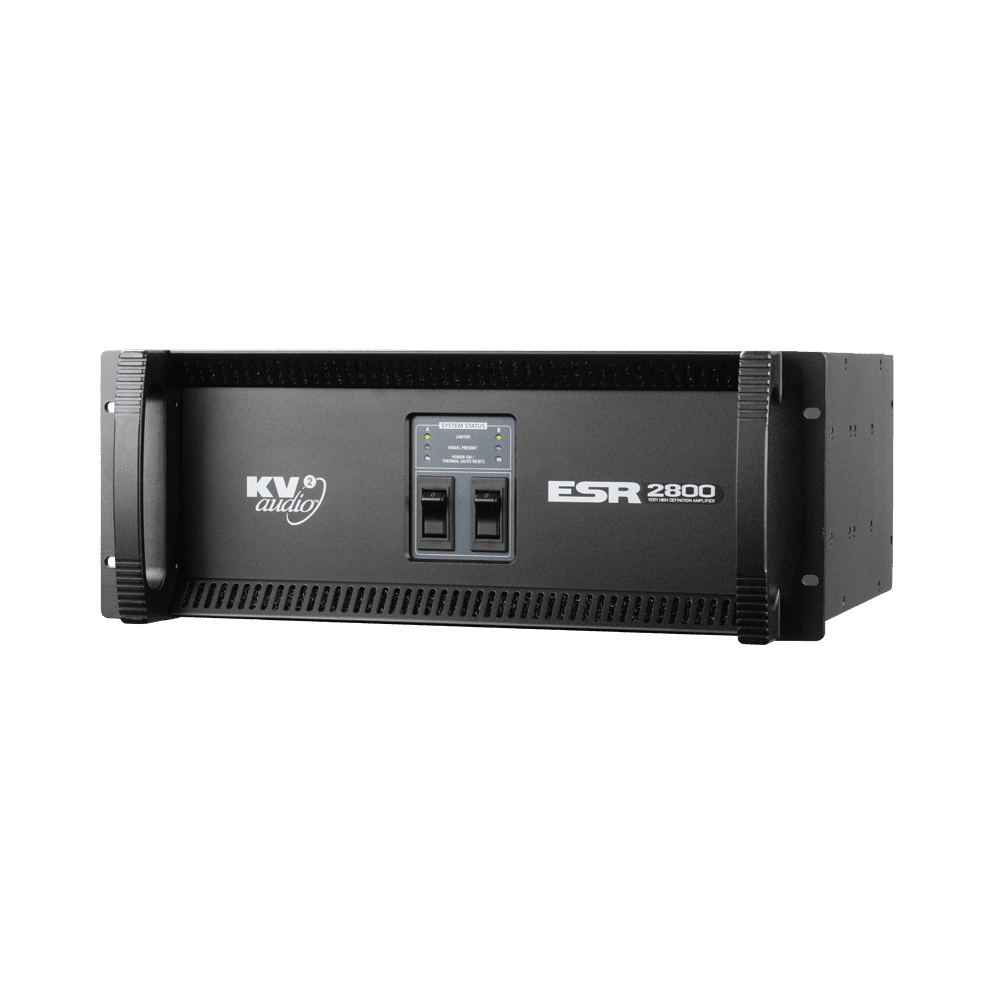

ESR2800 Amplifier – rack mounted
ESR2800 amplifier is designed as part of KV2 Audio’s ESR, full range Series and optimised for use with the ESR212 loudspeaker system featuring tri-amplified stereo electronic control pack, Super Analog components throughout. Extremely High Definition offers a true musical solution to the enjoyment of live music on a grand scale.
Applications
Specifically designed as the amplification and control elements for the ESR212 loudspeaker system in a 4RU mount module
- Fixed Installations
- Music venues
- Classical and opera concerts
Product code
- KVV 987 285 – ESR2800 Amplifier – 250V
- KVV 987 283 – ESR2800 Amplifier – 230V
- KVV 987 284 – ESR2800 Amplifier – 115V

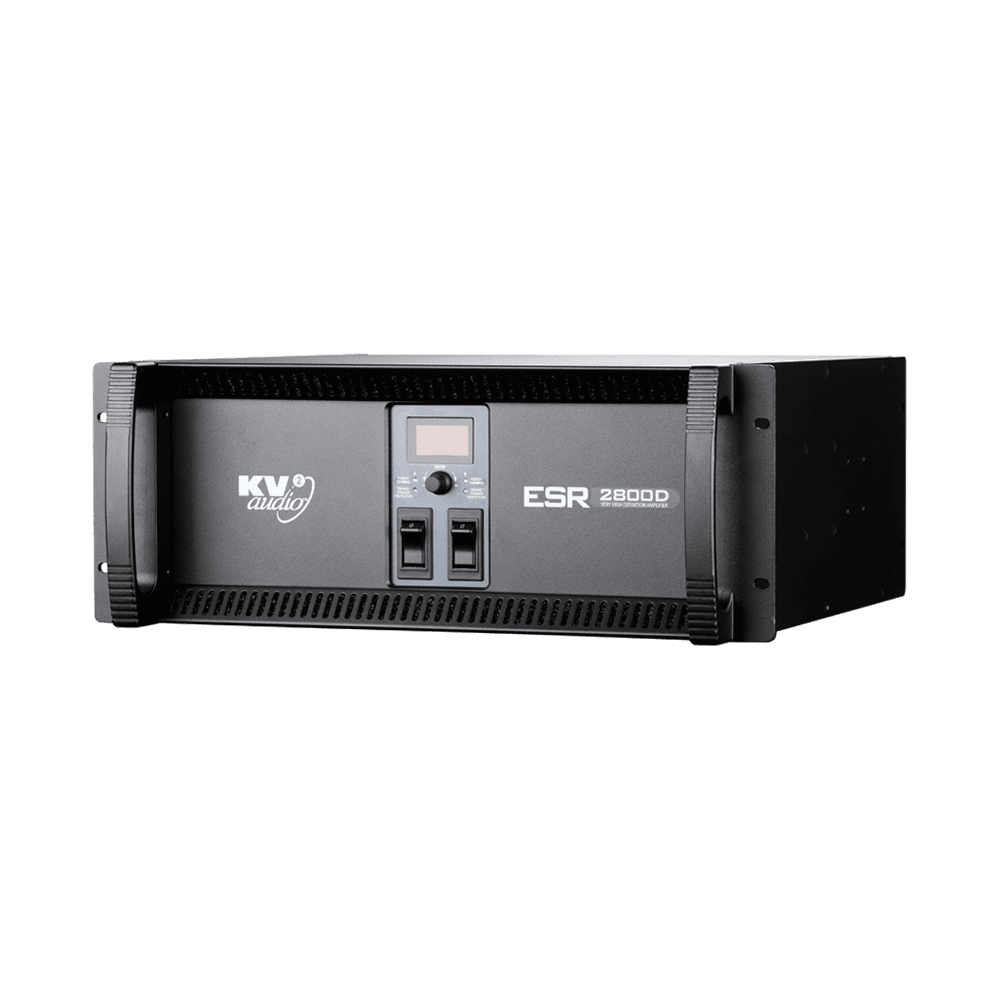

ESR2800D Amplifier with Control & Diagnostics Tool
The ESR2800D is three-way, active control and amplification system specially designed for the KV2 Audio ESR full range series loudspeaker systems. It houses all signal processing and amplification, as well as providing control and crossover function for an external subwoofer cabinet if needed utilizing an external amplifier. THE ESR28000D is now configurable via the front panel or remotely using KV2 Control & Diagnostics Tool.
Applications
Specifically designed as the amplification and control elements for the ESR212 loudspeaker system in a 4RU mount module with Control & Diagnostics tool
- Fixed Installations
- Music venues
- Classical and opera concerts
Product code
- KVV 987 459 – ESR2800D – 250V
- KVV 987 458 – ESR2800D – 230V
- KVV 987 457 – ESR2800D – 115V

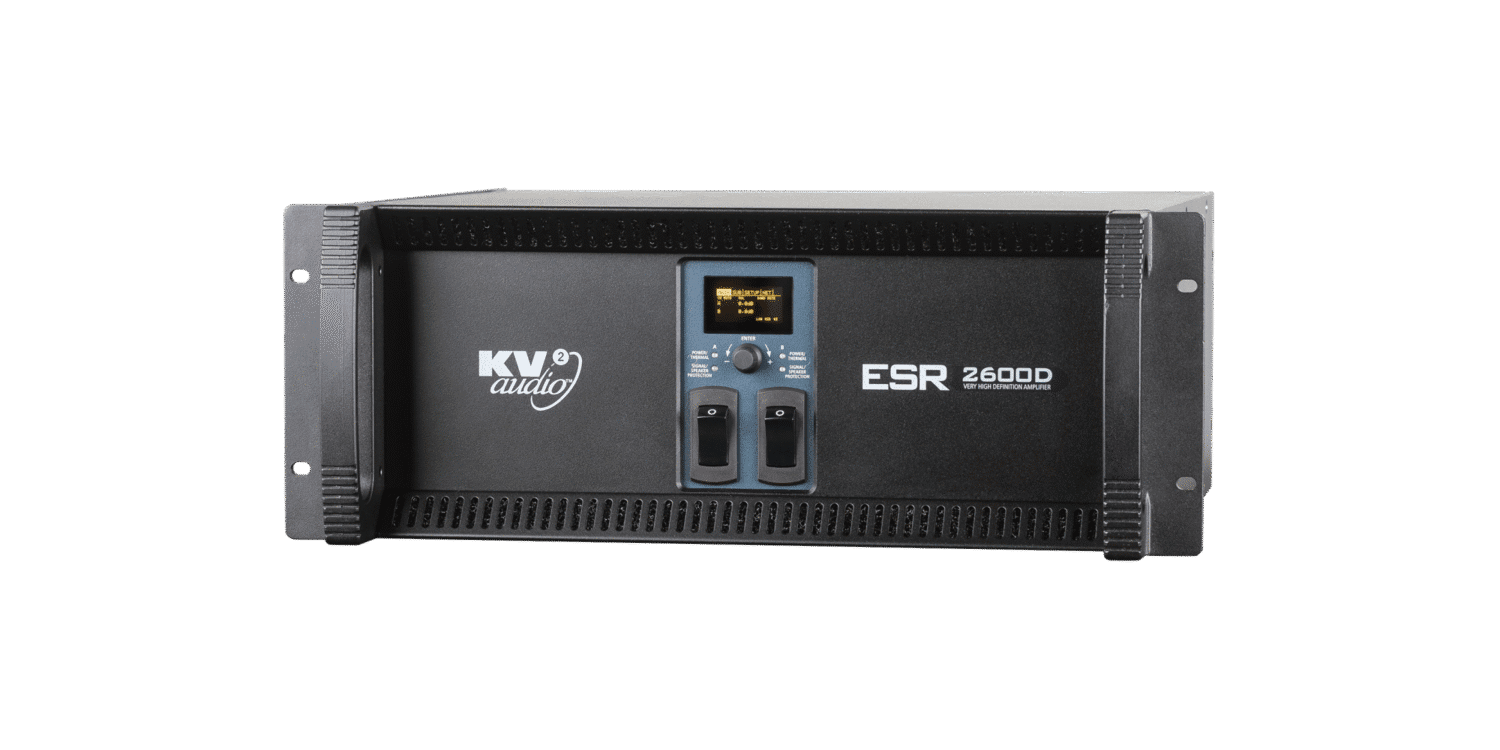

ESR2600D Amplifier with Control & Diagnostics
The amplifier compliment inside the ESR2600D Amplifier is as follows:
Product code
KVV 987 513 (230V)
KVV 987 512 (115V)
SL412 – Wide dispersion Active Driven System
The SL412 is a slim, discreetly profiled cabinet with wide dispersion at high frequencies. The four twelve inch speaker configuration provides controlled low-mid focus to reduce indoor reflection. Its slim design allows for simple wall mounting, suspension, ground stacking or internal wall fixing. The SL412 can be designed and supplied with custom colours, grill templates and logos, offering a flexible and truly designer integrated product. A single horizontal yoke assembly with multiple fixed angles and fixing locations provides a quick and cost effective solution for simple suspension.
Applications
Custom designed as an aesthetically – easily integratable high performance unit for multi-tasking installation projects of recorded and live music performance
- Fixed installation
- Nightclubs
- Multi-use venues
- Large bars
Product code
- KVV 987 273 – SL412

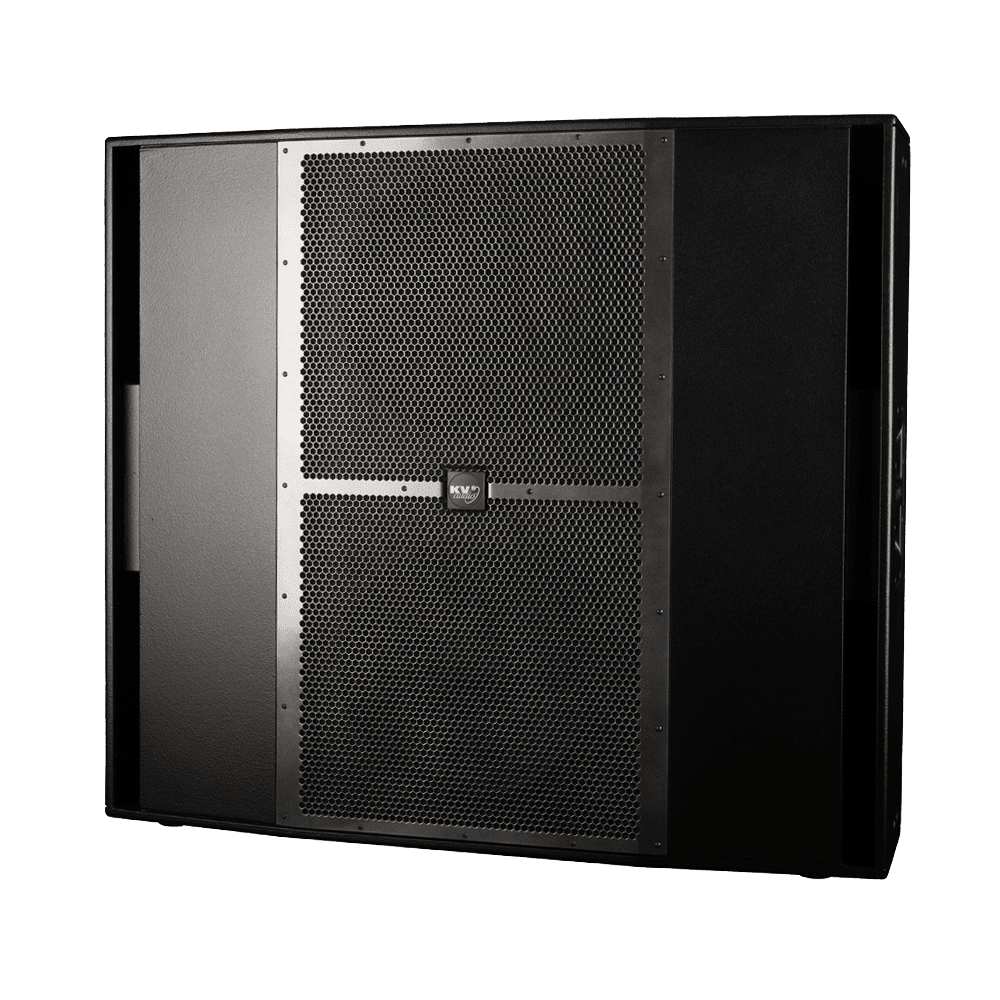

SL2.15 – SL Bass Enclosure
The SL2.15 is a double 15″ direct radiation subwoofer system with augmented bass reflex. Built to integrate aesthetically with the SL412 the SL2.15 produces deep bass from its slim cabinet design. Bass response is enhanced by coupling when the SL2.15 is used against or in a wall, providing optimum output for it’s small footprint. It also combines beautifully with the Ultra Low Frequency VHD1.21 and 2.21 subwoofers as part of a five way active system.
Applications
Specifically designed subwoofer enclosure to accompany the SL412 as a high powered aesthetically pleasing full range music playback and performance system
- Fixed installation
- Nightclubs
- Multi use venues
Product code
- KVV 987 274 – SL2.15

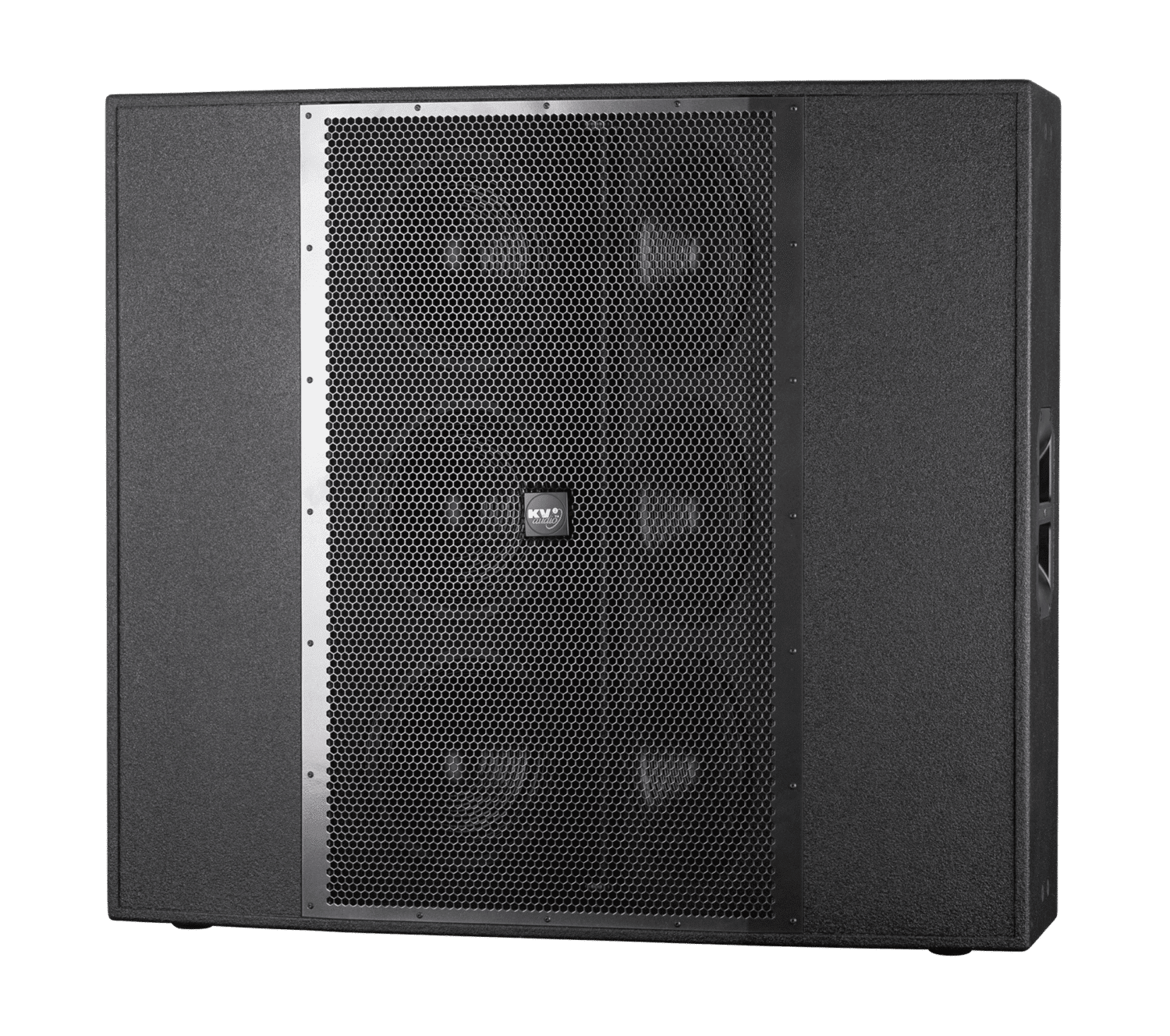

SL6.10 Subwoofer
Following on from our successful SL 2.15 subwoofer, the latest generation SL sub, the SL6.10 incorporates six 10“ directly radiating speakers which radically improve dynamics and definition from the same sized enclosure. Built to integrate aesthetically with the SL412, The SL6.10 produces accurate bass from its slim cabinet design. Bass response is enhanced by coupling the cabinets, particularly when the SL6.10 is used against or within a wall, providing optimum output for its compact footprint. It also combines acoustically with the Ultra Low Frequency VHD1.21 and 2.21 subwoofers as part of a five way active driven system.
Product code
KVV 987 507

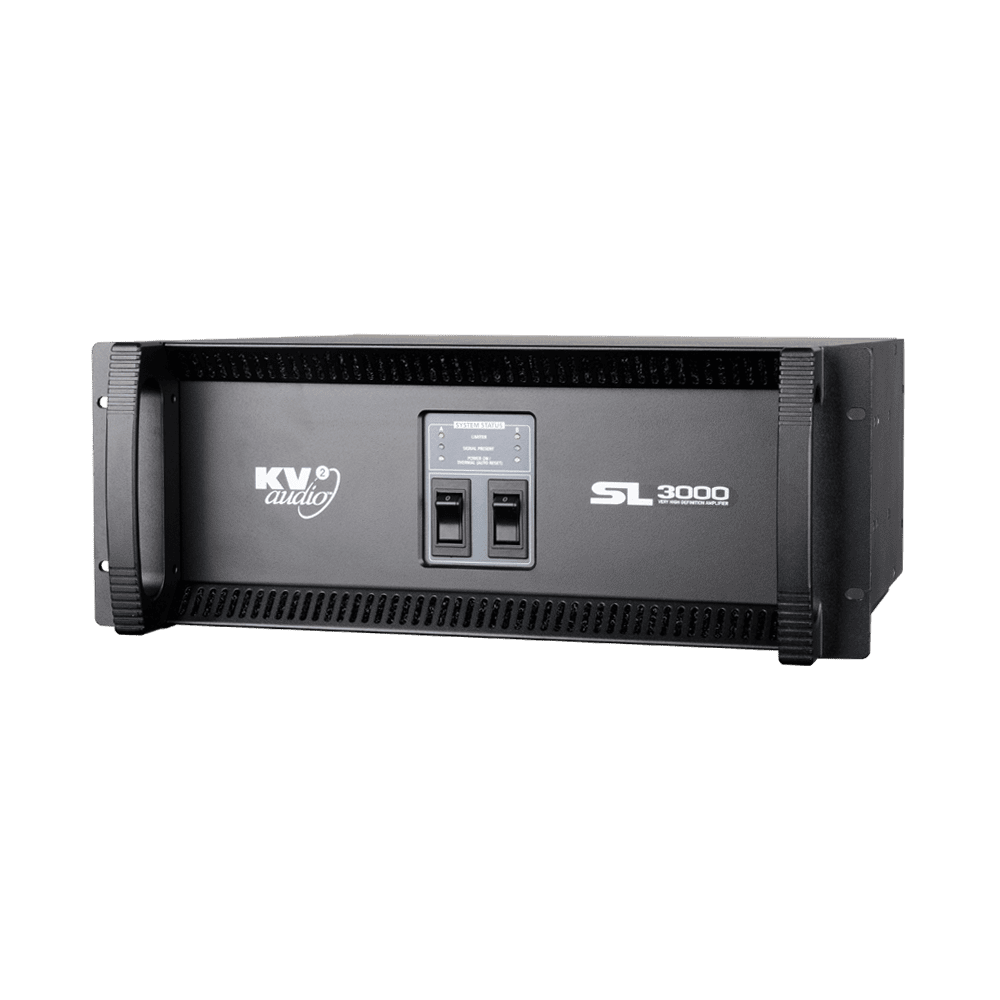

SL3000 Amplifier – Rack mounted
The SL3000 Amplifier is a three-way, active control and amplification system specifically designed for the KV2 Audio SL Series modular loudspeaker systems. The SL3000 Stereo Amplifier drives and controls one SL412 per channel and follows the typical KV2 holistic approach of matching components with high quality electronics for true direct performance. The SL3000 utilises a 1000-watt high efficiency – current enhancing, switch – mode technology, with linear active filter design for the low mid-section, a 200-watt class AB push pull low intermodulation design amplifier for the mid-range and a similar 100-watt design for the high frequencies. It houses all time alignment, phase correction, amplification and equalisation as well as providing an external subwoofer crossover output to run further subwoofer cabinets if needed.
Applications
Specifically designed as the amplification and control elements for the SL loudspeaker systems in a 4RU mount module
- Fixed Installations
Product code
- KVV 987 280 – SL3000 Amplifier – 250V
- KVV 987 279 – SL3000 Amplifier – 230V
- KVV 987 278 – SL3000 Amplifier – 115V

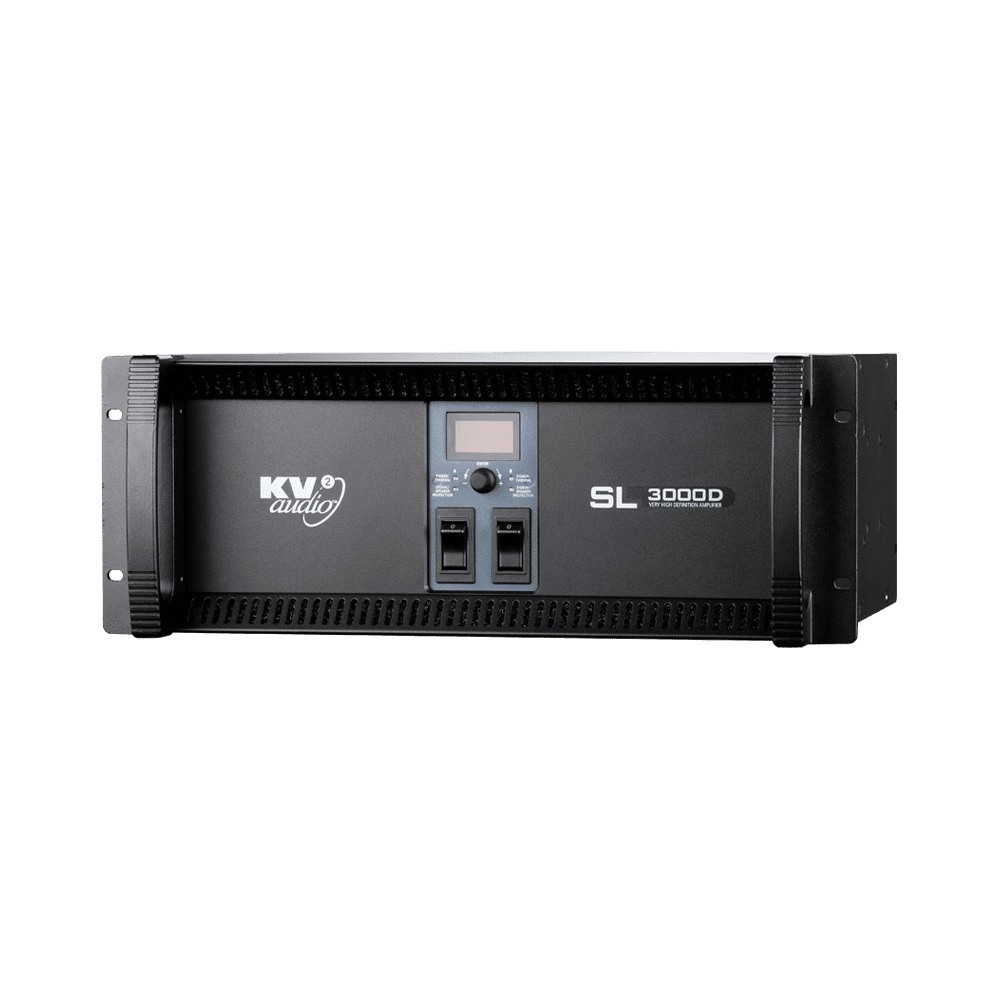

SL3000D Amplifier with Control & Diagnostics Tool
The SL3000D Amplifier is a three-way, active control and amplification system specifically designed for the KV2 Audio SL Series modular loudspeaker systems. It houses all signal processing and amplification as well as providing control for external subwoofer cabinets if needed. (External subwoofers are powered by an external subwoofer amplifier). SL3000D is now configurable via the front panel or remotely using KV2 Control & Diagnostics Tool.
Applications
Specifically designed as the amplification and control elements for the SL loudspeaker systems in a 4RU mount module with Control & Diagnostics Tool
- Fixed Installations
- Nightclubs
- Multi-use venues
- Large bars
Product code
- KVV 987 456 – SL3000D (250V)
- KVV 987 455 – SL3000D (230V)
- KVV 987 454 – SL3000D (115V)

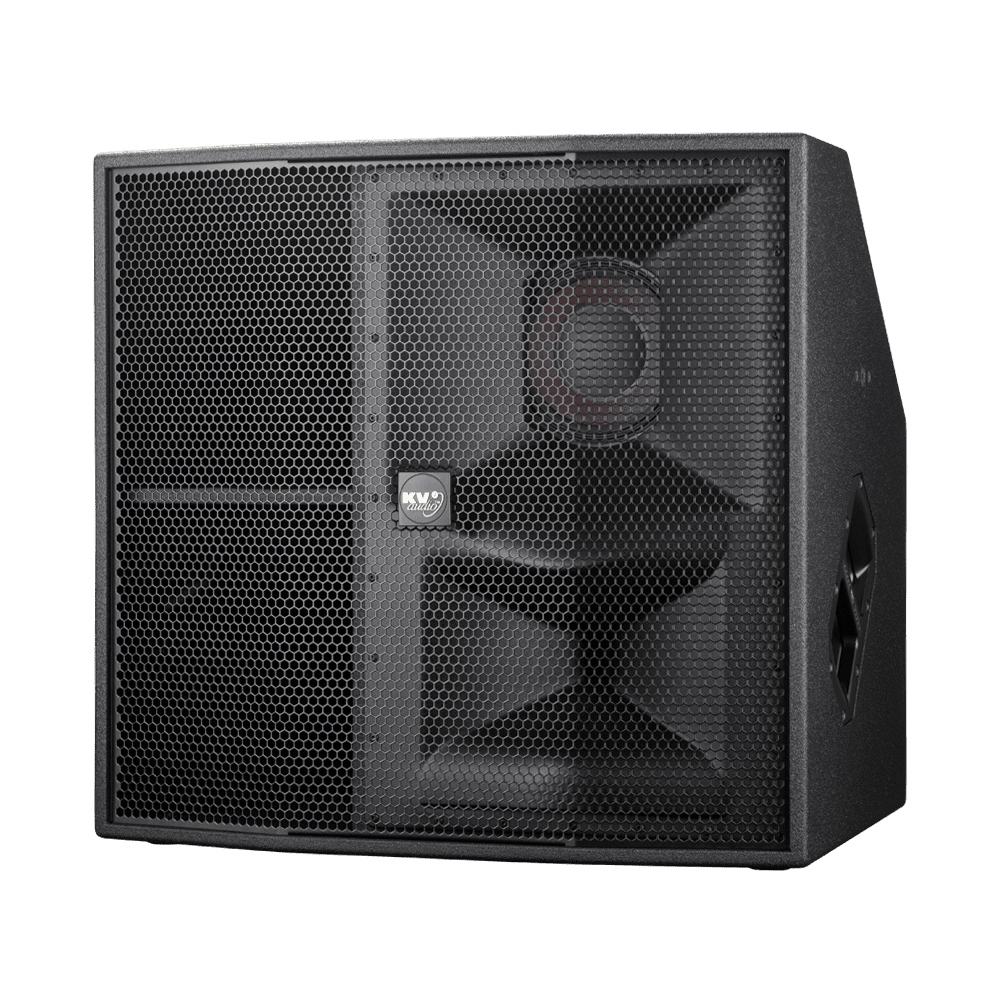

VHD1.0 – Mid High/Down-fill Enclosure
The VHD1.0 downfill enclosure features a single 12″ low mid woofer, an 8″ transcoil mid-range woofer and the same compression driver as the VHD2.0 on a wide angle 110° horizontal by 40° vertical horn. The rear of the box has been angled for use as a downfill with the VHD2.0. Alternatively as a stand-alone box up to three VHD1.0s can be powered from a single VHD2000 amplifier. Like the VHD2.0, VHD1.0 is available in left and right versions for downfill applications. Designed to be powered as a slave from the VHD2.0 cabinet or directly from the VHD2000 amplifier, all equalization, set up and level are preset providing a plug and play solution for large scale touring and high quality installation.
Applications
Designed as a true mid high – downfill enclosure to accompany the VHD2.0 as part of the VHD systems
- Medium to large concert venues
- Fixed installation
- Outdoor events
Product code
- KVV 987 141 – VHD1.0 R (right)
- KVV 987 076 – VHD1.0 L (left)

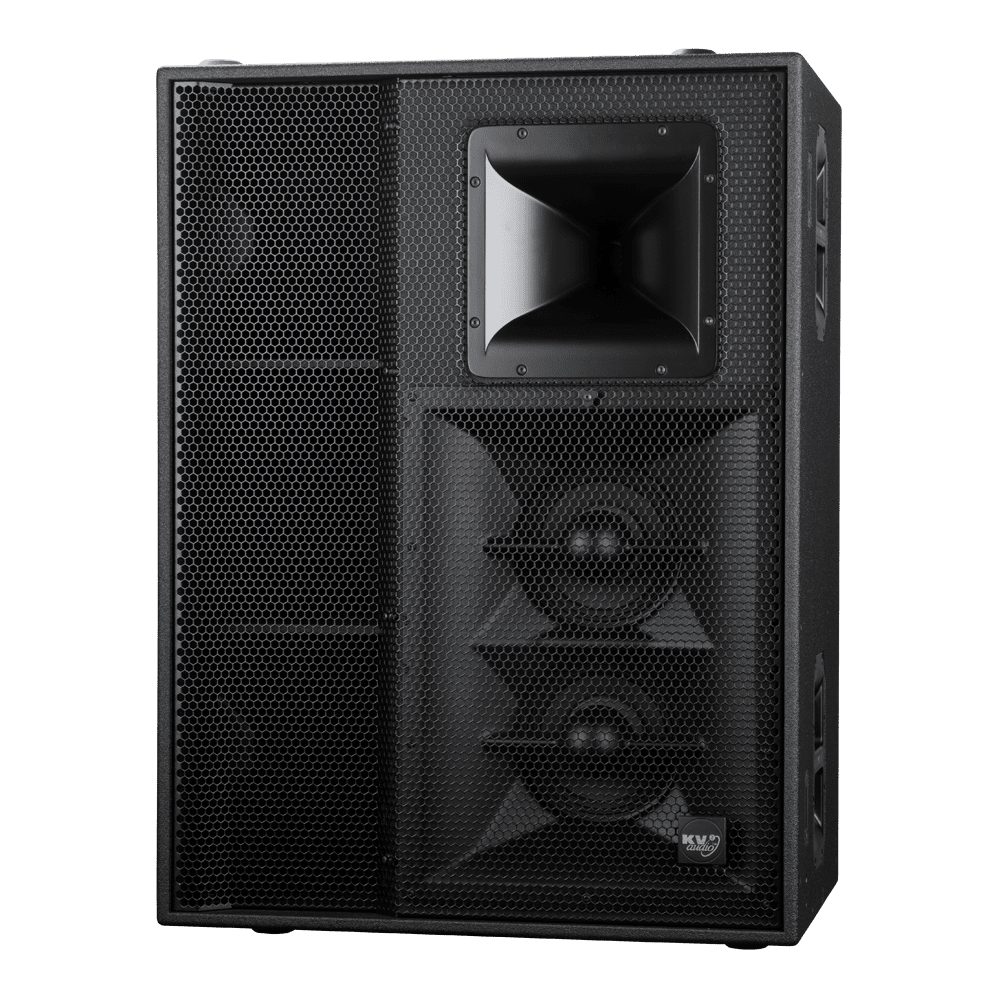

VHD2.0 – Mid High Enclosure
A powerful long throw system for audiences of up to 20,000 people without requirement for additional delay systems. A three-way design featuring a 3″ compression driver with NVPD treated dome assembly, two horn loaded 8″ speakers featuring AIC technology and two horn loaded 12″ mid-bass speakers. All speakers employ neodymium magnets to increase force, improve control and lower weight. The VHD2.0 has an 80° horizontal and 40° vertical dispersion and left and right versions of the speaker are offered in order to create larger format vertical arrays of the mid high system.
Applications
Designed as an extreme high output and performance mid-hi unit as part of the VHD systems Very High Definition for live performance
- Medium to large concert venues
- Scalable from small to large systems
- Full range standalone use in public areas
- Hire and Production
- Large Theatres
Product code
- KVV 987 077 – VHD2.0 R (right)
- KVV 987 078 – VHD2.0 L (left)
