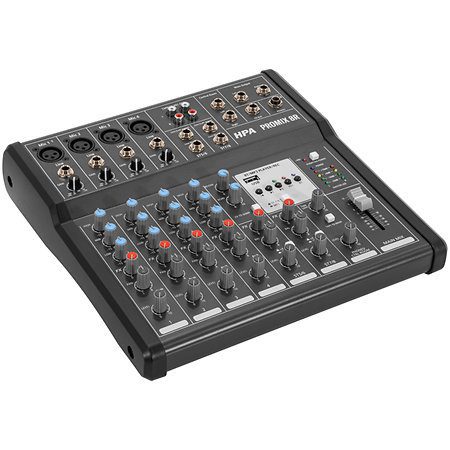

HPA – Promix 8R
The HPA Promix 8R is an 8-channel analog mixing console with 4 XLR microphone inputs, reverb and echo effects, 24-bit / 48 kHz USB interface and Bluetooth / USB MP3 playback. Perfect for live and studio use.
The HPA Promix 8R is an analog mixing console designed for sound technicians, DJs and musicians looking for a versatile and high-performance solution. With 8 channels, including 4 XLR microphone inputs with +48 V phantom power, it is suitable for both vocals and instruments. Its 4 6.35 mm jack line inputs and 4 6.35 mm jack stereo inputs allow for optimal flexibility in managing audio sources.
With a linear frequency response (20 Hz – 20 kHz, +1/-1 dB) and minimal distortion (0.005%), the HPA Promix 8R guarantees clear and precise sound reproduction. Its signal-to-noise ratio of over 80 dBu and its crosstalk of over 70 dBu ensure effective channel separation and the absence of unwanted noise, even at high volumes.
The 3-band EQ per channel (12 kHz, 2.5 kHz, 80 Hz, adjustable to +/-15 dBu) allows for precise sound sculpting, while the Reverb and Echo effect, whose depth is adjustable, adapts to each mix.
In terms of connectivity, the HPA Promix 8R has balanced and unbalanced main outputs (XLR), as well as auxiliary and effects outputs (6.35 mm jack). Its USB 2.0 interface (24-bit / 48 kHz, 2 In – 2 Out) facilitates recording and live broadcasting.
It also supports MP3 playback via Bluetooth and USB, with the possibility of recording on external media.
Versatile and robust, the HPA Promix 8R is ideal for live applications, home studios and fixed installations, offering precise control and complete connectivity for sound professionals.
HPA – Promix 6R
The HPA Promix 6R is a 6-channel analog mixing console with 2 XLR inputs, 3-band EQ, Echo/Reverb effects, 24-bit/48 kHz USB and Bluetooth/USB MP3 playback. Compact and ideal for live and studio use.
The HPA Promix 6R analogue mixing console offers a design focused on simplicity and versatility, suitable for small-scale setups.
It combines six channels, including two XLR microphone inputs (with +48 V phantom power for condenser microphones), two 6.35 mm jack line inputs and two stereo inputs for connecting additional sources (keyboards, smartphones, audio players, etc.).
The three-band EQ section allows precise adjustment of the high (12 kHz), mid (2.5 kHz) and low (80 Hz) frequencies to +/- 15 dBU.
With a signal-to-noise ratio of more than 80 dBu and a distortion of only 0.005%, the Promix 6R guarantees clean and faithful sound reproduction. The main outputs are available in XLR format, both balanced (+26 dBU) and unbalanced (+20 dBU), providing a level suitable for various sound reinforcement configurations.
Aux and FX outputs (6.35 mm jack +20 dBU) complete the routing possibilities, while the USB 2.0 audio interface (2 In / 2 Out at 24-bit / 48 kHz) simplifies integration with a computer for recording or streaming.
An internal Echo + Reverb effects module offers additional creativity, while MP3 playback (via Bluetooth or USB) and direct recording to hard disk expand the audio playback and capture options.
Notably, the power supply is provided by 5 VDC via a USB-C connector, which facilitates transport and operation in locations without conventional power.
Its compact size makes the HPA Promix 6R practical for users who want an affordable and functional mixing solution in a variety of environments (small rooms, podcasts, rehearsals or home studios).

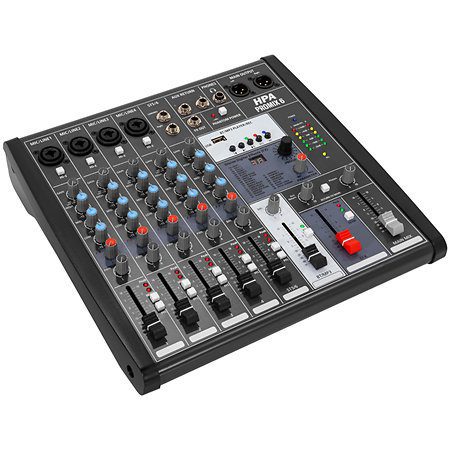

HPA – Promix 6
The HPA Promix 6 is a 6-channel analog mixing console with linear faders and XLR combo inputs. It features a DSP with 24 adjustable effects, 24-bit / 48 kHz USB 2.0 connectivity for recording and playback, as well as Bluetooth, USB and SD card compatibility for MP3 playback. Its +48 V power supply and 3-band EQ make it an ideal solution for studio and live applications.
The HPA Promix 6 is a versatile analogue mixing console for sound professionals looking for a powerful and compact solution for live or studio applications.
Featuring 6 channels, including 4 XLR combo mic/line inputs, this console offers great flexibility to manage various audio sources simultaneously, such as microphones, instruments or external equipment.
Its linear faders ensure smooth and precise control of the mix, allowing each source to be adjusted with great precision.
With a frequency response ranging from 20 Hz to 20 kHz and a minimum distortion of only 0.005%, the Promix 6 guarantees a very clear sound reproduction, even at high volumes.
Its signal-to-noise ratio of more than 80 dBu and its low noise level guarantee a clean and interference-free signal.
The +48V phantom power allows the use of condenser microphones, widely used in studio and live applications, ensuring additional flexibility for sound engineers.
The HPA Promix 6 is equipped with an integrated DSP with 24 adjustable effects such as reverb and echo, allowing to shape the tones to suit the specific needs of the performance.
Connectivity is another major asset of this console with USB 2.0 inputs and outputs at 24-bit / 48 kHz, ensuring high-definition digital recording and playback quality.
It also supports MP3 file playback via Bluetooth, USB or SD card, and allows recording directly to hard disk or SD card.
Its 3-band EQ (treble, midrange, bass) allows to fine-tune each channel individually, while its auxiliary and effects outputs offer even more possibilities for integration into advanced sound reinforcement systems.
Powered via a USB Type-C connector, the HPA Promix 6 combines practicality and performance, ideal for live events, podcasts, studio recording or any other application requiring a robust and reliable mixing console.

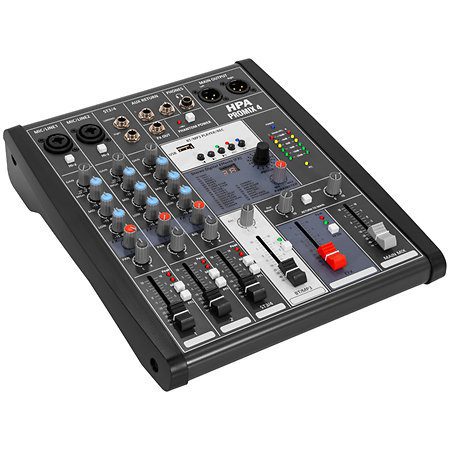

HPA – Promix 4
The HPA Promix 4 is a 4-channel analogue mixing console, with linear faders, XLR mic/line inputs and 6.35 mm stereo jack. It features a DSP with 24 effects and USB connections for 24-bit/48 kHz digital recording. Ideal for live and studio use, it supports MP3 via Bluetooth, USB and SD card.
The HPA Promix 4 is a versatile analog mixing console, designed for musicians, sound engineers and technicians looking for a compact and high-performance solution.
Its 4 channels integrate mic/line and stereo inputs, offering great flexibility for mixing multiple audio sources, whether microphones or instruments. Its linear faders allow precise volume control for each channel, ensuring smooth mix management.
Equipped with 2 XLR combo inputs and 2 6.35 mm Jack inputs, this console guarantees compatibility with different types of connectors, thus meeting the needs of various configurations.
It also benefits from a wide frequency response (20 Hz – 20 kHz) with low distortion (0.005%), guaranteeing faithful and clear sound quality.
The signal-to-noise ratio of over 80 dBu and low self-noise make it a choice for environments requiring impeccable sound quality.
The HPA Promix 4 is not limited to its mixing capabilities. Thanks to its integrated DSP offering 24 types of effects, the depth of which is fully adjustable, it allows you to enrich your productions with reverbs, echoes and other high-quality audio effects.
Its USB 2.0 inputs and outputs with a sampling rate of 48 kHz and a resolution of 24 bits make it ideal for high-quality digital recordings.
In addition, this console supports MP3 playback via Bluetooth, USB and SD card, thus offering additional versatility to play or record directly to a hard drive or SD card.
Finally, the +48V phantom power allows the use of condenser microphones, thus reinforcing its flexibility in studio and live environments.
HPA – AM-1700
The HPA AM-1700 is a Class H power amplifier, offering a robust power of 2x 500 W RMS at 8 ohms and 2x 850 W RMS at 4 ohms, with a bridged mode potential of 1700 W RMS. Equipped with XLR inputs and speakON outputs, this amplifier integrates advanced protections and efficient cooling, perfect for professional applications.
The HPA AM-1700 power amplifier delivers an impressive 2x 500 W RMS into 8 ohms and 2x 850 W RMS into 4 ohms. This amplifier can also be bridged to deliver up to 1700 W RMS into 8 ohms, meeting the demands of large-scale events.
The damping factor of over 500 ensures extreme control of the speakers, allowing for clear and precise sound reproduction. With adjustable input sensitivity options of 0.775 V, 1 V and 2 V, the HPA AM-1700 easily adapts to different audio sources, while maintaining an input impedance of 20 kOhms in balanced mode and 10 kOhms in unbalanced mode.
The 102 dB signal-to-noise ratio and a THD of just 0.1% at 1 kHz ensure pure audio quality with minimal noise, even at high output levels. Its extended frequency response of 20 Hz to 20 kHz, with a tolerance of ±1.5 dB, promises audio fidelity across the entire sound spectrum.
Connections couldn’t be simpler with XLR inputs and speakON outputs, facilitating integration into any professional PA system. The mode switch allows easy switching between stereo and bridge configurations, increasing the amplifier’s versatility in different usage contexts.
For increased durability, the HPA AM-1700 is equipped with advanced protections against electrical, thermal and electronic hazards.
An efficient fan cooling system keeps the unit at an optimal temperature, and the ‘soft start’ function helps extend the life of internal components by reducing stress during start-up.

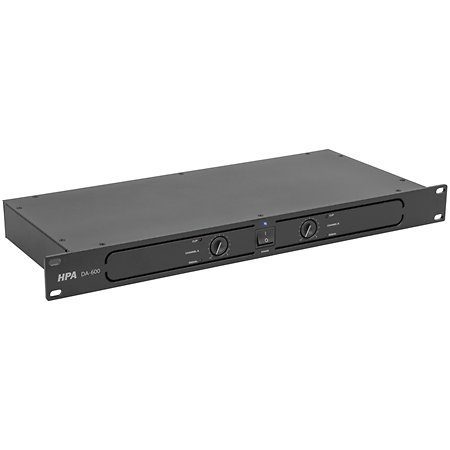

HPA – DA-600
The HPA DA-600 Class D power amplifier delivers a robust power of 2x 300 W RMS into 8 ohms and 2x 450 W RMS into 4 ohms, with a bridge capability of up to 900 W RMS. It features an excellent signal-to-noise ratio of 100 dB and a very low THD of 0.1%, ensuring clear and powerful audio quality. Equipped with XLR and TRS jack inputs and speakON outputs, it is designed for maximum reliability with advanced protections and efficient cooling.
The HPA DA-600 power amplifier is a Class D model capable of delivering 2x 300 W RMS into 8 ohms and 2x 450 W RMS into 4 ohms.
This amplifier can also be configured in bridge mode to deliver up to 900 W RMS into 8 ohms, meeting the most demanding needs of sound reinforcement and event professionals.
Featuring a damping factor greater than 200, the DA-600 ensures precise control of the speakers, which is crucial for obtaining clear and detailed sound reproduction. Its input sensitivity of 1 V and its input impedance options, 20 kohms in balanced mode allow great flexibility in connection with various audio equipment.
The amplifier’s sound quality is also supported by a signal-to-noise ratio of 100 dB and a very low total harmonic distortion (THD) of 0.1% at 1 kHz, thus ensuring an audio output that is almost free of noise and distortion.
The frequency response, from 20 Hz to 20 kHz with a deviation of only ±0.5 dB, confirms the amplifier’s ability to handle a wide frequency spectrum with great precision.
For connections, the HPA DA-600 is equipped with XLR and TRS jack inputs, as well as speakON and screw terminal outputs, offering universal compatibility with professional sound reinforcement equipment. The mode switch allows users to choose between stereo and bridge configurations, adding additional adaptability.
Integrated electronic, thermal and electrical protections ensure safe and long-lasting use, even in the most difficult conditions, while the fan cooling system keeps the unit at an optimal temperature.
Finally, the ‘soft start’ function minimises the risk of overvoltages during start-up, thus protecting sensitive electronic components.

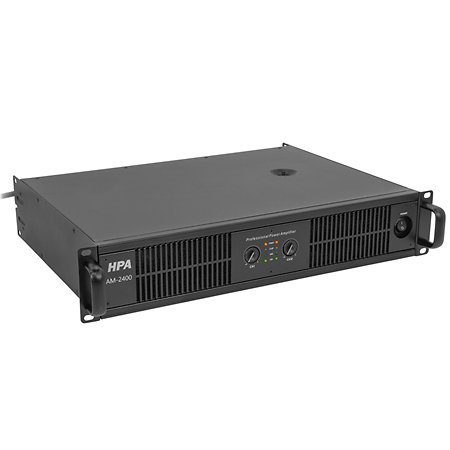

HPA – AM-2400
HPA AM-2400 – Professional PA power amplifier: 2x 800 W RMS / 8 ohms, 2x 1200 W RMS / 4 ohms. Bridgeable: 1x 2400 W / 8 ohms. Integrated ventilation, limiter and filters
The HPA AM-2400 power amplifier, with its Class H design, is a powerhouse intended for intensive use in the live and fixed installation fields.
Offering a power of 2x 800 W RMS into 8 ohms and 2x 1200 W RMS into 4 ohms, it can also operate in bridge mode to provide an impressive 2400 W RMS into 8 ohms, thus meeting the requirements of the most demanding audio systems.
With a damping factor greater than 500, the HPA AM-2400 guarantees exceptional control of the speakers, which is essential for accurate and distortion-free sound reproduction.
It has three input sensitivity settings (0.775 V, 1 V and 2 V), allowing perfect adaptation to different audio source levels. This is complemented by an input impedance of 20 kOhms in balanced mode and 10 kOhms in unbalanced mode, thus offering great connection versatility.
The signal-to-noise ratio of 102 dB and a THD of only 0.1% at 1 kHz ensure optimum sound clarity, with little or no background noise or distortion at high output levels.
Its frequency response of 20 Hz to 20 kHz, with a variation of only ±1.5 dB, guarantees fidelity across the entire sound spectrum, from deep bass to precise treble.
For connections, the HPA AM-2400 is equipped with XLR inputs and speakON outputs, promoting solid and secure links with other professional audio equipment.
The stereo and bridge modes, selectable via a switch, increase its flexibility to adapt to various configurations and applications.
The device incorporates electronic, thermal and electrical protections to ensure safe and continuous use, even in the most difficult conditions.

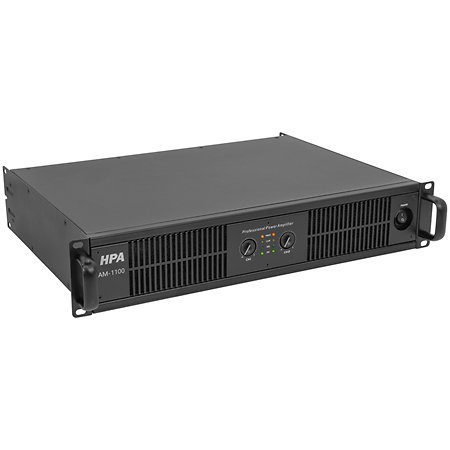

HPA – AM-1100
The HPA AM-1100 power amplifier delivers Class AB performance with 2x 300W RMS into 8 ohms and 2x 540W RMS into 4 ohms, up to 1100W RMS in bridge mode. Featuring XLR and RCA inputs and speakON outputs, it is designed for reliability with integral protections and efficient cooling, ideal for professional sound reinforcement requirements.
The Class AB AM-1100 HPA power amplifier is specially designed to offer exceptional robustness and reliability in a variety of professional applications.
With its ability to deliver 2x 300 W RMS into 8 ohms and 2x 540 W RMS into 4 ohms, as well as an impressive 1100 W RMS in bridge mode into 8 ohms, this amplifier meets the requirements of the most intense applications.
This model is distinguished by a damping factor greater than 200, which allows it to precisely control the speakers for clear and precise sound reproduction.
The input sensitivity is fixed at 1 V, allowing easy integration with a variety of audio sources.
The amplifier also offers dual input impedance options, with 20 kohms in balanced mode and 10 kohms in unbalanced mode, providing great connection flexibility.
With a signal-to-noise ratio of 95 dB and a THD of only 0.1% at 1 kHz, the HPA AM-1100 ensures exceptional audio clarity. The extended frequency response of 20 Hz to 20 kHz, with a tolerance of ±1.5 dB, guarantees sonic fidelity across the entire audible spectrum, from deep bass to crystal-clear highs.
Connections are made easy with XLR and RCA inputs, as well as speakON and screw terminal outputs, compatible with most PA configurations.
The mode switch allows easy switching between stereo and bridge configurations, adapting the amplifier to various situations.
Advanced protection systems against electrical surges, thermal surges and short circuits ensure safe and long-lasting use.
The fan cooling system keeps the device at an optimal temperature, while the ‘soft start’ function helps to minimise the risks associated with voltage spikes at start-up, thus protecting sensitive components.
HPA – Hybrid-4C
HPA Hybrid-4C – new technology hybrid power amplifier. Professional sound and installation amplifier combining low impedance and 100 V: 4x 400 W RMS / 8 ohms, 4x 800 W RMS / 4 ohms. Possible bridge use: 2x 1,500 W under 8 ohms / 100 V. Integrated ventilation and limiter
The HPA Hybrid-4C power amplifier is a four-channel Class D hybrid amplifier that offers impressive power and flexibility of use, adapting to various application contexts.
Under 8 ohms, it delivers 4x 400 W RMS, under 4 ohms, 4x 800 W RMS, and under 2.7 ohms, 4x 1,200 W RMS, demonstrating its ability to provide considerable power in all circumstances. In addition, in 100 V mode, it offers 4x 200 W RMS and in 8 ohm / 100 V bridge mode, 2x 1,500 W RMS, perfect for installations requiring sustained power.
Equipped with the Pascal Audio L-PRO2S amplifier module, the Hybrid-4C guarantees superior sound quality with a damping factor of over 350, ensuring exceptional control of the speakers.
The input sensitivity of 1 V and the input impedance of 20 kOhms balanced (10 kOhms unbalanced) allow easy compatibility with various audio sources. The signal-to-noise ratio of 119 dB and a total harmonic distortion (THD) of only 0.05% at 1 kHz ensure clear and precise sound reproduction.
The extended frequency response of 20 Hz to 20 kHz +/- 0.5 dB makes the Hybrid-4C an ideal choice for a wide range of sounds, from deep bass to crystal clear highs.
Connections are made easy by XLR inputs and speakON and Euroblock outputs, allowing for quick and secure installation. Stereo, parallel and bridge operating modes add to the versatility of the unit.
Built-in electronic, thermal and electrical protection ensures amplifier reliability even under intense operating conditions. Cooling is managed by efficient fans, and the Soft start function protects the system when switching on, facilitating its use in different environments.
HPA – Hybrid-6C
HPA Hybrid-6C – New technology hybrid power amplifier. Amplifier combining low impedance and 100 V for professional sound reinforcement and installation: 6x 400 W RMS / 8 ohms, 6x 800 W RMS / 4 ohms. Possible use in bridge: 3x 1,500 W under 8 ohms / 100 V. Integrated ventilation and limiter
The HPA Hybrid-6C power amplifier is a high-end audio solution designed for professional environments requiring exceptional power and reliability.
This six-channel Class D hybrid model offers unmatched versatility, adapting perfectly to a variety of sound configurations.
Into 8 ohms, it delivers 6x 400 W RMS, and it can increase to 6x 800 W RMS into 4 ohms and 6x 1,200 W RMS into 2.7 ohms, ensuring powerful performance whatever the need.
For 100 V systems, it provides 6x 200 W RMS, and in 8 ohm / 100 V bridge mode, it reaches 3x 1,500 W RMS, thus meeting the requirements of large-scale installations.
Equipped with the Pascal Audio L-PRO2S amplifier module, the Hybrid-6C ensures exceptional sound quality with a damping factor greater than 350, allowing precise control of the speakers for clear and detailed sound reproduction.
Its input sensitivity of 1 V and its input impedances of 20 kohms balanced and 10 kohms unbalanced guarantee easy compatibility with various audio sources.
With a signal-to-noise ratio of 119 dB and a total harmonic distortion (THD) of only 0.05% at 1 kHz, this amplifier offers faithful sound reproduction without parasitic noise.
Its frequency response of 20 Hz to 20 kHz +/- 0.5 dB covers the entire audible spectrum, ensuring deep bass and crystal clear treble. Connections are simplified thanks to XLR inputs and speakON and Euroblock outputs, allowing for quick and secure installation.
The HPA Hybrid-6C offers three operating modes: stereo, parallel and bridge, providing maximum flexibility for different sound configurations. Built-in electronic, thermal and electrical protections protect the device from overloads and extreme conditions, extending its service life. Cooling is provided by efficient fans, ensuring stable operation even during prolonged use.
With the Soft start function to protect components when switching on and a 100-240 VAC / 50-60 Hz compatible power supply, the Hybrid-6C adapts to international voltage standards, facilitating its use in various professional environments.

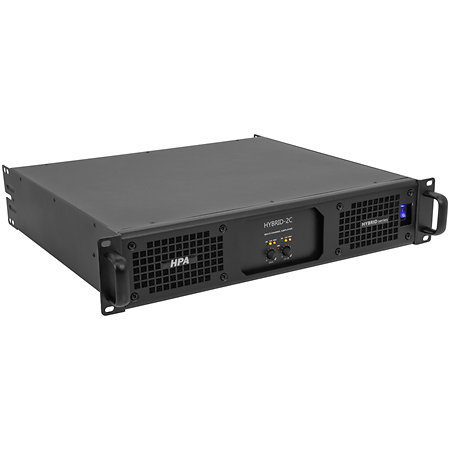

HPA – Hybrid-2C
HPA Hybrid-2C – New technology hybrid power amplifier. Amplifier combining low impedance and 100 V for professional sound reinforcement and installation: 2x 400 W RMS / 8 ohms, 2x 800 W RMS / 4 ohms. Possible use in bridge: 1x 1,500 W under 8 ohms / 100 V. Integrated ventilation and limiter
The HPA Hybrid-2C is positioned as a 2-channel power amplifier using Class D hybrid technology to provide optimal energy efficiency and top-notch sound performance.
This device is specifically designed to deliver substantial power: 400 W RMS per channel into 8 ohms, 800 W RMS into 4 ohms, and up to 1,200 W RMS into 2.7 ohms, as well as 200 W RMS into 100V. In bridge configuration, it offers an impressive power of 1,500 W RMS.
Integrating the Pascal Audio L-PRO2S amplification module, the Hybrid-2C benefits from a damping factor greater than 350, which gives it increased control of the speakers for clear, distortion-free sound reproduction.
With an input sensitivity set at 1 V and input impedance options of 20 kohms balanced and 10 kohms unbalanced, it easily adapts to various audio equipment.
This model stands out for its high signal-to-noise ratio of 119 dB and a very low THD of 0.05% at 1 kHz, ensuring exceptional audio clarity. Its frequency response extends from 20 Hz to 20 kHz, with an accuracy of +/- 0.5 dB, ensuring reproduction fidelity across the entire audible spectrum.
Connections are secured thanks to XLR inputs and speakON and Euroblock outputs, facilitating installation in professional audio configurations. Stereo, parallel and bridge modes provide additional operational flexibility.
Integrated electronic, thermal and electrical protection systems, as well as efficient fan cooling and soft start, enhance the reliability and safety of the amplifier.
HPA – Zoner 25
The HPA Zoner 25 is an ideal mixer-zoner for multi-zone audio installations, offering flexible and precise management with up to 5 zones. Connect two sources per zone, control the level individually and enjoy professional quality thanks to the balanced XLR connectors.
The HPA Zoner 25 is a versatile mixer-zoner designed to efficiently manage multi-zone audio systems. With the ability to manage up to 5 separate zones, this device is ideal for complex installations requiring precise and controlled audio distribution.
Each zone can accommodate up to 2 audio sources, providing unparalleled flexibility to meet various sound needs.
The Zoner 25 allows sources 1 and 2 to be routed to all 5 zones with individual level control, ensuring maximum customization of audio in each zone.
Source 1 and 2 inputs feature balanced L/R XLR connectors, ensuring optimal sound quality and compatibility with professional equipment.
Likewise, the zone outputs are also on balanced L/R XLR connectors, facilitating integration into existing audio systems.
This mixer-zoner features switches to select sources in mono or stereo mode per zone, providing additional flexibility based on the specific needs of each environment.
Visualization LEDs by zone and by source allow rapid and efficient visual monitoring, thus simplifying the management of the entire audio system.
With an input impedance of 47 kohms and an output impedance of 200 ohms, the HPA Zoner 25 guarantees high compatibility and performance.
The maximum gain of +6 dB and the signal-to-noise ratio of 90dB, with a total harmonic distortion (THD) of less than 0.5%, ensure impeccable sound quality.
HPA-D300
HPA D300 – Amplificador de potencia de refuerzo de sonido profesional clase D en gabinete de 1U (44 mm) de altura. 2 x 80W RMS/8 ohmios y 2 x 150W RMS/4 ohmios, pueden puentearse a 1 x 300W RMS/8 ohmios. Enfriamiento por disipadores.
El HPA D300 forma parte de la gama de etapas de potencia clase D Ideales para pequeñas instalaciones o para multiamplificación para la parte de agudos. El hecho de tener refrigeración por convección y no por ventilador permite un silencio total cuando se utiliza para Monitores en Home-Studio o Hifi.
SC-2288FC8 – HPA
Maleta de transporte de aluminio HPA SC-2288FC8 para almacenar y transportar 8 micrófonos de mesa de conferencias SC-2288C/D.
SC-2288D – HPA
Micrófonos de cuello de cisne para delegados alimentados por batería para el sistema de conferencias inalámbrico HPA SC-2288D que utiliza tecnología UHF. Para usar con la base SC-2288R.
Dedicado al sistema de conferencias inalámbrico UHF SC-2288R, el micrófono inalámbrico de cuello de cisne SC-2288C no requiere cableado y se puede mover fácilmente según las necesidades de configuración de la sala de reuniones o conferencias.
El sistema SC-2288 utiliza tecnología de cifrado que garantiza la confidencialidad de los intercambios.
La estación de conferencias SC-2288C/D está equipada con una pantalla LCD que muestra el nivel de la batería, el estado del micrófono (encendido/apagado) y el canal de control.
El micrófono está equipado con 3 teclas de función para establecer la identificación del micrófono, el canal de control y el volumen.
Una luz roja al final del cuello de cisne indica cuando el hablante está hablando.
Todas las estaciones se pueden apagar automáticamente cuando se apaga la unidad de control.
