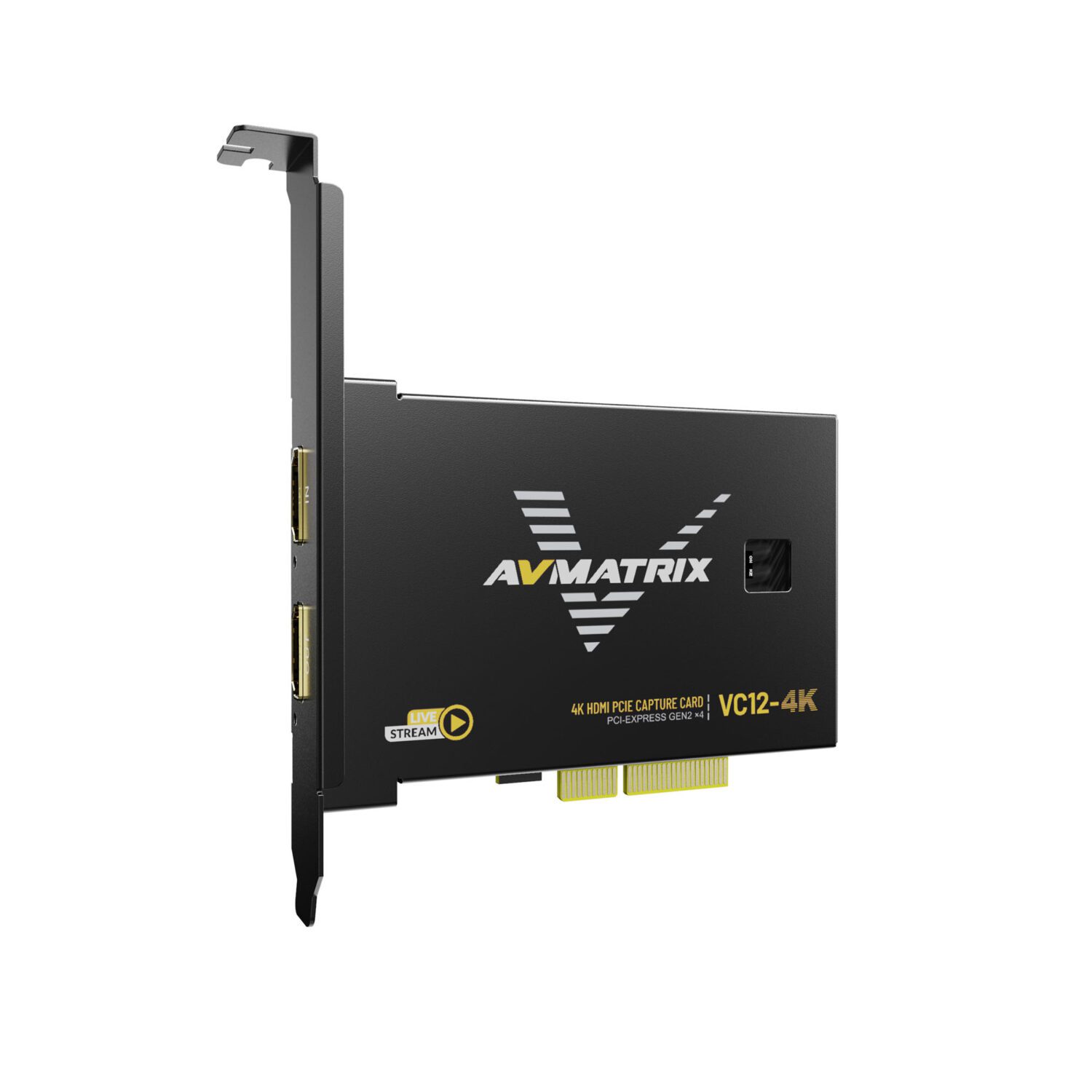

VC12 4K-4K HDMI PCIE Capture Card
VC12-4K
4K HDMI PCIE Capture Card
- 1-channel HDMI 2.0 input loop-out
- Input and capture support up to 4K60 with bit rates up to 800Mbps
- Support YUY2 uncompressed video
- PCIE GEN2×4, 2.5GB/S transfer bandwidth
- Compatible with Windows 7 and above, Linux 18.04 and above
- Compatible with OBS/potplayer/XSplit/vMix and other live recording software
- Stable operation, 24 hours non-stop work
- Support one machine with multiple cards working simultaneously

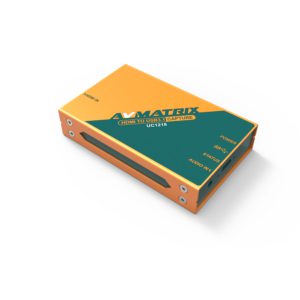

UC1218 – HDMI to USB3.1 Gen1 Capture
UC1218
HDMI to USB3.1 TYPE-C Uncompressed Video Capture
- Plug-and-Play, driver free & power free
- HDMI in, and USB 3.1 Gen1(USB3.0) out
- Automatic input signal detection, up to 1080p60
- Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1
- Comply with UVC video capture and YUY2 video output
- Comply with UAC audio out from HDMI embedded audio or line in
- Compatible with Windows, Linux, macOS
- Compatible with OBS, ZOOM, Teams & Twitch, etc.

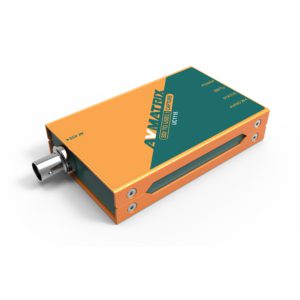

UC1118 – SDI to USB3.1 Gen1 Capture
UC1118
SDI to USB3.1 TYPE-C Uncompressed Video Capture
- Plug-and-Play, driver free & power free
- SDI in, and USB 3.1 Gen1(USB3.0) out
- Automatic input signal detection, up to 1080p60
- Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1
- Comply with UVC video capture and YUY2 video output
- Comply with UAC audio out from SDI embedded audio or line in
- Compatible with Windows, Linux, macOS
- Compatible with OBS, ZOOM, Teams, Twitch, etc.

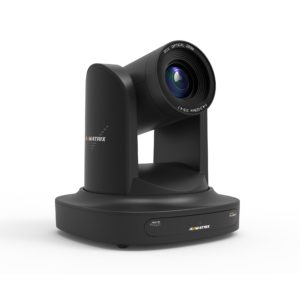

PTZ1271 – Full HD PTZ Camera
PTZ1271
Full HD PTZ Camera
- 1/2.8″ HD CMOS Sensor, 20X/30X Optical Zoom
- HDMI & 3G-SDI Video Output, PoE Power
- RS-232/RS-485 Serial Control, Cascading
- Streaming Protocols: RTSP, RTMP, SRT & NDIHX(optional)
- Control Protocols: Onvif, VISCA over IP, VISCA, PELCO-D/P
- Tripod, Wall & Ceiling Mounting

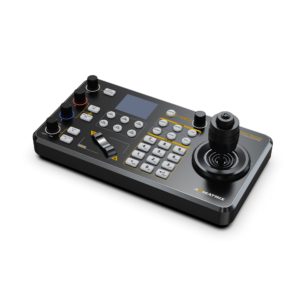

PKC3000 – Professional IP & Serial PTZ Camera Joystick Controller
PKC3000
Professional IP & Serial PTZ Camera Joystick Controller
- Control protocol by VISCA, VISCA-Over-IP, Onvif and Pelco P&D
- Control up to total of 255 IP cameras on a single network
- 6 camera quick call up keys, and 6 user-assignable keys to quickly invoke shortcut functions
- Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed
- Tactile feel with professional rocker/seesaw switch for zoom control
- Automatically search available IP cameras in a network and assign IP addresses easily
- Multi-color key illumination indicator directs operation to specific functions
- Tally GPIO output for indicating the camera be currently controlled
- Metal housing with 2.2 inch LCD display, 4D joystick, 5 rotation button
- Supports both POE and 12V DC power supplies
HVS0401E – Microconmutador de vídeo HDMI/DP de 4 canales
HVS0401E
Microconmutador de vídeo HDMI/DP de 4 canales
- Entradas 1~3: HDMI, Entrada 4: HDMI/DP
- Salidas: HDMI PGM×2, HDMI multiview×1, USB tipo C×1, LAN×1
- Puerto LAN para transmisión y actualización de RTMP
- Disco USB/tarjeta SD para grabación PGM
- USB tipo C para captura de video (UVC)
- Función PIP, tamaño y posición ajustables
- Mezclador de audio: audio integrado MIC/ RCA/ HDMI de 3,5 mm
- Transiciones AUTO/CORTE y efectos MIX/FADE/ WIPE
- Interfaz GPIO para sistema de conteo en vivo
- FTB para situaciones de emergencia
HVS0401U – Microconmutador de vídeo HDMI/DP de 4 canales
HVS0401U
Microconmutador de vídeo HDMI/DP de 4 canales
- Entradas 1~3: HDMI, Entrada 4: HDMI/DP
- Salidas: HDMI PGM×2, HDMI multiview×1, USB tipo C×1, LAN×1
- USB tipo C para captura de video (UVC)
- Función PIP, tamaño y posición ajustables
- Mezclador de audio: audio integrado MIC/ RCA/ HDMI de 3,5 mm
- Transiciones AUTO/CORTE y efectos MIX/FADE/ WIPE
- Interfaz GPIO para sistema de conteo en vivo
- FTB para situaciones de emergencia

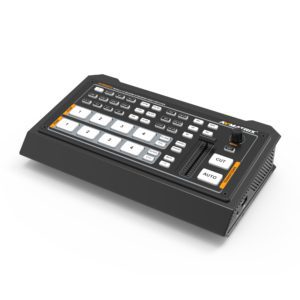

HVS0403U – Micro 4 Channel SDI&HDMI Video Switcher
HVS0403U
Micro 4 Channel SDI&HDMI Video Switcher
- 2×HDMI & 2×3G-SDI inputs, support auto-detected
- 2×HDMI PGM outputs,1×HDMI multiview output, 1×USB type-C output
- All outputs are configurable and assignable
- USB for capturing and streaming on PC or Android phone
- Clearly visible multiview & status page
- Upstream key: Luma key, Chroma key, 2×PIP/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(11×2 patterns)/ MIX/ DIP
- Audio mixer: 2×SDI, 2×HDMI embedded audio and 2×MIC/ line In; audio delay available
- Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
- LAN port for PC software remote control
- FTB/ MUTE/ STILL/ GPIO for tally

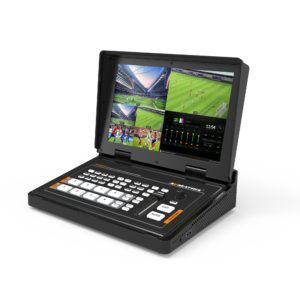

PVS0403U – Portable 10.1 inch 4-CH SDI&HDMI Video Switcher
PVS0403U
Portable 10.1 inch 4-CH SDI&HDMI Video Switcher
- 10.1 inch FHD IPS LCD monitor
- 2×HDMI & 2×3G-SDI inputs, support auto-detected
- 2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
- All outputs are configurable and assignable
- USB for capturing and streaming on PC
- Upstream key: Luma key, Chroma key, PIP×2/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(11×2 patterns)/ MIX/
- DIP
- Audio mixer: 2×SDI, 2×HDMI embedded audio and 2×MIC/line In; audio delay available
- Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
- LAN port for PC software remote control
- FTB/ MUTE/ STILL/ GPIO for tally
PKC3000 PTZ Camera Controller
PKC3000
Professional IP & Serial PTZ Camera Joystick Controller
PKC3000 Network Keyboard Controller from AVMATRIX provides IP-based control for up to 255 PTZ cameras.
This 4D joystick and keyboard unit offers two IP modes and two serial modes with RS-232/422/485 communication.
- Control protocol by VISCA, VISCA-Over-IP, Onvif and Pelco P&D
- Control up to total of 255 IP cameras on a single network
- 6 camera quick call up keys, and 6 user-assignable keys to quickly invoke shortcut functions
- Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed
- Tactile feel with professional rocker/seesaw switch for zoom control
- Automatically search available IP cameras in a network and assign IP addresses easily
- Multi-color key illumination indicator directs operation to specific functions
- Tally GPIO output for indicating the camera be currently controlled
- Metal housing with 2.2 inch LCD display, 4D joystick, 5 rotation button
- Supports both POE and 12V DC power supplies
PTZ1271 – Full HD Steaming PTZ Camera
PTZ1271
Full HD PTZ Camera
- 1/2.8″ HD CMOS Sensor, 20X/30X Optical Zoom
- HDMI & 3G-SDI Video Output, PoE Power
- RS-232/RS-485 Serial Control, Cascading
- Streaming Protocols: RTSP, RTMP, SRT & NDIHX(optional)
- Control Protocols: Onvif, VISCA over IP, VISCA, PELCO-D/P
- Tripod, Wall & Ceiling Mounting
HVS0402U – 4CH HDMI Streaming Switcher
HVS0402U
HDMI MICRO 4 CHANNEL VIDEO SWITCHER WITH LIVE STREAMING
- 4-channel auto-sensing HDMI inputs
- 1 × HDMI PGM output, 1 × HDMI multiview output, 1 × USB Type-C output
- Configurable and assignable AUX output
- USB-C to capture and transmit to PC
- Status page and multi-view clearly visible
- Upstream key: luminance key, chroma key, PIP × 2 / POP
- Downward key and LOGO overlay
- T-bar / Auto / Cut transitions; various effects: WIPE (9 × 2 patterns) / MIX / DIP
- Audio mixer: integrated HDMI audio and 2-channel line / mic input; audio delay available
- Media library: 49 preset patterns, 16 imported images, 16 captured images, 2 color generators
- LAN port for remote control by PC software
- FTB / MUTE / STILL / GPIO for tally
- Import and export of client configuration
VS0601U – Mini 6CH Streaming Switcher
6-channel SDI / HDMI multi-format mini stream switcher
- Uncompressed capture for live broadcasting, UVC and UAC compliant
- 6-channel inputs: 4 × SDI and 2 × HDMI
- 1 × USB Type-C output, 2 × SDI outputs and 1 × HDMI PGM, 1 × SDI and 1 × HDMI multi-view outputs
- 1 × AUX SDI output, can be selected as PGM or PVW
- Multi-format input automatically detected and PGM outputs format selectable
- T-Bar / AUTO / CUT transitions
- Mix / Fade / Wipe transition effects
- Adjustable PIP mode size and position
- Supports audio MIXING and AFV mode
- GPIO for Tally, FTB for emergencies
PVS0613U – Portable 6CH Streaming Switcher
PVS0613U
Portable 6CH SDI/HDMI Multi-format Streaming Switcher
- Uncompressed capture for live streaming, comply with UVC & UAC
- 13.3 inch FHD IPS LCD monitor
- 6 channel inputs:4×SDI & 2×HDMI
- 1×USB type-C out, 2×SDI & 1×HDMI PGM out, 1×SDI & 1×HDMI multiview out
- 1×SDI AUX output, can be selected as PGM or PVW
- Multi-format input auto-detected and PGM outputs format selectable
- T-Bar/ AUTO/ CUT transitions & Mix/ Fade/ Wipe transition effects
- PIP mode size and position adjustable
- Support audio MIXING and AFV mode
- GPIO for Tally, FTB for emergency
VS0605U – 6CH Streaming Switcher
VS0605U
6CH SDI/HDMI Multi-format Streaming Switcher
- Uncompressed capture for live streaming, comply with UVC & UAC
- 6 channel inputs: 4×SDI and 2×DVI-I/ HDMI/ VGA/ USB player
- 3×SDI/ HDMI PGM outputs, 1×SDI AUX output, 2×SDI/ HDMI multiview outputs
- T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
- Luma Key/ Chroma Key for virtual studio
- Record PGM video to SD card, up to 1080p60
- Remote PTZ camera control: Visca & Pelco D/P protocols
- PiP & PoP mode size and position is adjustable
- Audio mixer: XLR/ RCA audio & SDI/ HDMI/ USB embedded audio
- Tally port for multiple camera system
