Description

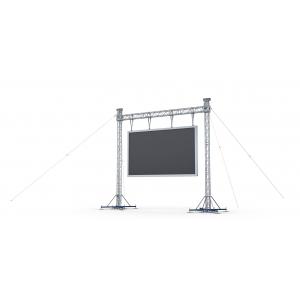

The versatile MT1 Tower is the professional’s choice for rigging projects within the entertainment and event industries. Your outdoor stages and concert stages will benefit from the use of the M1. Call or e-mail us today for more information or to receive a quote.

Description

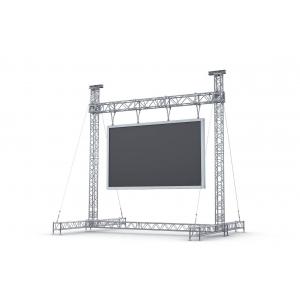

The MT2 Tower is designed to work together with the Quick-TrussR M400 and M520 Systems for a large variety of concert stages and other types of outdoor stages. It is also a basic unit of Milos MR3 Roof Systems.

Call or e-mail us today for more information or to receive a quote.

Description

Designed to handle the largest events and applications, the MT3 Rigging Tower is for those who require the maximum loading and free-span specifications. No matter how large or demanding your event, the MT3 will be a strong partner for your outdoor stage needs. Call or e-mail us today for more information or to receive a quote.

Thanks to the fact that the MILOS MT-ICON PA Tower’s Base is made of durable STEEL MT-ICON Base, it boasts unwavering robustness, high strength and stability, which can be further enhanced by adding the MT-Icon Base Steel Outrigger for a larger footprint.
The erecting helper makes it easy to assemble. Part of the Steel MT-ICON Base is a platform on which Ballast can be placed as an IBC tank or concrete blocks. This ensures that the ballast is part of the base and is permanently active.
The base has practical attachment points for wire ropes, manual chain hoist, electric motors and tower erector attachment points.
When building on uneven terrain, spindles will help you to level the base and thus get the whole bond to a perfectly horizontal position.
Available in three versions:

MT-ICON-PA5040 with a height of up to 5m, loading capacity 400Kg and assembled from M290 Truss.
MT-ICON-PA8080 with a height of up to 8m, loading capacity 800Kg and assembled from M390 Heavy duty Truss
MT-ICON-PA100100 with a height of up to 10m, loading capacity 1000Kg and assembled from M520 Truss.

The S-MT-Q-PA- Steel PA Tower provides unbelievably large loading capacities for flying PA Systems at your monstrous events. Special ultra high-strength steel alloys allow truss sections to handle an average of 2.5x more loading at just double the weight compared to aluminium systems with the same dimensions and under the same deflection.

A single tower can safely fly up to 2,500kg without the need for guy wires and little to no ballast (up to 2t) due to the self-weight of the tower (70kg/metre). And thanks to its extreme stability, secured structures can withstand wind loadings of up to 28m/second.

Size and weight capacities:
Front face of PA: 10 m2
Side face of PA: 5m2 max.
Loading capacity: 2,500 kg

The S-MT-Q – Steel Tower is constructed with special, ultra high-strength steel alloy truss sections that allow it to handle an average of 2.5x more loading at just double the weight compared to aluminium systems with the same dimensions and under the same deflection.

When used as 20 m high, free-standing tower integrated in S-MT-Q-01 Base, the load capacity is up to 50 960 kg or when used with a Locking Unit of to 45 333 kg

When used as a 20m high tower in a guy-wire braced ground support, the load capacity is up to 70 189 kg, or reduced to 45 333 kg when used with a sleeve block and locking unit configuration.
