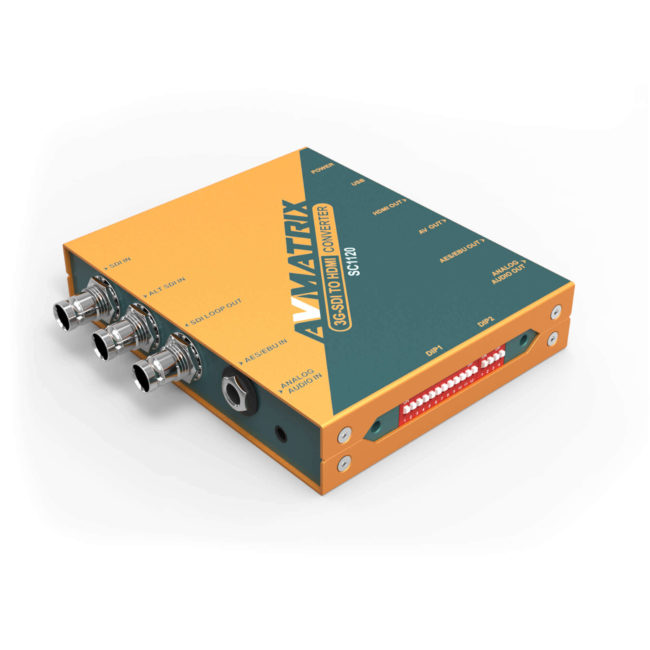

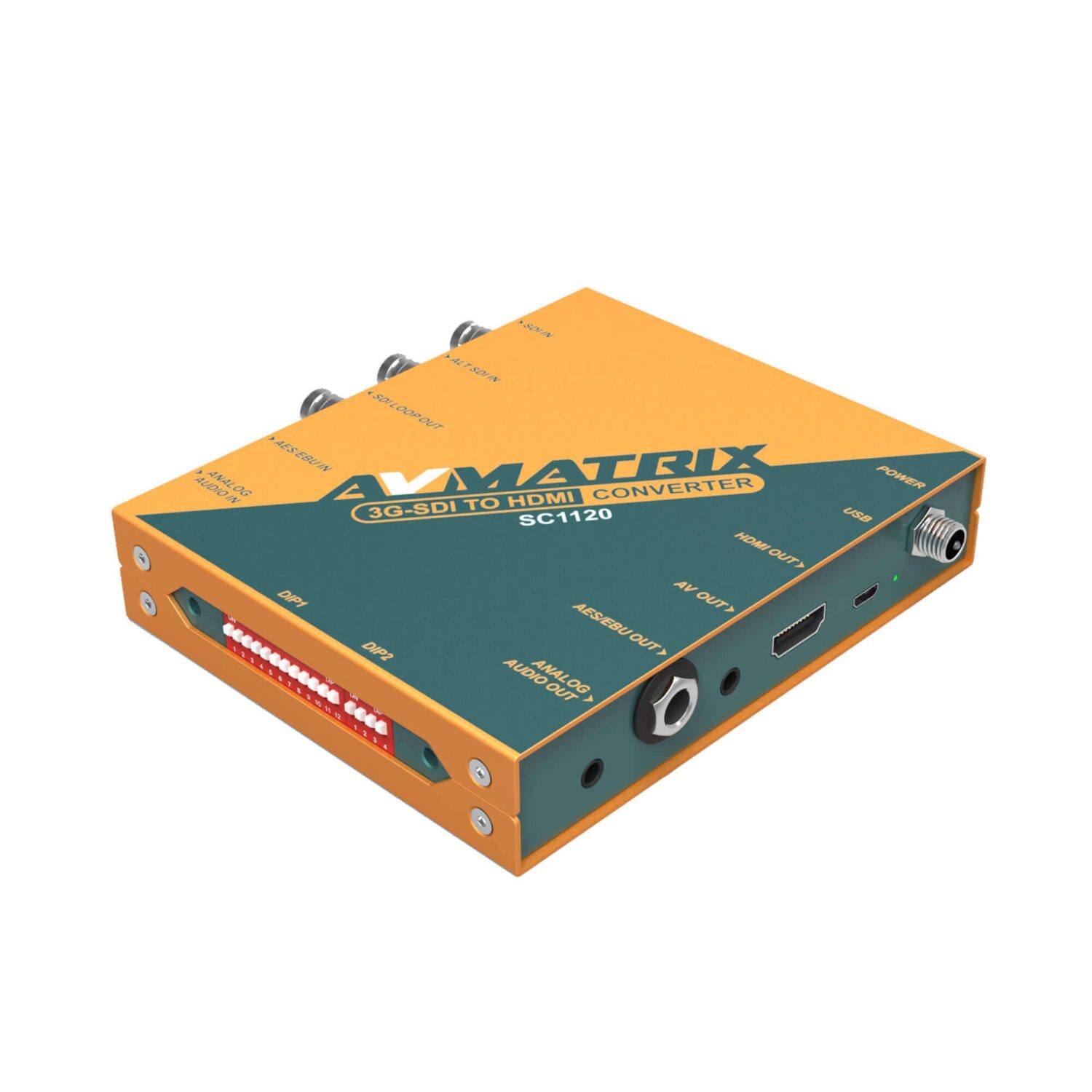

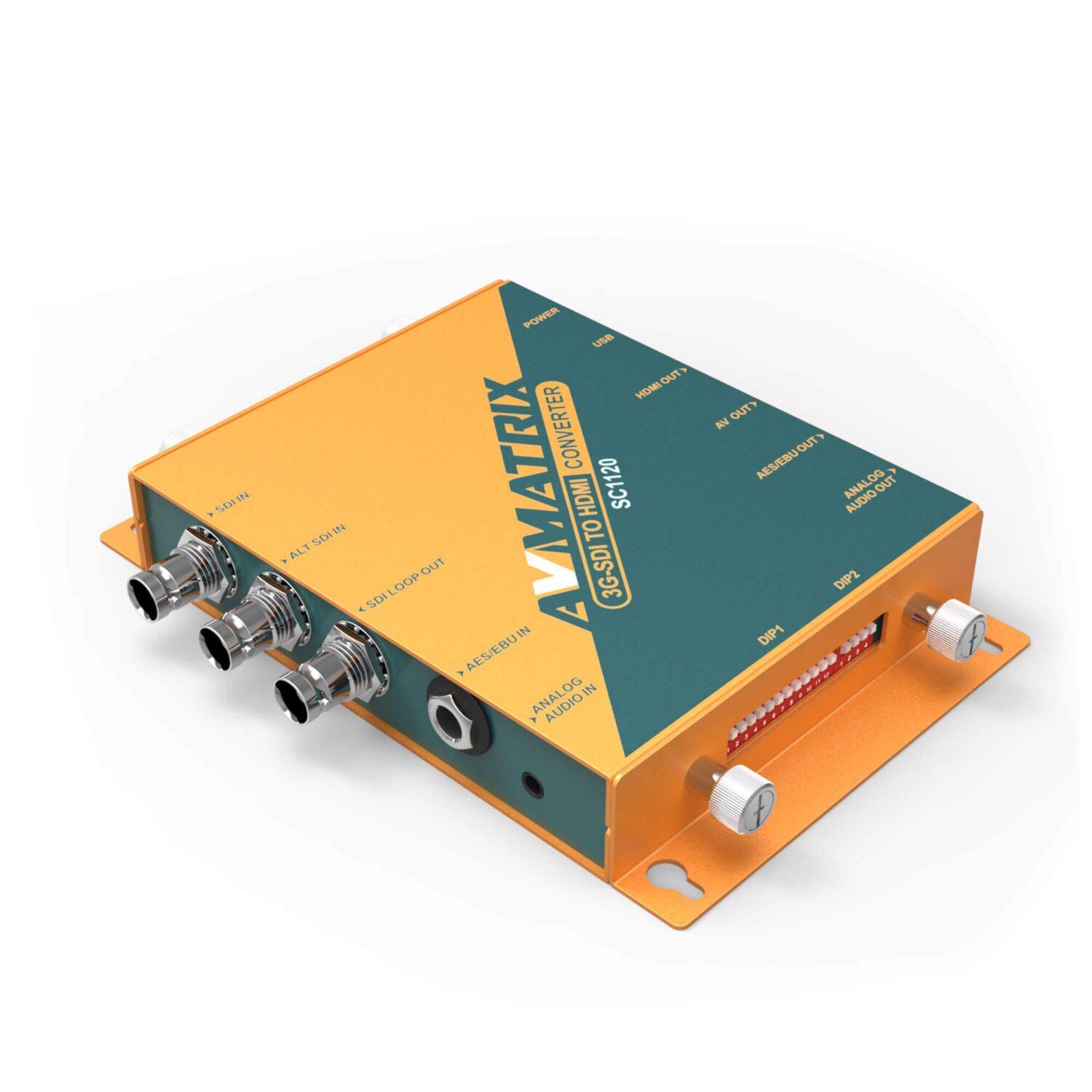

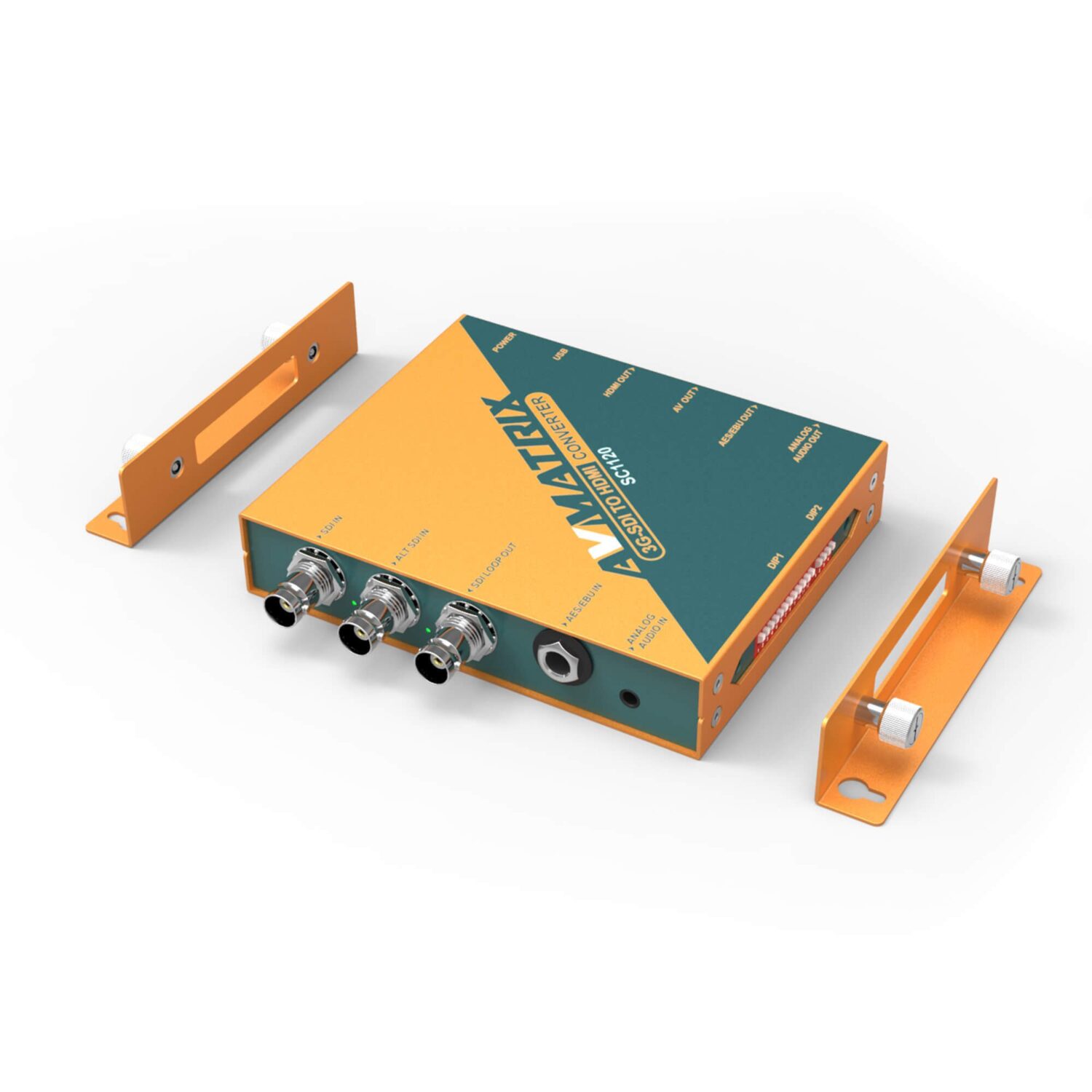

SC1120 – SDI to HDMI Scaling Converter

SC1120

3G-SDI to HDMI & AV Scaling Converter

SC1120 is an exquisite and professional SDI converter to convert SDI signal to HDMI and AV signals at the same time. The format of the output can realize pass through or up/down scaling and frame rate conversion. De-interlacing function and seamless conversion can also be supported to avoid jitter. It also features AES/EBU or analog audio embedding and de-embedding. All the functions can be easily set by a built-in DIP switchers or PC via USB. SC1120 is your ideal choice for broadcasting and AV post production applications.

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    INPUT

    SDI Video Input SD/HD/3G-SDI x1
    AES/EBU Digital Audio Input SD/HD/3G-SDI x Alt 3D-SDI x1
    Analog Audio Input 1/8″ (3.5mm) jack x1

    OUTPUT

    HDMI Video Output HDMI type A x1
    AV Output 1/8″  (3.5mm)  Jack  x1
    SDI Video Loop Output SD/HD/3G-SDI  x1
    AES/EBU Digital Audio Output 1/4″ (6.35mm) TRS jack x1
    Analog Audio Output 1/8″ (3.5mm) jack x1

    FORMATS

    SDI Input Format Support 1080p 60/59.94/50/30/29. 97 /25/24/23.98
    1080Psf 30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p  60/59.94/50/30/29.97/25/24/23.98
    625i  50,  525i  59.94
    SDI  Video  Rate SD/HD/3G-SDI
    SDI  Compliance SMPTE 292M/SMPTE 259M/SMPTE 424M
    SDI  Color Space and Precision YUV  4:2:2
    SDI Auto Switching Auto selects SD, HD and 3G-SDI on input
    HDMI Output Format Support 1080p 60/50/30/25/24
    1080i 60/50
    720p  60/50/30/25/24
    576i 50, 480i 60
    HDMI  Input Color Space  and  Precision RGB 4:4:4,  YUV 4:2:2,  YUV 4:4:4
    AV Output Format Support NTCS, PAL

    SIZE

    Dimension (LWD) 125.5mm x 104mm x 24.5mm
    Weight 465g

    POWER

    Power Connector Threaded locking connector
    Power Consumption 6W
    Voltage Range DC 12V

    ENVIRONMENT

    Operating Temperature  -20ºC ~ 60ºC
    Storage temperature  -30ºC ~ 70ºC
    Relative Humidity  0% ~ 90% non-condensing
