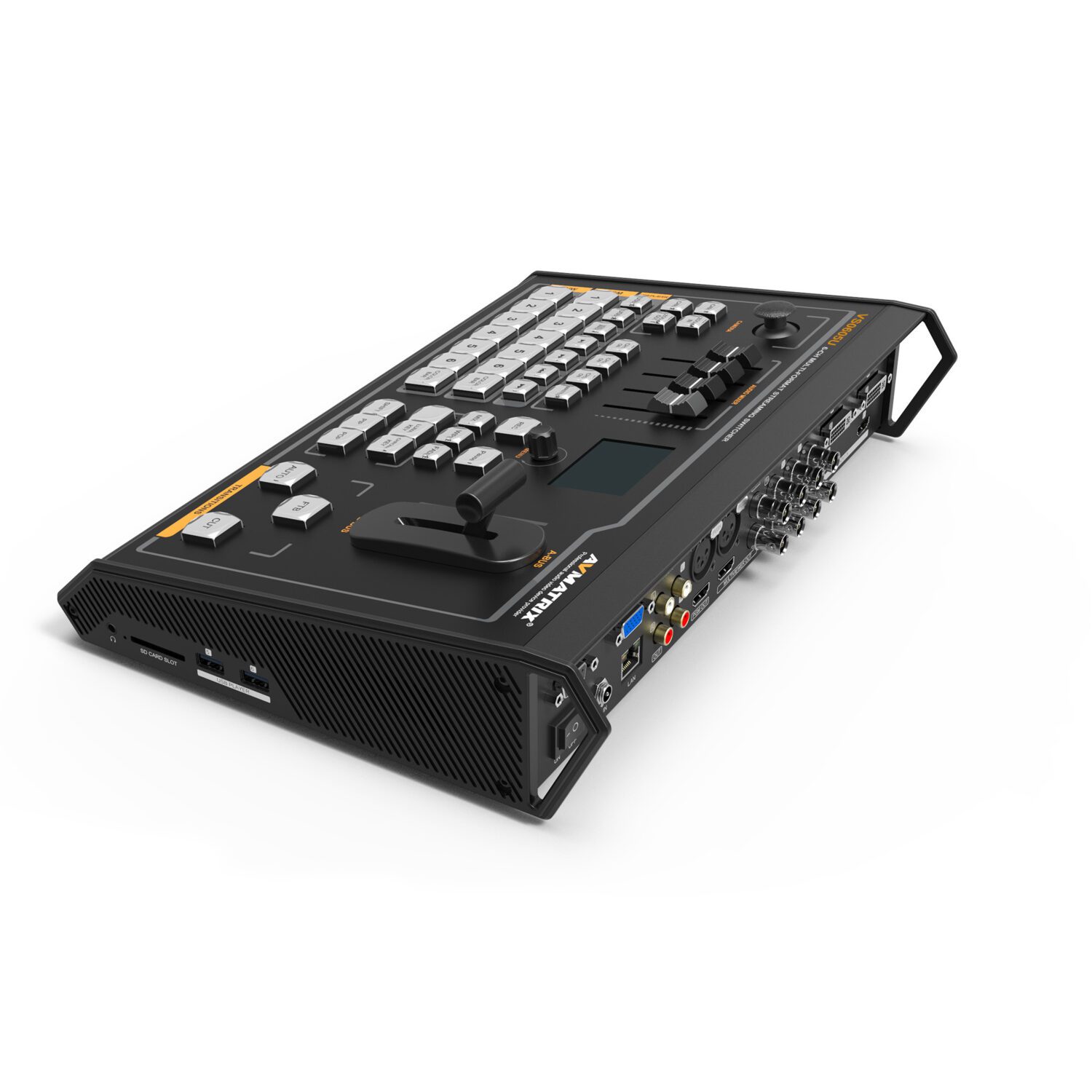

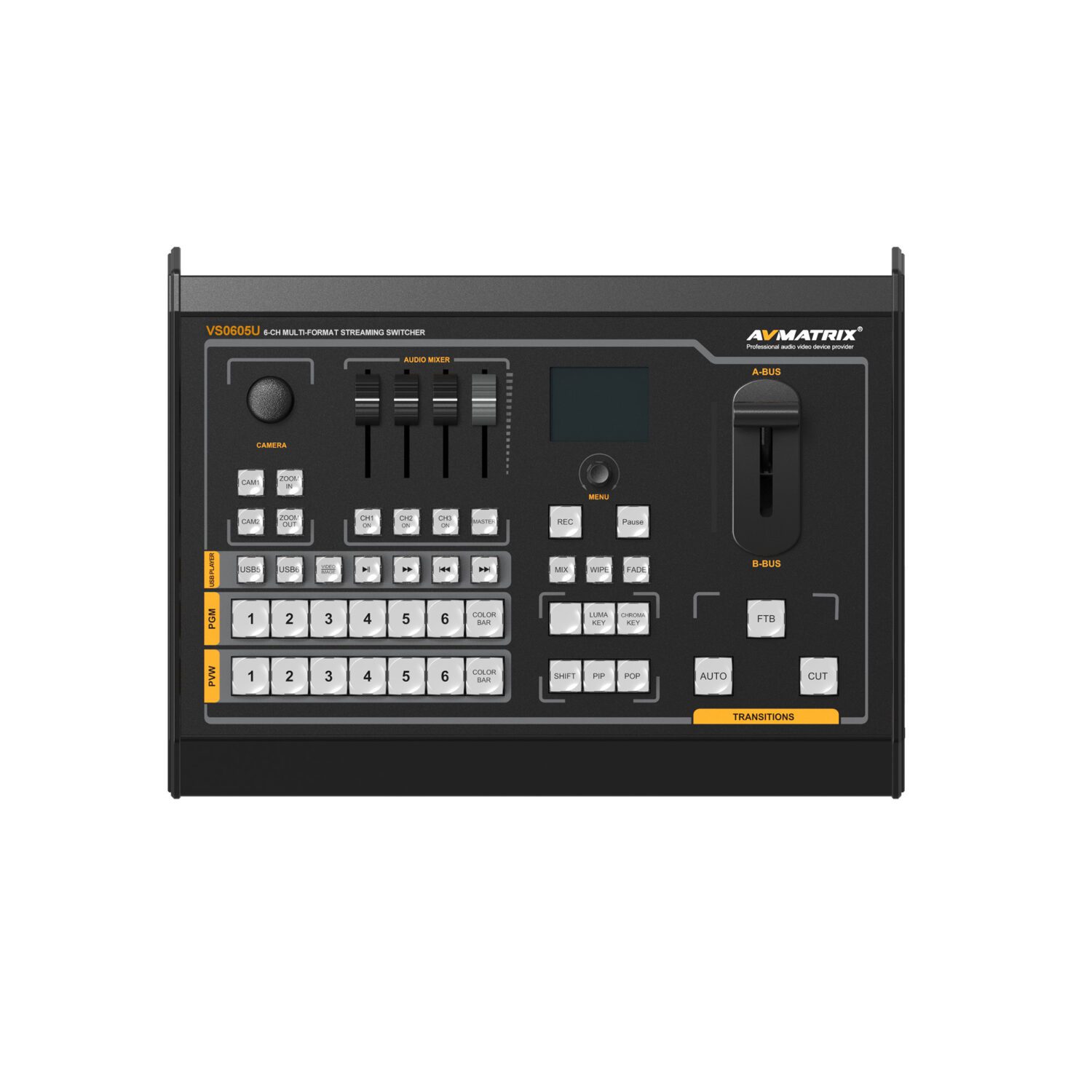

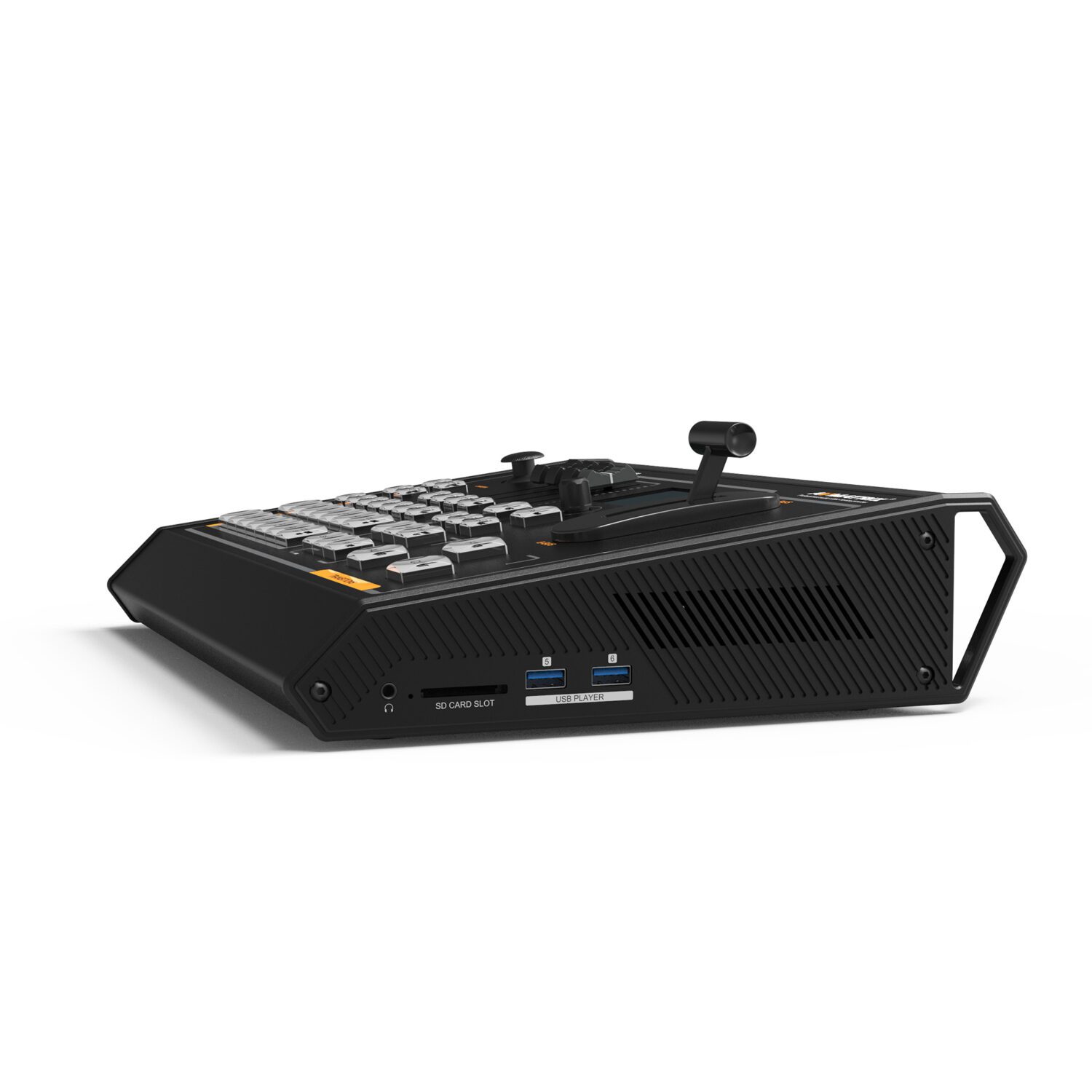

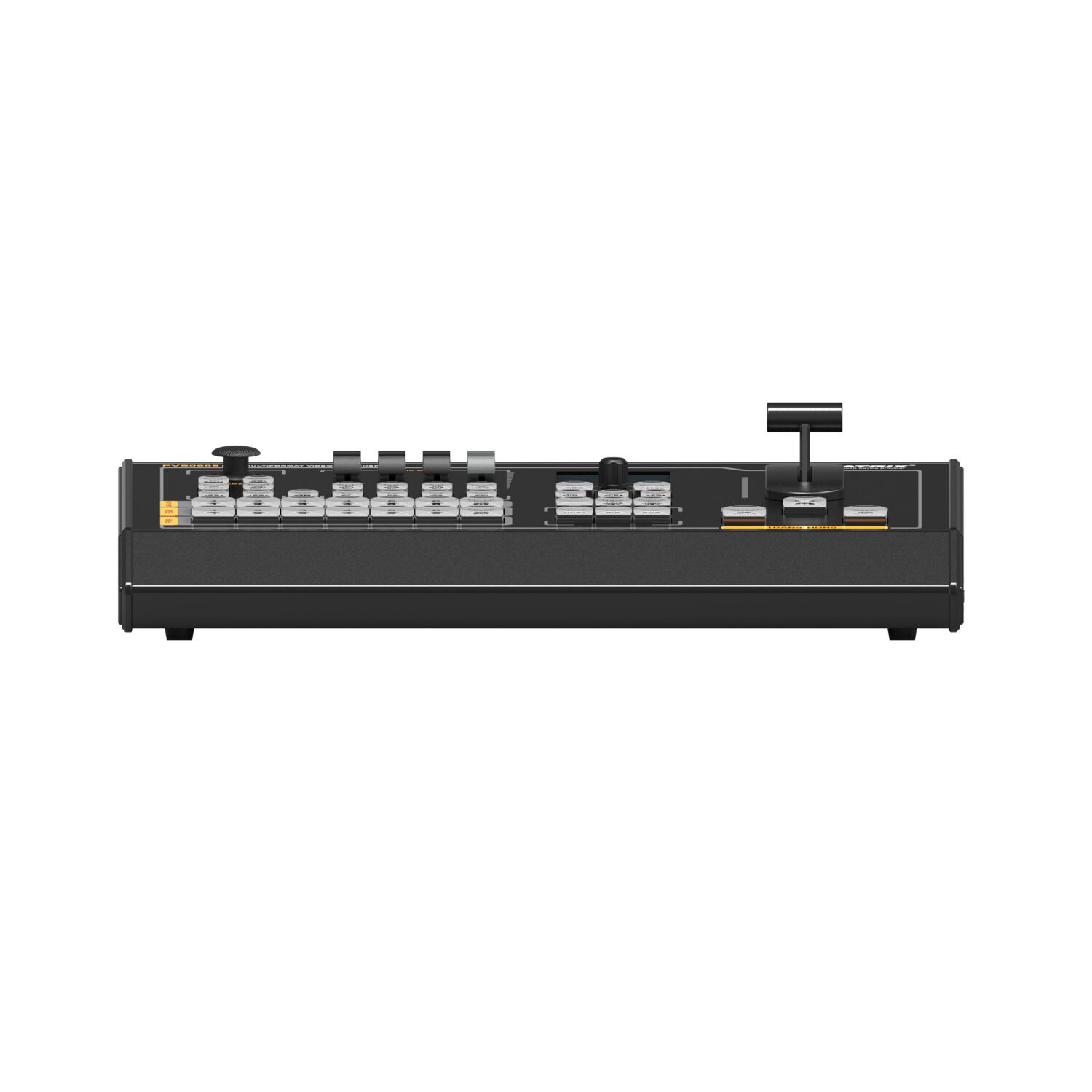

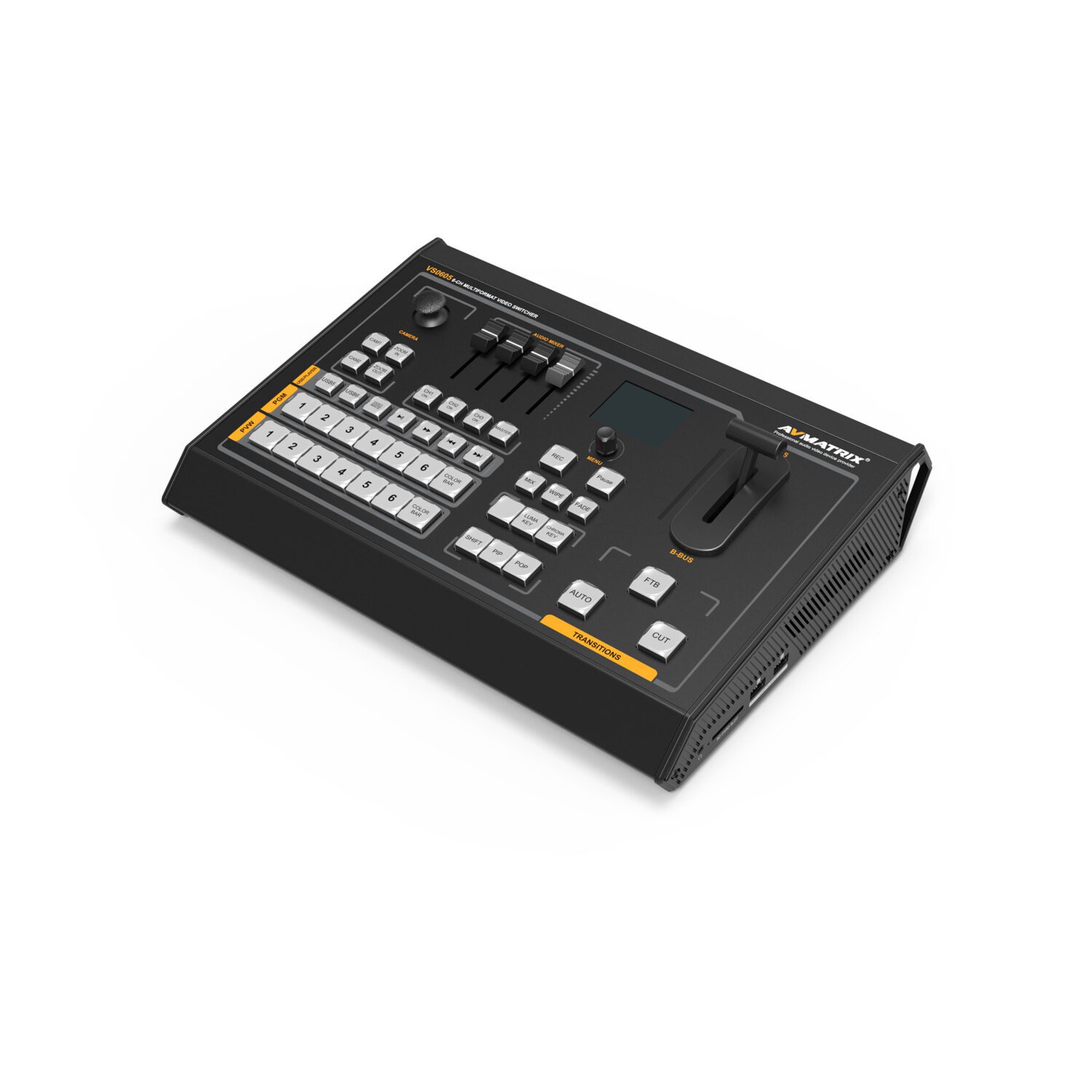

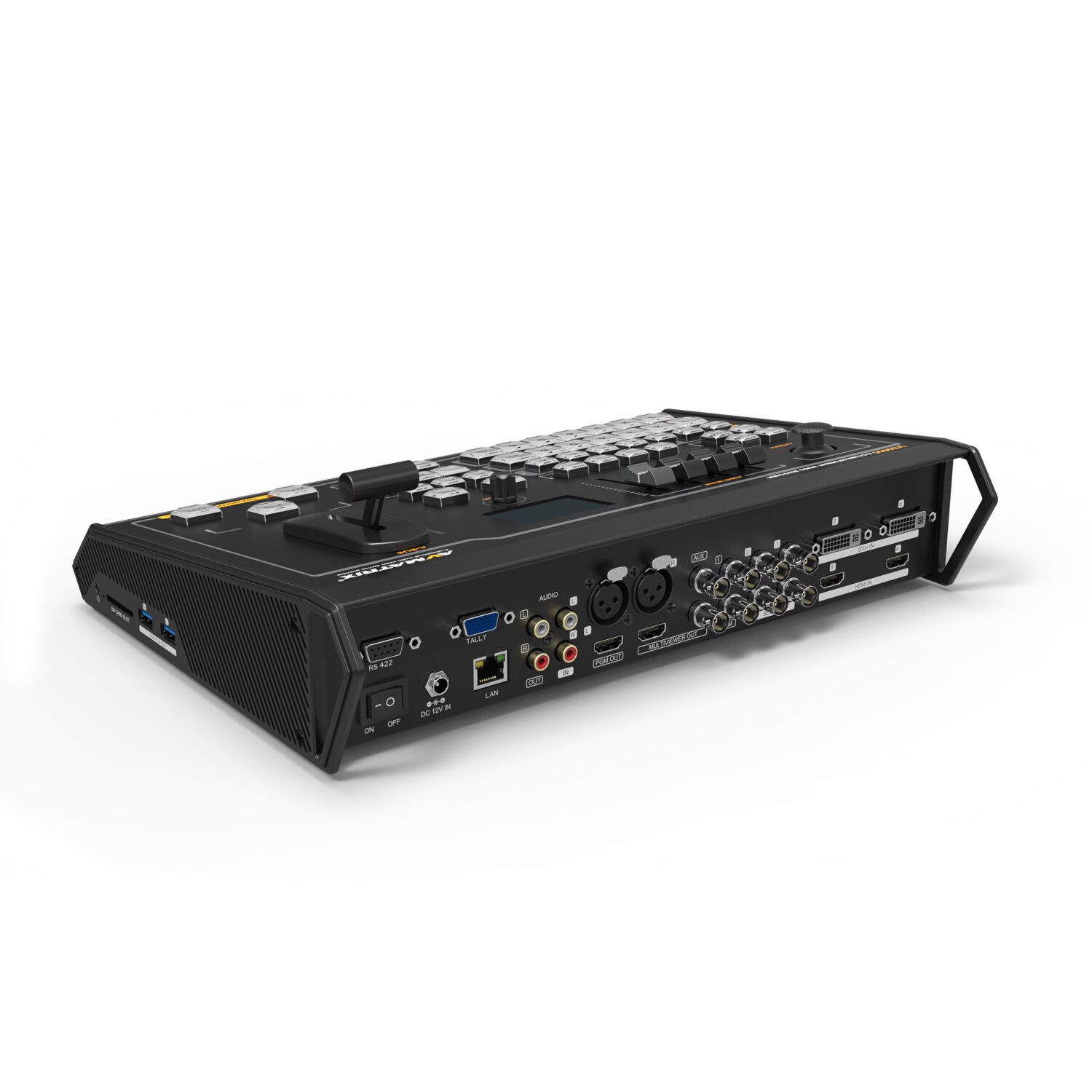

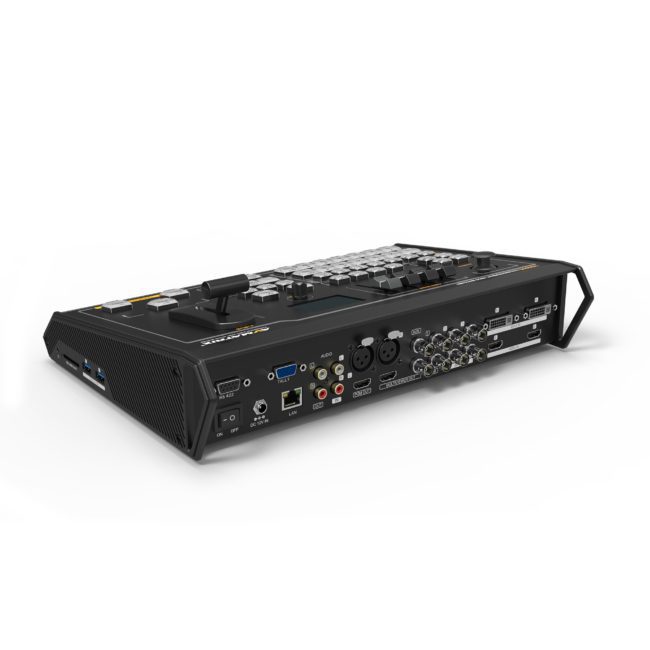

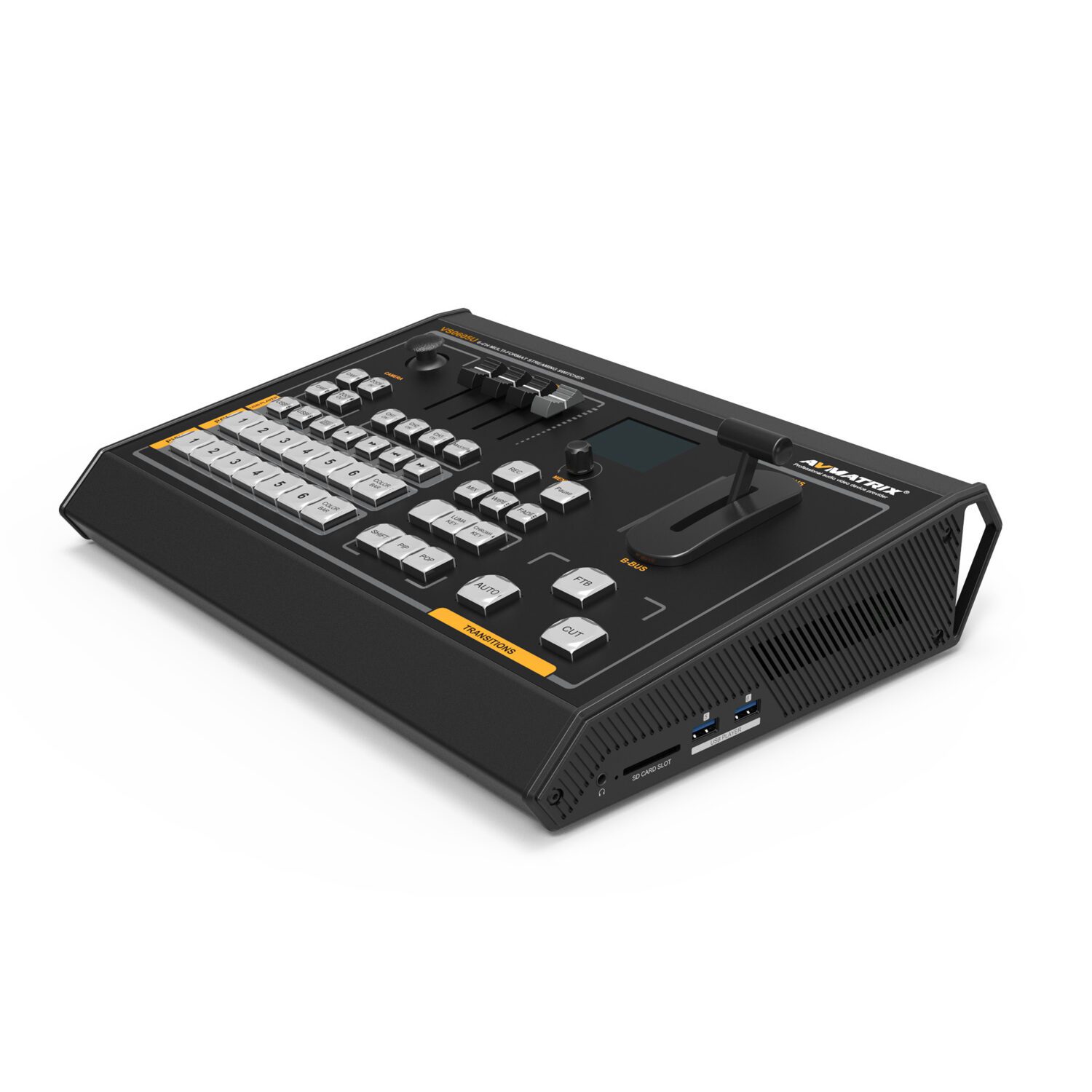

VS0605U – 6CH Streaming Switcher

VS0605U

6CH SDI/HDMI Multi-format Streaming Switcher

  • Uncompressed capture for live streaming, comply with UVC & UAC
  • 6 channel inputs: 4×SDI and 2×DVI-I/ HDMI/ VGA/ USB player
  • 3×SDI/ HDMI PGM outputs, 1×SDI AUX output, 2×SDI/ HDMI multiview outputs
  • T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
  • Luma Key/ Chroma Key for virtual studio
  • Record PGM video to SD card, up to 1080p60
  • Remote PTZ camera control: Visca & Pelco D/P protocols
  • PiP & PoP mode size and position is adjustable
  • Audio mixer: XLR/ RCA audio & SDI/ HDMI/ USB embedded audio
  • Tally port for multiple camera system

    Consultar precios

    Descripción

    Inputs Video Inputs 4×SDI, 2×HDMI/DVI-I/VGA/USB
    Bit Rate 270Mbps~3Gbps
    SDI Input Format 1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50/30/29.97/25/24/23.98 625i 50 PAL, 525i 59.94 NTSC
    HDMI Input Format 4K 60/50/30, 2K 60/50/30
    1080p 60/59.94/50/30/29.97/25/24/23.98/23.976 1080i 50/59.94/60
    720p 60/59.94/50/30/29.97/25/24/23.98
    576i 50, 576p 50, 480i 60, 480p 60
    DVI-I/ VGA Input Format 1920×1080 60Hz/ 1680×1050 60Hz/ 1600×1200 60Hz/ 1600×900 60Hz/ 1440×900 60Hz/ 1366×768 60Hz/
    1360×768 60Hz/ 1 280×1024 60Hz/ 1280×960 60Hz/ 1280×800 60Hz/
    1280×768 60Hz/ 1280×720 60Hz/
    1152×864 60Hz/ 1024×768 60Hz/
    640×480 60Hz
    SDI Video Rate Auto detection, SD/HD/3G-SDI
    SDI Compliance SMPTE 259M/ SMPTE 292M/ SMPTE 424M
    Color Space and Precision SDI: YUV 4:2:2;
    HDMI: RGB 444; YUV 444; YUV 422
    USB Output USB interface 1×USB3.0 Type-C (USB3.1 Gen1, up to 200MB/s)
    Output Format 1920×1200, 1920×1080, 1680×1050, 1440×900, 1368×768,1280×1024, 1280×960, 1280×800, 1280×720, 1024×768, 1024×576, 960×540, 856×480, 800×600, 768×576, 720×576, 720×480, 640×480, 640×360
    Frame Rate Up to 60fps
    Supports OS Windows 7/8/10, Linux (Kernel version 2.6.38 and
    above), Mac OS (10.8 and above)
    Software compatibility OBS studio, Skype, ZOOM, Teams, Google Meet, Youtube Live, QuikcTime Player, Face time, Wirecast, CAMTASIA, Ecamm.live, Twitch.tv, etc. (Windows) etc.
    Outputs PGM Outputs 2×HD/3G-SDI; 1×HDMI
    AUX Output 1×HD/3G-SDI
    PGM Output Format 1080p 50/60/30/25/24
    1080i 50/60
    Multiview Output 1×3G-SDI; 1×HDMI Type A
    Multiview Output Format 1080p 60
    Return Loss >15dB 5MHz~3GHz
    Signal Amplitude 800mV±10% (SDI/HDMI/DVI-I/VGA)
    Impedance SDI: 75Ω; HDMI: 100Ω
    DC Offset 0V±0.5V
    Audio & Others Audio Input 1×3.5mm Stereo audio; 1×RCA(L/R)
    Audio Output 1×3.5mm Stereo audio; 1×RCA(L/R)
    LAN R1×J34.55mm Earphone×1, 100Ω
    SD Card Slot 1
    Power DC 12V In, 1.7A
    Consumption ≤20W
    Operation Temperature  -20ºC ~ 60 ºC
    Storage Temperature  -30ºC ~ 70 ºC
    Operation Humidity  20% ~ 70% RH
    Storage Humidity 0% ~ 90% RH
    Dimension 322.4×19.7×57.8cm
    Weight Net Weight: 1.9kg, Gross Weight: 3.7kg
    Warranty 2 Year Limited
    Accesories Accesories 1×Power Supply (DC12V 5A), 1× USB A-C cable, 1×RS422 Connector, 1×User Manual
