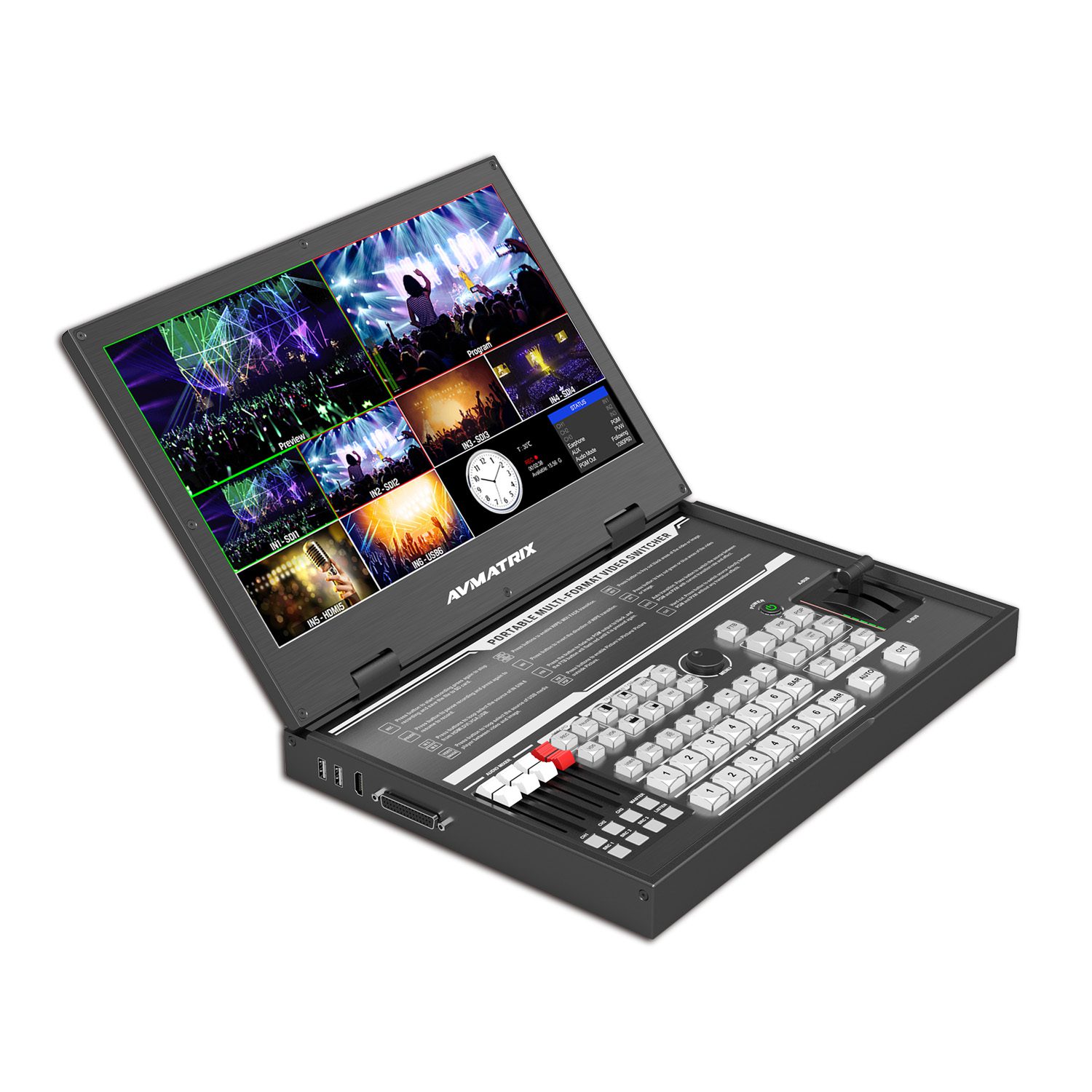

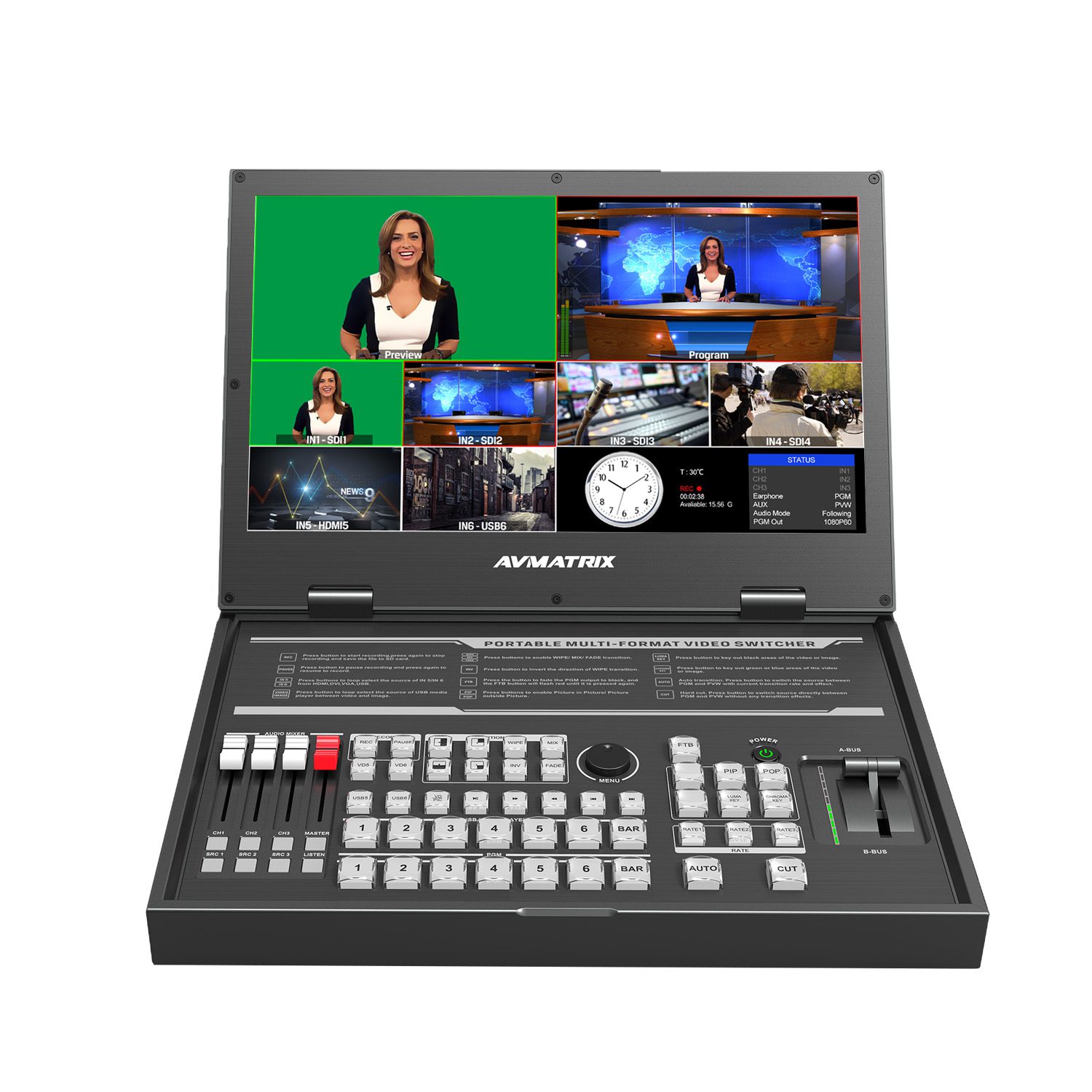

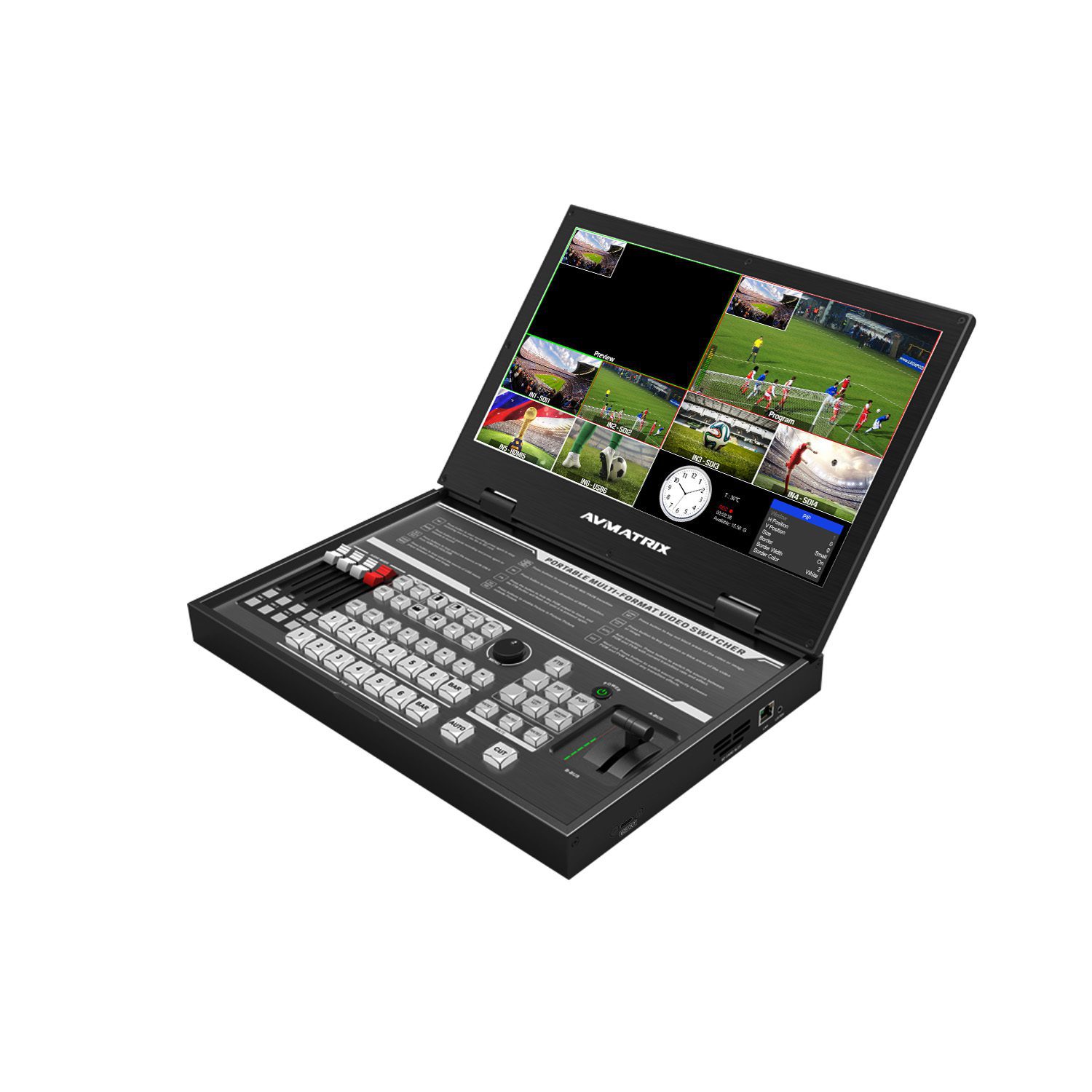

PVS0615U – Portable 6CH Streaming Switcher

PVS0615U

Portable 6CH SDI/HDMI Multi-format Streaming Switcher

  • Uncompressed capture for live streaming, comply with UVC & UAC
  • Portable All-In-One design with 15.6 inch FHD LCD display for multiview
  • 6 channel inputs: 4×SDI and 2×HDMI/ DVI-I/ VGA/ USB
  • 1×USB type-C out, 3×SDI PGM/ AUX out
  • 2×HDMI PGM & 1×HDMI multiview out
  • Multiformat input auto-detected and PGM/AUX output format selectable
  • T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
  • Luma Key/ Chroma Key/ Recordder/
  • Audio mixer: TRS audio & SDI, HDMI, USB embedded audio

    Consultar disponibilidad




      Consultar precios

      Descripción

      LCD Display Size 15.6 inch
      Resolution 1920×1080
      Inputs Video Inputs 4×3G/HD/SD-SDI, 2×HDMI/DVI/VGA/USB
      Bit Rate 270Mbps ~ 3Gbps
      Impedance 75Ω (SDI/VGA), 100Ω (HDMI/DVI)
      SDI Input Format 1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98
      1080i 60/59.94/50
      720p 60/59.94/50/30/29.97/25/24/23.98 625i 50 PAL, 525i 59.94 NTSC
      HDMI Input Format 4K 60/50/30, 2K 60/50/30
      1080p 60/59.94/50/30/29.97/25/24/23.98/23.976 1080i 50/59.94/60
      720p 60/59.94/50/30/29.97/25/24/23.98
      576i 50, 576p 50, 480i 60, 480p 60
      VGA/DVI Input Format 1920×1080 60Hz/ 1680×1050 60Hz/ 1600×1200 60Hz/ 1600×900 60Hz/ 1440×900 60Hz/ 1366×768 60Hz/
      1360×768 60Hz/ 1 280×1024 60Hz/ 1280×960 60Hz/ 1280×800 60Hz/
      1280×768 60Hz/ 1280×720 60Hz/
      1152×864 60Hz/ 1024×768 60Hz/
      640×480 60Hz
      SDI Video Rate Auto detection, SD/HD/3G-SDI
      SDI Compliance SMPTE 259M/ SMPTE 292M/ SMPTE 424M
      Color Space and Precision SDI: YUV 4:2:2;
      HDMI: RGB 444; YUV 444; YUV 422
      Outputs PGM Outputs 3×3G/HD/SD-SDI; 2×HDMI
      PGM Output Format 1080p 50/60/30/25/24
      1080i 50/60
      Multiview Output 1×HDMI
      Multiview Output Format 1080p 60
      Return Loss >15dB 5MHz~3GHz
      Signal Amplitude 800mV±10% (SDI/HDMI/DVI/VGA)
      Impedance SDI: 75Ω; HDMI: 100Ω
      DC Offset 0V±0.5V
      USB Output USB interface 1×USB3.0 Type-C (USB3.1 Gen1, up to 200MB/s)
      Output Format 1920×1200, 1920×1080, 1680×1050, 1440×900, 1368×768,1280×1024, 1280×960, 1280×800, 1280×720, 1024×768, 1024×576, 960×540, 856×480, 800×600, 768×576, 720×576, 720×480, 640×480, 640×360
      Frame Rate Up to 60fps
      Supports OS Windows 7/8/10, Linux (Kernel version 2.6.38 and
      above), Mac OS (10.8 and above)
      Software compatibility OBS studio, Skype, ZOOM, Teams, Google Meet, Youtube Live, QuikcTime Player, Face time, Wirecast, CAMTASIA, Ecamm.live, Twitch.tv, etc. (Windows) etc.
      Audio Audio Input  1×TRS(L/R), 50 Ω
      Audio Output 1×TRS(L/R), 50 Ω; 3.5mm Earphone×1, 100 Ω
      Others LAN RJ45
      SD Card Slot 1
      Power DC 12V, 2.75A
      Consumption <33W
      Operation Temperature  -20ºC ~ 60 ºC
      Storage Temperature  -30ºC ~ 70 ºC
      Operation Humidity  20% ~ 70% RH
      Storage Humidity 0% ~ 90% RH
      Dimension 375×271.5×43.7mm
      Weight 3.8Kg
      Warranty 2 Year Limited
      Accesories Accesories 1×Power Supply (DC12V 5A) 1×User Manual
      1×USB Type-C Cable
