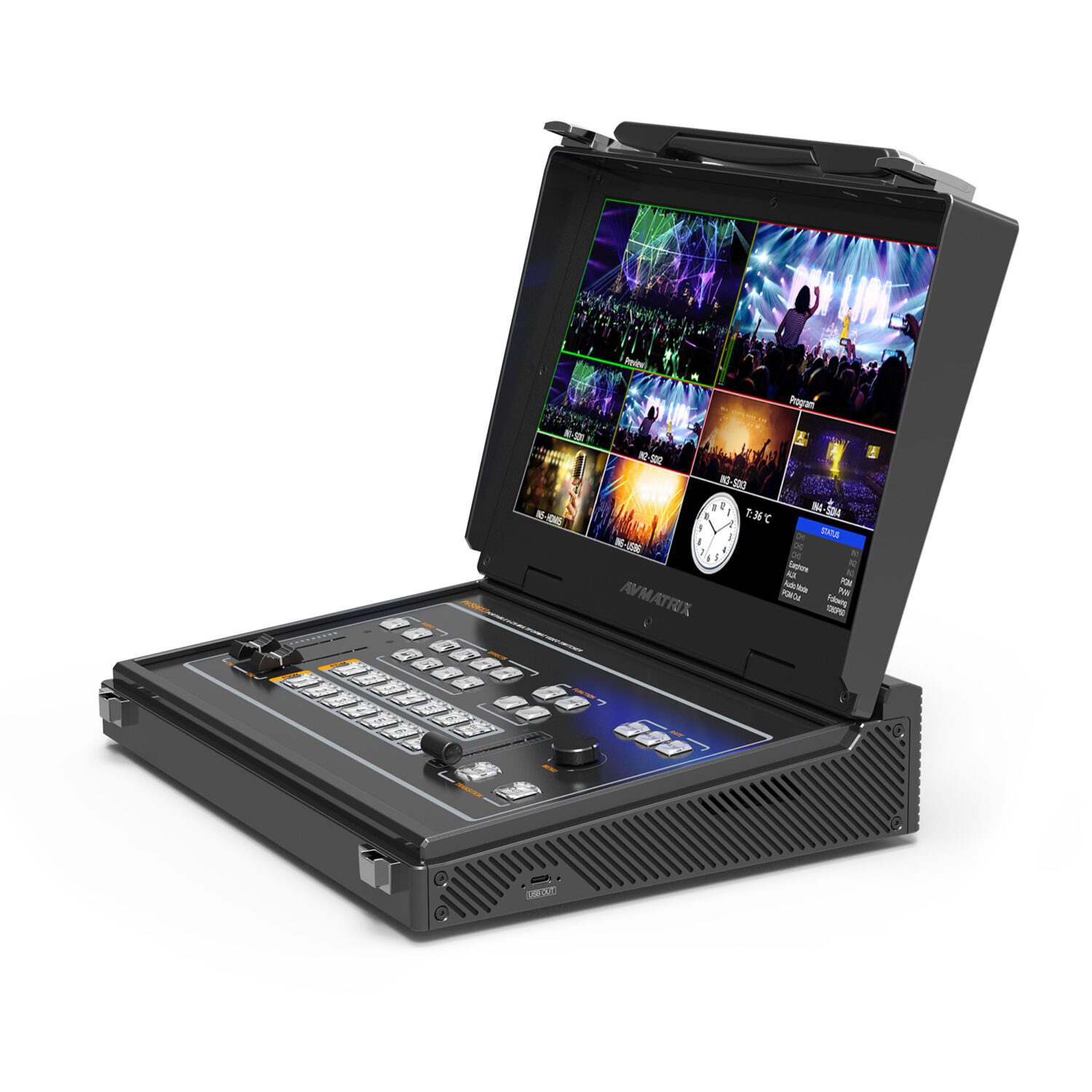

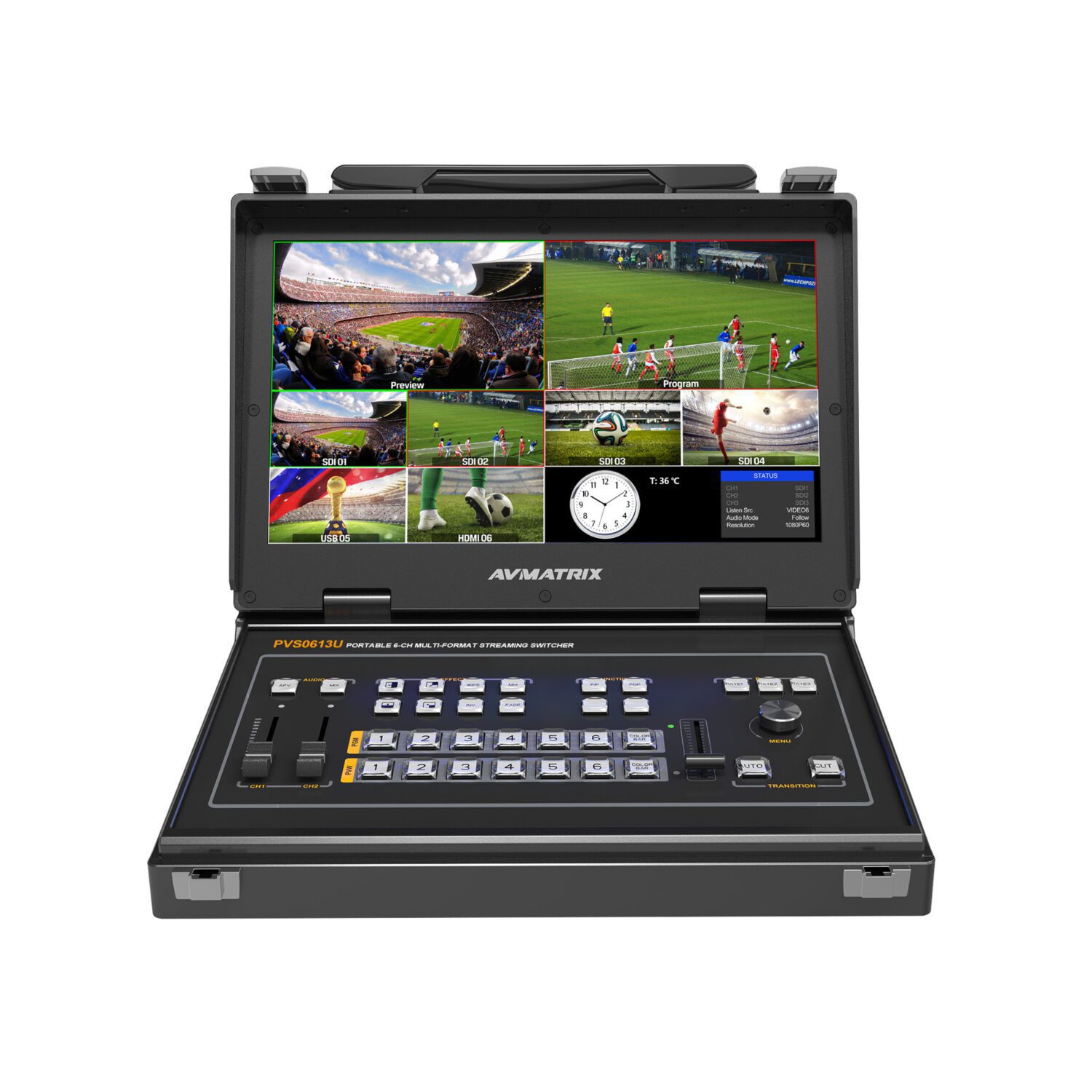

PVS0613U – Portable 6CH Streaming Switcher

PVS0613U

Portable 6CH SDI/HDMI Multi-format Streaming Switcher

  • Uncompressed capture for live streaming, comply with UVC & UAC
  • 13.3 inch FHD IPS LCD monitor
  • 6 channel inputs:4×SDI & 2×HDMI

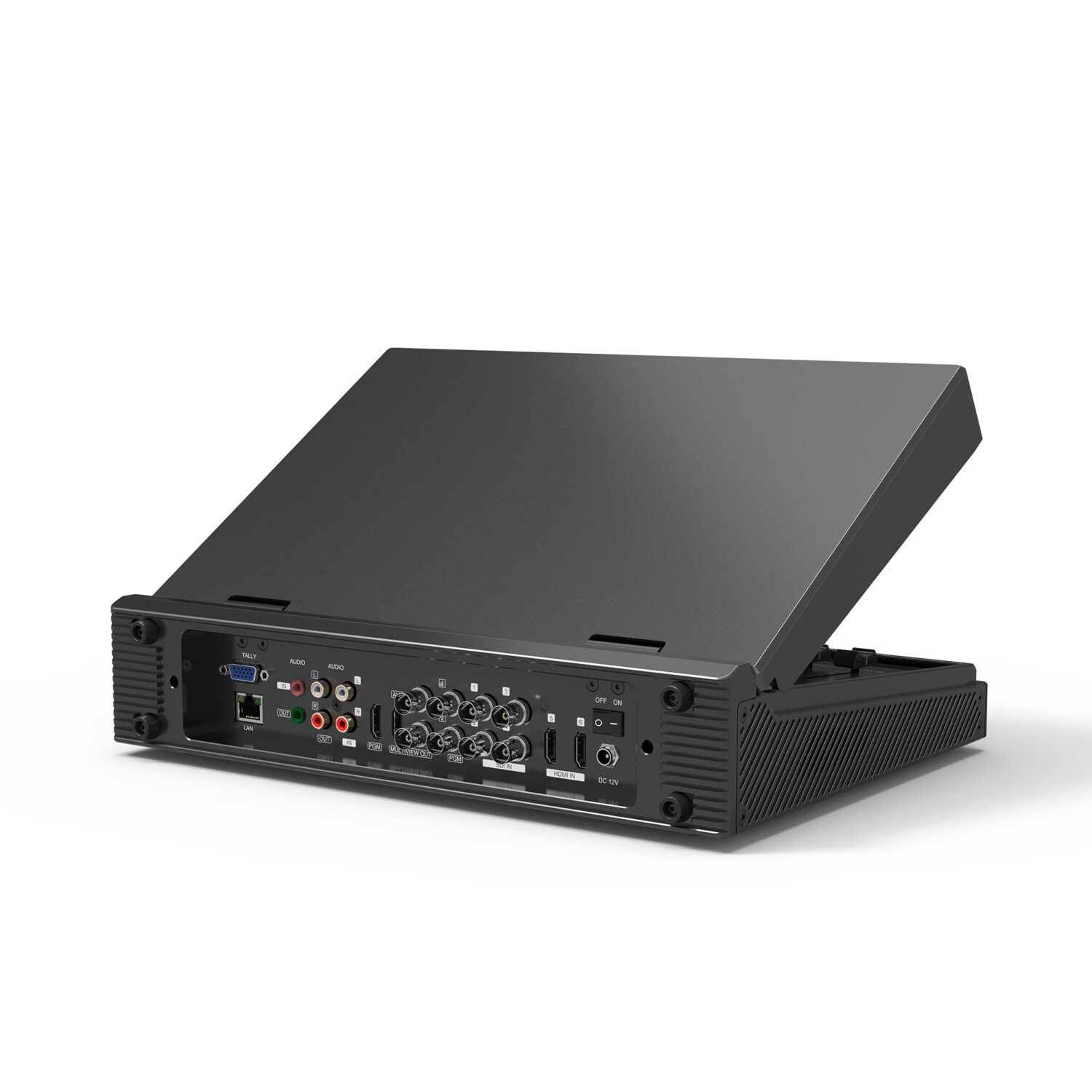

  • 1×USB type-C out, 2×SDI & 1×HDMI PGM out, 1×SDI & 1×HDMI multiview out
  • 1×SDI AUX output, can be selected as PGM or PVW
  • Multi-format input auto-detected and PGM outputs format selectable
  • T-Bar/ AUTO/ CUT transitions & Mix/ Fade/ Wipe transition effects
  • PIP mode size and position adjustable
  • Support audio MIXING and AFV mode
  • GPIO for Tally, FTB for emergency

    Consultar precios

    Descripción

    LCD Display Size 13.3 inch
    Resolution 1920×1080
    Inputs Video Inputs 4×3G/HD/SD-SDI, 2×HDMI
    SDI Input Format 1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50/30/29.97/25/24/23.98
    HDMI Input Format 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976 1080i 50/59.94/60
    720p 60/59.94/50/30/29.97/25/24/23.98
    576i 50, 576p 50
    SDI Video Rate Automatic detection, SD/HD/3G-SDI
    SDI Compliance SMPTE 259M/ SMPTE 292M/ SMPTE 424M
    Color Space and Precision SDI: YUV 4:2:2, 10-bit;
    HDMI: RGB 444 8/10/12bit; YUV 444 8/10/12bit; YUV 422 8/10/12bit
    Outputs PGM Outputs 2×3G/HD/SD-SDI; 1×HDMI Type A
    PGM Output Format 1080p 60/50/30/25/24; 1080i 50/60
    Multiview Output 1×3G-SDI; 1×HDMI Type A
    Multiview Output Format 1080p 60
    USB CAM
    Output
    USB interface 1×USB Type-C USB 3.1 Gen1(up to 200MB/s)
    Output Format 1920×1200, 1920×1080, 1680×1050, 1600×1200, 1440×900, 1368×768,1280×1024, 1280×960, 1280×800, 1280×720, 1024×768, 1024×576, 960×540,856×480, 800×600, 768×576, 720×576, 720×480, 640×480, 640×360
    Supports OS Windows 7/8/10, Linux (Kernel version 2.6.38 and
    above), Mac OS (10.8 and above)
    Software compatibility OBS studio, Skype, ZOOM, Teams, Google Meet, Youtube Live, QuikcTime Player, Face time, Wirecast, CAMTASIA, Ecamm.live, Twitch.tv, etc. (Windows) etc.
    Audio Audio Input 1×3.5mm Stereo audio; 1×RCA(L/R)
    Audio Output 1×3.5mm Stereo audio; 1×RCA(L/R)
    Others GPIO Tally
    LAN RJ45
    Power DC 12V, 2A
    Consumption ≤ 25W
    Operation Temperature  -20ºC ~ 60ºC
    Storage Temperature  -30ºC ~ 70ºC
    Operation Humidity 20%~70%RH
    Dimension 330×243.5×67mm
    Weight 4kg
    Warranty 2-Year Limited
    Accesories Accesories 1×Power Supply (DC12V 3A), 1×USB3.0 Cable Type-C to Type-A
