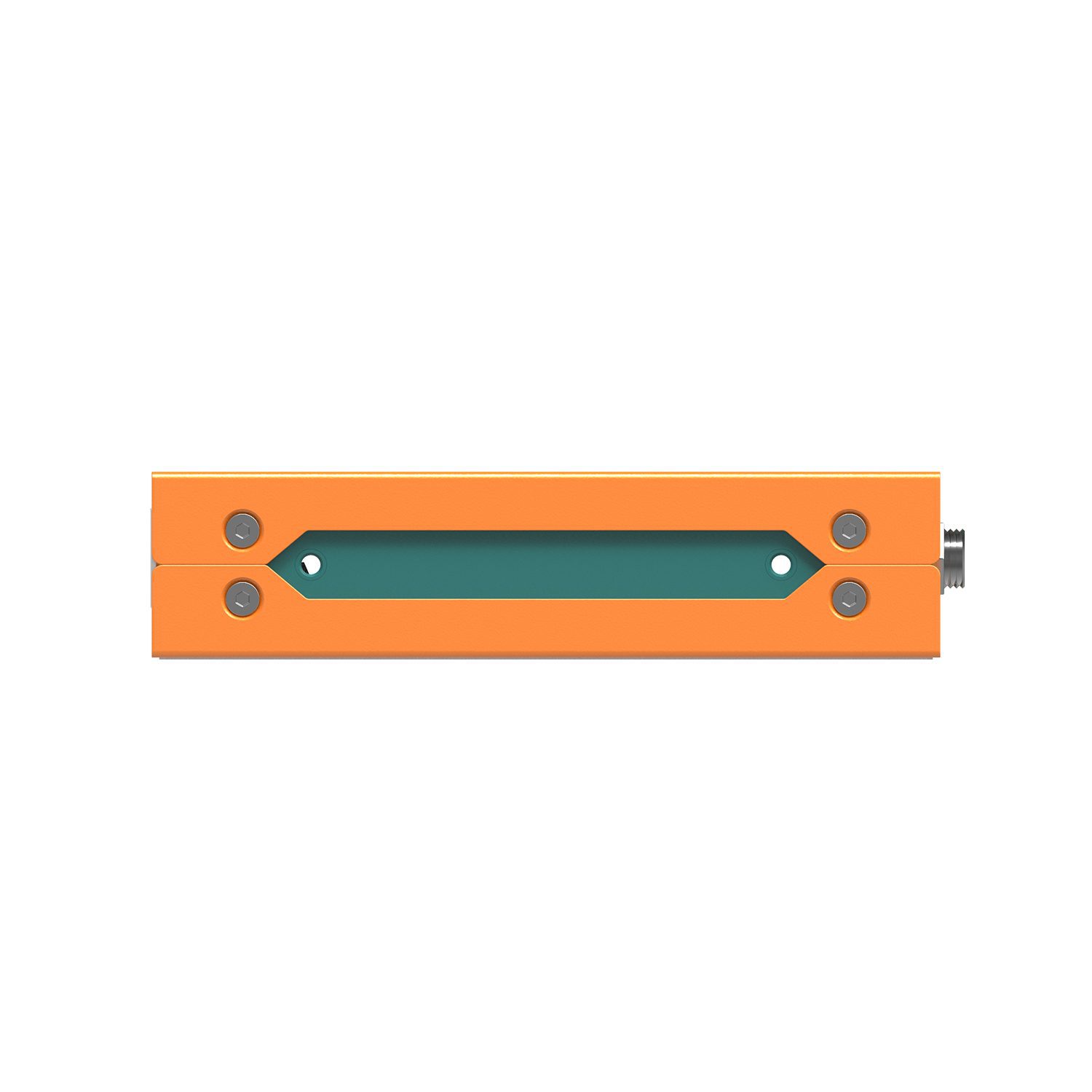

SE1217 – H.265/264 Streaming Encoder

SE1217

H.265/ H.264 HDMI STREAMING ENCODER

  • 1×HDMI input, 1×HDMI loop out, 1×Analog audio input
  • Supports H.265/ H.264 stream encode protocol, up to 1080p60hz
  • Dual-stream (main stream and sub stream)
  • RTSP, RTP, RTMPS, RTMP, HTTP, UDP, SRT, unicast and multicast
  • Video and audio streaming or single audio streaming
  • Image and text overlay
  • Mirror image & upside-down image
  • Live stream with no need for connecting a computer

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    CONNECTIONS

    Video Input HDMI Type A ×1
    Video Loop Out HDMI Type A ×1
    Analog Audio In 3.5mm(line in)×1
    Network RJ-45×1(100/1000Mbps self-adaptive Ethernet)

    STANDARD

    HDMI In Format Support 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976, 1080i 50/59.94/60,
    720p 60/59.94/50/30/29.97/25/24/23.98,
    576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60
    Video Coding H.265/ H.264
    Video Bitrate 16Kbps ~ 12MKbps
    Audio Coding ACC/ MP3/ MP2/ G711
    Audio Bitrate 24Kbps ~ 320Kbps
    Encoding Resolution 1920×1080, 1680×1056, 1280×720, 1024×576, 960×540, 850×480, 720×576, 720×540, 720×480, 720×404, 720×400, 704×576, 640×480, 640×360
    Encoding Frame Rate 5-60fps

    SYSTEMS

    Network Protocols HTTP, RTSP, RTMP, RTP, UDP, Multicast, Unicast, SRT
    Configuration Management Web configuration, Remote upgrade

    OTHERS

    Consumption 5W
    Temperature Working temp: -0ºC ~ 40ºC, Storage temp: -20ºC ~ 70ºC
    Dimension (LWD) 104×75.5×24.5mm
    Weight Net weight: 310g, Gross weight: 690g
    Accessories 12V 2A power supply; Mounting bracket for optional
