ROLLING LED Display

LED Rolling Screen

Características principales

  • Pitch disponibles: P1.2/1.5/1.9/2.6/3.9mm
  • Cada pantalla LED ROLL de tamaño estándar: W750×H1500mm
  • Módulo ultrafino y ligero: Pantalla de sólo 11 kg/m², 10 mm de grosor
  • Embalaje rápido, fácil de transportar: Una pantalla de 10 metros cuadrados sólo necesita un espacio de embalaje de 0,7CBM
Video destacado

    Consultar precios

    Descripción

    LED ROLLING SCREEN

    Características principales

    • Pitch disponibles: P1.2/1.5/1.9/2.6/3.9mm
    • Cada pantalla LED ROLL de tamaño estándar: W750×H1500mm
    • Módulo ultrafino y ligero: Pantalla de sólo 11 kg/m², 10 mm de grosor
    • Embalaje rápido, fácil de transportar: Una pantalla de 10 metros cuadrados sólo necesita un espacio de embalaje de 0,7CBM

    Multiuso 1: Póster LED

    • La pantalla enrollable se puede utilizar para el cartel LED, la diferencia entre éste y el cartel normal es que se puede recoger y transportar fácilmente.

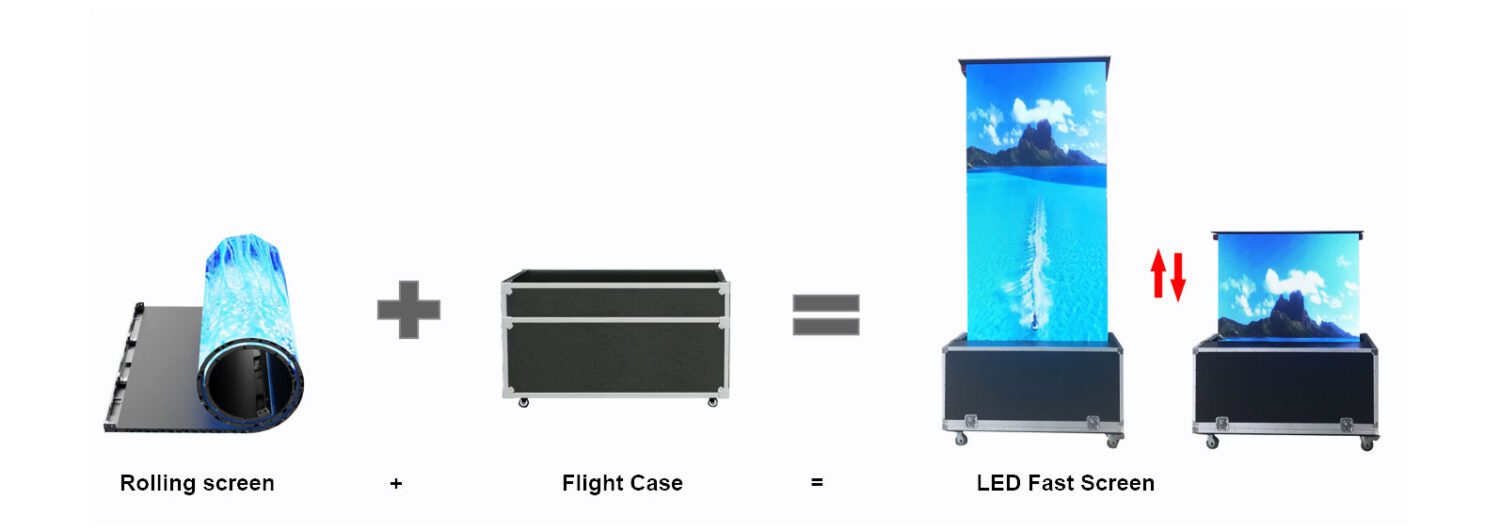

    Multiuso 2: Pantalla rápida LED

    • Cuando controlamos el mando a distancia, toda la pantalla puede subir o bajar de la caja de vuelo, sin más instalación. Por eso la llamamos “Pantalla rápida".

    Multiuso 3: Pantalla fija normal

    • Soporta instalación colgante regular, instalación fija, el tamaño de la pantalla es ilimitado.

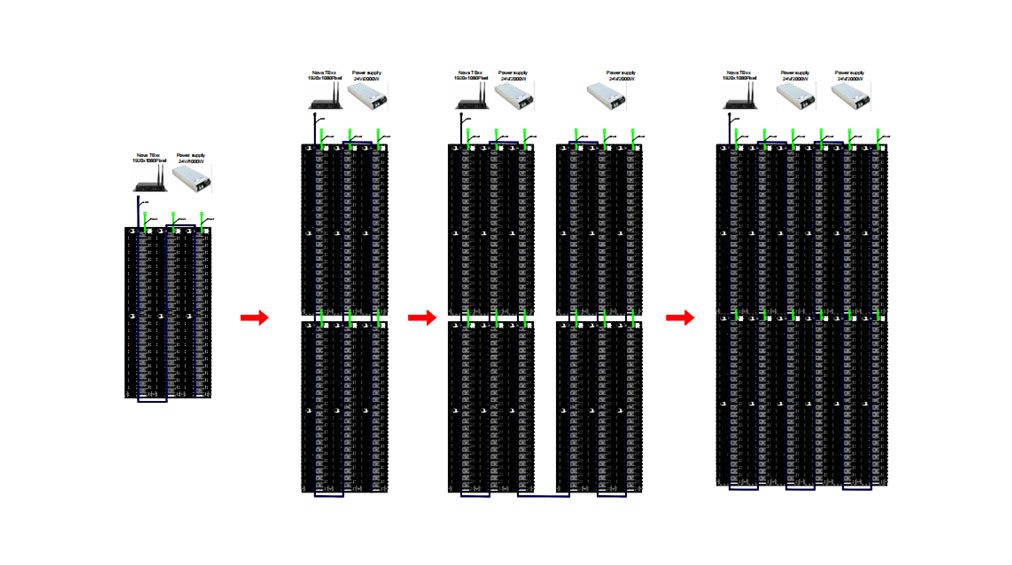

    Empalme ilimitado de pantallas

    TECHNICAL PARAMETERS

    LED Rolling Display (DC 24V)
    Model ROLLING1.25IN ROLLING1.5625IN ROLLING1.953IN ROLLING2.604IN ROLLING3.91IN ROLLING3.81OUT
    Brief Parameter Configuration SMD1010 SMD1010 SMD1010 SMD1515 SMD2121 SMD1921
    Pixel Pitch 1.25mm 1.5625mm 1.953mm 2.604mm 3.91mm 3.81mm
    Module Size (mm) W250   x H62.5mm W250   x H62.5mm W250   x H62.5mm W250   x H62.5mm W250   x H62.5mm W304.8   x H76.2mm
    Module Resolution (pixels) 200   x 50 pixels 160   x 40 pixels 128   x 32 pixels 96   x 24 pixels 64   x 16 pixels 80   x 20 pixels
    Screen Unit Size (meter) W0.75   x H1.5m W0.75   x H1.5m W0.75   x H1.5m W0.75   x H1.5m W0.75   x H1.5m W0.9144   x H1.8288m
    Screen Resolution (pixels) 600   x 1200 pixels 480   x 960 pixels 384   x 768 pixels 288   x 576 pixels 192   x 384 pixels 240   x 480 pixels
    Electronic Parameter Color Depth 12-16 bit 12-16 bit 12-16 bit 12-16 bit 12-16 bit 12-16 bit
    Colors 4096-65536 4096-65536 4096-65536 4096-65536 4096-65536 4096-65536
    Refresh Rate(Hz) ≥3840 Hz ≥3840 Hz ≥3840 Hz ≥3840 Hz ≥3840 Hz ≥3840 Hz
    Scan Mode 1/29 1/20 1/32 1/24 1/16 1/10
    Brightness(cd/m2) >600cd/m2 >600cd/m2 >600cd/m2 >1000cd/m2 >1000cd/m2 >5000cd/m2
    Viewing Distance (meter) ≥   1.2m ≥   1.5m ≥   1.9m ≥   2.6m ≥   3.9m ≥   3.8m
    Screen Weight (kg/㎡) 10kg/㎡ 10kg/㎡ 10kg/㎡ 10kg/㎡ 10kg/㎡ 15kg/㎡
    Viewing Angle(°) 110° 110° 110° 110° 110° 110°
    Electrical Parameter Input Voltage(V) DC   24V DC   24V DC   24V DC   24V DC   24V DC   24V
    Max Power Consumption 800w/sqm 640w/sqm 640w/sqm 608w/sqm 520w/sqm 700w/sqm
    Ave Power Consumption 250w/sqm 214w/sqm 214w/sqm 203w/sqm 174w/sqm 210w/sqm
    Ambient Environment Temperature -20 ℃/+50℃ (working) -20 ℃/+50℃ (working) -20 ℃/+50℃ (working) -20 ℃/+50℃ (working) -20 ℃/+50℃ (working) -20 ℃/+50℃ (working)
    ‐40 ℃/ +60℃ (storage) ‐40 ℃/ +60℃ (storage) ‐40 ℃/ +60℃ (storage) ‐40 ℃/ +60℃ (storage) ‐40 ℃/ +60℃ (storage) ‐40 ℃/ +60℃ (storage)
    IP Level IP 63 / IP 21 IP 40 / IP 21 IP 40 / IP 21 IP 40 / IP 21 IP 40 / IP 21 IP 68 / IP 68
    Humidity 10%~60% (working) 10%~60% (working) 10%~60% (working) 10%~60% (working) 10%~60% (working) 10%~60% (working)
    10%~90% (storage) 10%~90% (storage) 10%~90% (storage) 10%~90% (storage) 10%~90% (storage) 10%~90% (storage)
    Lifespan(hours) 100000 100000 100000 ≥100,000 ≥100,000 100000
    Maintenance Maintenance Way front   & rear front   & rear front   & rear front   & rear front   & rear front   & rear
    Components LED Nationstar/Kinglight
    IC MBI5353/ICN2076
    Controller Control System Built-in NOVA A5s plus receiving card
