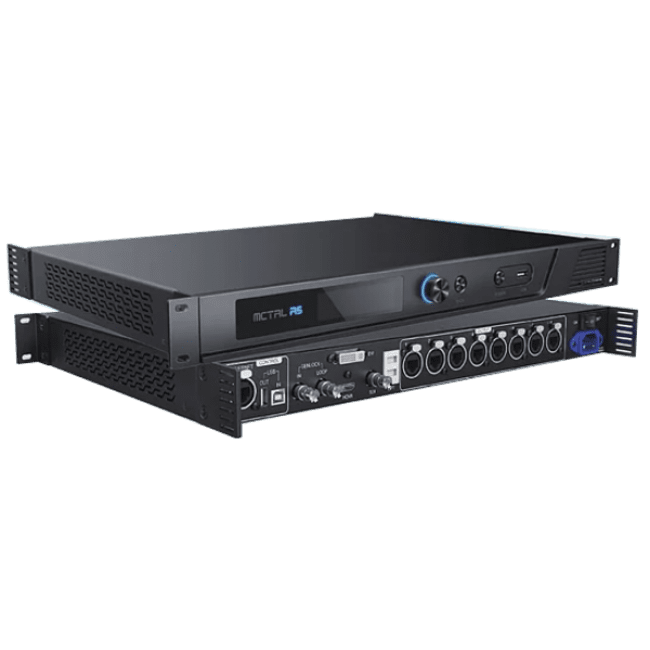

NOVAMCTRLR5 es un controlador Master independiente desarrollado por NovaStar con unas prestaciones muy especiales. La capacidad de carga de una sola unidad es de hasta 3840×1080@60Hz, capaz de monitorizar cabinets LED de gran tamaño. NOVAMCTRLR5 hace más fácil crear impresionantes efectos visuales de rotación para los usuarios. NOVAMCTRLR5 se puede utilizar como dos controladores independientes Full-HD, lo que le da más versatilidad en el manejo de una cabinet LED. El diseño de NOVAMCTRLR5 es innovador.  Le permite configurar la pantalla sin ningún tipo de PC, Dispone de diferentes entrada de video como HDMI, dual-link DVI,SDI etc. Y salidas de 8-canales Neutrik Gigabit Ethernet ports así como  puertos 2-channel optical fiber ports.

    Consultar precios

    Descripción del Producto

    Características

    Complete video input interfaces: 6G SDI, HDMI1.4 x 1, dual-link DVI x 2;

    Supports 8-channel Neutrik Gigabit Ethernet outputs and 2-channel optical fiber outputs and maximum loading capacity of a single unit up to 3840×1080@60Hz;

    Image rotation can be realized at any area in the screen with any angle. It will much eaiser with cabinet, ports and screen rotation operation.

    Innovative design to enable smart configuration which has greatly shortened the time for stage preparation;

    NovaStar’s G4 engine to create stable and flicker-free pictures without scanning lines, and bring smooth images with a good sense of layering;

    Supports NovaStar’s latest pixel-by-pixel calibration technology, the process of which is fast and efficient;

    Enables white balance calibration and color gamut mapping based on the different features of LEDs on the display to ensure the real restoration of color;

    Screen configuration can be done at any time without PC;

    Manual adjustment of screen brightness, which makes it much easier and quicker;

    Multiple controllers are able to be cascaded for uniform control.



    Entradas

    1 x SDI: Max. supported resolution:3840×1080@60Hz, Max. width and height are 3840

    1 x HMDI: Max. supported resolution:3840×1080@60Hz, Max. width and height are 3840

    2 x Dual link DVI: Max. supported resolution:3840×1080@60Hz and 3840×2160@30Hz



    Salidas

    8 x RJ45: Neutrik Gigabit Ethernet port

    2 x OPT: Optical fiber port, single mode and double fiber, LC port, 1310 mm

    OPT1 is used for transferring the data of port 1-8

    OPT2 is the backup channel of OPT1

    Either Gigabit Ethernet port or optical fiber port can be used at the same time. Two types of ports cannot be used to connect devices simultaneously



    Control

    1 x ETHERNET: Control interface

    2 x USB: Control interface of upper computer and cascading interface



    Otras especificaciones generales

    Input power: AC 100-240V, 50/60Hz

    Overall power consumption: 25W.

    Operating temperature: -20~60%u2103.

    Dimensiones(L×W×H): 482.6×330×45 mm.

    Peso: 4.6 kg.
