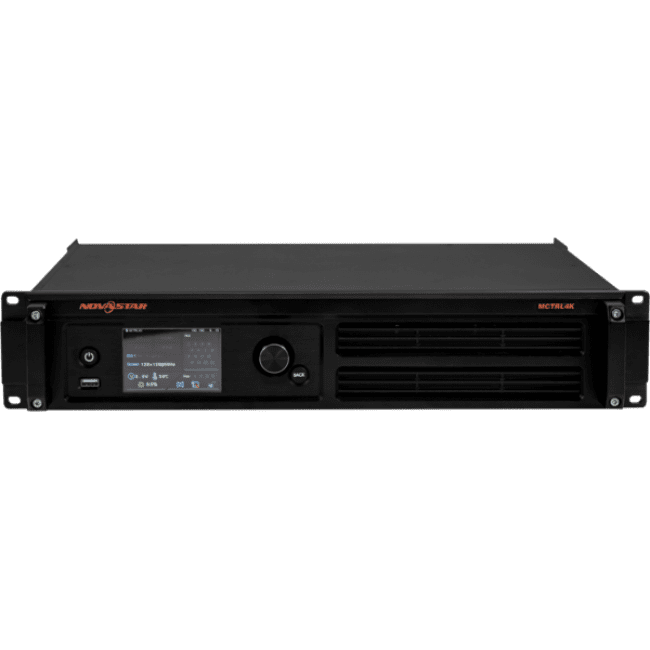

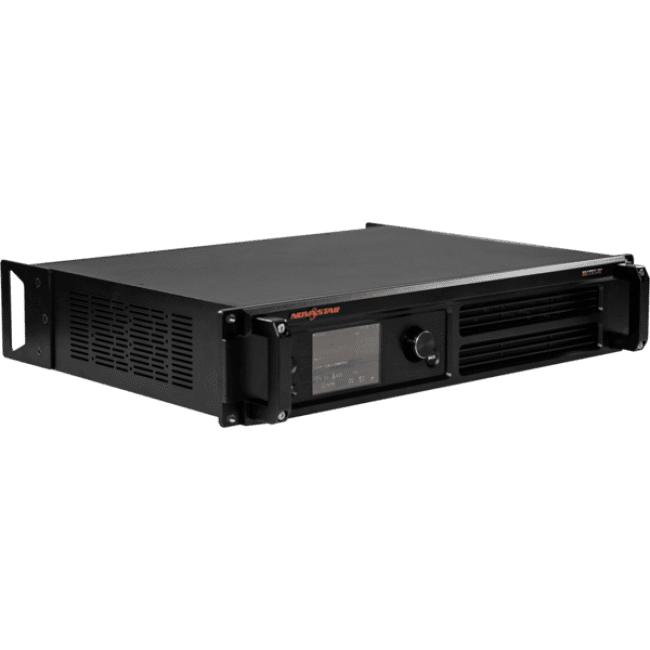

MCTRL4K es un controlador Master independiente desarrollado por NovaStar con unas prestaciones muy especiales. La capacidad de carga de una sola unidad es de hasta 3840×2160@60Hz, capaz de monitorizar cabinets LED de gran tamaño. MCTRL4K se puede utilizar como dos controladores independientes Full-HD, lo que le da más versatilidad en el manejo de una cabinet LED. El diseño de MCTRL4K es innovador.  Le permite configurar la pantalla sin ningún tipo de PC.

    Consultar precios

    Descripción del Producto

    Características

    1) Complete video input interfaces: DP1.2 x 1, HDMI2.0 x 1, dual-link DVI x 2;

    2) Supports 16-channel Neutrik Gigabit Ethernet outputs and 4-channel optical fiber outputs and maximum loading capacity of a single unit up to 3840×2160@60Hz;

    3) Supports two operating modes during dual-link DVI input: mosaic and multi-card;

    4) Innovative design to enable smart configuration which has greatly shortened the time for stage preparation;

    5) NovaStar’s G4 engine to create stable and flicker-free pictures without scanning lines, and bring smooth images with a good sense of layering;

    6) Supports NovaStar’s latest pixel-by-pixel calibration technology, the process of which is fast and efficient;

    7) Enables white balance calibration and color gamut mapping based on the different features of LEDs on the display to ensure the real restoration of color;

    8) Screen configuration can be done at any time without PC;

    9) Manual adjustment of screen brightness, which makes it much easier and quicker;

    10) Multiple controllers are able to be cascaded for uniform control.



    Entradas

    DP 1.2 interface

    Max. supported resolution:3840×2160@60Hz,

    Max. width and height are 3840(downward compatibility)

    HDMI 2.0 interface

    Max. supported resolution:3840×2160@60Hz

    Max. width and height are 3840 (downward compatibility)

    DUAL DVI-D1/D2 interface

    VESA standard, max. supported resolution: 3840×1080@60Hz and 3840×2160@30Hz (downward compatibility)

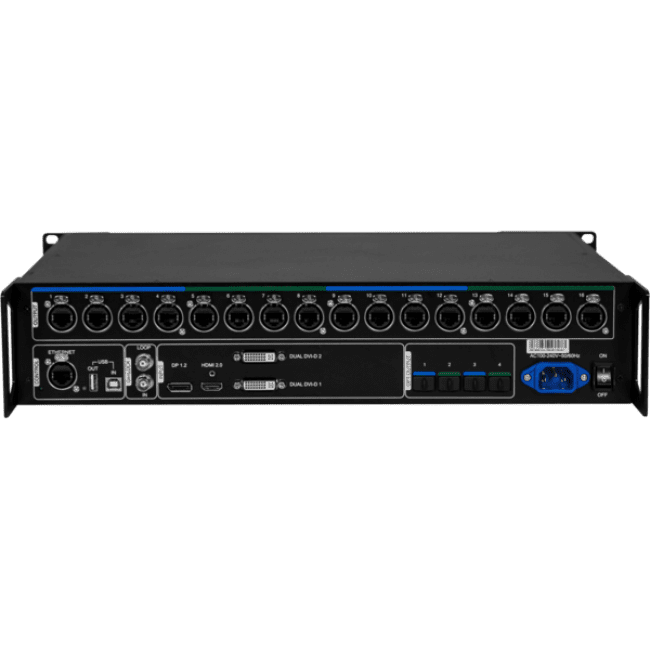

    Salidas

    16xRJ45

    RJ45 Neutrik Gigabit Ethernet outputs

    4-channel optical fiber outputs

    Optical fiber port, single mode and double fiber, LC port, 1310mm

    OPT1 is used for transferring the data of port 1-8

    OPT2 is used for transferring the data of port 9-16

    OPT3 is the backup channel of OPT1

    OPT4 is the backup channel of OPT2

    Either Gigabit Ethernet port or optical fiber port can be used at the same time. Two types of ports cannot be used to connect devices simultaneously.



    Control

    ETHERNET Control interface.

    USB IN: cascade input or connecting to PC for communication

    USB OUT: cascading next unit

    GenLock IN type: Blackburst – Genlock synchronous signal, making sure the pictures on LED display are synchronous with external Genlock source.

    GenLock LOOP: Genlock loop output



    Especificaciones generales

    Input power AC 100-240V, 50/60Hz

    Overall power consumption 30W

    Operating temperature -20~60%u2103

    Dimensiones(L×W×H) 482.6×372×89 mm
