MAG.DN9404

Magnimage
> SKU: MAG.DN9404

The MAG.DN9404 series is a complete 4K input/output video splicer, which is the central core processing device in the large-screen splicing system. A variety of input sources in different formats can be implemented, and functions such as arbitrary splicing, zooming, windowing, roaming and overlaying can be implemented on a variety of display terminals. High-speed and large-capacity FPGA-based hardware architecture and high-speed digital bus matrix is adopted to ensure high signal reproducibility, and the output image is clear, smooth and without delay.

Deep modular design, input/output configuration upon request, currently supports 4U and 8U chassis options, MAG.DN9404 series is widely used in various industries, such as government, transportation, water and electricity, health care, education, radio and television, shopping malls and other industries Multimedia conference room, multi-function room, command and dispatch center, monitoring center, theater, studio, exhibition hall, etc.

    Consultar precios

    Descripción

    #tab-description > div > ul:nth-child(1) {display:none;} #tab-description > div > h2 {display:none;}

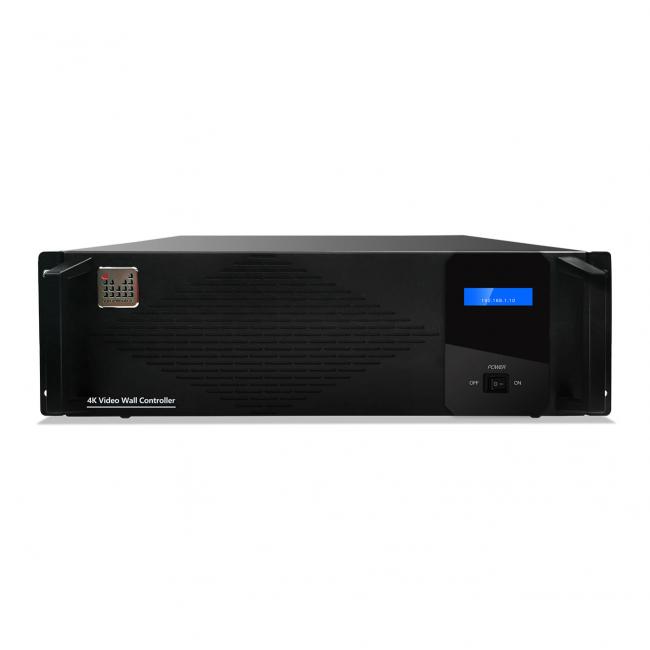

    4K Video Wall Controller

    MAG.DN9404 Series


    Admite la gestión de EDID

    Entrada/Salida Puerto único Máx. Ancho 7680px, Máx. Altura 2600px










    Habilidad de capa poderosa

    Capas 4K independientes

    Soporte de salida única Máx. 4 capas 4K independientes

    La capa admite el ajuste de brillo/contraste/temperatura de color








    Cambio continuo entre preajustes








    Salida de monitor

    Salida de toda la máquina, es conveniente que el operador controle el contenido de la pantalla LED en algunas ocasiones en las que la pantalla LED no se puede ver directamente.








    HDR10






    Subtítulos de desplazamiento






    Varias formas de control








    Input Spec

    Input Type Qty Resolution
    DP1.2 4 3840×2160/60Hz、7680×1080/60Hz and EDID Management
    HDMI2.0 4 3840×2160/60Hzand EDID Management
    12G SDI 1 3840×2160/60Hz and downward compatibility



    Output Spec
    Output Type Port Qty Resolution
    Main OUT HDMI2.0 4×2 3840×2160/60Hz and EDID Management
    Monitoring OUT HDMI1.3 1 1920×1080/60Hz



    Machine Spec
    Power input 100-220V AC 50/60Hz
    Consumption 90W
    Product dimensions 482.6×446.3×92.5mm
    Net weight 6.7Kg
