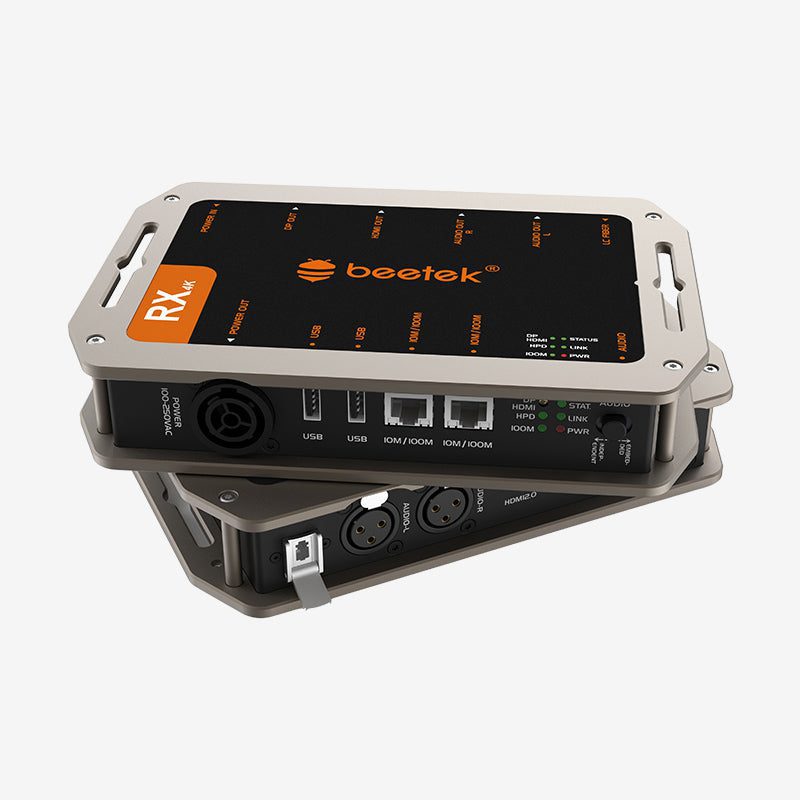

M1-DP&HDMI-Pro Extensor de fibra DP 1.4 y HDMI 2.0

Extensor de fibra DP 1.4 y HDMI 2.0

Resolución de soporte hasta 4K@60 4: 4: 4 a 32.4 GBPS tasa de transmisión
Extiende la señal de puerto HDMI y Pantalla simultáneamente a través del cable de fibra de modo único.
Bucle de alimentación para una fácil alimentación de múltiples transmisores y receptores
Transmisión de audio y salida de audio independiente para transmisor a receptor

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Extensor de fibra DP 1.4 y HDMI 2.0

    Resolución de soporte hasta 4K@60 4: 4: 4 a 32.4 GBPS tasa de transmisión
    Extiende la señal de puerto HDMI y Pantalla simultáneamente a través del cable de fibra de modo único.
    Bucle de alimentación para una fácil alimentación de múltiples transmisores y receptores
    Transmisión de audio y salida de audio independiente para transmisor a receptor

    Especificaciones


    Name Specification
    Product Name One core single mode DP1.2 / HDMI2.0 fiber extender
    Model M1-DP&HDMI-Pro
    Brand Beetek
    Signal DP1.2, HDMI2.0

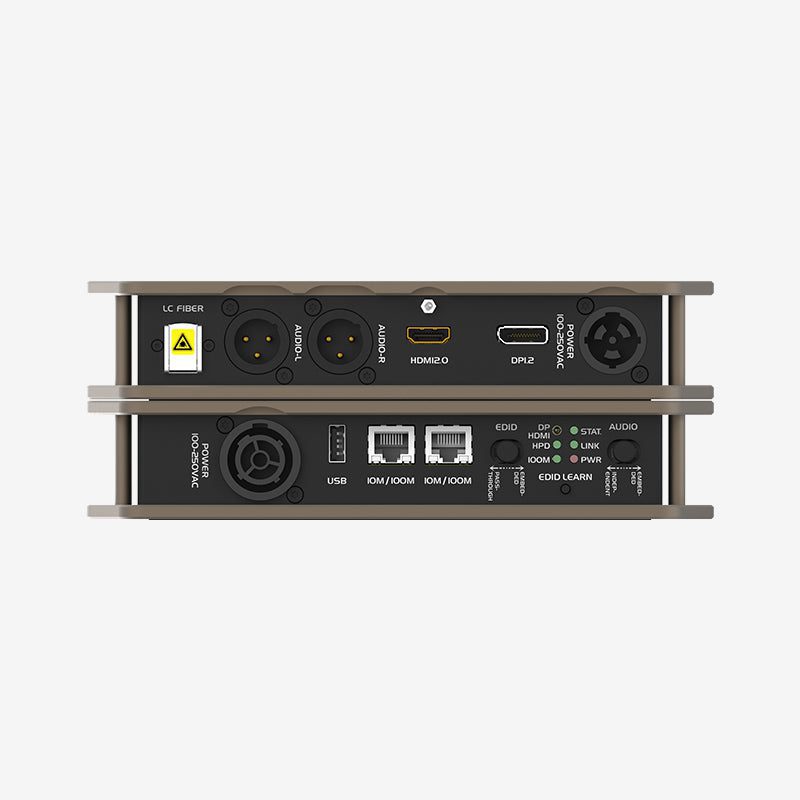

    Input Connector TX: HDMI Type A Female, DP Female, UBS Type A Female, RJ45 *2, XLR Female *2 ;
    RX: Single-core LC
    Output Connector TX : Single-core LC
    RX: HDMI Type A Female, DP Female, UBS Type A Female *2, RJ45*2, XLR *2
    Locking Connector Yes
    Fiber Interface Dust Prevention Yes
    Fiber Type Single-mode G657.A1
    Indicator LED Signal, Power, Network port, EDID, Status and Hot-plug 6 way Indicator
    Rack Mountable Yes (standard 1U rack mount)
    Anti-slip pad Yes
    Locking power connector Yes
    Waterproof power connector Yes (NEUTRIK waterproof power connector)
    Daisy-chainable power Yes
    Power Consumption AC 100-250V
    Ambient Temp -20°C ~ 70°C
    Material Aluminum alloy mold
    Dimensions TX: 220 *150 *41mm; RX: 220 *150 *41mm
    Weight TX: 1.20kg; RX: 1.25kg
    Package Dimensions 274 *252 *212mm
    Package Weight 3.65kg
    EDID Switch (TX) Learn button and mode dial
    EDID Modes Pass-through, learn and Internal
    DDC Yes
    AUX Yes
    De-embedding (RX) Audio de-embedding toggle switch
    Independent USB Supports independent USB1.1 transmission
    Audio De-embedding Yes
    Independent audio Supports independent stereo audio transmission
    Independent Ethernet Supports bidirectional 100M Ethernet
    DP transmission Supports independent DP signal transmission
    HDMI transmission Supports HDMI signal transmission
    HDMI to DP Supports TX HDMI input to RX DP output
    DP to HDMI Supports TX DP input RX HDMI output
    HDMI Audio Supports extended HDMI audio
    3D Yes
    CEC Supports in EDID pass-through mode
    ARC Supports in EDID pass-through mode
    HDCP Supports HDCP2.2 in EDID pass-through mode
    XvYCC Color Space Yes
    HDR Yes
    BT.2020 Color Space Yes
    Optical Module 4*10G ,2*2.5G 6-channel single-mode optical module
    Technical Characteristics 6-wave CWDM Technology
    Optical module life 100,000 Hours
    Resolution 3840×2160@60Hz
    Transmission Distance Single-mode 300M
    Clock Bandwidth 600MHz *3 / 540MHz *4
    Transmission Speed 21.6Gbps
    Balancing Chip Automatic equalization
    Reclocking Yes
    ESD Protection Yes
    Hot Plug Yes
    Delay Zero-frame
    Compression None
    Sampling Rate Bandwidth Range: 8~16bit
    Sampling Ratio RGB 4:4:4 , YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
