Extensor de fibra con soporte DP 1.4 M1-DP14Rr

Extendientes de fibra de soporte DP 1.4

Resolución de soporte de hasta 8k@60 a 48 Gbps Tasa de transmisión
Fibra de modo único
Soporte de HDCP 2.2 y EDID transparente
Distancia de soporte hasta 300 metros con cable LC único

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Extendientes de fibra de soporte DP 1.4

    Resolución de soporte de hasta 8k@60 a 48 Gbps Tasa de transmisión
    Fibra de modo único
    Soporte de HDCP 2.2 y EDID transparente
    Distancia de soporte hasta 300 metros con cable LC único

    Especificaciones


    Name Specification
    Product Name One core single mode DP 1.4 Fiber Extender +IR+232
    Model M1-DP14Rr
    Signal DP1.4

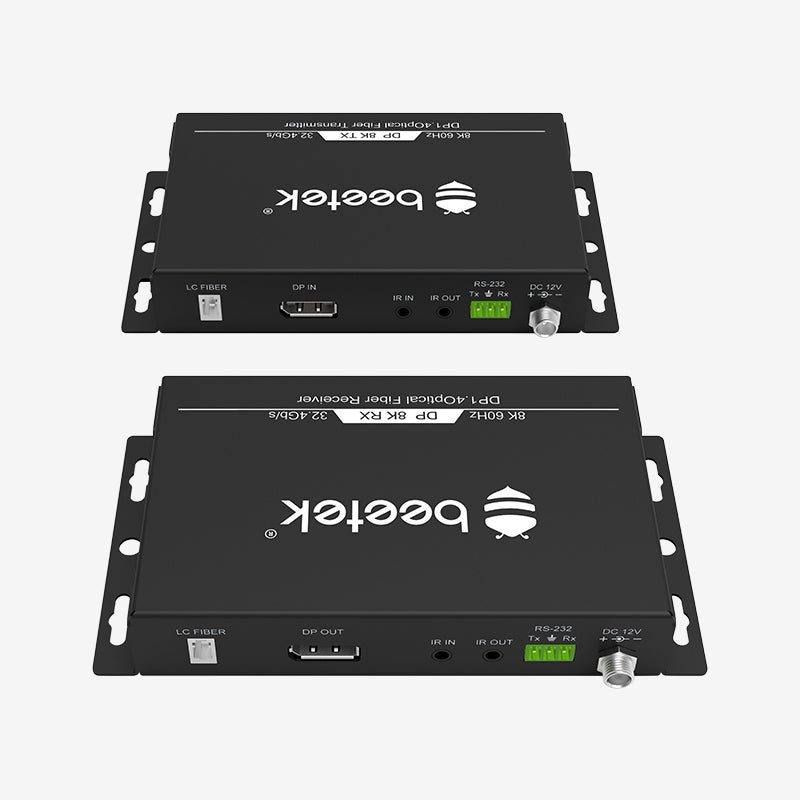

    Input Connector TX: DP female, IR, RS-232;
    RX:Single-core LC
    Output Connector TX:Single-core LC ;
    RX:DP female, IR, RS-232
    Fiber type Single-mode G657.A1

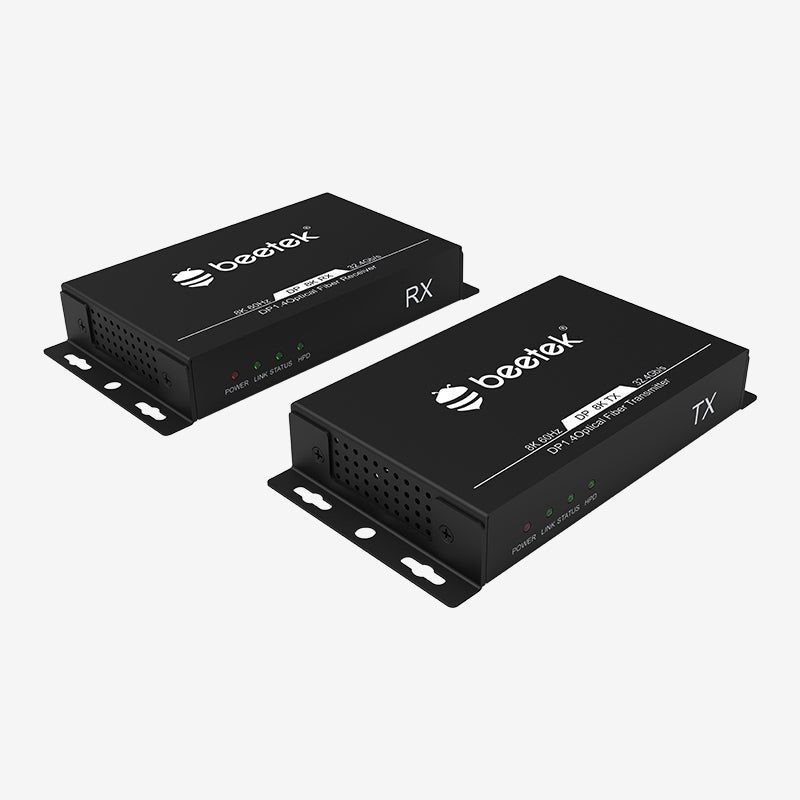

    Indicator LED Signal, Power, Mode, Hot-plug detect
    Locking power connector Yes
    Power Consumption DC 12V 2A
    Ambient Temp -20°C ~ 70°C
    Material Metal mold
    Dimensions TX:160 *85 *26mm; RX:160 *85 *26mm;
    Weight TX 0.45kg; RX0.45
    Package Dimensions 226 *160 *121mm
    Package Weight 1.3kg
    AUX Channel Yes
    IR 2-way IR
    RS-232 2-way RS-232
    High-speed Ethernet Supports expanded high-speed Ethernet
    Extended USB Supports extended USB2.0/USB3.1
    Extended Audio Supports 32 extended audio channels
    3D Yes
    CEC Yes
    ARC Yes
    HDCP HDCP2.2
    HDR Yes
    BT.2020 Color space Yes
    Optical Module 4*12G+2*2.5G 6-channel Single-mode Optical Module
    Technical Characteristics 6-wave CWDM Technology
    Optical Module Life 100,000 Hours
    Resolution 7680X4320@30Hz
    Transmission Distance Single-mode 300M
    Clock Bandwidth 810MHz * 4
    Transmission Speed 32.4Gbps
    Balancing Chip Automatic equalization
    ESD Protection Yes
    Hot Plug Yes
    Delay Zero-frame
    Compression None
    Sampling Rate Bandwidth Range: 8~16bit
    Sampling Ratio RGB 4:4:4, YUV 4:4:4+B4:D44, YUV 4:2:0, YUV 4:2:0
