FE1121 – 3G-SDI Fiber Optic Extender

FE1121

3G-SDI Fiber Optic Extender

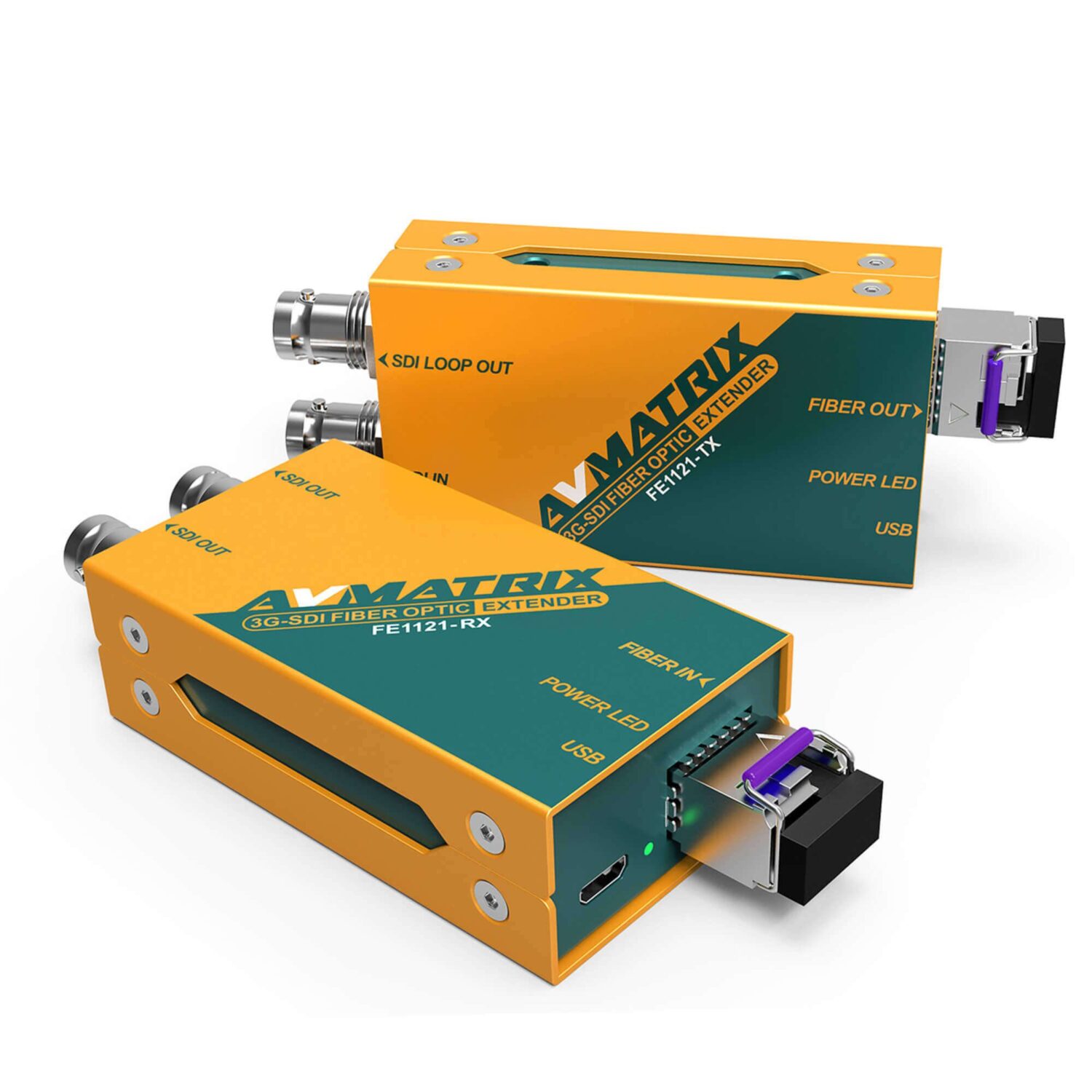

The FE1121 3G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting single-mode LC simplex fiber extensions up to 20km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 1080p with audio and metadata, also supports level A and level B. It features a local SDI loop out and dual SDI outputs and supports 3G/HD/SD SDI signals. Multimode fiber can also be used but at shorter distances.

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Connections Transmitter SDI Video Input SD/HD/3G-SDI (75Ω) x1
    Transmitter SDI Loop Output SD/HD/3G-SDI (75Ω) x1
    Transmitter Fiber Optical Output SFP module (LC) x1
    Reciever Fiber Optical Input SFP module (LC) x1
    Reciever SDI Video Output SD/HD/3G-SDI (75Ω) x2
    Standards Optical Fiber Module SFP module: Hot-pluggable
    Connector style: LC
    Fiber type: single-mode
    Optical wavelenght: 1310nm
    Max. Bandwidth: 3Gbps
    Optical transmit power: -6 ~ 0dBm
    Reciever sensitivity: -22dBm
    Single-mode Max. Distance 20 km (12.5 miles) for 3G (1080p)
    Optical Fiber Compilance SMPTE 297M 2006
    SDI Compilance 3Gbit Level A & Level B (all formats)
    SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE296M, SMPTE274M, SMPTE 425M, ITU-R BT.601
    SMPTE 247M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601
    SDI Auto Switching Auto selects SD/HD/3G-SDI on input
    SDI Video Rate SD/HD/3G-SDI
    SDI Color Space YUV, RGB
    SDI Equalization and Re-clocking Yes, SDI input and output support up to 120m for 3G-SDI
    SDI Audio Supports 16 channels embedded
    Size Dimension (LxWxD) 71x41x23mm
    Weight 200 + 200g
    Power Power Micro USB
    Power Consumption 1.5W
    Voltage Range 3.3V ~ 5V
    Environment Operating Temperature  -20ºC ~ 60ºC
    Storage Temperature  -30ºC ~ 70ºC
    Relative Humidity 0%~90% non-condensing
