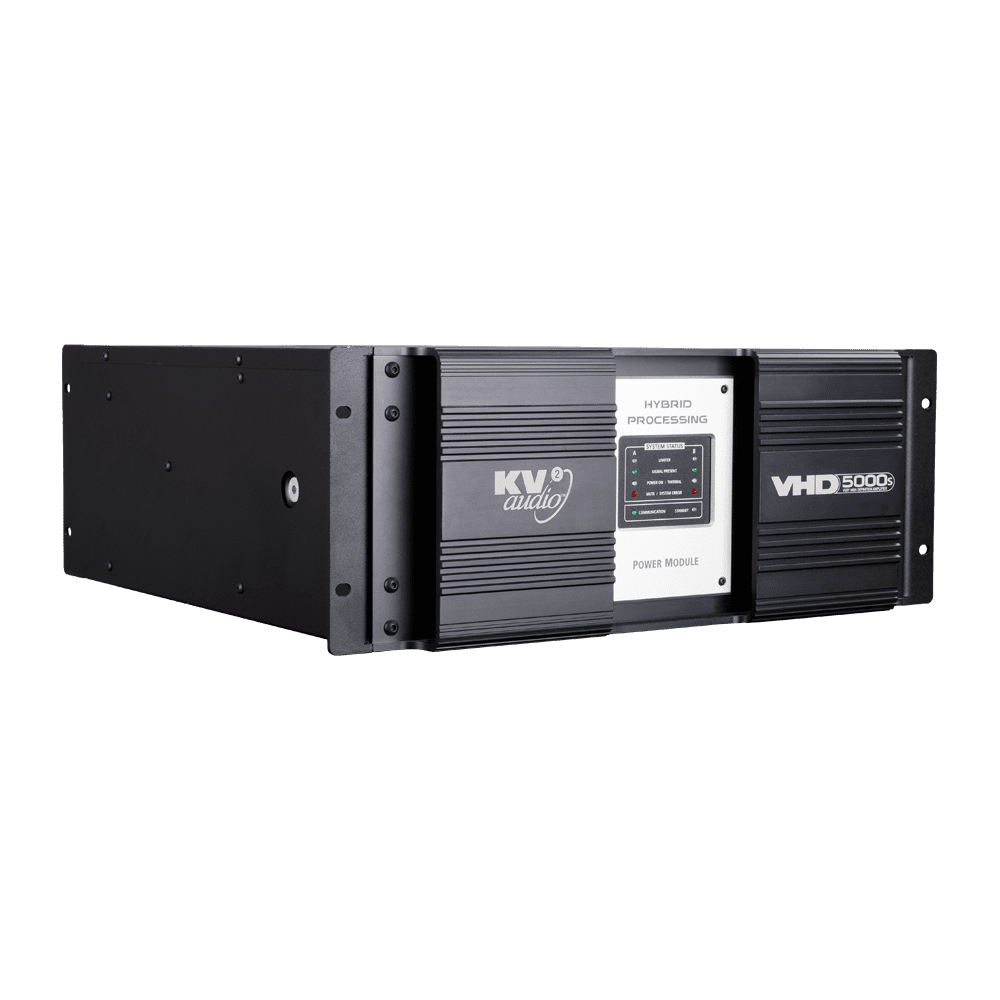

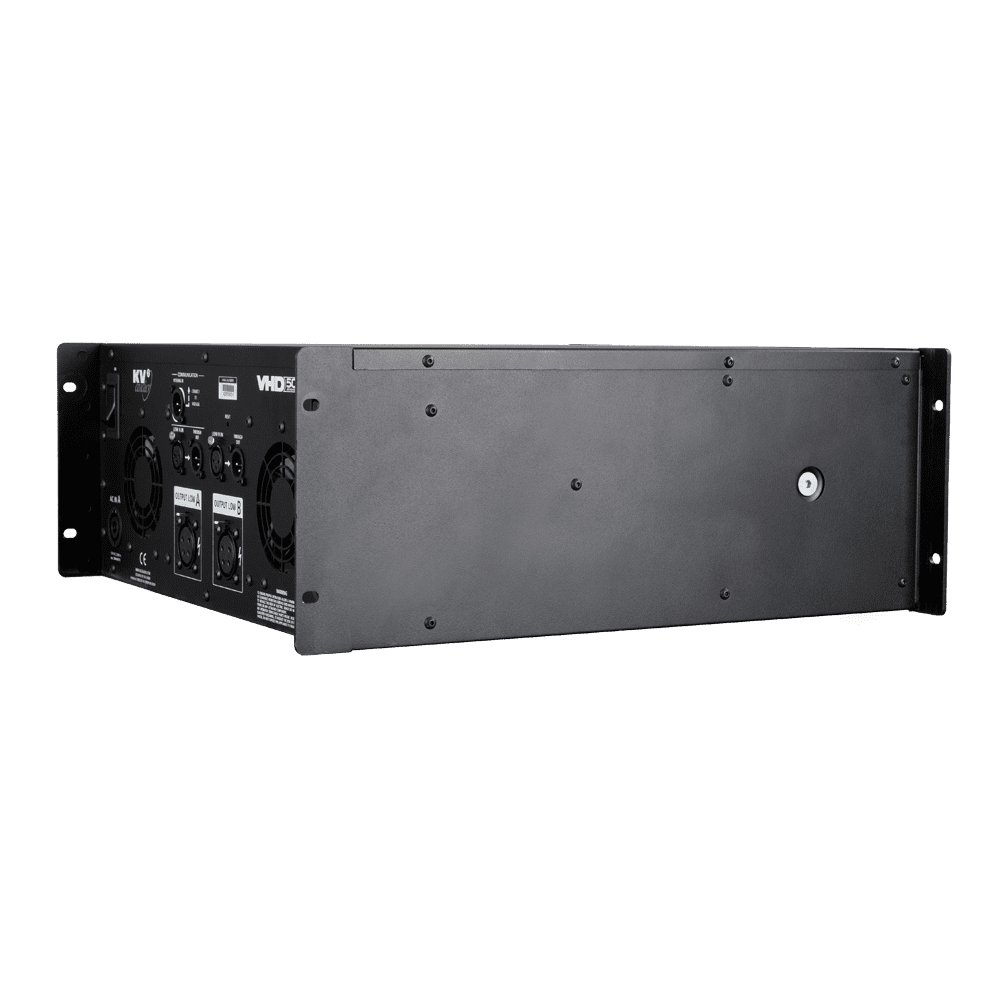

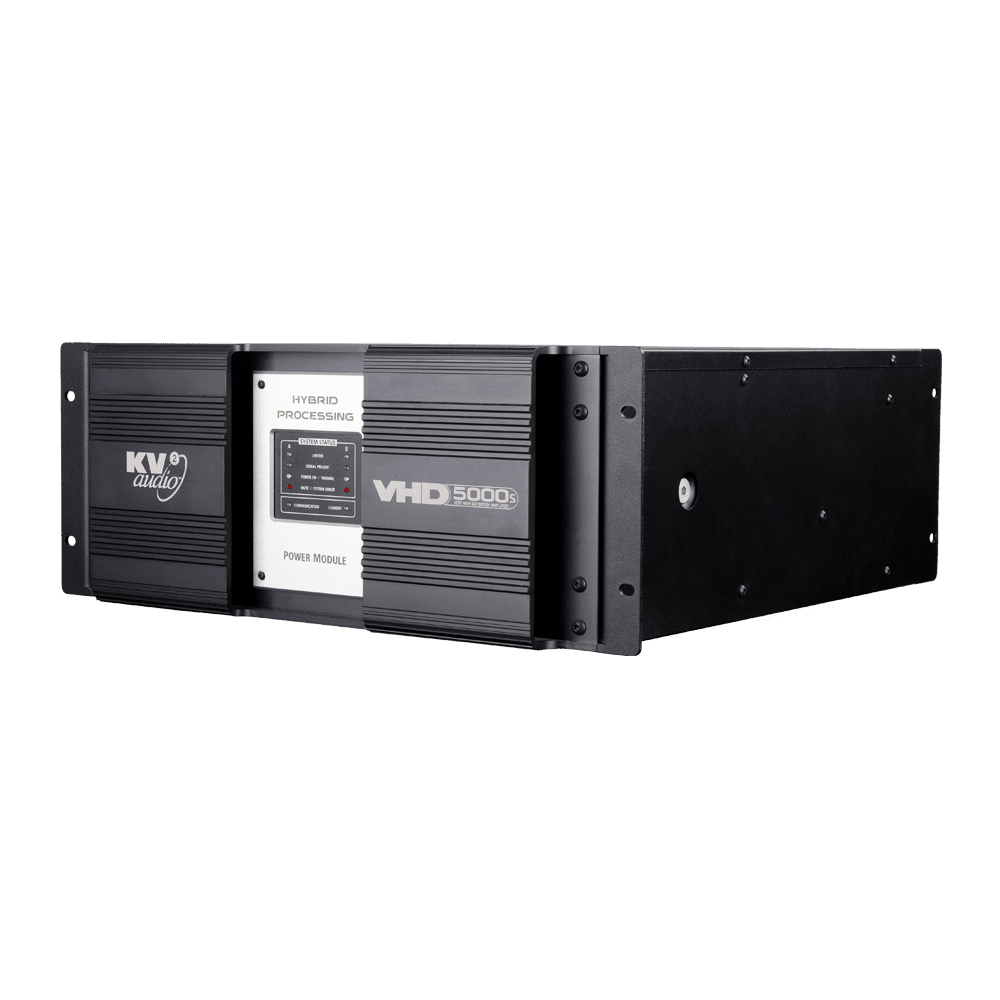

VHD5000S LOW-MID Power Module

KV2AUDIO
SKU: VHD5000S

El VHD5000S es un amplificador de graves/medios de alta eficiencia, montado en bastidor, diseñado específicamente en conjunto con el VHD5000 para alimentar el sistema de altavoces de graves/medios VHD5. La unidad contiene dos amplificadores independientes de 2500 vatios con fuentes de alimentación, rutas de señal y entradas y salidas individuales dentro de un único chasis de cuatro espacios en rack. La unidad actúa como esclava del VHD5000, que proporciona señal de audio y control.

Aplicaciones

Diseñada específicamente como unidad de amplificación y control para alimentar la parte 1x Low/Mid VHD5.0 y 3x altavoces VHD8.10 en módulos de montaje en rack

  • PA portátil a gran escala
  • Instalaciones fijas
  • Grandes clubes

Código de producto

KVV 987 356



    Consultar precios

    Descripción

    El VHD5000S es un amplificador de graves/medios de alta eficiencia, montado en bastidor, diseñado específicamente en conjunto con el VHD5000 para alimentar el sistema de altavoces de graves/medios VHD5. La unidad contiene dos amplificadores independientes de 2500 vatios con fuentes de alimentación, rutas de señal y entradas y salidas individuales dentro de un único chasis de cuatro espacios en rack. La unidad actúa como esclava del VHD5000, que proporciona señal de audio y control.



    YouTube thumbnailYouTube icon

    Aplicaciones

    Diseñada específicamente como unidad de amplificación y control para alimentar la parte 1x Low/Mid VHD5.0 y 3x altavoces VHD8.10 en módulos de montaje en rack

    • PA portátil a gran escala
    • Instalaciones fijas
    • Grandes clubes

    Código de producto

    KVV 987 356



    Configurations


    VHD5 – A



    Description

    The VHD5 is a Constant Power Point Source System designed for large audiences, extremely long throw and intended to be flown at a minimum height of 10 metres.

    One side of the full system with three VHD8.10 Low Mid modules, one VHD5.0 Mid Hi and a VHD5.1 downfill. Amplification provided by three rack amplifiers: VHD5000 for Mid-Hi, VHD5000S for Low Mid, and VHD5100 for downfill. Everything is distributed by a single multicable through the Power Unit.

    With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.



    Products

    Count Product Type
    1 VHD5.0 Mid Hi MID-HI
    3 VHD8.10 Low Mid Low Mid
    1 VHD5.1 Downfill MID-HI
    1 VHD5000 Amplifier
    1 VHD5000S Amplifier
    1 VHD5100 Amplifier


    Accessories

    Count Accessory Title
    1 VHD5 Power unit VHD5 Power unit
    1 VHD5 Tilt flybar VHD5 Tilt flybar
    1 VHD5 Pan flybar VHD5 Pan flybar
    1 VHD5 Multicable VHD5 Multicable
    1 VHD5 Extension cable VHD5 Extension cable
    1 VHD5 Downfill bracket VHD5 Downfill bracket


    Images

    VHD5 – B



    Description

    The VHD5 is a Constant Power Point Source System designed for large audiences, extremely long throw and intended to be flown at a minimum height of 10 metres.

    One side of the full system with two VHD8.10 Low Mid modules and one VHD5.0 Mid Hi. Amplification provided by two rack amplifiers: VHD5000 for Mid-Hi, VHD5000S for Low Mid.

    Everything is distributed by a single multicable through the Power Unit. With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.



    Products

    Count Product Type
    1 VHD5.0 Mid Hi MID-HI
    3 VHD8.10 Low Mid Low Mid
    1 VHD5000 Amplifier
    1 VHD5000S Amplifier
    1 VHD5100 Amplifier


    Accessories

    Count Accessory Title
    1 VHD5 Power unit VHD5 Power unit
    1 VHD5 Tilt flybar VHD5 Tilt flybar
    1 VHD5 Pan flybar VHD5 Pan flybar
    1 VHD5 Multicable VHD5 Multicable
    1 VHD5 Extension cable VHD5 Extension cable


    Images

    VHD5 – C



    Description

    The VHD5 is a Constant Power Point Source System designed for large audiences, long throw and intended to be flown at a minimum height of 10 metres.One side of the full system with two VHD8.10 Low Mid modules, one VHD5.0 Mid Hi and a VHD5.1 downfill.

    Amplification provided by three rack amplifiers: VHD5000 for Mid-Hi, VHD5000S for Low Mid, and VHD5100 for downfill. Everything is distributed by a single multicable through the Power Unit.

    With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.



    Products

    Count Product Type
    1 VHD5.0 Mid Hi MID-HI
    2 VHD8.10 Low Mid Low Mid
    1 VHD5.1 Downfill MID-HI
    1 VHD5000 Amplifier
    1 VHD5000S Amplifier
    1 VHD5100 Amplifier


    Accessories

    Count Accessory Title
    1 VHD5 Power unit VHD5 Power unit
    1 VHD5 Tilt flybar VHD5 Tilt flybar
    1 VHD5 Pan flybar VHD5 Pan flybar
    1 VHD5 Multicable VHD5 Multicable
    1 VHD5 Extension cable VHD5 Extension cable
    1 VHD5 Downfill bracket VHD5 Downfill bracket


    Images



    Accesories


    VHD5 Power unit

    Gallery

    Product code

    KVV 987 363



    Description

    VHD5.0 dedicated Power Unit



    Downloads

    DWG

    VHD5 Power unit 3D DWG

    VHD5 Power unit 3D DWG

    SKP

    VHD5 Power unit SKP

    VHD5 Power unit SketchUp

    Output Channels

    Number of Channels 2

    Mid Bass Frequency Amplifier Specification

    Type High efficiency, Current-Enhancing, Switched-Rail Amplifier
    Rated Continuous Power 2500W
    Min. Load Impedance
    Distortion <0.05%
    Operating Bandwidth 20Hz to 450Hz

    Signal Input

    Input Channels XLR
    Input Sensitivity 1.55V RMS
    Input Impedance 10kΩ

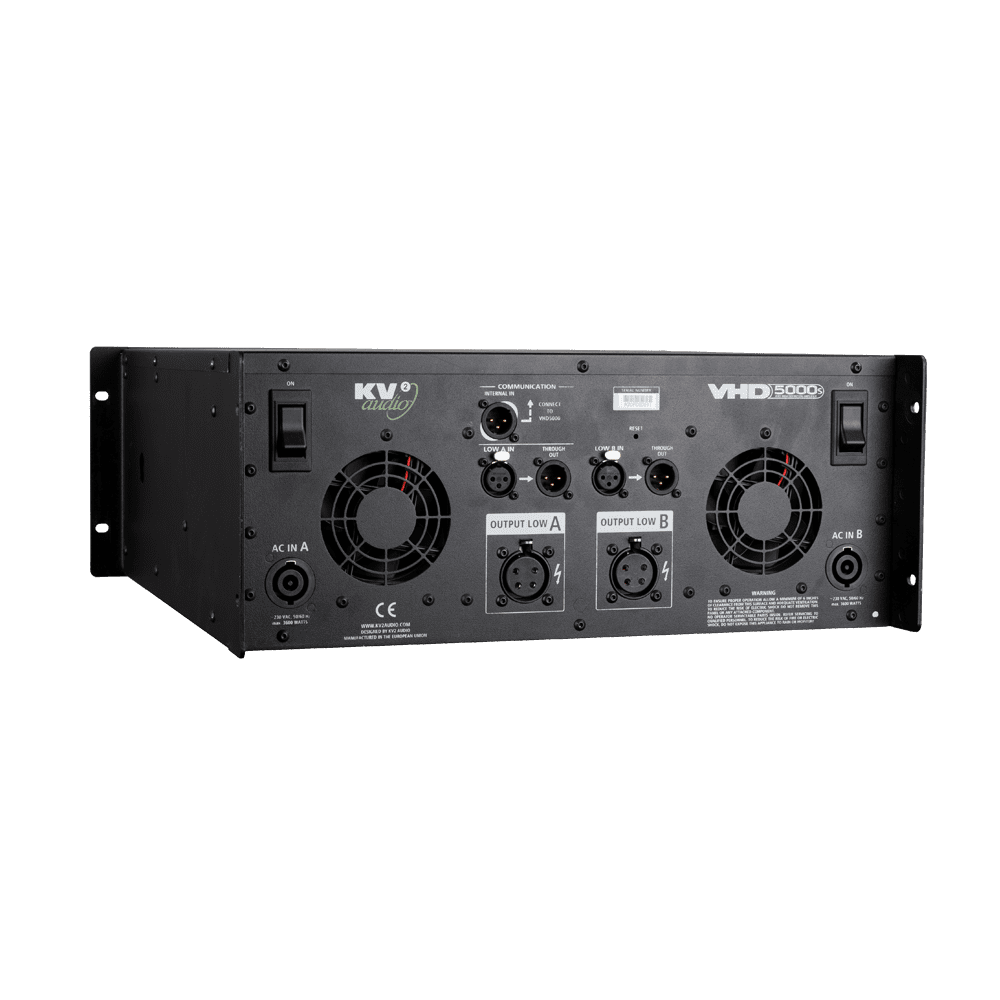

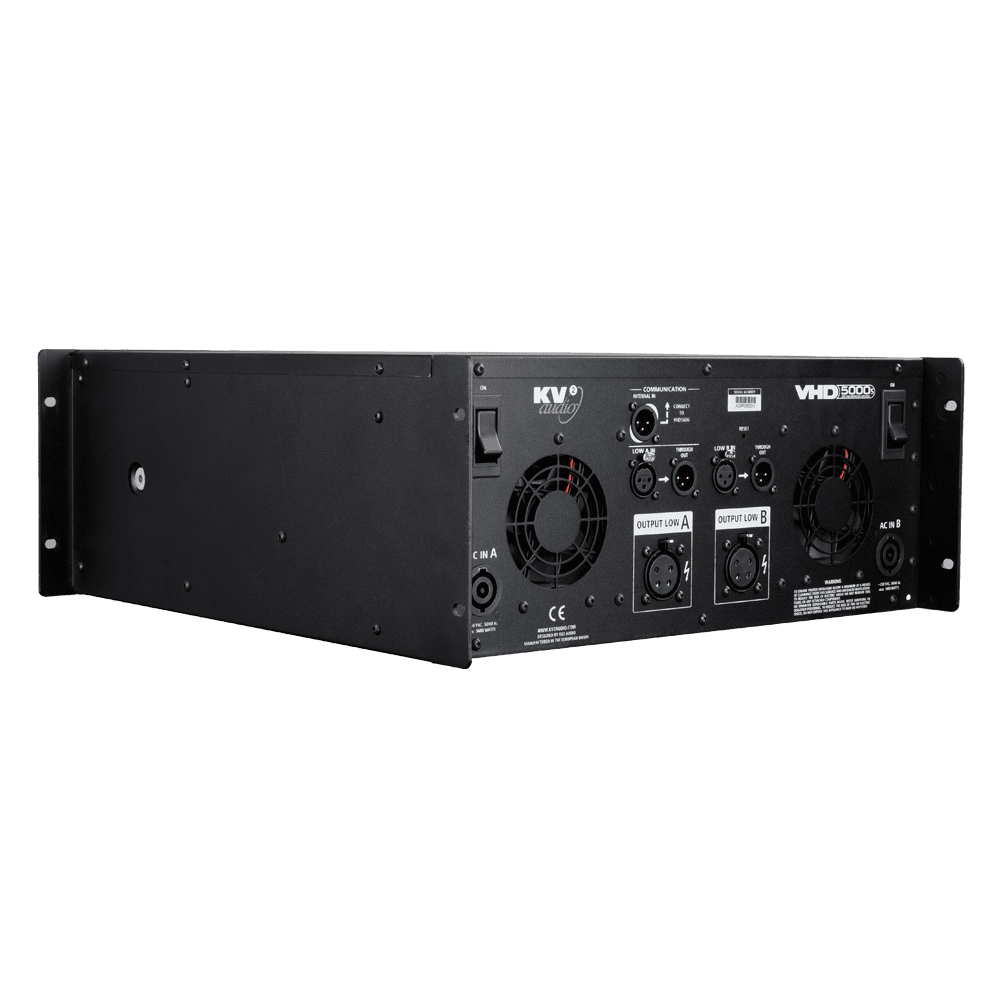

    Signal Output

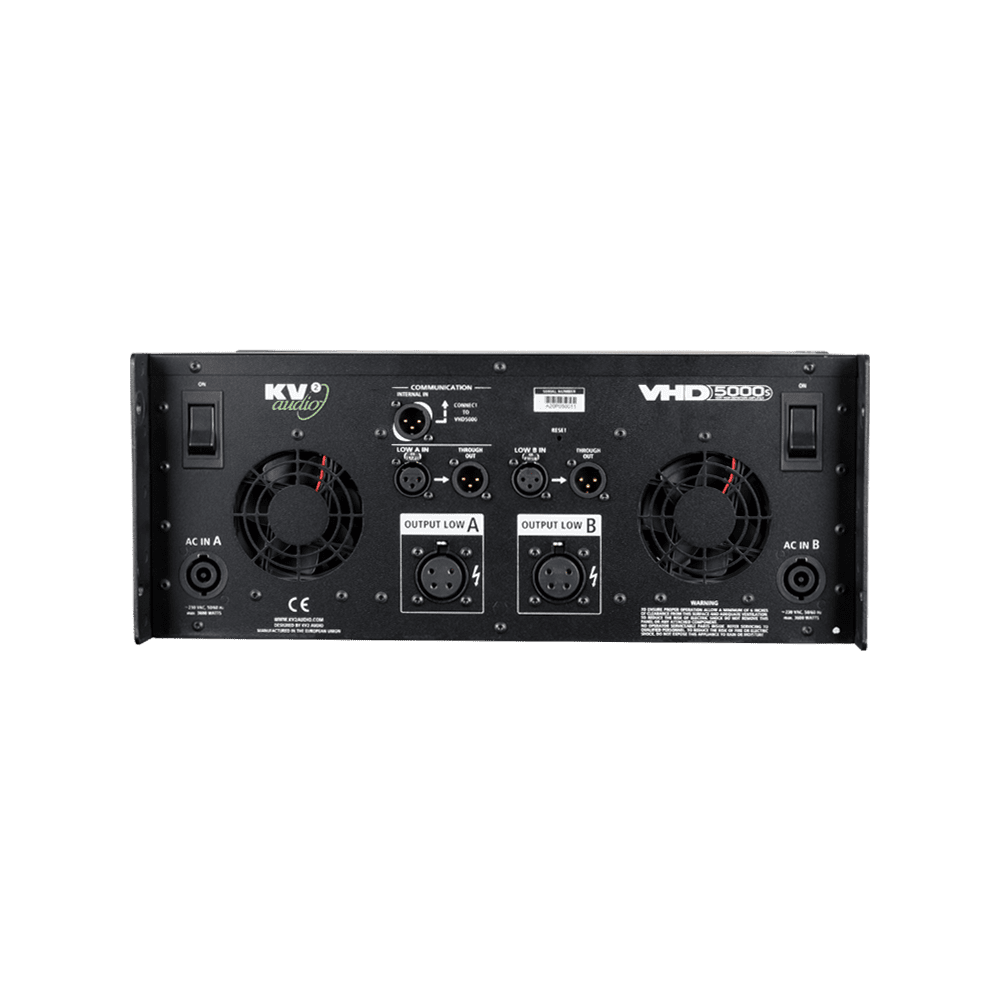

    Output channels Through Out

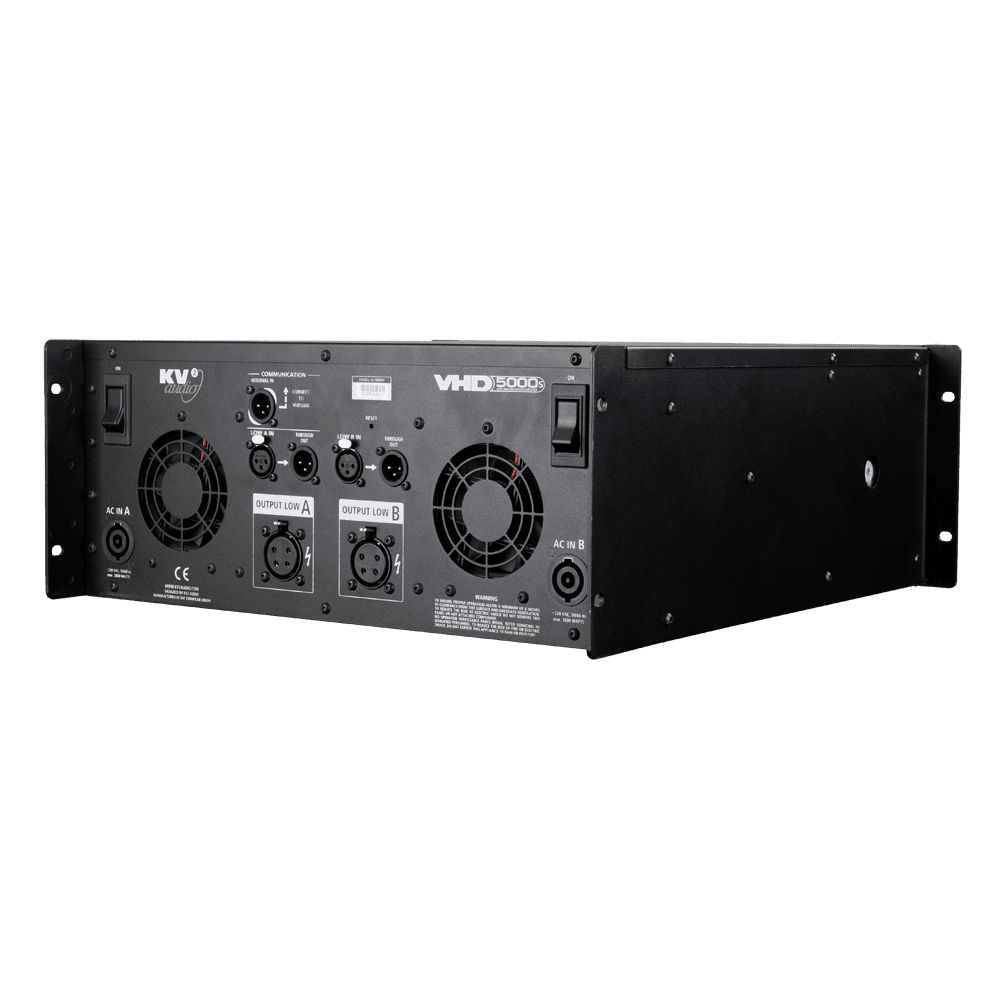

    Speaker Output

    Speaker Output 2x AP4

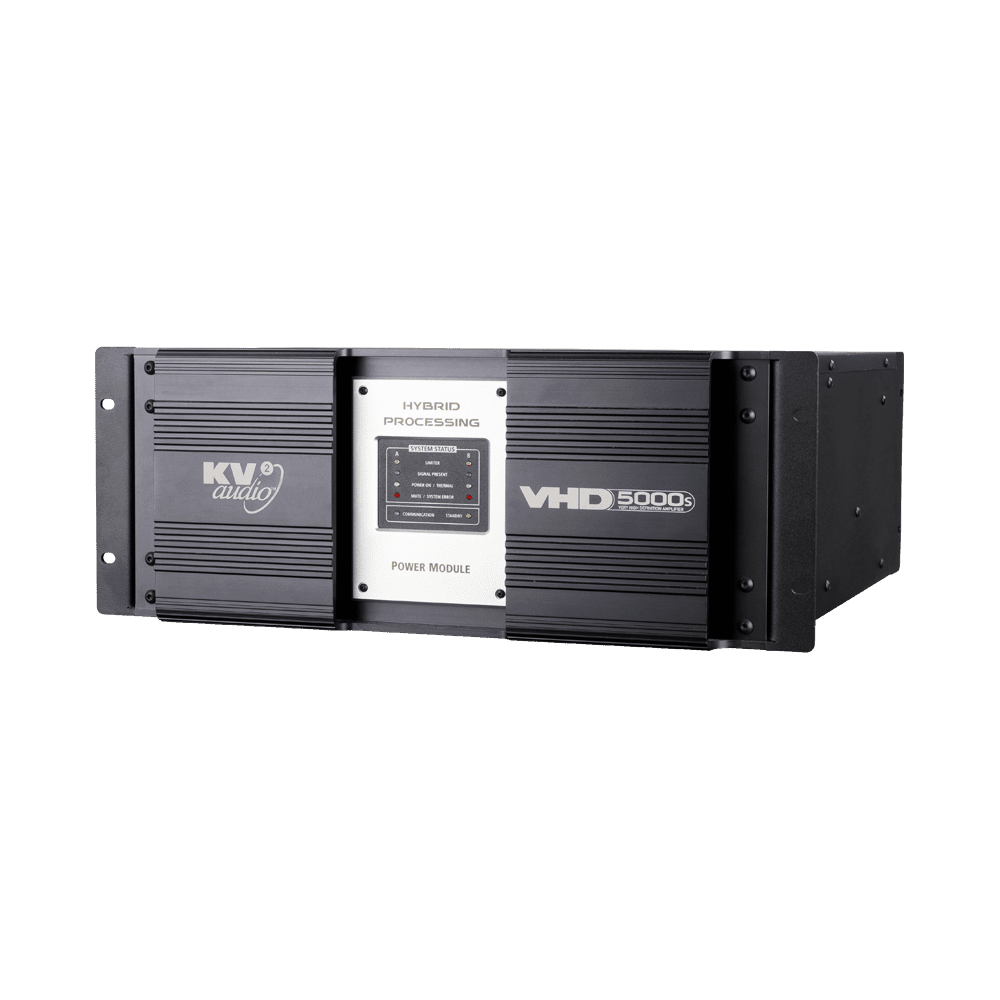

    Features

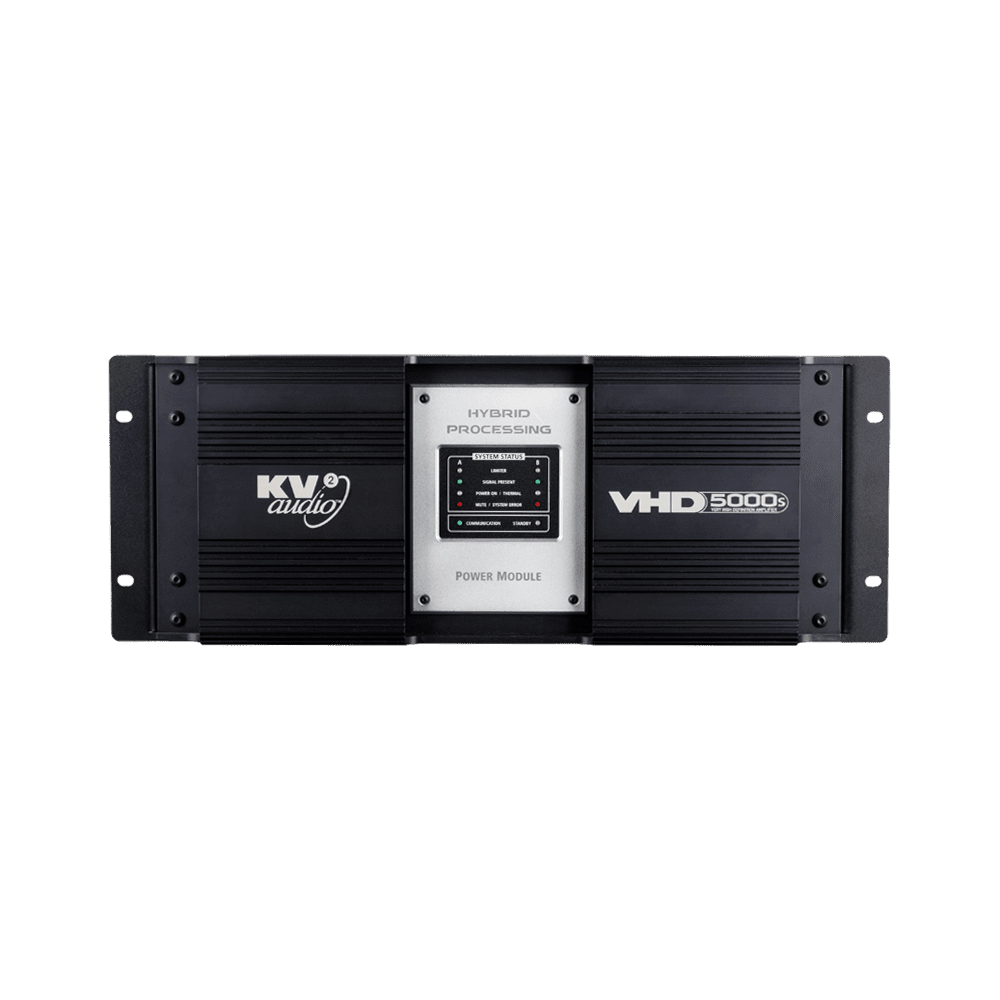

    Indicators 2x Power ON/Thermal, Signal/Limiter/Communication
    Remote control Ethernet

    Power Requirements

    Power Connector 2x Neutrik PowerCon® 32A
    Operating Voltage 230V
    Operating Voltage Range 195 to 260V AC
    Recommended Amperage 2x20A 205V | 2x16A 230V
    Soft Start Yes
    Protection Thermal breaker
    Cooling Front-to-back, active

    Physical Dimensions

    Height 177.8 mm (7.0″), 4HE
    Width 481.4 mm (18.95″)
    Depth 495 mm (19.5″)
    Weight 42 kg (92.6lbs)


    Product code

    KVV 987 356


    PDF

    VHD5 Amplifiers User Guide

    User Guide for VHD5000, VHD5000S and VHD5100 Amplifiers – rev 5



    PDF

    VHD5 Subwoofer Configurations

    VHD5 Subwoofer Configurations



    PDF

    VHD5.0, VHD8.10, VHD5.1 User Guide

    VHD5.0, VHD8.10, VHD5.1 User Guide – EN



    PDF

    VHD5000 GUI Touchscreen Control, Web Control

    VHD5000 GUI Touchscreen Control, Web Control



    PDF

    VHD5000S Download Product’s Data Sheet

    Download Product’s Data Sheet


    DWG

    VHD5000S 3D DWG

    VHD5000S 3D DWG



    SKP

    VHD5000S SKP

    VHD5000S SketchUp



    DWG

    VHD5000S 2D DWG

    VHD5000S 2D DWG



    DWG

    VHD5000S – 3D

    1:1 scale – clamping points – weight – dwg file



    PDF

    VHD5000S – 2D

    VHD5000S 2D Drawings
