L-ARRAY

3000W Peak Power

L-ARRAY 28H Passive Satellite Dual 8″ Woofers, 2 x 1.35″ Twitters

L-ARRAY 18S Passive Subwoofer 18″ Woofer

    Consultar precios

    Descripción

    Especificaciones

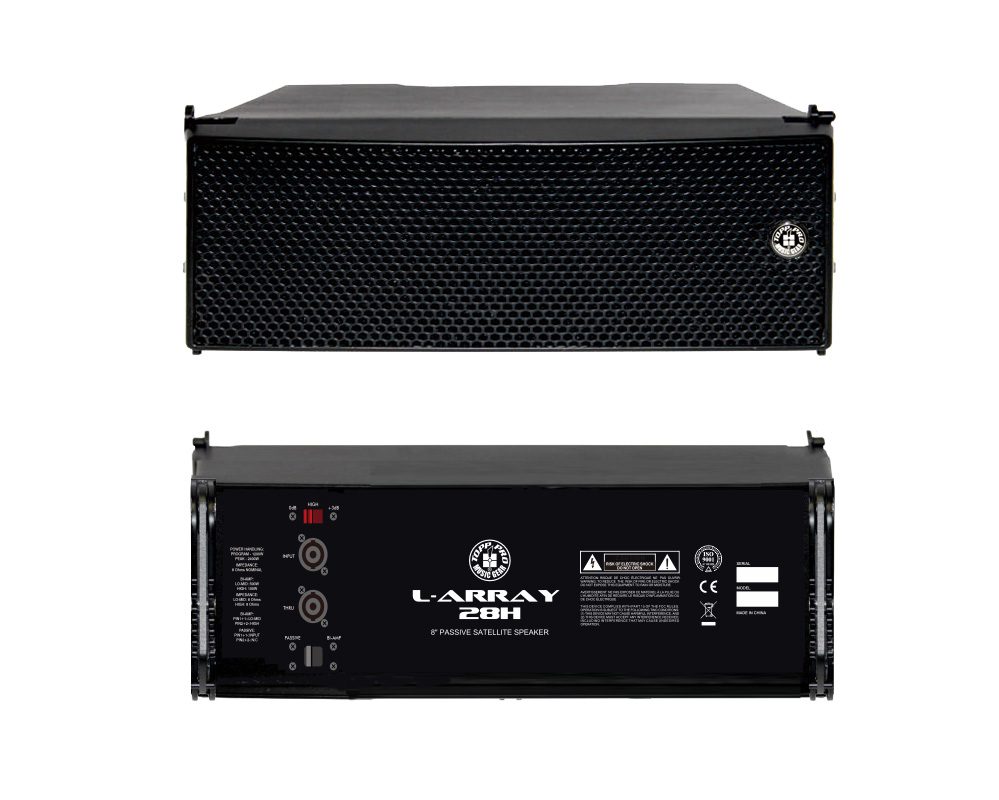

    Model L-ARRAY 28H
    System Type 8″ 2-way Passive Speaker System
    Output Power 400W Continious / 800W Program Power / 1600W Peak Power
    Maximum SPL @ 1m 127dB Max.(calauated)
    Frequency Response 70Hz-20kHz (-10dB)
    Impedance 8 ohms
    Transducer Low 2 x 8” Ferrite Woofer , 2” (50.5mm) Voice Coil
    Transducer High 2 x 1” Neodymium Compression Driver, 1.35” (34mm) Voice Coil
    Crossover Frequency 1.5kHz
    Dispersion(-6dB) 110° Horizontal, 15° Vertical
    Attachment Points Adjustable Rigging System, Vertical Splay Adjustable in 1.0° Increments from 0°-12°
    Connectors 2 x SPK4 Style / HF: 0dB-3dB Switch / Passive-Bi-AMP Switch
    Enclosure Construction Polypropylene enclouse, Steel Grille with foam, Two Handles on Each Side.
    Fittings information 4Flying Points
    Mounting 4-Point Suspension, Three Configuration Styles(Small,Stack and Array)
    Dimensions (HxWxD) 292mm x 594mm x 420mm
    Net Weight Approach 19.8kg / 43.7 lbs
    Model L-ARRAY 18S
    System Type 18″ Passive Vented Subwoofer
    Output Power 750W Continous /1500W Program Power / 3000W Peak Power
    Transducer Low 18‘’ Ferrite Woofer , 4″(100mm)Voice Coil with Long Excursion
    Frequency Response 35Hz – 150Hz (-10dB)
    Maximum SPL @ 1m 134dB
    Impedance 8 ohms
    Connectors 2 x SPK4 Style
    Enclosure Construction Plywood Cabinet,Resistant Black Paint, Metal Grille with Foam, Rubber Feet, 2x Each Side
    Mounting One Metal Standard Pole-Mount
    Dimensions (WxHxD) 692mm x 594mm x 766mm
    Net Weight Approach 67.8Kg (149.5 Ibs)
