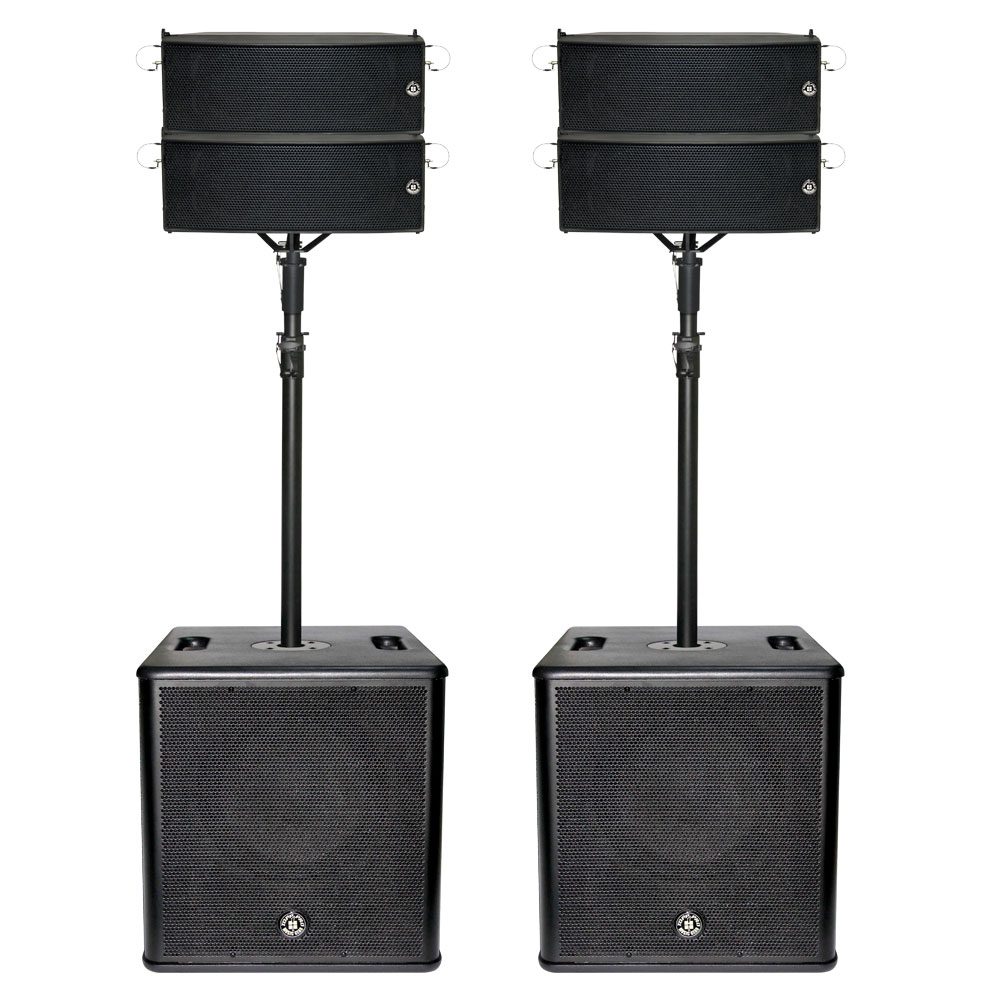

FLX 5 SYSTEM

2800W
SYSTEM PROGRAM POWER
130dB
Max SPL!
Rigging
Points

    Consultar precios

    Descripción

    Especificaciones

    Model FLX 5
    System Type 5” 2-way Passive System
    Output Power 120W (CONTINUOUS), 240W (PROGRAM)
    Sensitivity (1W/1M) 95dB
    Maximum SPL @ 1m 115.5dB Max. (calculated)
    Frequency Response 90Hz-20kHz (-10dB)
    Impedance 8 ohms
    Transducer Low 2 x 5” Woofer, 1.18” (30mm) Voice Coil
    Transducer High 1 x 1” Tweeter, 1” (25mm) Voice Coil
    Crossover Frequency 2.0kHz Passive
    Dispersion(-6dB) 100° Horizontal, 12° Vertical (one module)
    Attachment Points Adjustable Rigging System, Vertical Splay Adjustable in 1.5° Increments from 0°-12°
    Connectors 2 x SPK4 Style
    Enclosure Construction Polypropylene enclouse with side handles, steel Grille with foam
    Fittings information Steel Stirrup Material, 3 Flying Points
    Dimensions (HxWxD) (W) 430mm x (H) 161mm x (D) 304mm ; (W) 16.93″ x (H) 6.33″ x (D) 11.96″
    Net Weight 8kg / 17.63 lbs
    Model SOHO S15FLX
    Subwoofer 1 x 15″
    Frequency response -6 dB 40 Hz – 500 Hz
    Amplifier, subwoofer 1 x 350W / Class D @ 4 Ohms
    Amplifier, satellite/ mid/ high unit 1 x 350W / Class D @ 4 Ohms
    Axial sensitivity 1W@1m Axial sensitivity 1W@1m : 96dB
    Electronic Protections Thermal / DC / Overload / Digital Lim./Compressor
    Cooling Temperature-controlled fan
    Connections 2 Combo-XLR 1/4” In, 1 XLR In, 1 RCA In L&R, 1 XLR Thru, 1 Speakon Out
    External Controls Volume Control / Switch for Input sens / Swtich for mode selector / Power ON with Green LED / Limiter with Red LED / USB (Customer Sound)
    Power Supply 115V/230V Switchable
    Enclosure Construction Plywood cabinet, resistant black paint, metal grille with foam, rubber feet, handles
    Mounting one metal standard pole-mount
