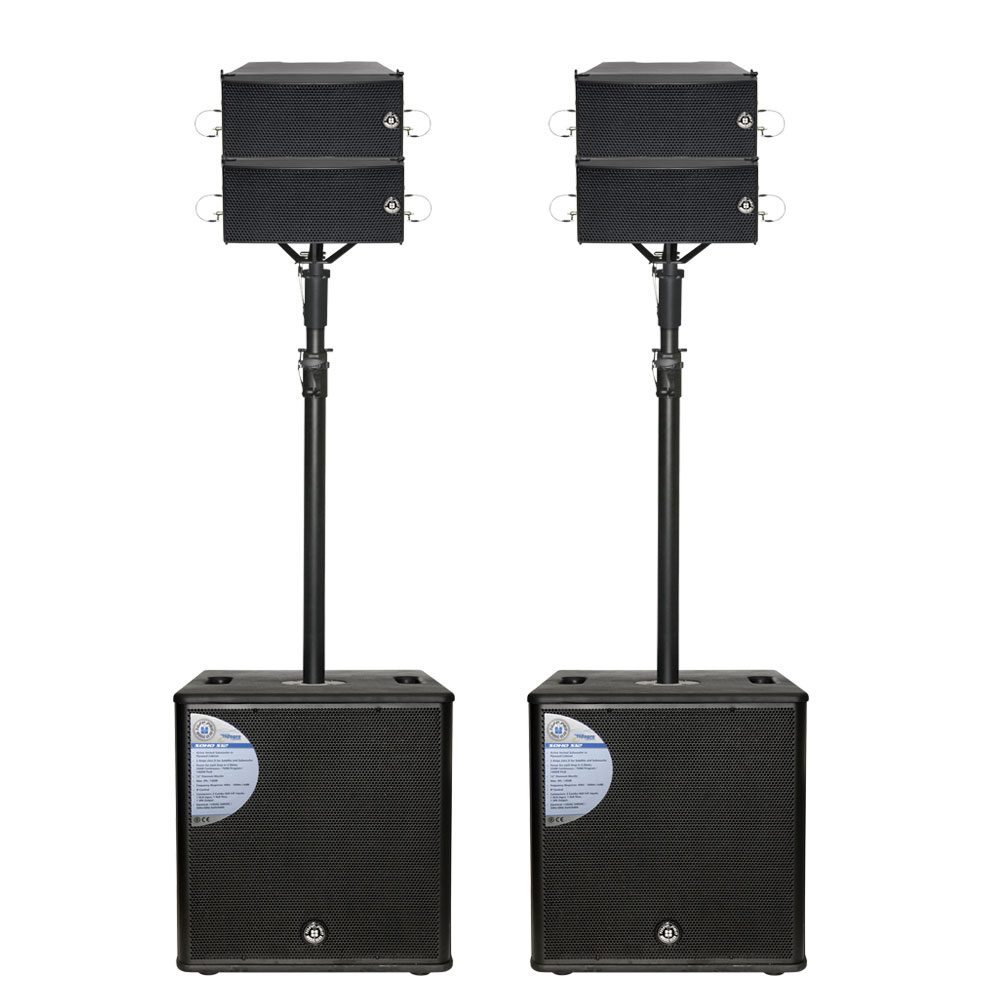

FLX 3 SYSTEM

2800W
SYSTEM PROGRAM POWER
121dB
Max SPL!
Rigging
Points

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Especificaciones

    Model FLX 3
    System Type 3″ 2-way Passive System
    Output Power 40W (CONTINUOUS) , 80W (PROGRAM)
    Sensitivity (1W/1M) 90dB
    Maximum SPL @ 1m 106dB Max. (calculated)
    Frequency Response 100Hz-20kHz (-10dB)
    Impedance 8 ohms
    Transducer Low 2 x 3” Woofer, 0.75” (19mm) Voice Coil
    Transducer High 3 x Ø13mm Voice Coil Neodymium Tweeter
    Crossover Frequency 2.5kHz
    Dispersion(-6dB) 100° Horizontal, 30° Vertical (one module)
    Attachment Points Adjustable Rigging System, Vertical Splay Adjustable in 1.5° Increments from 0°- 12°
    Connectors Parallel or Series Ø6.3mm Socket / Selection Switch
    Enclosure Construction Polypropylene Enclosure, steel Metal Grille with foam
    Fittings information Steel Stirrup Material, 3 Flying Points
    Dimensions (HxWxD) (W) 265mm x (H) 124mm x (D) 195mm; (W) 10.43″ x (H) 4.88″ x (D) 7.68″
    Net Weight 3.2kg / 7.05 lbs
    Model SOHO S12FLX
    Subwoofer 1 x 12″
    Frequency response -6 dB 40 Hz – 500 Hz
    Amplifier, subwoofer 1 x 350W / Class D @ 4 Ohms
    Amplifier, satellite/ mid/ high unit 1 x 350W / Class D @ 4 Ohms
    Axial sensitivity 1W@1m Axial sensitivity 1W@1m : 96dB
    Electronic Protections Thermal / DC / Overload / Digital Lim./Compressor
    Cooling Temperature-controlled fan
    Connections 2 Combo-XLR 1/4” In, 1 XLR In, 1 RCA In L&R, 1 XLR Thru, 1 Speakon Out
    External Controls Volume Control / Switch for Input sens / Swtich for mode selector / Power ON with Green LED / Limiter with Red LED / USB (Customer Sound)
    Power Supply 115V/230V Switchable
    Enclosure Construction Plywood cabinet, resistant black paint, metal grille with foam, rubber feet, handles
    Mounting one metal standard pole-mount
