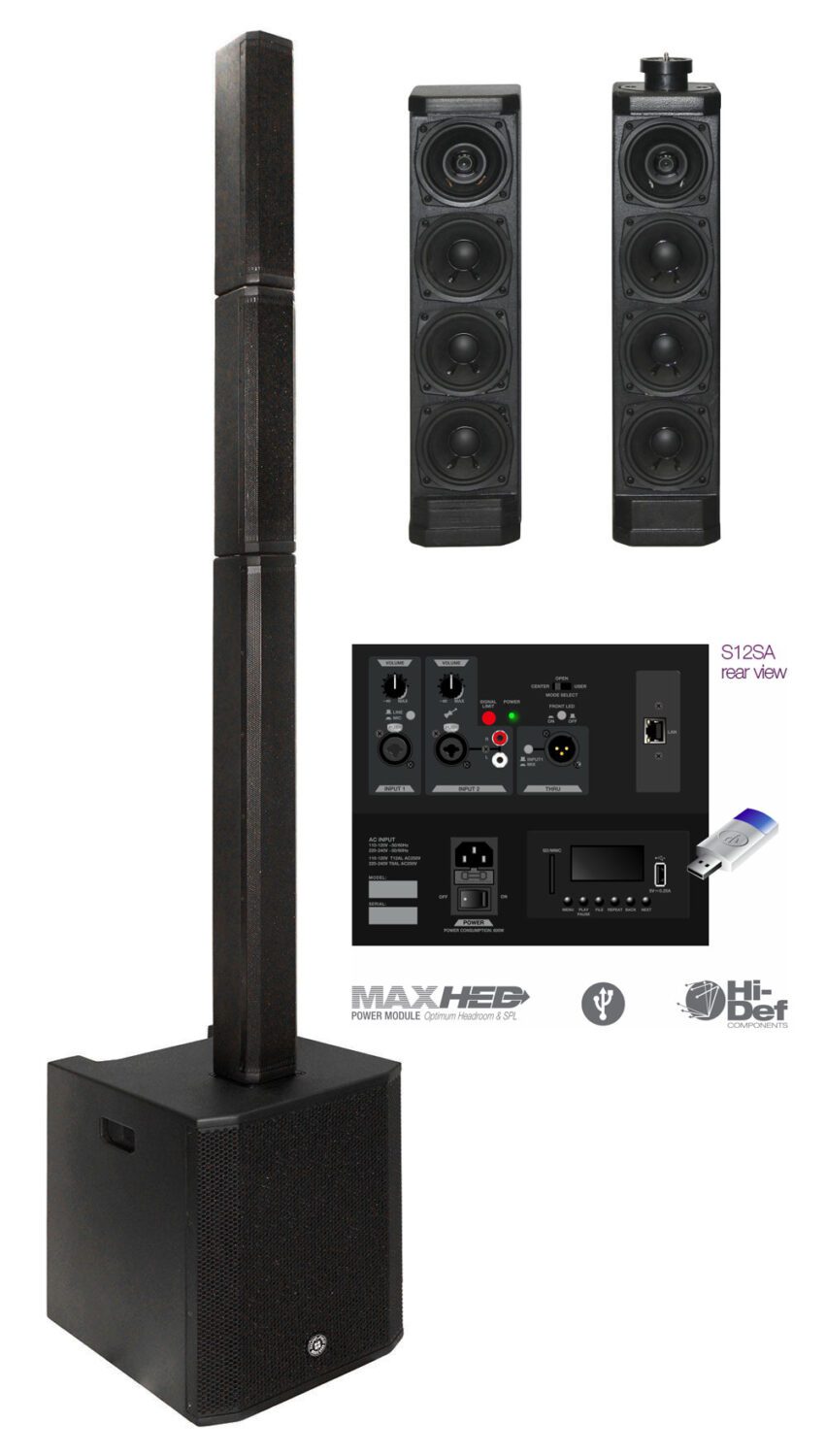

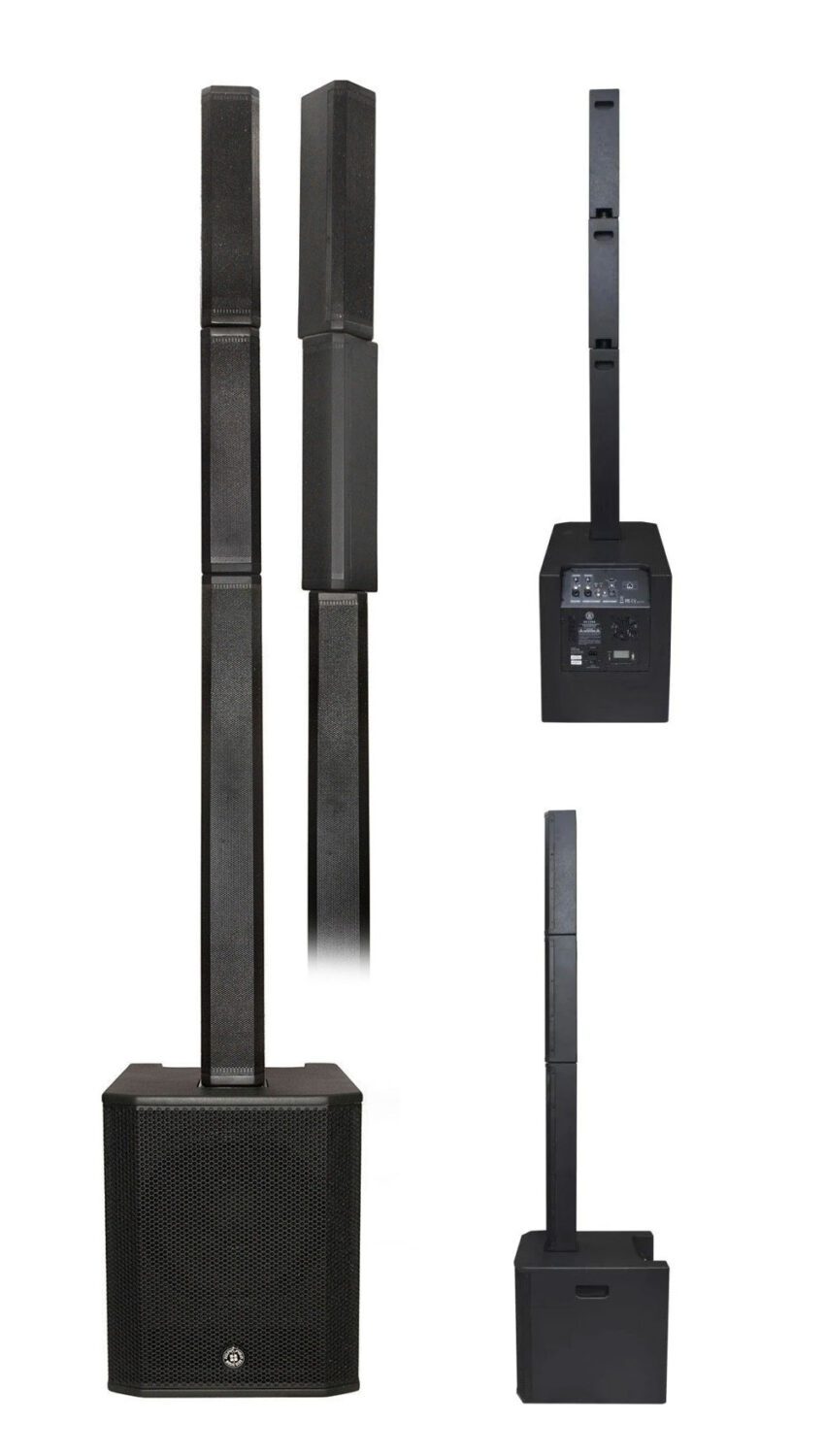

VA42.12

3.5″ Passive Speaker System

2000W System Program

12″ Active Subwoofer

    Consultar precios

    Descripción

    Especificaciones

    Passive Speaker VA42BM
    System Type 3.5″ Passive Speaker System
    Output Power 120W Continuous, 240W Program, 480W Peak
    Sensitivity (1W/1M) 95dB
    Maximum SPL @ 1m 122dB Max. (calculated)
    Frequency Response (-6dB) 160Hz-20kHz
    Impedance 8 ohms
    Transducer Low 4 x 3.5” Woofer, 1” (25.4mm) Voice Coil
    Crossover Frequency 500Hz
    Dispersion (-6dB) 100° Horizontal
    Attachment Points Adjustable Rigging System, Horizontal Splay Rotation in -90°-0°- 90° Increments from 180°
    Enclosure Construction Plywood Cabinet, Resistant Paint, Metal Grille with Foam
    Mounting 2 x Holder, 1 x Input Connector for VA-WP Pole, Another with Input Connector for VA42TP
    Dimensions (HxWxD) 448 x 106.6 x 98mm (17.64” x 4.20” x 3.86”)
    Net Weight 3.48Kg (7.67 Ibs)
    Passive Speaker VA42TP
    System Type 3.5″ Passive Speaker System
    Output Power 120W Continuous, 240W Program, 480W Peak
    Sensitivity (1W/1M) 95dB
    Maximum SPL @ 1m 122dB Max.(calculated)
    Frequency Response (-6dB) 160Hz-20kHz
    Impedance 8 ohms
    Transducer Low 4 x 3.5” Woofer , 1” (25.4mm) Voice Coil
    Crossover Frequency 500Hz
    Dispersion (-6dB) 100° Horizontal
    Attachment Points Adjustable Rigging System, Horizontal Splay Rotation in -90°-0°- 90° Increments from 180°
    Enclosure Construction Plywood Cabinet, Resistant Paint, Metal Grille with Foam
    Mounting 1 x Holder, 1 x Input Connector for VA-42BM or VA-WP Pole
    Dimensions (HxWxD) 422 x 106.6 x 98mm (16.61” x 4.20” x 3.86”)
    Net Weight 3.41Kg (7.52 Ibs)

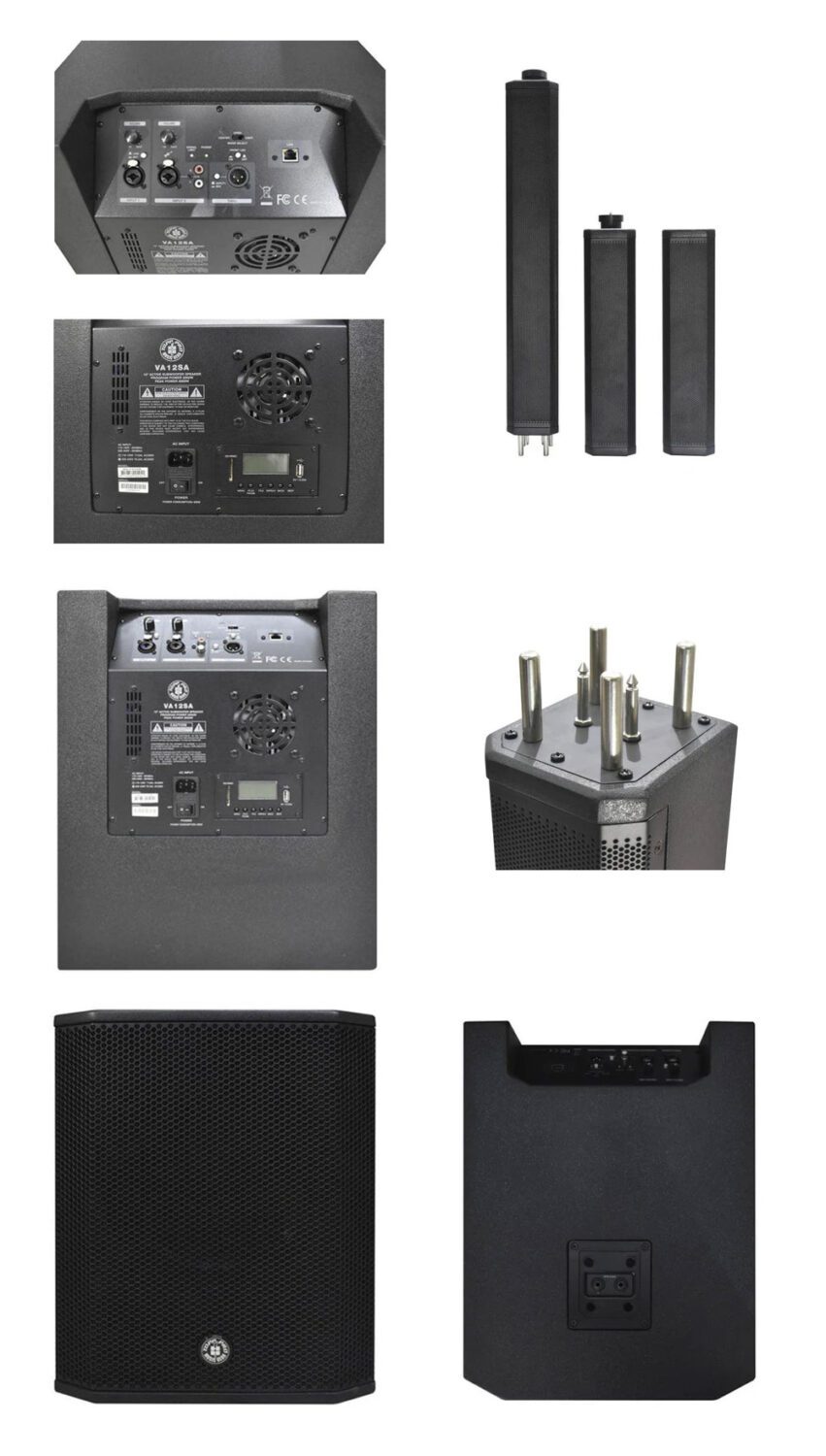

    Active Subwoofer VA12SA
    System Type 12″ Active Subwwofer Apeaker Cabinet
    Frequency response -6 dB 40Hz-500Hz
    Total amplifier power 1000W Continuous/2000W Program/4000W Peak Class D @ 4 Ohms
    Amplifier, subwoofer 500W Continuous / 1000W Program / 2000W Peak Class-D @ 4ohms
    Amplifier, satellite / mid / high unit 500W Continuous / 1000W Program / 2000W Peak Class-D @ 4ohms
    Sensitivity (1W@1m) 96dB
    Maximum SPL@1m 130dB (Calculated)
    Electronic Protections Over heat Protection / Short Circuit Protection / Digital Compressor
    Cooling Temperature-controlled fan
    Connections Input: 2 Combo-XLR & 1/4″, RCA In L & R, 1 XLR Thru & Mix out
    External Controls Volume Control / Switch for Input sens. / Swtich for mode selector / Power ON with Green LED / Limiter with Red LED / Ground Lift / IP Control
    Power Supply 110V/230V -50/60Hz
    Enclosure Construction Plywood cabinet, resistant black paint, metal grille with foam, rubber feet, handles
    Mounting Holder with Input Jacks for Pole
    Dimensions (W x H x D) 430 x 450 x 480 mm (16.93″ x 17.72″ x 18.90″)
    Net Weight 20.51 kg / 45.22 lbs.
    Pole VA-WP
    Enclosure Construction Plywood Cabinet, Resistant Paint, Metal Grille with Foam
    Mounting 2 x Holder, 1 x Input Connector for Sub, Another with Input Connector for Satellite
    Dimensions (WxHxD) 700 x 106.6 x 98mm (27.56” x 4.20” x 3.86”)
    Net Weight 2.70Kg (5.95 Ibs)
