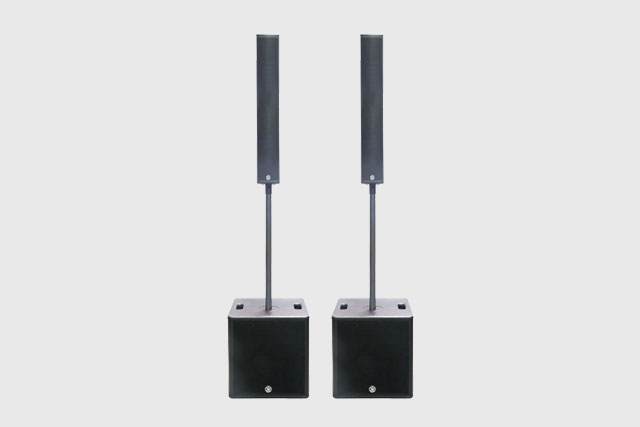

SOHO V8 + S12

2800W SYSTEM PROGRAM POWER

Available in Black

130dB Max SPL!

    Consultar precios

    Descripción

    Especificaciones

    Passive Speaker SOHO V8
    Mid range woofers 8 x 3,5′ wideband speakers
    Nominal power handling capacity 240 W RMS
    Frequency response -6 dB 140Hz-20kHz
    Axial sensitivity 1W@1m 97 dB
    Nominal impedance 4 ohms
    Input Connector 1 x SPK
    Directivity 100° Horizontal
    Crossover frequency 350Hz, 24 dB/ Oct. Actiive
    Enclosure Construction Body In extruded wood,Black paint
    Mounting one metal pole-mount
    Dimensions (WxHxD) 129.7 x 760 x 102.6mm (5.11′ x 29.92′ x 4.04″)
    Net Weight 6.95 kg /15.33 lbs.
    Active Subwoofer SOHO S12 SUB
    Subwoofer 1 x 12″ Ø 320mm – 2.5″ Voice Coil
    Frequency response -6 dB 40Hz-500Hz
    Total amplifier power 700W Continuous / 1400W Program / 2800W Peak Class D @ 4 Ohms
    Amplifier, subwoofer 350W Continuous / 700W Program / 1400W Peak Class D @ 4 Ohms
    Amplifier, satellite, mid high unit 350W Continuous / 700W Program / 1400W Peak Class D @ 4 Ohms
    Axial sensitivity 1W@1m 96dB / 130dB Max.
    Electronic Protections Thermal DC / Overload / Digital Compressor / Limit
    Cooling Temperature-controlled fan

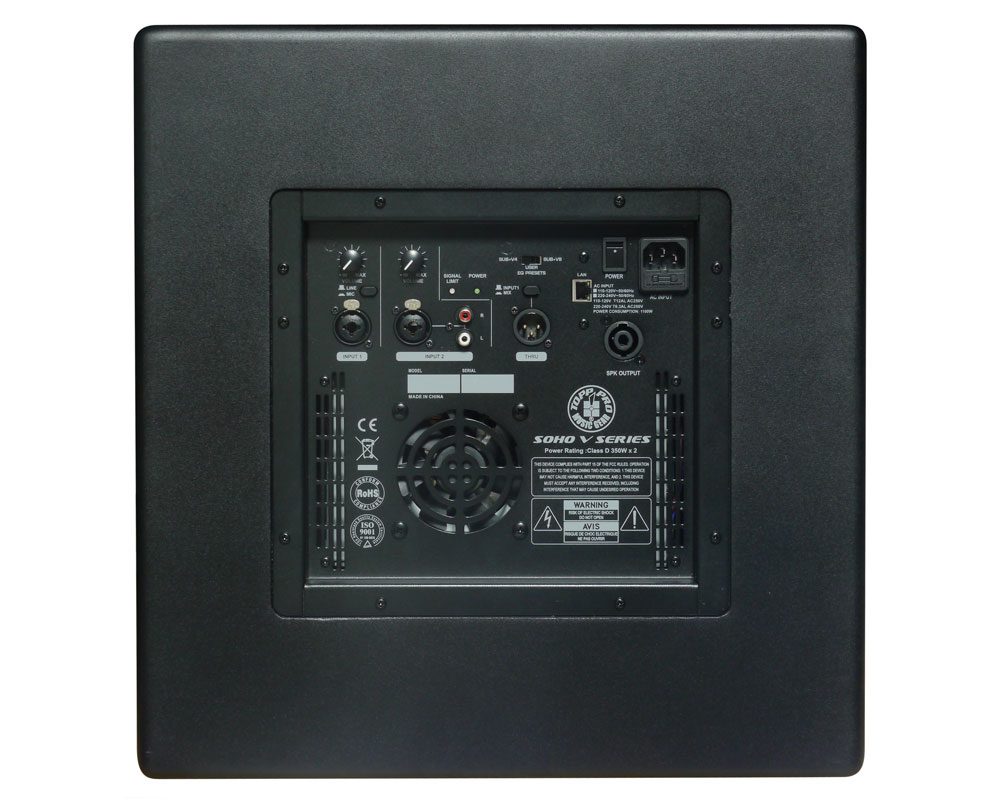

    Connections Input: 2 Combo – XLR 1/4″, 1 RCA in L&R / Output: SPK Satellite / XLR Link
    External Controls Volume Control / Switch for Input sens. / Swtich for mode selector / Power ON with Green LED / Limiter with Red LED / Ground Lift / IP Control
    Power Supply 115V / 230V Swltchable
    Enclosure Construction Plywood cabinet, resistant black paint, metal grille with foam, rubber feet, handles
    Mounting one metal standard pole-mount
    Dimensions (W x H x D) 430 x 450 x 480 mm (16.93″ x 17.72″ x 18.90″)
    Net Weight 20.51 kg / 45.221bs.
