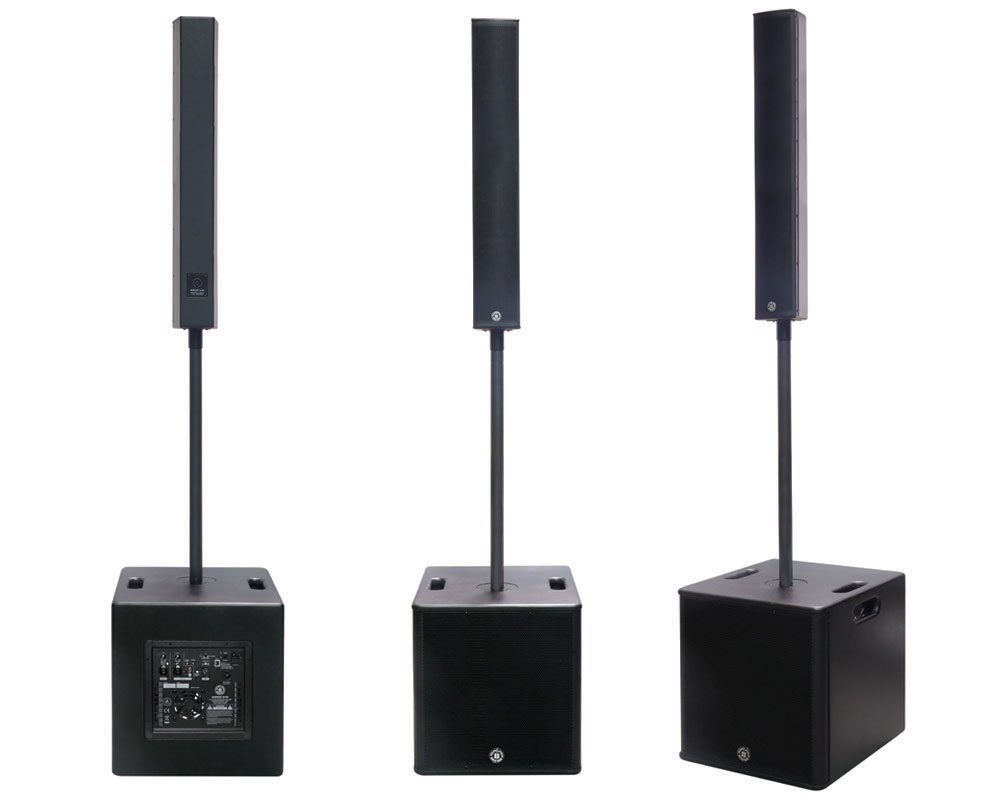

SOHO V8 PLUS + S15

2800W SYSTEM PROGRAM POWER

Available in Black

130dB Max SPL!

    Consultar precios

    Descripción

    Especificaciones

    Passive Speaker SOHO V8 PLUS
    System Type 3.5″ Passive Speaker System
    Output Power 240W Continuous, 480W Program, 960W Peak
    Sensitivity (1W/1M) 97dB
    Maximum SPL @ 1m 127dB Max. (calculated)
    Frequency Response (-6dB) 140Hz – 20kHz
    Impedance 4 ohms
    Transducer Low 7 x 3.5″ Woofer, 1″ (25.4mm) Voice Coil, 1 x 3.5″ wideband speaker with 1 x 1.35″ coaxial tweeter
    Crossover Frequency 350Hz, 24dB/Oct. ACTIVE
    Dispersion(-6dB) 100° Horizontal
    Enclosure Construction Body In extruded wood, black paint
    Mounting One metal pole-mount, two M8 hanging-points
    Dimensions (HxWxD) 130 x 760 x 103 mm / 5.12″ x 29.92″ x 4.06″
    Net Weight 6.98 Kg / 15.39 Ibs
    Active Subwoofer SOHO S15 SUB
    Subwoofer 1 x 15″ Ø381mm – 2.5″ Voice Coil
    Frequency response -6dB 40Hz-500Hz
    Total amplifier power 1400W PROGRAM / 2800W PEAK Class D @ 4 Ohms
    Amplifier, subwoofer 700W PROGRAM / 1400W PEAK Class D @ 4 Ohms
    Amplifier, satellite/ mid-high unit 700W PROGRAM / 1400W PEAK Class D @ 4 Ohms
    Axial sensitivity 1W@1m 96dB / 130dB Max.
    Electronic Protections Thermal DC / Overload / Digital Compressor / Limit
    Cooling Temperature-controlled fan

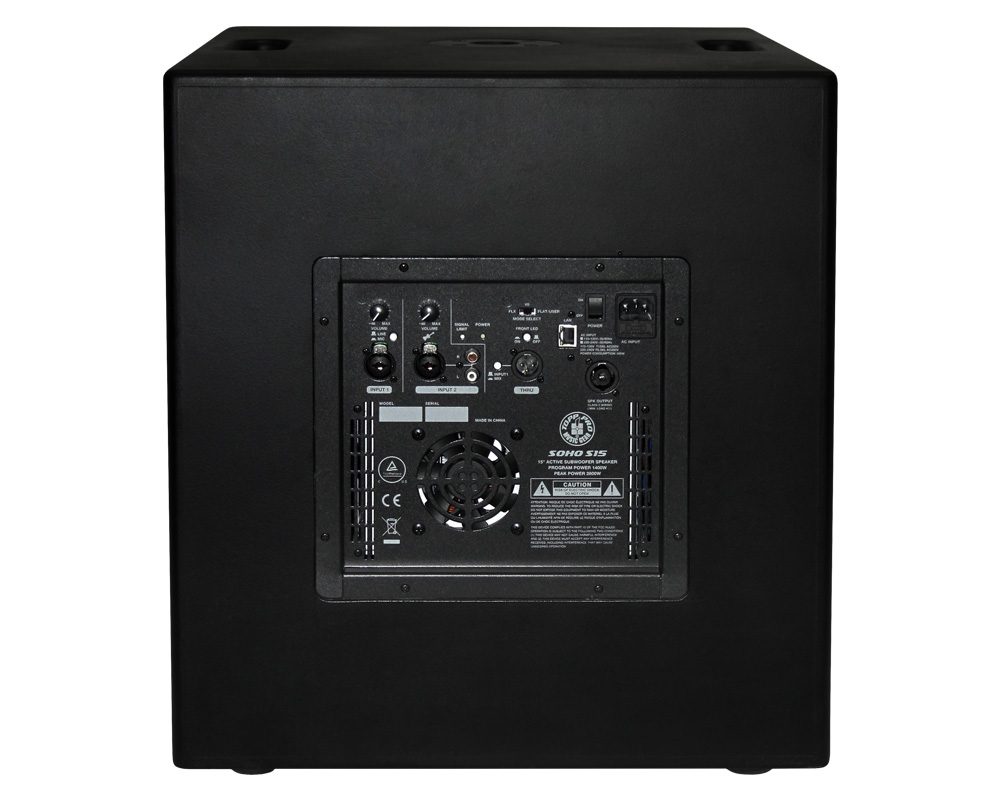

    Connections Input: 2 Combo – XLR 1/4″, 1 RCA in L&R / Output: SPK Satellite / XLR Link
    External Controls Volume Control / Switch for Input sens / Swtich for mode selector / Power ON with Green LED / Limiter with Red LED / Ground Lift / IP Control
    Power Supply 115V / 230V Switchable
    Enclosure Construction Plywood cabinet, resistant black paint, metal grille with foam, rubber feet,handles
    Mounting One metal standard 35mm pole-mount
    Dimensions (HxWxD) 520 x 480 x 562 mm / 20.47″ x 18.9″ x 22.13″
    Net Weight 28.3 kg / 62.39 lbs
