MEGASYS 1

8000W – 134dB Total System Peak Power

DSP Enhanced Bass Response

High Efficiency Class D Amplifier

    Consultar precios

    Descripción

    Especificaciones

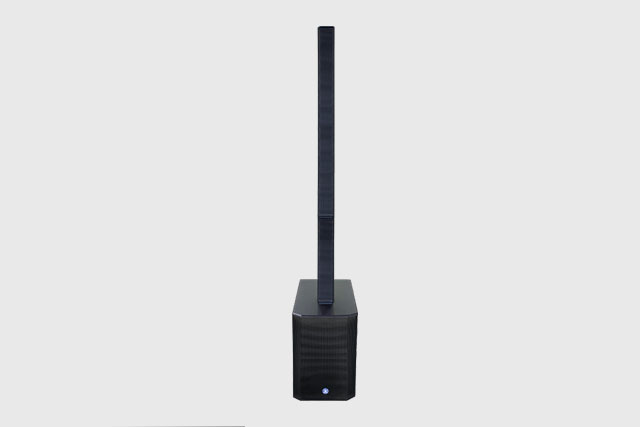

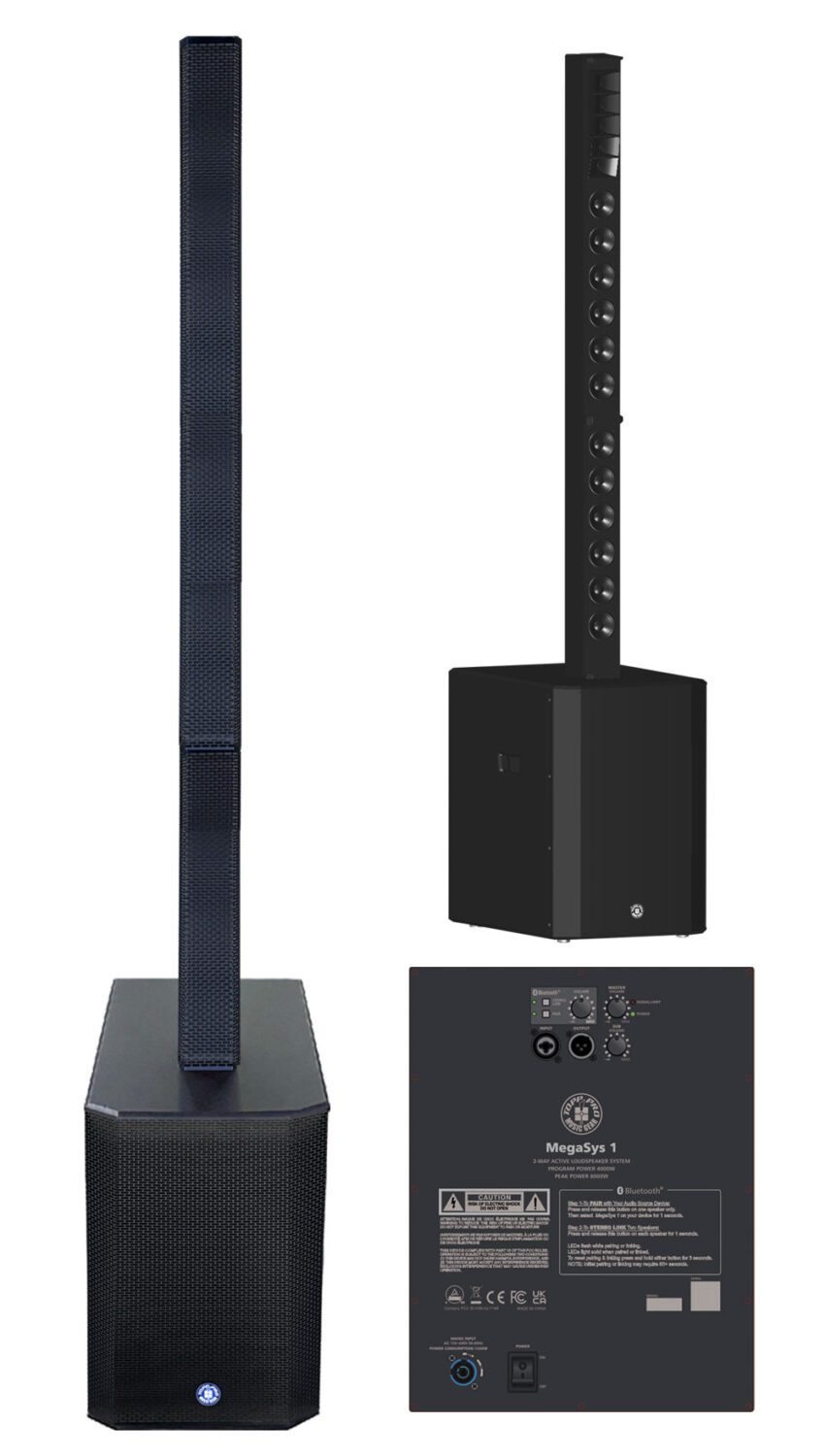

    Model Megasys 1
    Frequency Response 40Hz – 20KHz (-10dB)
    Total Amplifier Power 2000W Continuous / 4000W Program / 8000W Peak Class D
    Maximum SPL@1M 134dB
    Crossover Frequency 220Hz
    Dispersion (-6dB) 120° Horizontal
    Dimensions (WxHxD) 430 x 2170 x 610mm (16.93″ x 85.43″ x 24.02″)
    Net Weight 48 Kg (105.8 Lbs)
    Model Megasys 1 SUB
    System Type 15″ Active Subwoofer Speaker Cabinet
    Frequency Response (-6dB) 40Hz – 210Hz
    Total Amplifier Power 2000W Continuous / 4000W Program / 8000W Peak Class D @ 8 Ohms
    Amplifier, Subwoofer 1000W Continuous / 2000W Program / 4000W Peak Class D @ 8 Ohms
    Amplifier, Satellite 500W+500W Continuous / 2000W Program / 4000W Peak Class D @ 8 Ohms
    Electronic Protections Over heat Protection / Short Circuit Protection / Digital Compressor
    Connections Input: 1 x Combo-XLR&1/4”, Output: 1 x XLR Thru&Mixout
    External Controls MASTER Volume / SUB Volume / Power/Signal/Limiter/Protect Led Indicator / Bluetooth Pair and TWS Connection Switch and Led Indicator
    Power Supply 110V-240V ~50/60Hz
    Enclosure Construction Plywood Cabinet,Resistant Black Paint, Metal Grille with Foam, Rubber Feet, Integrated side handles
    Mounting Smart Mounting and Connection
    Dimensions (WxHxD) 430 x 630 x 610mm (16.93″ x 24.80″ x 24.02″)
    Net Weight 35 Kg (73.85 Lbs)
    Model Megasys 1 TP
    System Type 3.5″ 2-WAY Passive Crossover Speaker System
    Output Power 180W Continuous, 360W Program, 720W Peak
    Frequency Response (-6dB) 150Hz-20kHz
    Impedance 8 ohms
    Transducer MID 6 x 3.5″ Woofer , 1.0″ (25.4mm) Voice Coil
    Transducer Treble 5 x 1″ Neodymium Driver, 1.0″ (25.4mm) Voice Coil
    Connector 4 PIN Smart Mounting and Connection
    Enclosure Construction Aluminium Cabinet, Metal Grille, Resistant Paint
    Dimensions(WxHxD) 103 x 890 x 130mm (4.05″ x 35.03″ x 5.11″)
    Net Weight 7.2Kg (15.9 Lbs)
    Model Megasys 1 BM
    System Type 3.5″ Passive Full Range Speaker System
    Output Power 180W Continuous, 360W Program, 720W Peak
    Frequency Response (-6dB) 150Hz-20kHz
    Impedance 8 ohms
    Transducer MID 6 x 3.5″ Woofer , 1.0″ (25.4mm) Voice Coil
    Enclosure Construction Aluminium Cabinet, Metal Grille, Resistant Paint
    Connector 4 PIN Smart Mounting and Connection
    Dimensions (WxHxD) 103 x 650 x 130mm (4.05″ x 25.59″ x 5.11″)
    Net Weight 5.9Kg (13.0 Lbs)
