Elokance – Tower System 18 – 90980

The Tower 18 line array system from elokance combines new technologies and performance.

Its vertical configuration ensures optimum sound quality even over long distances, a clear response and controlled directivity.

Its modular design makes installation quick and easy. The vertical elements are very quick to set up, making this audio system a truly complete all-in-one diffusion system, perfect for all your events: conferences, meetings, live music, DJs, etc.

Its subwoofer, with an 18″ bass reflex woofer, delivers a precise and powerful low-frequency response.

The Tower 18 system incorporates a DSP that can be adjusted using computer software.

Like other elokance audio systems, the Tower 18 system is equipped with a top-of-the-range Class D amplifier, over-protected for reliability and longevity.

  • elokance Tower 18 system
  • Professional PA system
  • Type : 3-way active loudspeaker
  • Total power : 2x 1700 W RMS / 2x 3400 W max.
  • RMS amplifier power per side : 1000 W + 600 W + 100 W
  • Max. amplifier power per side: 2000 W + 1200 W + 200 W
  • Bandwidth @ -3 dB : 35 Hz – 18 kHz
  • DSP: 48 kHz / 56-bit with 5 presets, RS485 network
  • Input impedance: 20 kΩ (balance)
  • Input sensitivity: XLR 0 dBu
  • Output sensitivity: XLR 0 dBu
  • Floorstanding HF transducer: 1x 1.5″, 2″ coil
  • Floorstanding MF transducer: 4x 8″, 2″ coil
  • Subwoofer LF transducer: 1x 18″, 4″ coil
  • Vertical directionality: 40° @ 1 kHz
  • Horizontal directivity: 100° @ 1 kHz
  • Max SPL 141 dB

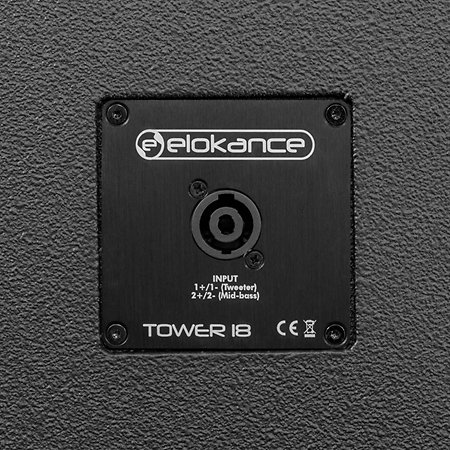

  • Floorstanding connection: speakON (cable supplied)
  • System for attaching column to cabinet included
  • Structure: 15 mm birch plywood
  • Dimensions/weight of cabinet (alone): 540 x 665 x 765 mm / 46.5 kg
  • Dimensions/weight satellite (alone): 270 x 330 x 1160 mm / 32 kg
  • Total net weight per column : 78.5 kg
  • Total gross weight per column : 80 kg
  • Power consumption per column: 580 W
  • Control software download link: https://bit.ly/4dv6HUW
  • Optional USB/RS485 adapter: reference PLUADAPRS485USB
    • Consultar disponibilidad




        Consultar precios

          Consultar disponibilidad




          Descripción

          The Tower 18 line array system from elokance combines new technologies and performance.

          Its vertical configuration ensures optimum sound quality even over long distances, a clear response and controlled directivity.

          Its modular design makes installation quick and easy. The vertical elements are very quick to set up, making this audio system a truly complete all-in-one diffusion system, perfect for all your events: conferences, meetings, live music, DJs, etc.

          Its subwoofer, with an 18″ bass reflex woofer, delivers a precise and powerful low-frequency response.

          The Tower 18 system incorporates a DSP that can be adjusted using computer software.

          Like other elokance audio systems, the Tower 18 system is equipped with a top-of-the-range Class D amplifier, over-protected for reliability and longevity.

        • elokance Tower 18 system
        • Professional PA system
        • Type : 3-way active loudspeaker
        • Total power : 2x 1700 W RMS / 2x 3400 W max.
        • RMS amplifier power per side : 1000 W + 600 W + 100 W
        • Max. amplifier power per side: 2000 W + 1200 W + 200 W
        • Bandwidth @ -3 dB : 35 Hz – 18 kHz
        • DSP: 48 kHz / 56-bit with 5 presets, RS485 network
        • Input impedance: 20 kΩ (balance)
        • Input sensitivity: XLR 0 dBu
        • Output sensitivity: XLR 0 dBu
        • Floorstanding HF transducer: 1x 1.5″, 2″ coil
        • Floorstanding MF transducer: 4x 8″, 2″ coil
        • Subwoofer LF transducer: 1x 18″, 4″ coil
        • Vertical directionality: 40° @ 1 kHz
        • Horizontal directivity: 100° @ 1 kHz
        • Max SPL 141 dB
        • Floorstanding connection: speakON (cable supplied)
        • System for attaching column to cabinet included
        • Structure: 15 mm birch plywood
        • Dimensions/weight of cabinet (alone): 540 x 665 x 765 mm / 46.5 kg
        • Dimensions/weight satellite (alone): 270 x 330 x 1160 mm / 32 kg
        • Total net weight per column : 78.5 kg
        • Total gross weight per column : 80 kg
        • Power consumption per column: 580 W
        • Control software download link: https://bit.ly/4dv6HUW
        • Optional USB/RS485 adapter: reference PLUADAPRS485USB
        •

          Line array
           Yes

          Integrated mixer
           No

          Tweeter
           1.5″

          Acoustic pressure (dB)
           > 140

          Effects
           Cutoff frequency managed by DSP

          Peak power (W)
           6000

          RMS power (W)
           1700

          Subwoofer included
           Yes

          Color
           Black

          Connectors
           XLR female 3 pins, XLR male 3 pins, Jack female Stéréo, Speakon female

          Application
           Club DJ, Front speaker, Conference, Speech

          Amplification type
           Class D

          Power supply
           220 V

          Speaker
           18″, 8″ x4

          Frequency response, low limit
           35 Hz

          Frequency response, upper limit
           18 kHz

          Packaging
           Pair
