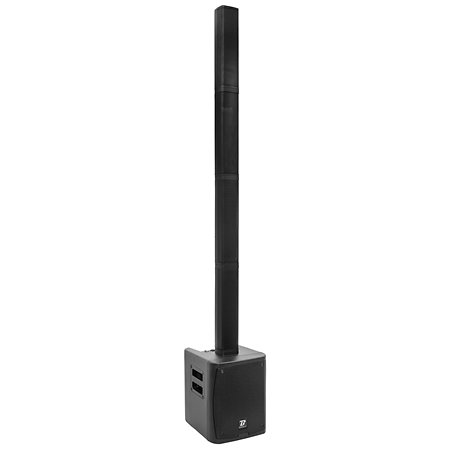

Line Two – Elokance

elokance’s LINE Array portable LINE Two diffusion system combines new technologies and performance.

Its vertical configuration ensures optimal sound quality even over long distances, a clear response and controlled directivity.

Its modular design makes installation simple and quick. The vertical elements (1 booster and 2 high frequency satellites) are very fast to implement, making this audio system a truly complete all-in-one broadcasting system, perfect for all your performances: Conferences, meetings, live music, DJ….

Its subwoofer with two 8″ boomers loaded in bass-reflex provides a precise and powerful low frequency response.

In addition to its on-board Bluetooth connectivity, the LINE Two includes a real mixing console and a USB-type charging socket to charge your mobile devices.

Like the other elokance audio systems, the LINE Two is equipped with a high-end, over-protected Class-D amplifier, ensuring reliability and durability.

  • Elokance Line Two Compact Ultra Versatile Column Sound System
  • Low bass speakers: 2 x 8″ (21cm)
  • Low bass HP coil: 3″.
  • Tweeters: 8 x 3″ neodymium tweeters
  • Tweeter coil: 0.8″.
  • Bass reflex system
  • Amplifier: Class D
  • RMS power: 500W
  • Peak power: 1000W
  • SPL Max: 119.5 dB
  • SPL Peak: 129 dB
  • Frequency response @ -3dB : 55Hz-20kHz
  • Frequency response @ -10dB : 45Hz-20kHz
  • Cut-off frequency: 200 Hz
  • Dispersion: 120°x45°
  • Audio Signal Processing via DSP, 4-channel mixer, Bluetooth receiver
  • USB connector for charging your smartphone battery
  • Stereo pairing button for use with 2 stereo systems
  • Reliable plug and play connection without external cable thanks to a lockable multi-pin connector
  • Optional transport covers
  • Power consumption: 200W
  • Subwoofer dimensions: 270x330x610mm
  • Dimensions of the satellite box: 80x105x1620mm
  • NET subwoofer weight: 15 kg
  • NET satellite weight: 3.25 kg
  • Gross weight of the subwoofer: 17 kg
  • Gross weight of the satellite: 4 kg
    • Consultar precios

      ⓘ PRECIOS SIN IVA

      Descripción

      elokance’s LINE Array portable LINE Two diffusion system combines new technologies and performance.

      Its vertical configuration ensures optimal sound quality even over long distances, a clear response and controlled directivity.

      Its modular design makes installation simple and quick. The vertical elements (1 booster and 2 high frequency satellites) are very fast to implement, making this audio system a truly complete all-in-one broadcasting system, perfect for all your performances: Conferences, meetings, live music, DJ….

      Its subwoofer with two 8″ boomers loaded in bass-reflex provides a precise and powerful low frequency response.

      In addition to its on-board Bluetooth connectivity, the LINE Two includes a real mixing console and a USB-type charging socket to charge your mobile devices.

      Like the other elokance audio systems, the LINE Two is equipped with a high-end, over-protected Class-D amplifier, ensuring reliability and durability.

    • Elokance Line Two Compact Ultra Versatile Column Sound System
    • Low bass speakers: 2 x 8″ (21cm)
    • Low bass HP coil: 3″.
    • Tweeters: 8 x 3″ neodymium tweeters
    • Tweeter coil: 0.8″.
    • Bass reflex system
    • Amplifier: Class D
    • RMS power: 500W
    • Peak power: 1000W
    • SPL Max: 119.5 dB
    • SPL Peak: 129 dB
    • Frequency response @ -3dB : 55Hz-20kHz
    • Frequency response @ -10dB : 45Hz-20kHz
    • Cut-off frequency: 200 Hz
    • Dispersion: 120°x45°
    • Audio Signal Processing via DSP, 4-channel mixer, Bluetooth receiver
    • USB connector for charging your smartphone battery
    • Stereo pairing button for use with 2 stereo systems
    • Reliable plug and play connection without external cable thanks to a lockable multi-pin connector
    • Optional transport covers
    • Power consumption: 200W
    • Subwoofer dimensions: 270x330x610mm
    • Dimensions of the satellite box: 80x105x1620mm
    • NET subwoofer weight: 15 kg
    • NET satellite weight: 3.25 kg
    • Gross weight of the subwoofer: 17 kg
    • Gross weight of the satellite: 4 kg
    •

      Line array
       Non

      Integrated mixer
       Yes

      Tweeter
       3″ x8

      Acoustic pressure (dB)
       From 120 to 130

      Effects
       Audio signal processed by DSP

      Streaming
       Bluetooth

      Peak power (W)
       1000

      RMS power (W)
       500

      Subwoofer included
       Yes

      Color
       Black

      Connectors
       XLR female 3 pins, Jack female Mono, RCA female, Mini Jack female stereo

      Weight
       19,2 kg

      Application
       Ambiance, Mobile DJ, Festival, Live, Restaurant

      Amplification type
       Class D

      Power supply
       220 V

      Vertical dispersion °
       45°

      Horizontal dispersion °
       120°

      Speaker
       8″ x2

      Frequency response, low limit
       55 Hz

      Frequency response, upper limit
       20 kHz
