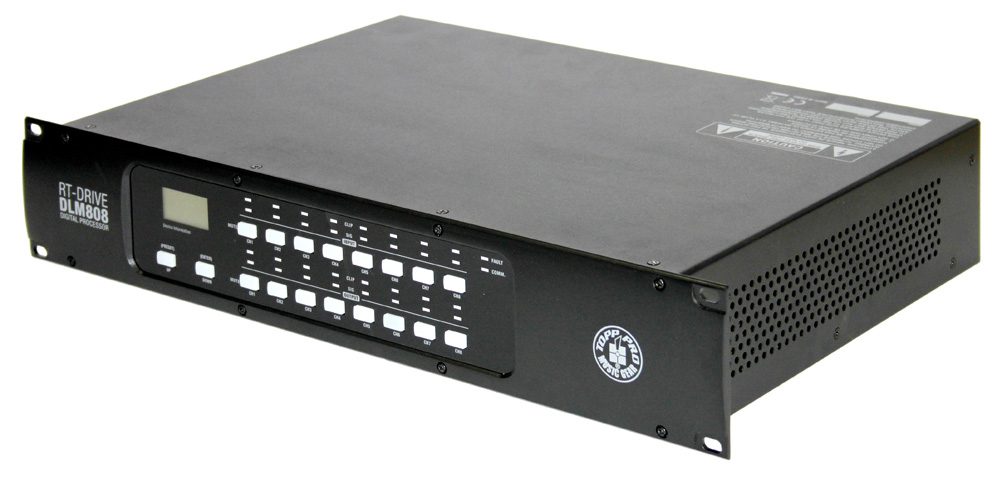

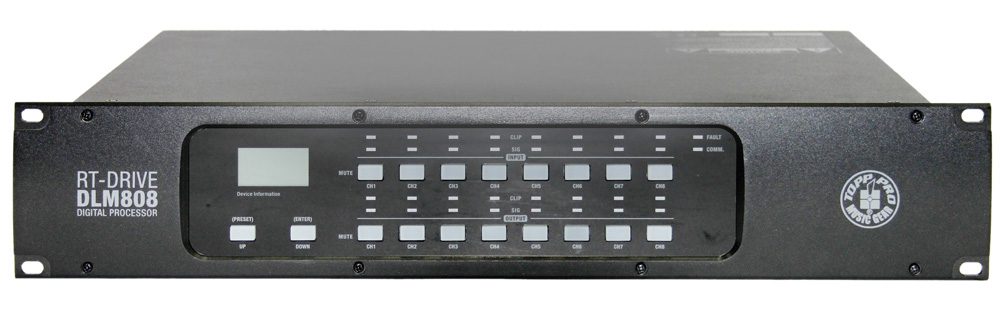

DLM-808

8×8 Digital Audio Processor

Speaker Management

PC Software Control

    Consultar precios

    Descripción

    Especificaciones

    Microphone input Electronically balanced
    Frequency Response to Main Output 20Hz~20KHz at 0dBu±1dB
    Distortion (THD&N) to Main Output <0.01% at 0dBu 1KHz
    SNR (Signal to Noise Ratio) 110dB
    Maximum Input Level +20dBu
    AUX 1~8 Outputs .
    Maximum Output Level +20dBu
    System Crosstalk .
    Input to Output -87dBu
    Adjacent Channels -87dBu
    Noise Gate .
    Threshold Range -84dBu -0dB
    Attack time 0.5mS~200mS
    Release time 5mS~2S
    Compressor .
    Threshold Range -30dBu – +20dB
    Attack time 10mS~150mS
    Release time 10mS~1S
    Ratio 1:1 to 24:1
    Gain 0dBu – +24dB
    EQ-Low (LowPass or LowShelf) 20Hz~19.2KHz +/-24dB
    Low Mid / High Mid 20Hz~19.2KHz +/-24dB
    High (HighPass or HighShelf) 20Hz~19.2KHz +/-24dB
    Digital Audio .
    ADC Dynamic Range 114dB
    DAC Dynamic Range 114dB
    DSP Processor 32-bit, floating point
    Sample Rate 48K/24bit
