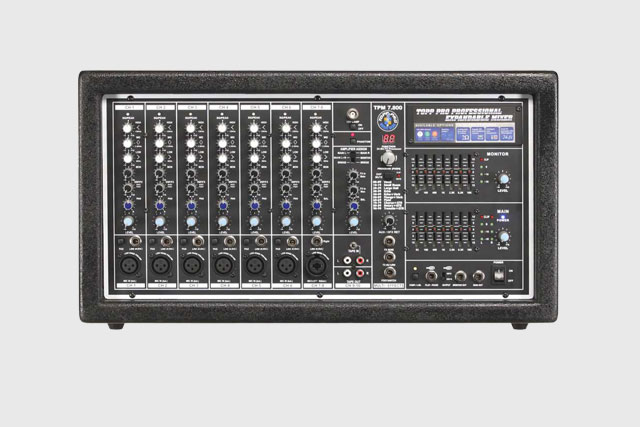

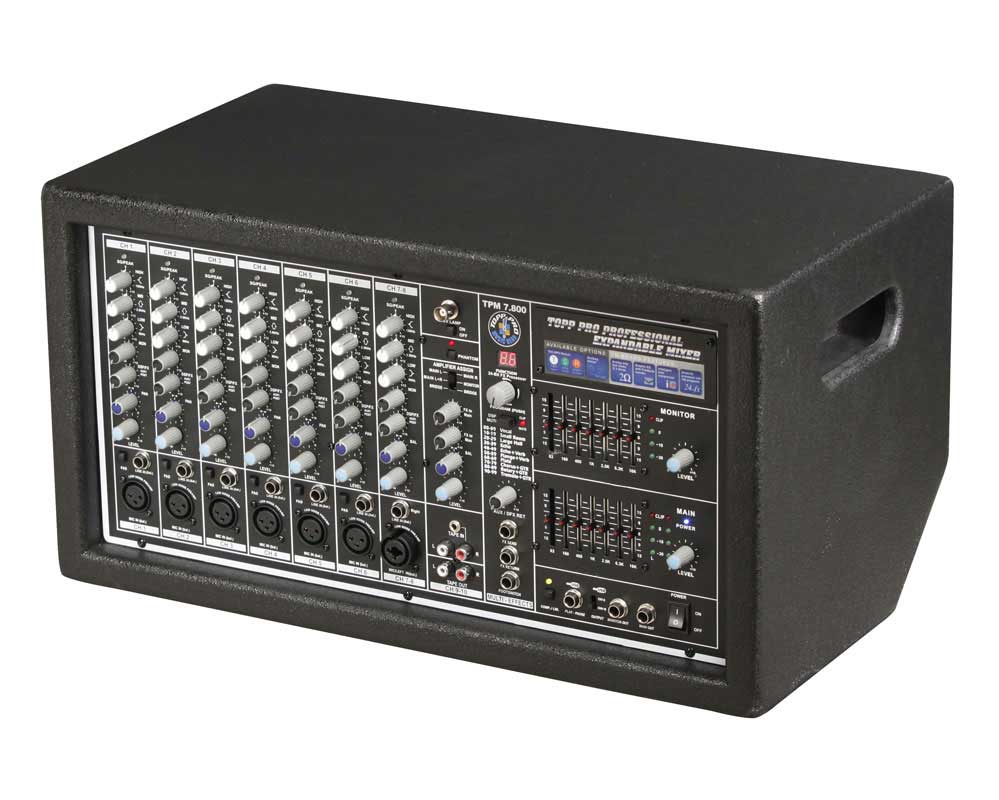

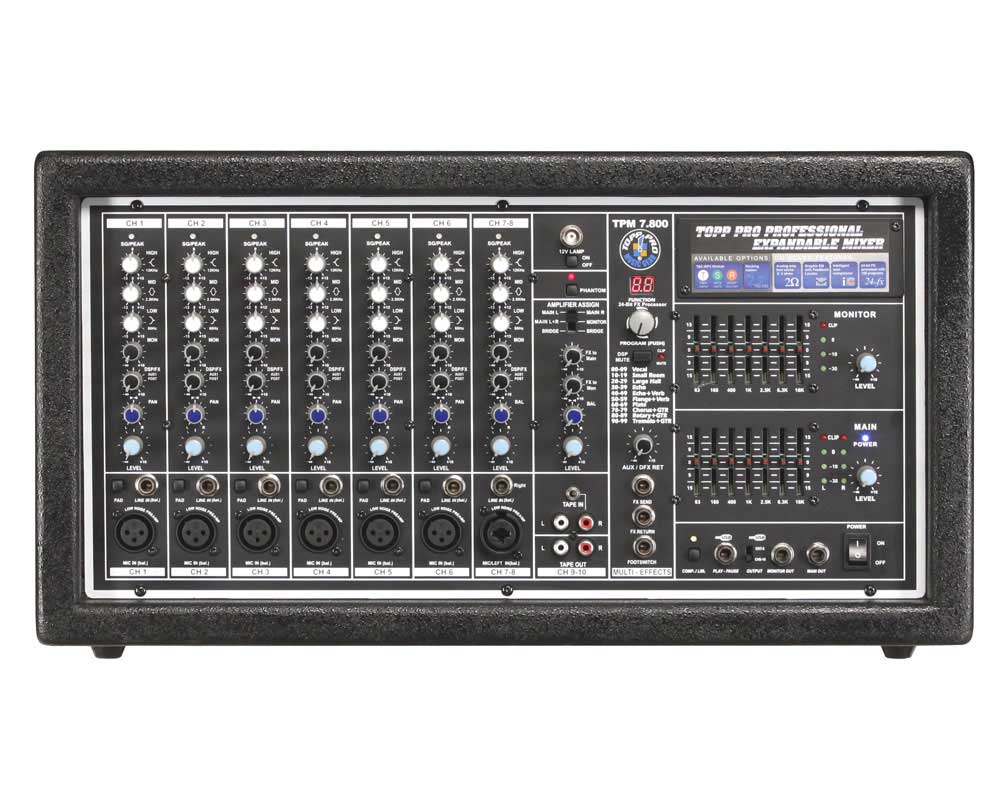

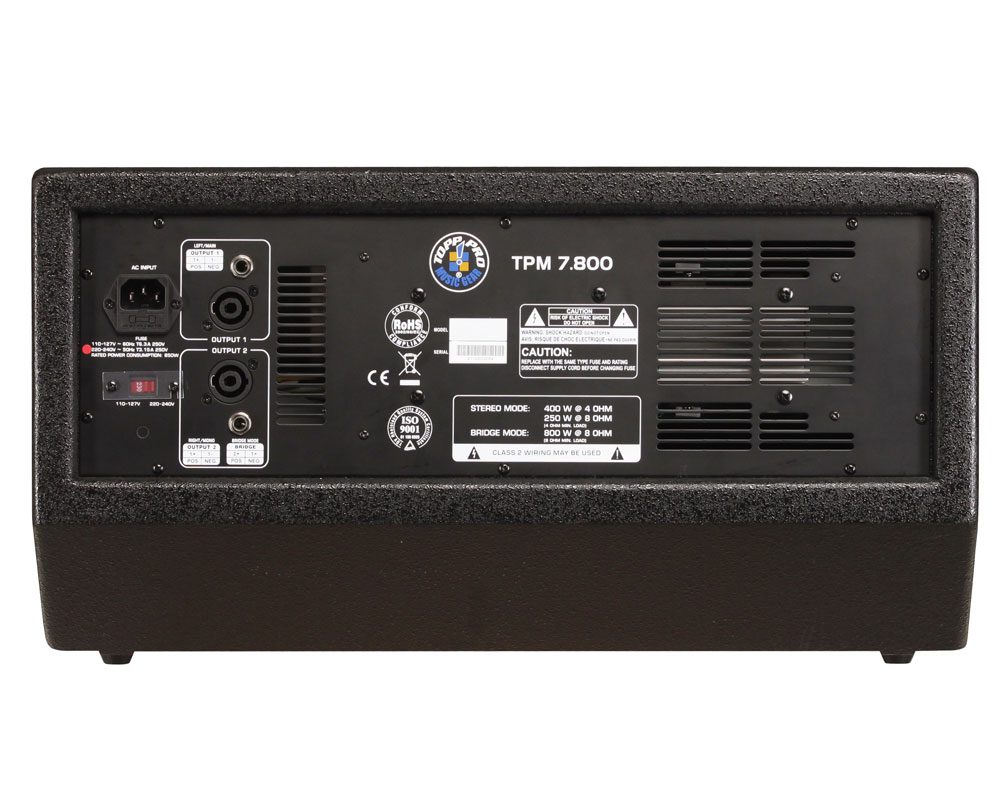

TPM 7.800

Topp Pro
> > SKU: TPM 7.800

10 Inputs – 7 XLR

Digital FX – 1 Module Bay

1600W Program STEREO

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Especificaciones

    Model TPM7.800
    Mono Channels
    Microphone Input Electronically Balanced, discrete input configuration
    Frequency Response 20Hz to 220KHz, ± 3dB
    Distortion (THD/N) 0.1% at 1KHz
    Sensitivity  -40dBu
    SNR =-80dBu
    PAD  -20dB
    Phantom Power  +15V with switch control
    Line input Electronically Balanced
    Frequency Response 20Hz – 22KHz ± 3dB
    Distortion (THD/N) 0.1% at 1KHz
    Sensitivity range  -20dBu
    Stereo Channels
    Line input Electronically Balanced, discrete input configuration
    Frequency Response 20Hz – 55KHz ± 3dB
    Distortion (THD/N) 0.1% at 1KHz
    Sensitivity range  -40dBu
    SNR =-80dBu
    Phantom Power  +15V with switch control
    Line input Electronically balanced
    Frequency Response 20Hz – 22KHz ± 3dB
    Distortion (THD/N) 0.1% at 1KHz
    Sensitivity range 0dBu
    Impedances
    Microphone Input 1.4K Ohm
    All other input 10K Ohm
    Tape Out 1k Ohm
    All other Out 120 Ohmios
    Channels EQ (mono)
    High ±15dB @ 12Khz
    Mid ±12dB @ 2.5Khz
    Low ±15dB @ 80Khz
    Channels EQ (stereo)
    High ±15dB @ 12Khz
    Mid ±12dB @ 2.5Khz
    Low ±15dB @ 80Khz
    DSP Section
    A/D and D/A Converters 24 Bit
    DSP resolution 24 Bit
    Type of effects Vocal, Small Room, Large Hall, Echo, Echo+Verb, Flanger, +Verb, Plate, Chorus+GTR, Rotary+GTR, Tremolo+GTR
    Preset 100
    Controls 100 position preset selector (10 preset x 10 variations)
    Mute switch with LED indicator, CLIP LED
    Lamp
    Pin2 (+) y Pin1 (-)  +12V DC 0.5A
    Main Mix Section
    Main, Aux, output 0dB unbalanced, 1/4″ connectors
    Main, Monitor EQ ±15dB@7 Bands (63,160,400,1K,2.6K,6.3K,16KHz)
    Noise (BUS Noise) = -70dB @ 20KHz ~ 22KHz (channel & MAIN level at 0dB, other at minimum, DSP mute)
    Compressor
    Threshold  -40dB ~ +22dB
    Comp. / Lim. Ratio (variable) 2:1 to 8: 1(Limit); attack Time: 1ms; release time: 2s
    Power Section(800 W mode)
    Power continuous 1KHz, THD 0.5% 2 x 2300W @ 4 Ohm
    2 x 150W @ 8 Ohm
    EIAJ 1KHz, THD 1% 2 x 400W @ 4 Ohm
    Bridge mode 800W @ 8 Ohm EIAJ
    440W @ 8 Ohm RMS
    Protection
    Thermal Protection Over-temperature power limiting
    Thermal shutdown
    Temperature controlled 24V DC fan output
    Short protection Short-circuit protection
    Overload output protection
    Limiter Clip limiter
    Permanent signal limiter
    High Frequency Protection
    Static Power Consumption
    No output power State at 230V 35W
    Power Supply
    Main voltage 100 – 120VAC 60Hz
    220 – 240VAC 50Hz
    100 – 120V: T 12A 250V FUSIBLE
    210 – 240V: T 6.3A 250V FUSIBLE
    Physical
    Dimension (W x D x H) 581 x 280 x 274 mm
    Weight NW: 14.3 Kg      GW: 17.5 Kg
