HPA
> SKU: HPAPROMIX8R

The HPA Promix 8R is an 8-channel analog mixing console with 4 XLR microphone inputs, reverb and echo effects, 24-bit / 48 kHz USB interface and Bluetooth / USB MP3 playback. Perfect for live and studio use.

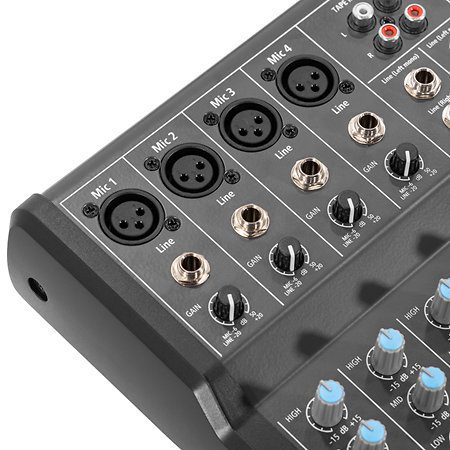

The HPA Promix 8R is an analog mixing console designed for sound technicians, DJs and musicians looking for a versatile and high-performance solution. With 8 channels, including 4 XLR microphone inputs with +48 V phantom power, it is suitable for both vocals and instruments. Its 4 6.35 mm jack line inputs and 4 6.35 mm jack stereo inputs allow for optimal flexibility in managing audio sources.

With a linear frequency response (20 Hz – 20 kHz, +1/-1 dB) and minimal distortion (0.005%), the HPA Promix 8R guarantees clear and precise sound reproduction. Its signal-to-noise ratio of over 80 dBu and its crosstalk of over 70 dBu ensure effective channel separation and the absence of unwanted noise, even at high volumes.

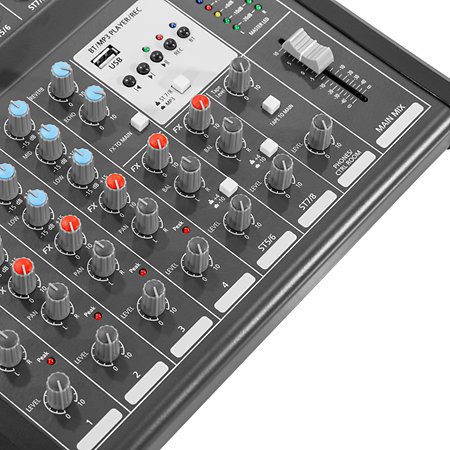

The 3-band EQ per channel (12 kHz, 2.5 kHz, 80 Hz, adjustable to +/-15 dBu) allows for precise sound sculpting, while the Reverb and Echo effect, whose depth is adjustable, adapts to each mix.

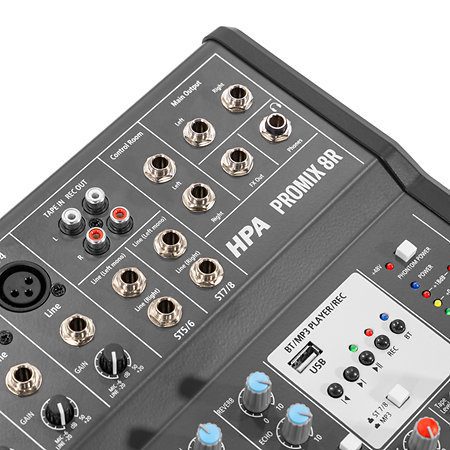

In terms of connectivity, the HPA Promix 8R has balanced and unbalanced main outputs (XLR), as well as auxiliary and effects outputs (6.35 mm jack). Its USB 2.0 interface (24-bit / 48 kHz, 2 In – 2 Out) facilitates recording and live broadcasting.

It also supports MP3 playback via Bluetooth and USB, with the possibility of recording on external media.

Versatile and robust, the HPA Promix 8R is ideal for live applications, home studios and fixed installations, offering precise control and complete connectivity for sound professionals.


  • HPA Promix 8R
  • Analog mixing console
  • 8 channels
  • 6 rotary potentiometers
  • Mic inputs: 4 XLR
  • Line inputs: 4 6.35 mm jack
  • Stereo inputs: 4 6.35 mm jack
  • Frequency response: 20 Hz – 20 kHz +1/-1dB
  • Distortion: 0.005%
  • SNR: >80 dBu
  • Noise: >-92 dBu
  • Crosstalk: >70 dBu
  • Phantom power: +48 V
  • Mic input impedance: 2.2 kohm
  • Main output (balanced output): XLR +26 dBU
  • Main output (unbalanced output): XLR +20 dBU
  • Aux Out (unbalanced output): 6.35 mm jack +20 dBU
  • FX Out (output unbalanced): 6.35 mm jack +20 dBU
  • High EQ (12 kHz): +/-15 dBU
  • Mid EQ (2.5 kHz): +/-15 dBU
  • Bass EQ (80 Hz): +/-15 dBU
  • USB 2.0 input and output: 2 In – 2 Out
  • USB 2.0 resolution: 24-bit
  • USB sampling rate: 48 kHz
  • Reverb and echo effect
  • MP3: Bluetooth / USB playback, recording on hard disk / SD card
    • Consultar precios

      ⓘ PRECIOS SIN IVA

      Descripción

      The HPA Promix 8R is an analog mixing console designed for sound technicians, DJs and musicians looking for a versatile and high-performance solution. With 8 channels, including 4 XLR microphone inputs with +48 V phantom power, it is suitable for both vocals and instruments. Its 4 6.35 mm jack line inputs and 4 6.35 mm jack stereo inputs allow for optimal flexibility in managing audio sources.

      With a linear frequency response (20 Hz – 20 kHz, +1/-1 dB) and minimal distortion (0.005%), the HPA Promix 8R guarantees clear and precise sound reproduction. Its signal-to-noise ratio of over 80 dBu and its crosstalk of over 70 dBu ensure effective channel separation and the absence of unwanted noise, even at high volumes.

      The 3-band EQ per channel (12 kHz, 2.5 kHz, 80 Hz, adjustable to +/-15 dBu) allows for precise sound sculpting, while the Reverb and Echo effect, whose depth is adjustable, adapts to each mix.

      In terms of connectivity, the HPA Promix 8R has balanced and unbalanced main outputs (XLR), as well as auxiliary and effects outputs (6.35 mm jack). Its USB 2.0 interface (24-bit / 48 kHz, 2 In – 2 Out) facilitates recording and live broadcasting.

      It also supports MP3 playback via Bluetooth and USB, with the possibility of recording on external media.

      Versatile and robust, the HPA Promix 8R is ideal for live applications, home studios and fixed installations, offering precise control and complete connectivity for sound professionals.

    • HPA Promix 8R
    • Analog mixing console
    • 8 channels
    • 6 rotary potentiometers
    • Mic inputs: 4 XLR
    • Line inputs: 4 6.35 mm jack
    • Stereo inputs: 4 6.35 mm jack
    • Frequency response: 20 Hz – 20 kHz +1/-1dB
    • Distortion: 0.005%
    • SNR: >80 dBu
    • Noise: >-92 dBu
    • Crosstalk: >70 dBu
    • Phantom power: +48 V
    • Mic input impedance: 2.2 kohm
    • Main output (balanced output): XLR +26 dBU
    • Main output (unbalanced output): XLR +20 dBU
    • Aux Out (unbalanced output): 6.35 mm jack +20 dBU
    • FX Out (output unbalanced): 6.35 mm jack +20 dBU
    • High EQ (12 kHz): +/-15 dBU
    • Mid EQ (2.5 kHz): +/-15 dBU
    • Bass EQ (80 Hz): +/-15 dBU
    • USB 2.0 input and output: 2 In – 2 Out
    • USB 2.0 resolution: 24-bit
    • USB sampling rate: 48 kHz
    • Reverb and echo effect
    • MP3: Bluetooth / USB playback, recording on hard disk / SD card
    •
