HPA
> SKU: HPAPROMIX6R

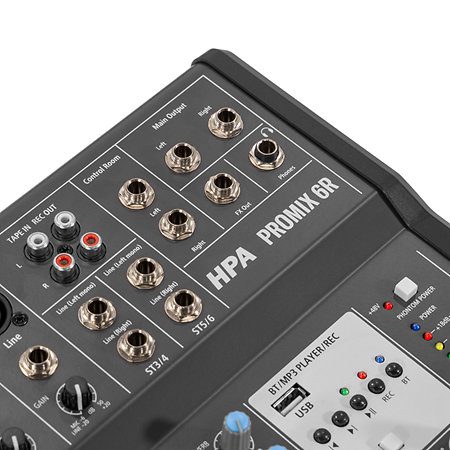

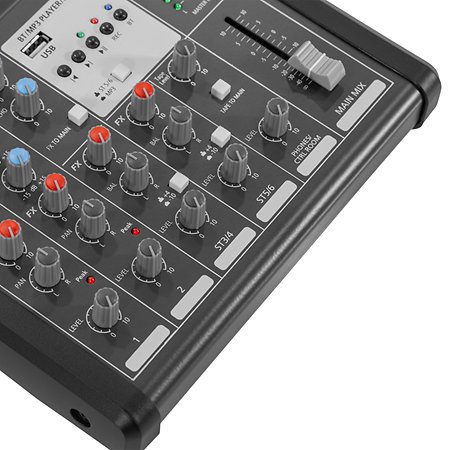

The HPA Promix 6R is a 6-channel analog mixing console with 2 XLR inputs, 3-band EQ, Echo/Reverb effects, 24-bit/48 kHz USB and Bluetooth/USB MP3 playback. Compact and ideal for live and studio use.
The HPA Promix 6R analogue mixing console offers a design focused on simplicity and versatility, suitable for small-scale setups.

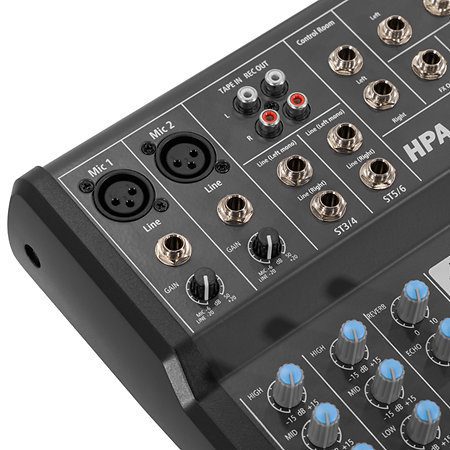

It combines six channels, including two XLR microphone inputs (with +48 V phantom power for condenser microphones), two 6.35 mm jack line inputs and two stereo inputs for connecting additional sources (keyboards, smartphones, audio players, etc.).

The three-band EQ section allows precise adjustment of the high (12 kHz), mid (2.5 kHz) and low (80 Hz) frequencies to +/- 15 dBU.

With a signal-to-noise ratio of more than 80 dBu and a distortion of only 0.005%, the Promix 6R guarantees clean and faithful sound reproduction. The main outputs are available in XLR format, both balanced (+26 dBU) and unbalanced (+20 dBU), providing a level suitable for various sound reinforcement configurations.

Aux and FX outputs (6.35 mm jack +20 dBU) complete the routing possibilities, while the USB 2.0 audio interface (2 In / 2 Out at 24-bit / 48 kHz) simplifies integration with a computer for recording or streaming.

An internal Echo + Reverb effects module offers additional creativity, while MP3 playback (via Bluetooth or USB) and direct recording to hard disk expand the audio playback and capture options.

Notably, the power supply is provided by 5 VDC via a USB-C connector, which facilitates transport and operation in locations without conventional power.

Its compact size makes the HPA Promix 6R practical for users who want an affordable and functional mixing solution in a variety of environments (small rooms, podcasts, rehearsals or home studios).


  • HPA Promix 6R
  • Analog mixing console
  • 6 channels
  • 4 rotary potentiometers
  • Mic inputs: 2 XLR
  • Line inputs: 2 6.35 mm jack
  • Stereo inputs: 2 6.35 mm jack
  • Frequency response: 20 Hz – 20 kHz +1/-1 dB
  • Distortion: 0.005%
  • SNR: > 80 dBu
  • Noise: > -92 dBu
  • Crosstalk: > 70 dBu
  • Phantom power: +48 V
  • Mic input impedance: 2.2 kOhm
  • Main output (balanced output): XLR +26 dBU
  • Main output (unbalanced output): XLR +20 dBU
  • Aux Out (unbalanced output): 6.35 mm jack +20 dBU
  • FX Out (unbalanced output): 6.35 mm jack +20 dBU
  • High EQ (12 kHz): +/-15 dBU
  • Mid EQ (2.5 kHz): +/-15 dBU
  • Bass EQ (80 Hz): +/-15 dBU
  • USB 2.0 input and output: 2 In – 2 Out
  • USB 2.0 resolution: 24-bit
  • USB sampling rate: 48 kHz
  • Effects: Echo + Reverb
  • MP3: Bluetooth / USB playback, hard disk recording
  • Power supply: 5 VDC via USB type-C connector
  • Dimensions: 297 x 230 x 65 mm
  • Weight: 3.2 kg
    • Consultar precios

      ⓘ PRECIOS SIN IVA

      Descripción

      The HPA Promix 6R analogue mixing console offers a design focused on simplicity and versatility, suitable for small-scale setups.

      It combines six channels, including two XLR microphone inputs (with +48 V phantom power for condenser microphones), two 6.35 mm jack line inputs and two stereo inputs for connecting additional sources (keyboards, smartphones, audio players, etc.).

      The three-band EQ section allows precise adjustment of the high (12 kHz), mid (2.5 kHz) and low (80 Hz) frequencies to +/- 15 dBU.

      With a signal-to-noise ratio of more than 80 dBu and a distortion of only 0.005%, the Promix 6R guarantees clean and faithful sound reproduction. The main outputs are available in XLR format, both balanced (+26 dBU) and unbalanced (+20 dBU), providing a level suitable for various sound reinforcement configurations.

      Aux and FX outputs (6.35 mm jack +20 dBU) complete the routing possibilities, while the USB 2.0 audio interface (2 In / 2 Out at 24-bit / 48 kHz) simplifies integration with a computer for recording or streaming.

      An internal Echo + Reverb effects module offers additional creativity, while MP3 playback (via Bluetooth or USB) and direct recording to hard disk expand the audio playback and capture options.

      Notably, the power supply is provided by 5 VDC via a USB-C connector, which facilitates transport and operation in locations without conventional power.

      Its compact size makes the HPA Promix 6R practical for users who want an affordable and functional mixing solution in a variety of environments (small rooms, podcasts, rehearsals or home studios).

    • HPA Promix 6R
    • Analog mixing console
    • 6 channels
    • 4 rotary potentiometers
    • Mic inputs: 2 XLR
    • Line inputs: 2 6.35 mm jack
    • Stereo inputs: 2 6.35 mm jack
    • Frequency response: 20 Hz – 20 kHz +1/-1 dB
    • Distortion: 0.005%
    • SNR: > 80 dBu
    • Noise: > -92 dBu
    • Crosstalk: > 70 dBu
    • Phantom power: +48 V
    • Mic input impedance: 2.2 kOhm
    • Main output (balanced output): XLR +26 dBU
    • Main output (unbalanced output): XLR +20 dBU
    • Aux Out (unbalanced output): 6.35 mm jack +20 dBU
    • FX Out (unbalanced output): 6.35 mm jack +20 dBU
    • High EQ (12 kHz): +/-15 dBU
    • Mid EQ (2.5 kHz): +/-15 dBU
    • Bass EQ (80 Hz): +/-15 dBU
    • USB 2.0 input and output: 2 In – 2 Out
    • USB 2.0 resolution: 24-bit
    • USB sampling rate: 48 kHz
    • Effects: Echo + Reverb
    • MP3: Bluetooth / USB playback, hard disk recording
    • Power supply: 5 VDC via USB type-C connector
    • Dimensions: 297 x 230 x 65 mm
    • Weight: 3.2 kg
    •
