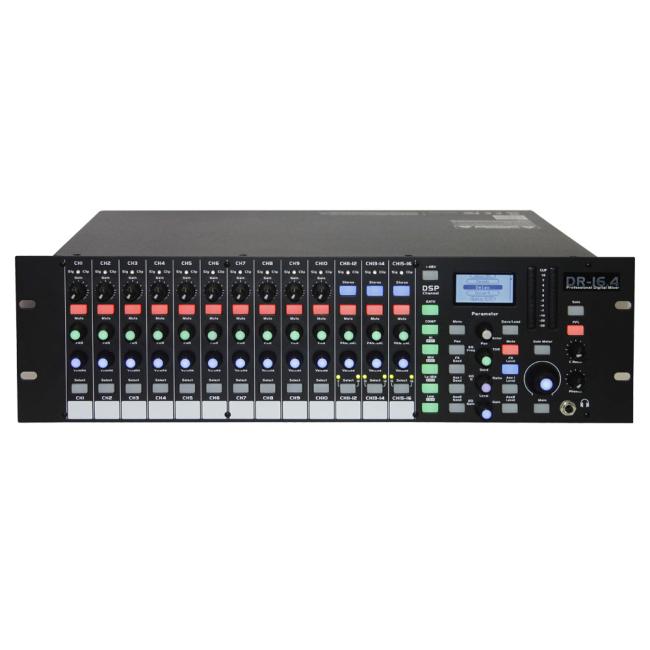

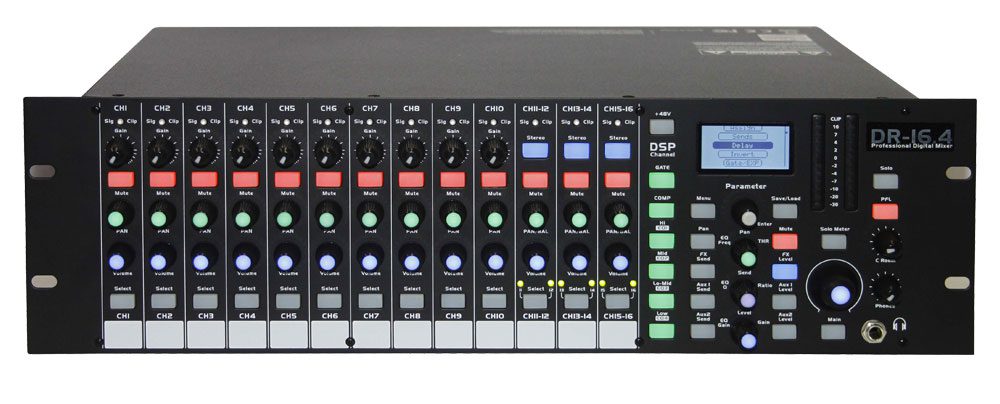

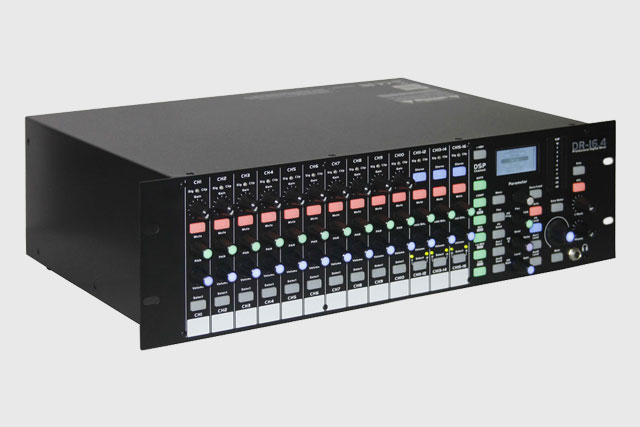

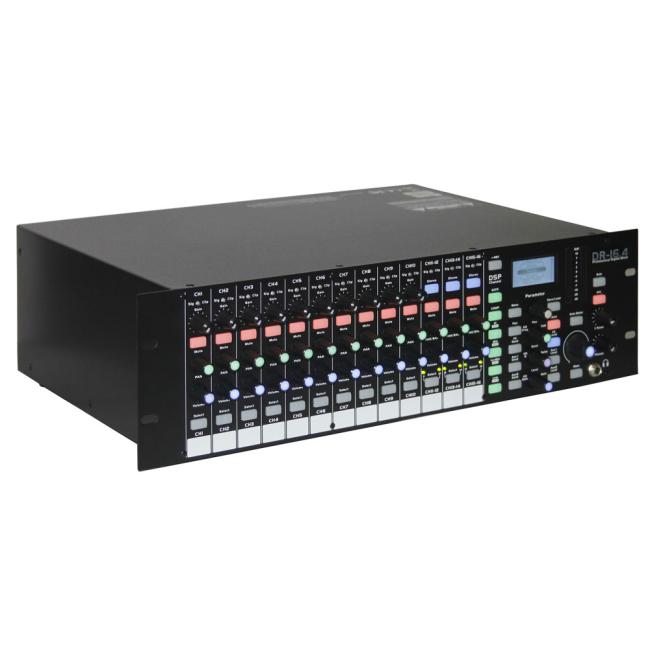

DR16.4

16 Total Inputs plus Digital i/o

Rack Mountable

Dante or USB Multichannel Options

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Especificaciones

    Main Out L/R 0dB (Balanced)
    Frequency Response to Main Output 22Hz ~ 20Hz at 0dBu ±1.5dBu
    Distortion (THD&N) to Main Output <0.01% at 0dBu 1KHz
    Gain 0dBu ~ 50dBu
    SNR (Signal to Noise Ratio) 108dB
    Maximum Input Level +20dBu ±0.5dBu
    Phantom Power (+/-3V)
    Line input Main Out L/R = 0dB (Balanced)
    Frequency Response to Main Output 20Hz ~ 20KHz at 0dBu ±1.5dBu
    Distortion (THD&N) to Main Output <0.01% at 0dBu 1KHz
    Gain -20dBu ~ +30dBu
    Maximum Input Level +20dBu
    AUX 1~2 input Balanced (2 stereo pair)
    Frequency Response to Main Output 20Hz ~ 20KHz at 0dBu±1.5dBu
    Distortion (THD&N) to Main Output <0.01% at 0dBu 1KHz
    LEVEL Gains – ~ +10dBu
    Maximum Input Level +20dBu
    Main Outputs
    Maximum Outputs Level +20dBu
    AUX 1~8 Outputs
    Maximum Output Level +20dBu
    Tape Outputs
    Maximum Output Level +20dBu
    Control Room Outputs
    Maximum Output Level +20dBu
    HP1 Level
    Maximum Output Level +15dB
    Input to Output (at + 0dBu 1KHz) -88dBu
    Adjacent Channels (at + 0dBu 1KHz) -85dBu
    Noise (Bus noise) -91dBu
    Noise Gate
    Threshold Range -84dBu ~ +20dB
    Attack time 0.5mS ~ 200mS
    Release time 10mS~1S
    Compressor
    Threshold Range -30dBu – +20dB
    Attack time 10mS ~ 150mS
    Relesae time 10mS ~ 1S
    Ratio 1:1 to Limit
    Gain 0dBu – +24dB
    EQ
    Low (LowPass or LowShelf) 21Hz ~ 19.2KHz +/- 24dB
    Low Mid 21Hz ~ 19.2KHz +/- 24dB
    High Mid 21Hz ~ 19.2KHz +/- 24dB
    High (HighPass or HighShelf) 21Hz ~ 19.2KHz +/- 24dB
    Digital Audio
    ADC Dynamic Range 114dB
    DAC Dynamic Range 114dB
    Internal Processor 32-bit , floating point
    ADC, DAC bit depth 24bit
    Impedances
    Microphone input 6.8 KOhms
    Line input 75K
    Stereo input 27K
    All other output 240 Ohms
    Operating free-air temperature range 0ºC ~ 40ºC
    Storage temperature range -20ºC ~ 45ºC
