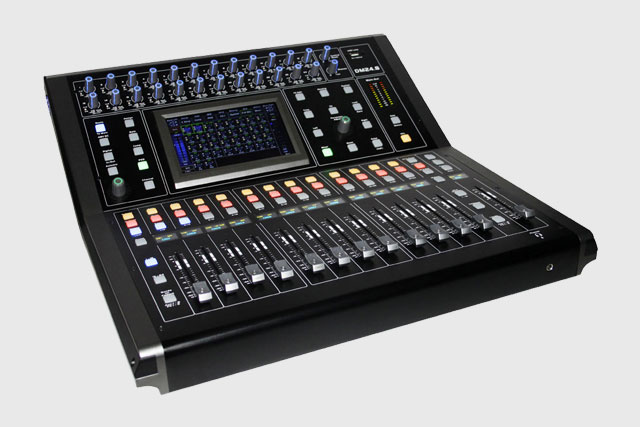

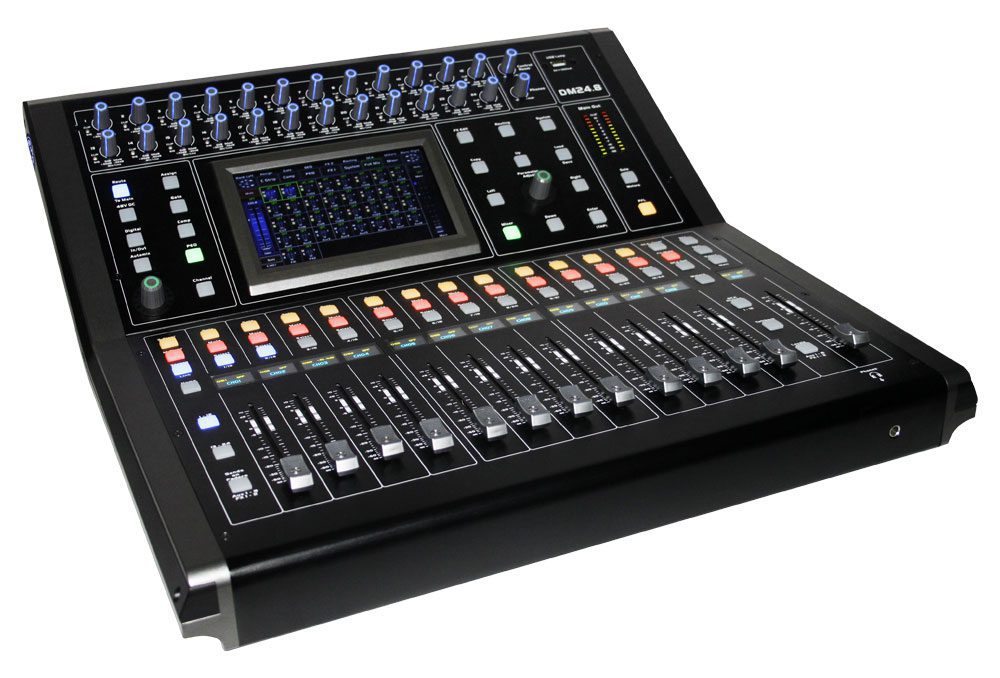

DM24.8

7” LCD Touch Screen

13 Motorized Faders

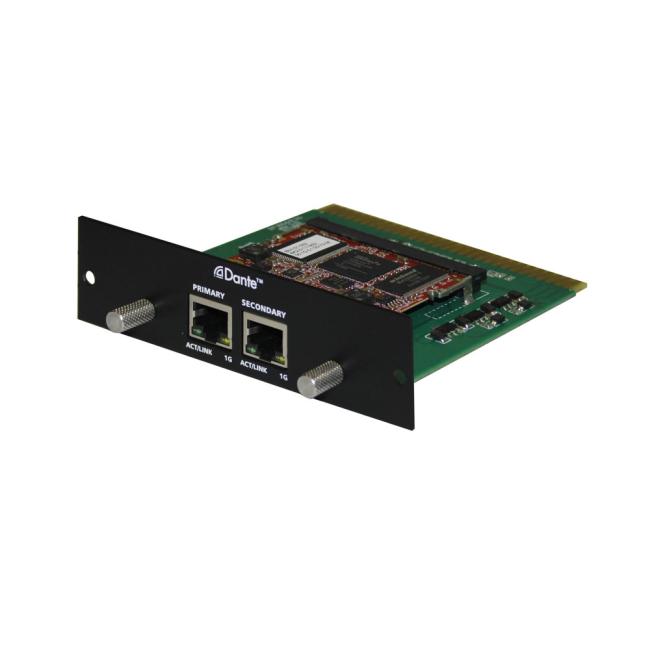

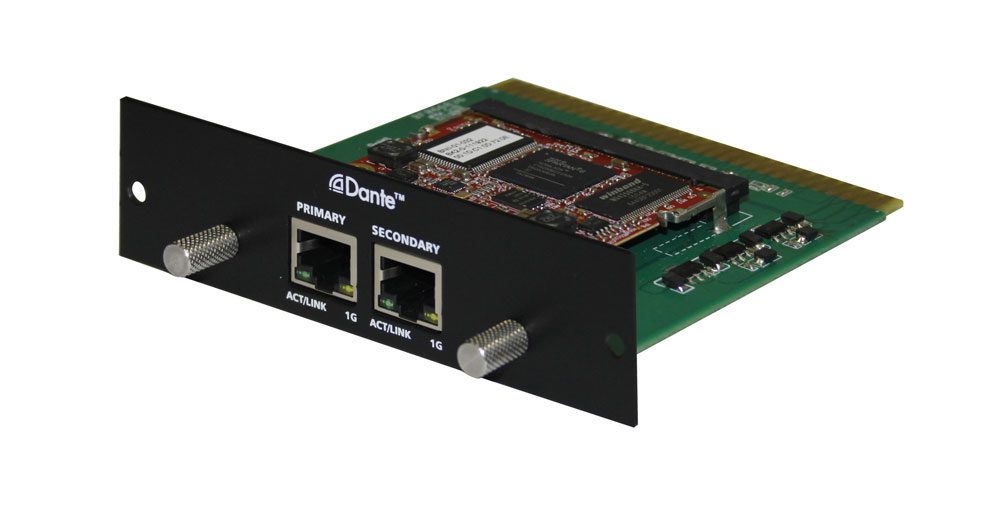

Dante or USB Multichannel Options

    Consultar precios

    Descripción

    Especificaciones

    Microphone input Electronically balanced
    Frequency Response to Main Output 22Hz ~ 20Hz at 0dBu ±1.5dBu
    Distortion (THD&N) to Main Output <0.01% at 0dBu 1KHz
    Gain 0dBu ~ 50dBu
    SNR (Signal to Noise Ratio) 111dB
    Maximum Input Level +20dBu ±0.5dBu
    Phantom Power (+/-3V) +48VDC
    Line Input Electronically balanced
    Frequency Response to Main Output 22Hz ~ 22KHz at 0dBu ±1.5dBu
    Distortion (THD&N) to Main Output <0.01% at 0dBu 1KHz
    Gain -20dBu ~ +30dBu
    Maximum Input Level (Gain at 0dBu) +20dBu ±0.5dBu
    USB stereo inputs
    Frequency Response to Main Output 22Hz ~ 22KHz at 0dBu±1.5dBu
    Distortion (THD&N) to Main Output <0.01% at 0dBu 1KHz
    Maximum Input Level 10dBu ±0.5dBu
    Main Outputs
    Maximum Outputs Level +20dBu ±0.5dBu
    AUX SEND (XLR)
    Maximum Output Level +20dBu ±0.5dBu
    AUX SEND (1/4″ TRS)
    Maximum Output Level +20dBu ±0.5dBu
    Control Room Outputs
    Maximum Output Level +20dBu ±0.5dBu
    Headphones Level
    Maximum Output Level +15dBu ±0.5dBu
    System Crosstalk
    Input to Output (at + 0dBu 1KHz) -88dBu
    Adjacent Channels (at + 0dBu 1KHz) -87dBu
    Noise (Bus noise)
    Noise Gate -91dBu
    Threshold Range
    Attack time -84dBu ~ +20dB
    Release time 0.5mS ~ 200mS
    Compressor 10mS~1S
    Threshold Range -30dBu – +20dB
    Attack time 10mS ~ 150mS
    Release time 10mS ~ 1S
    Ratio 1:1 to Limit
    Gain 0dBu – +24dB
    EQ
    Low (LowPass or LowShelf) 21Hz ~ 19.2KHz +/- 24dB
    Low Mid 21Hz ~ 19.2KHz +/- 24dB
    High Mid 21Hz ~ 19.2KHz +/- 24dB
    High (HighPass or HighShelf) 21Hz ~ 19.2KHz +/- 24dB
    Digital Audio
    ADC Dynamic Range 114dB
    DAC Dynamic Range 114dB
    Internal Processor 32-bit , floating point
    ADC, DAC bit depth 24bit
    Impedances
    Microphone input 6.8 KOhms
    Line input 75K
    Stereo input 27K
    All other output 240 Ohms
    Operating free-air temperature range 0ºC ~ 40ºC
    Storage temperature range -20ºC ~ 45ºC
    Dimensions 528x526x172mm
