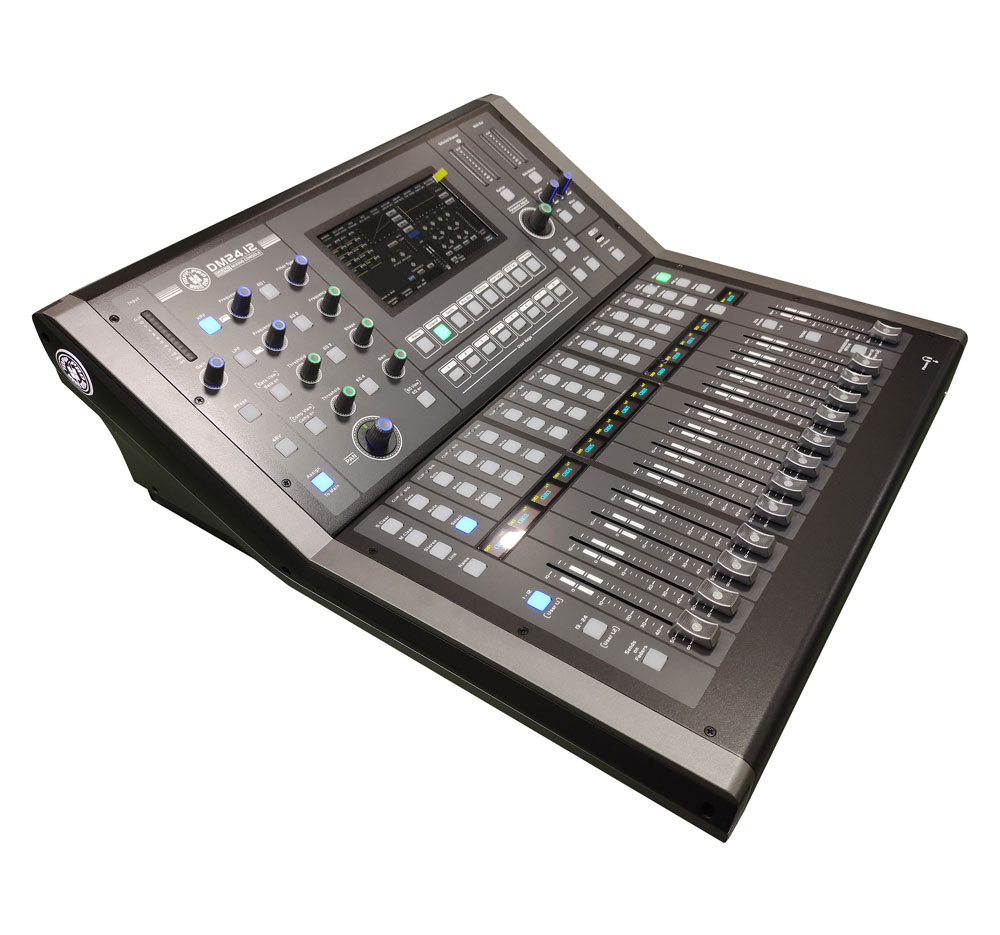

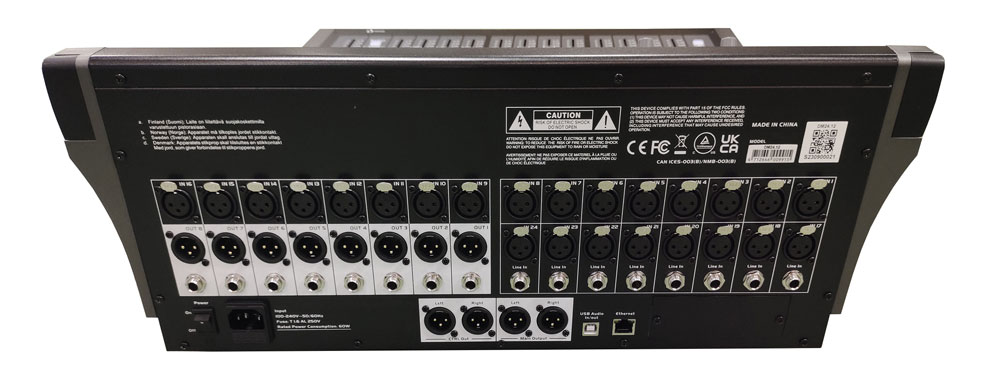

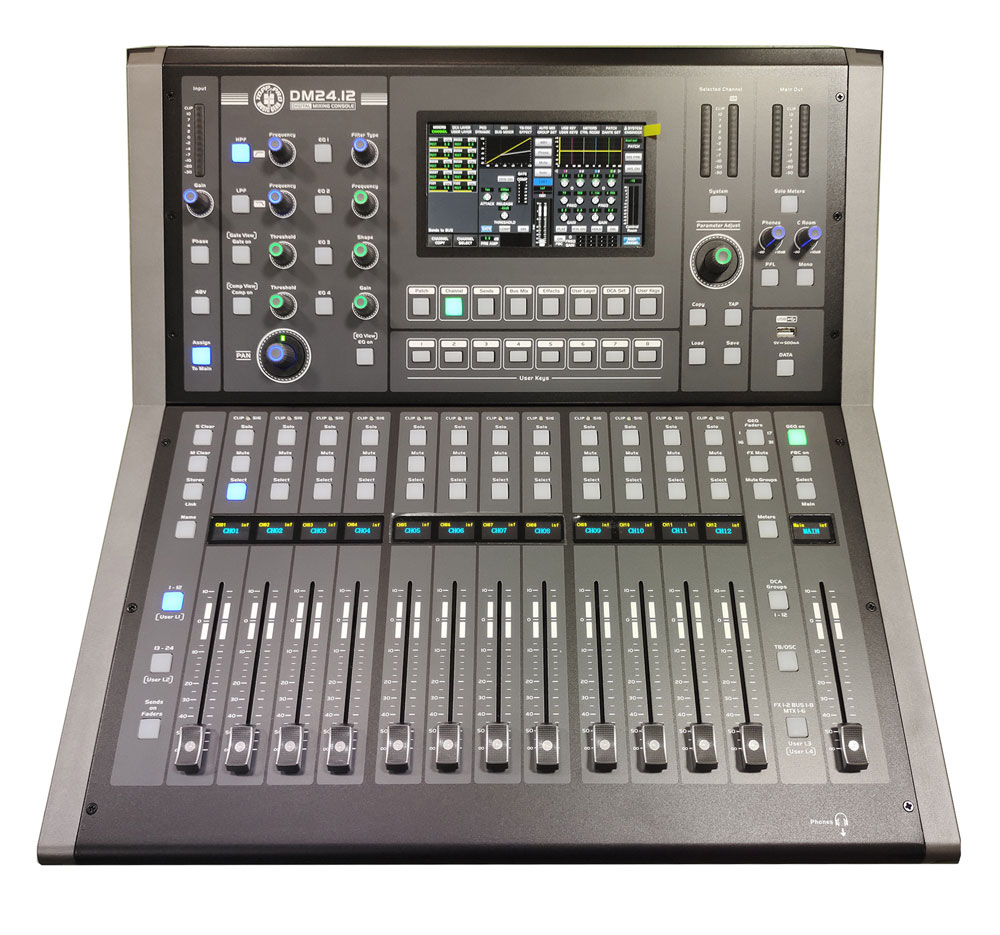

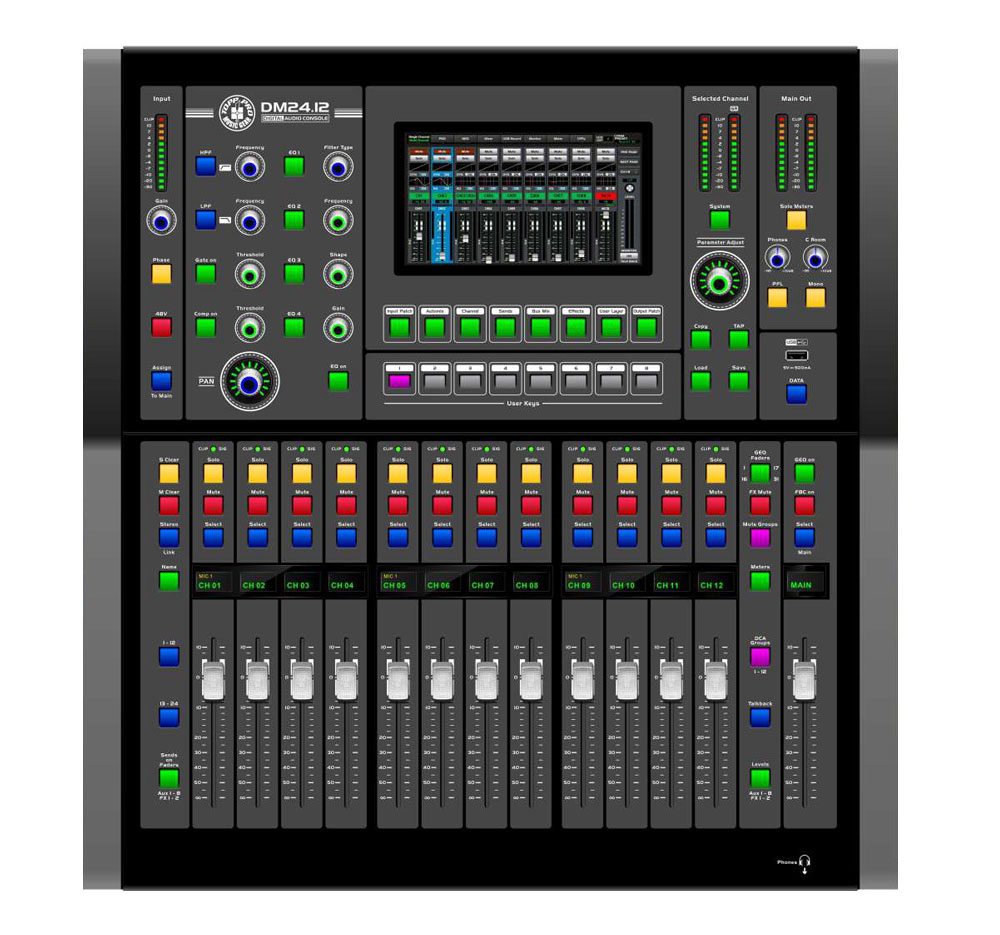

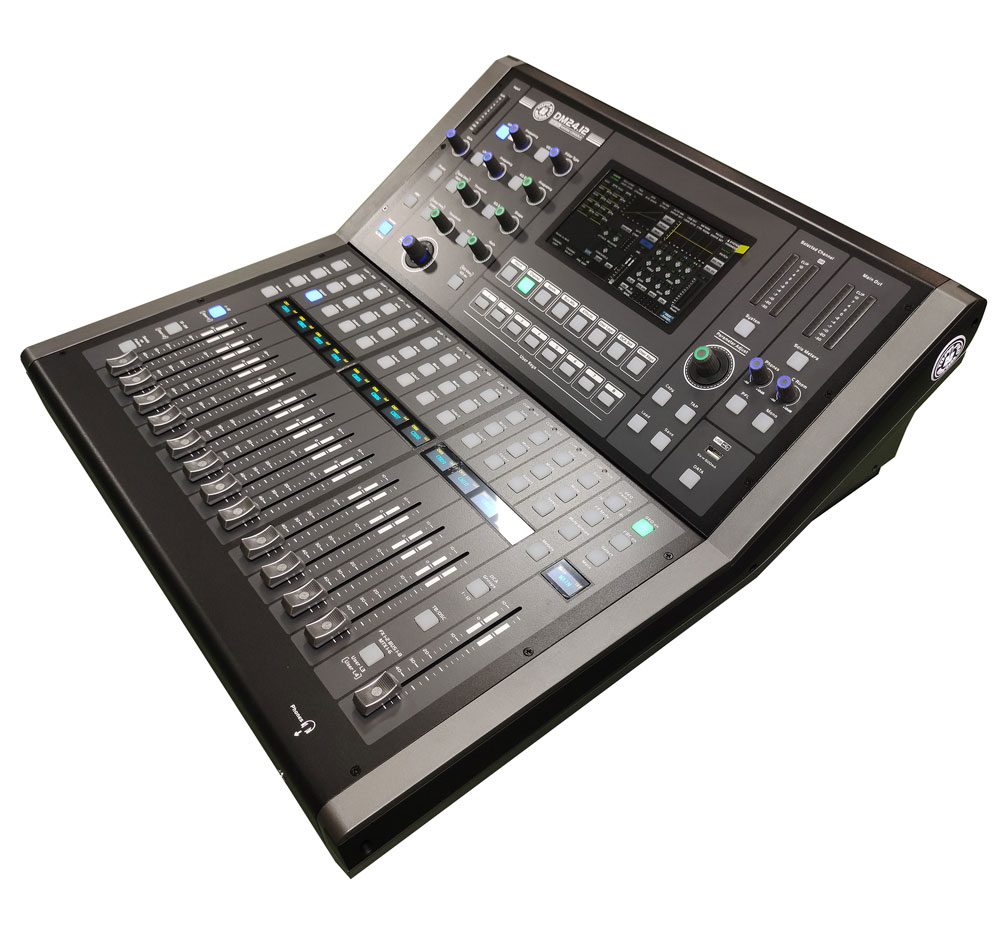

DM24-12 (Mezclador MX Digital)

Topp Pro
> > SKU: DM24.12

Mezclador MX Digital

  • Pantalla Táctil LCD de 7”
  • 13 Deslizables Motorizados

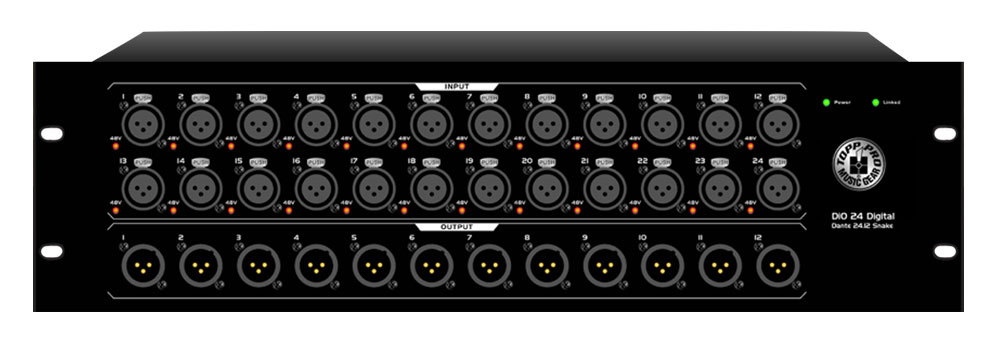

  • Opciones Multicanal Dante o USB

    Consultar precios

    ⓘ PRECIOS SIN IVA

    También te recomendamos…

    Descripción

    Especificaciones

    Microphone input Electronically balanced
    Frequency Response to Main Output 22Hz ~ 20KHz at 0dBu ±1.5dBu
    Distortion (THD&N) to Main Output <0.03% at 0dBu 1KHz
    Gain 0dBu ~ 50dBu
    SNR (Signal to Noise Ratio) 108dB
    Maximum Input Level +20dBu
    Phantom Power (+/-3V) +48VDC
    Frequency Response to Main Output 22Hz ~ 22KHz at 0dBu ±1.5dBu
    Distortion (THD&N) to Main Output <0.03% at 0dBu 1KHz
    Maximum Input Level +20dBu
    Bus Out Out 1-8
    Maximum Outputs Level +20dBu
    Main Outputs
    Maximum Output Level +20dBu
    Control Room Outputs
    Maximum Output Level +20dBu
    Headphone Outputs
    Maximum Output Level +20dBu
    System Crosstalk
    Input to Output (at 0dBu 1KHz) <-88dBu
    Adjacent Channels (at 0dBu 1KHz) <-87dBu
    Noise Gate
    Threshold Range -84dBu – +19dBu
    Attack time 0mS ~ 250mS
    Release time 5mS ~ 2S
    Compressor
    Threshold Range -84dBu – +19dBu
    Attack time 0mS ~ 250mS
    Release time 5mS ~ 2S
    Ratio 1:1 to 40:1, inf: 1
    Gain 0dB – +12dB
    EQ
    Low (LowPass or LowShelf) 20Hz ~ 20KHz ±(15dB±2dB)
    Low Mid 20Hz ~ 20KHz ±(15dB±2dB)
    High Mid 20Hz ~ 20KHz ±(15dB±2dB)
    High (HighPass or HighShelf) 20Hz ~ 20KHz ±(15dB±2dB)
    Digital Audio
    ADC Dynamic Range 113dB
    DAC Dynamic Range 113dB
    Internal Processor 32-bit , floating point
    ADC bit depth 32bit
    DAC bit depth 24bit
    Main LCD 7 inch (1024×600)
    Channel LCD 0.96 inch (128×64)
    Impedances
    Microphone input 6.8K Ohm
    All output 120 Ohm
    Operating free-air temperature range 0ºC ~ 40ºC
    Storage temperature range -20ºC ~ 45ºC
