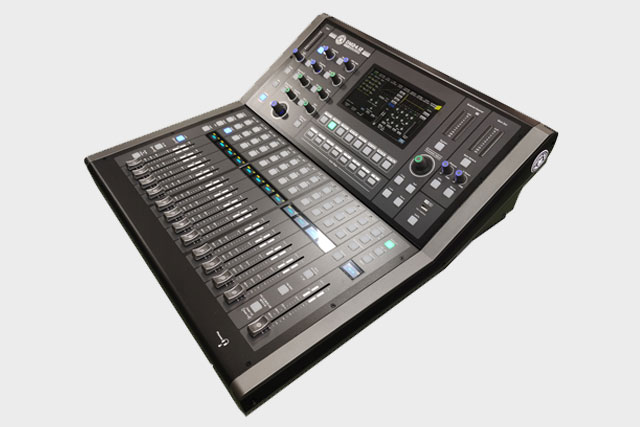

DM24.12

Topp Pro
> > SKU: DM24.12

24 XLR and 8 Line analog inputs with digital gain control

24 XLR and 8 Line analog inputs with digital gain control

8 XLR and 8 Line MIX outputs

8 XLR and 8 Line MIX outputs

13 Channels 100mm motorized faders / OLED displays

13 Channels 100mm motorized faders / OLED displays

12 DCA for fader / 8 Mute Group

12 DCA for fader / 8 Mute Group

USB 2-track stereo recording / playback

24-bit, 48 / 96KHz sampling rate

Digital Noise Gate / Compressor & Limiter

7″ LCD touch screen

USB port for Presets save / load firmware update

Digital 4-band parametric EQ and 31 segment GEQ

Auto MIX / RTA / FBC / Talkback

Up to 32 digital inputs / Outputs

2 Internal FX

Ethernet Port connect to wireless router for iPad Remote Control APP

* Currently not sold in all world territories

24-bit, 48 / 96KHz sampling rate

Digital Noise Gate / Compressor & Limiter

Digital 4-band parametric EQ and 31 segment GEQ

Auto MIX / RTA / FBC / Talkback

Ethernet Port connect to wireless router for iPad Remote Control APP

* Currently not sold in all world territories

    Consultar precios

    Descripción

    Especificaciones

    Microphone input Electronically balanced Frequency Response to Main Output 22Hz ~ 20KHz at 0dBu ±1.5dBu Distortion (THD&N) to Main Output <0.03% at 0dBu 1KHz Gain 0dBu ~ 50dBu SNR (Signal to Noise Ratio) 108dB Maximum Input Level +20dBu Phantom Power (+/-3V) +48VDC Frequency Response to Main Output 22Hz ~ 22KHz at 0dBu ±1.5dBu Distortion (THD&N) to Main Output <0.03% at 0dBu 1KHz Maximum Input Level +20dBu Bus Out Out 1-8 Maximum Outputs Level +20dBu Main Outputs Maximum Output Level +20dBu Control Room Outputs Maximum Output Level +20dBu Headphone Outputs Maximum Output Level +20dBu System Crosstalk Input to Output (at 0dBu 1KHz) <-88dBu Adjacent Channels (at 0dBu 1KHz) <-87dBu Noise Gate Threshold Range -84dBu – +19dBu Attack time 0mS ~ 250mS Release time 5mS ~ 2S Compressor Threshold Range -84dBu – +19dBu Attack time 0mS ~ 250mS Release time 5mS ~ 2S Ratio 1:1 to 40:1, inf: 1 Gain 0dB – +12dB EQ Low (LowPass or LowShelf) 20Hz ~ 20KHz ±(15dB±2dB) Low Mid 20Hz ~ 20KHz ±(15dB±2dB) High Mid 20Hz ~ 20KHz ±(15dB±2dB) High (HighPass or HighShelf) 20Hz ~ 20KHz ±(15dB±2dB) Digital Audio ADC Dynamic Range 113dB DAC Dynamic Range 113dB Internal Processor 32-bit , floating point ADC bit depth 32bit DAC bit depth 24bit Main LCD 7 inch (1024×600) Channel LCD 0.96 inch (128×64) Impedances Microphone input 6.8K Ohm All output 120 Ohm Operating free-air temperature range 0ºC ~ 40ºC Storage temperature range -20ºC ~ 45ºC
