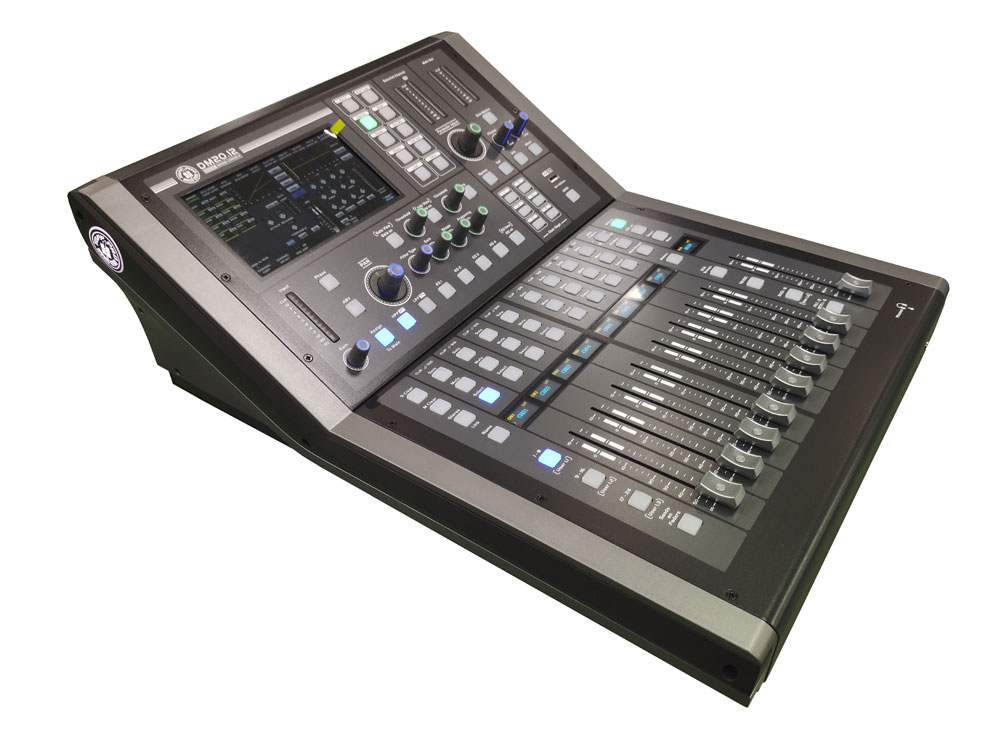

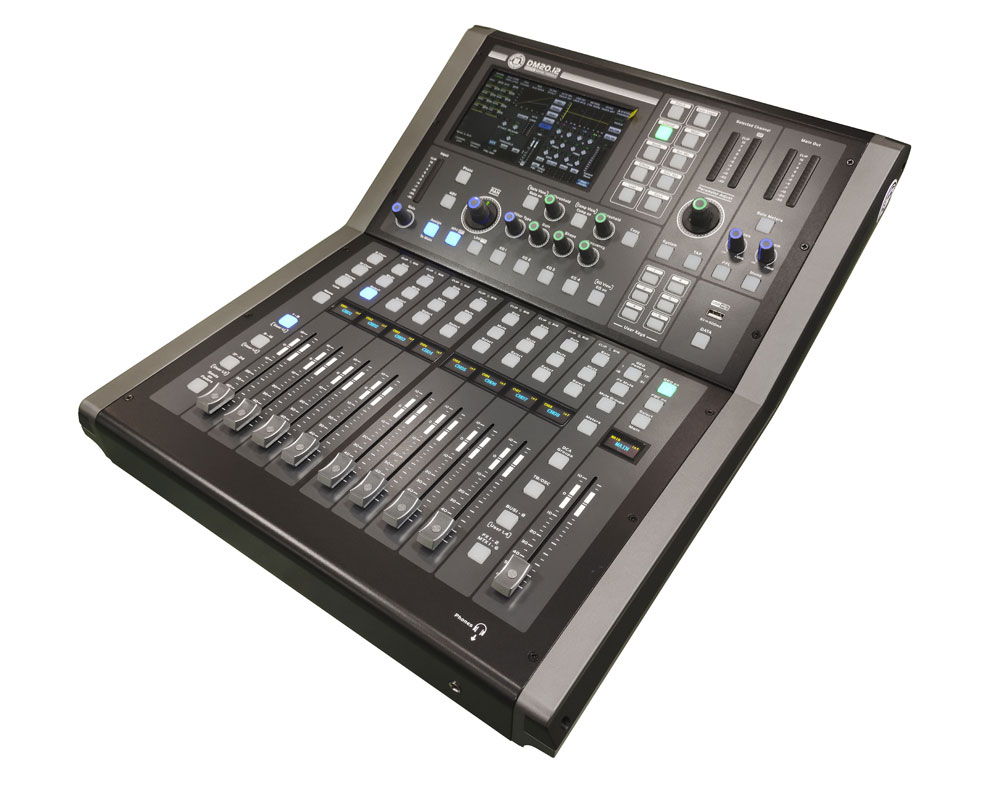

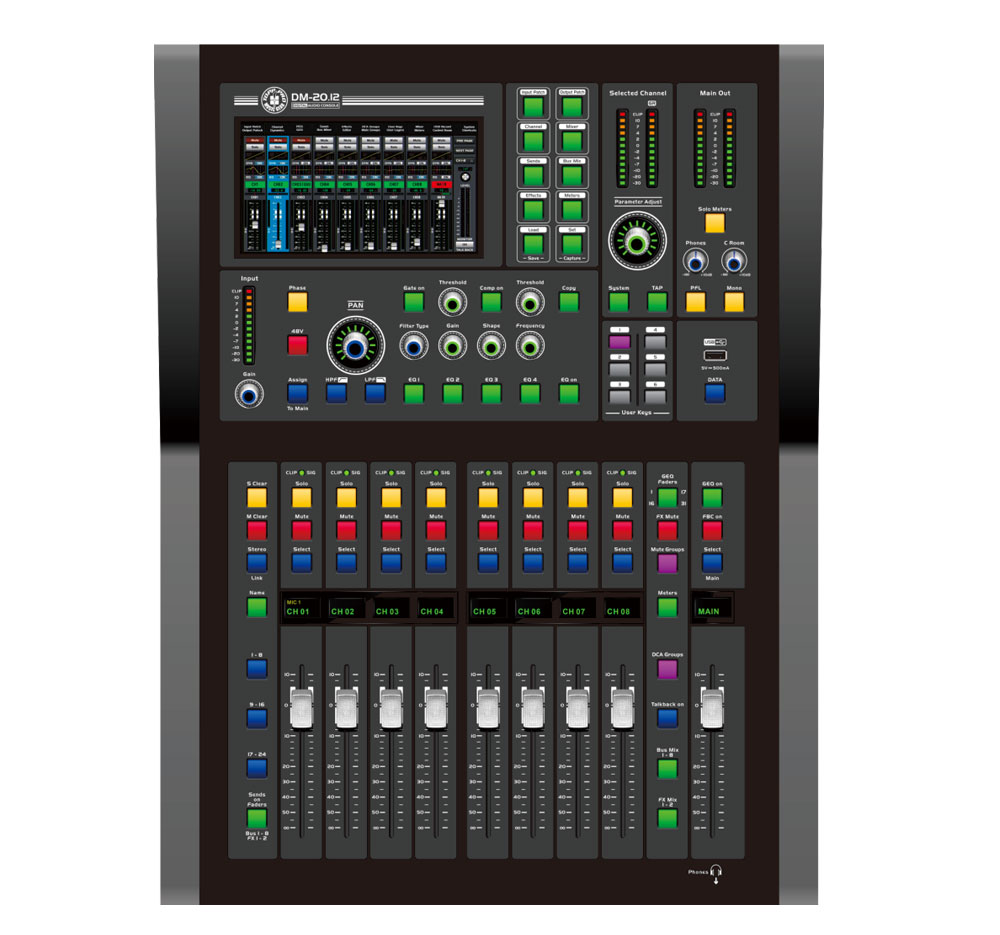

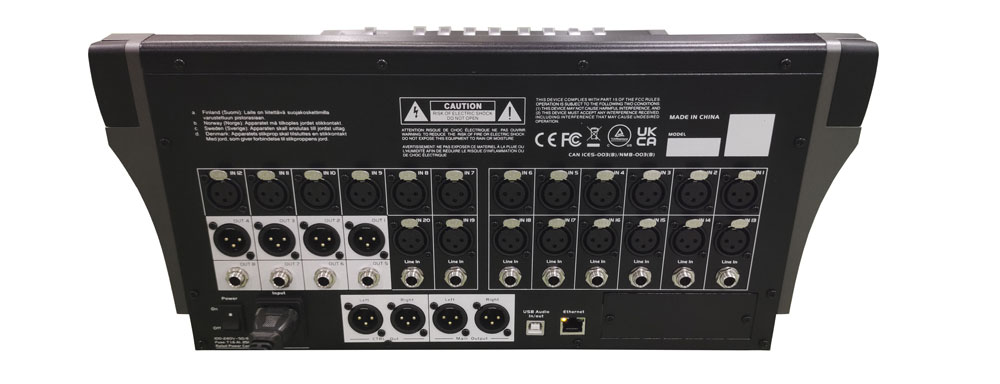

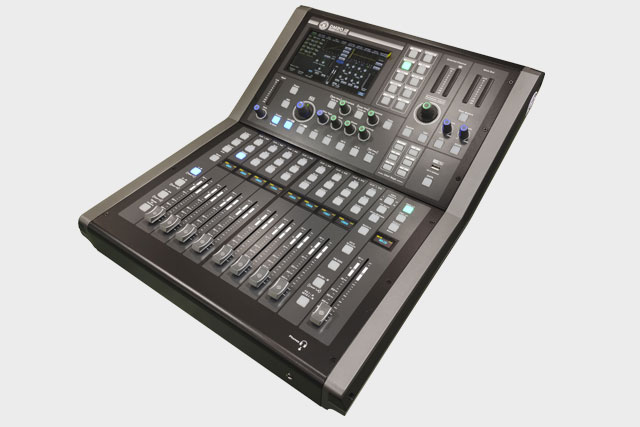

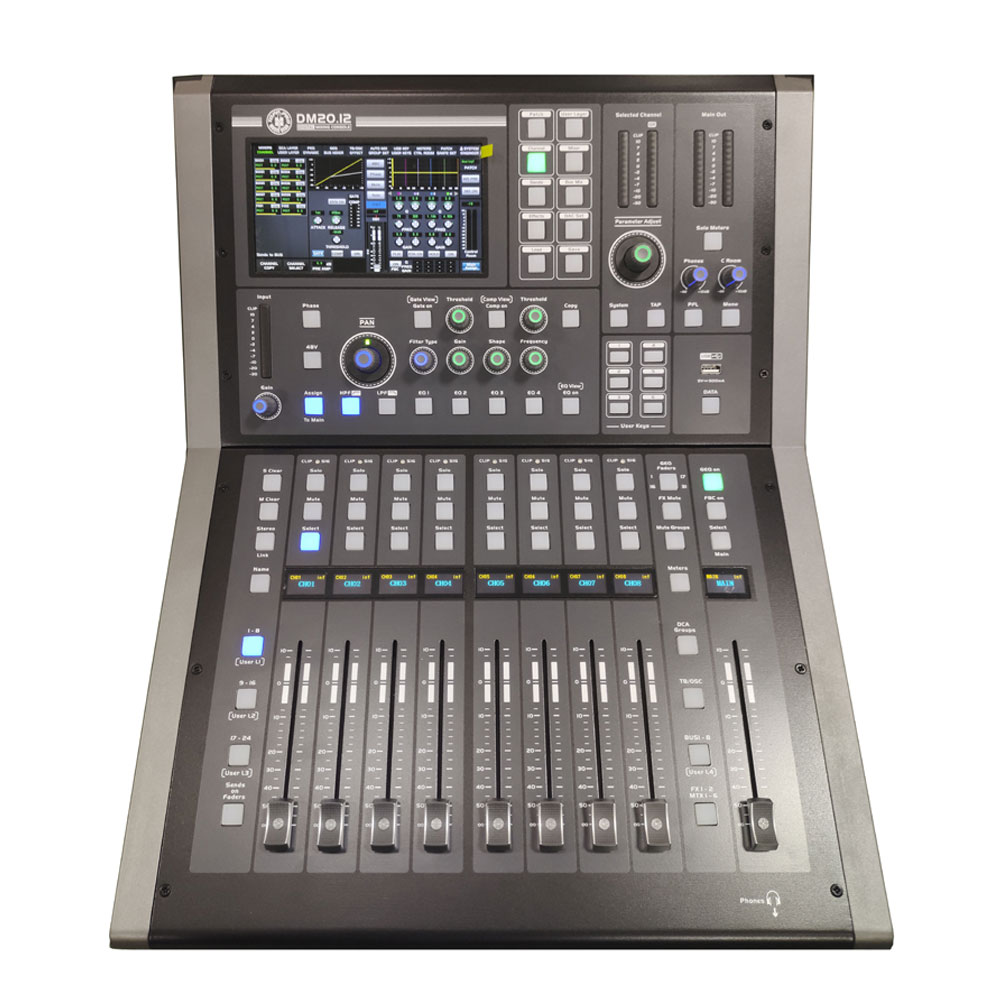

DM20.12

Topp Pro
> > SKU: DM20.12

20 XLR and 8 Line analog inputs with digital gain control

4 XLR and 4 Line MIX outputs

9 Channels 100mm motorized faders / OLED displays

8 DCA for fader / 6 Mute Group

USB 2-track stereo recording / playback

7″ LCD touch screen

USB port for Presets save / load firmware update

Up to 32 digital inputs / Outputs

2 Internal FX

24-bit, 48 / 96KHz sampling rate

Digital Noise Gate / Compressor & Limiter

Digital 4-band parametric EQ and 31 segment GEQ

Auto MIX / RTA / FBC / Talkback

Ethernet Port connect to wireless router for iPad Remote Control APP

* Currently not sold in all world territories

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Especificaciones

    Microphone input Electronically balanced
    Frequency Response to Main Output 22Hz ~ 20KHz at 0dBu ±1.5dBu
    Distortion (THD&N) to Main Output <0.03% at 0dBu 1KHz
    Gain 0dBu ~ 50dBu
    SNR (Signal to Noise Ratio) 108dB
    Maximum Input Level +20dBu
    Phantom Power (+/-3V) +48VDC
    Frequency Response to Main Output 22Hz ~ 22KHz at 0dBu ±1.5dBu
    Distortion (THD&N) to Main Output <0.03% at 0dBu 1KHz
    Maximum Input Level +20dBu
    Bus Out Out 1-4
    Maximum Outputs Level +20dBu
    Main Outputs
    Maximum Output Level +20dBu
    Control Room Outputs
    Maximum Output Level +20dBu
    Headphone Outputs
    Maximum Output Level +20dBu
    System Crosstalk
    Input to Output (at 0dBu 1KHz) <-88dBu
    Adjacent Channels (at 0dBu 1KHz) <-87dBu
    Noise Gate
    Threshold Range -84dBu – +19dBu
    Attack time 0mS ~ 250mS
    Release time 5mS ~ 2S
    Compressor
    Threshold Range -84dBu – +19dBu
    Attack time 0mS ~ 250mS
    Release time 5mS ~ 2S
    Ratio 1:1 to 40:1, inf: 1
    Gain 0dB – +12dB
    EQ
    Low (LowPass or LowShelf) 20Hz ~ 20KHz ±(15dB±2dB)
    Low Mid 20Hz ~ 20KHz ±(15dB±2dB)
    High Mid 20Hz ~ 20KHz ±(15dB±2dB)
    High (HighPass or HighShelf) 20Hz ~ 20KHz ±(15dB±2dB)
    Digital Audio
    ADC Dynamic Range 113dB
    DAC Dynamic Range 113dB
    Internal Processor 32-bit , floating point
    ADC bit depth 32bit
    DAC bit depth 24bit
    Main LCD 7 inch (1024×600)
    Channel LCD 0.96 inch (128×64)
    Impedances
    Microphone input 6.8K Ohm
    All output 120 Ohm
    Operating free-air temperature range 0ºC ~ 40ºC
    Storage temperature range -20ºC ~ 45ºC
