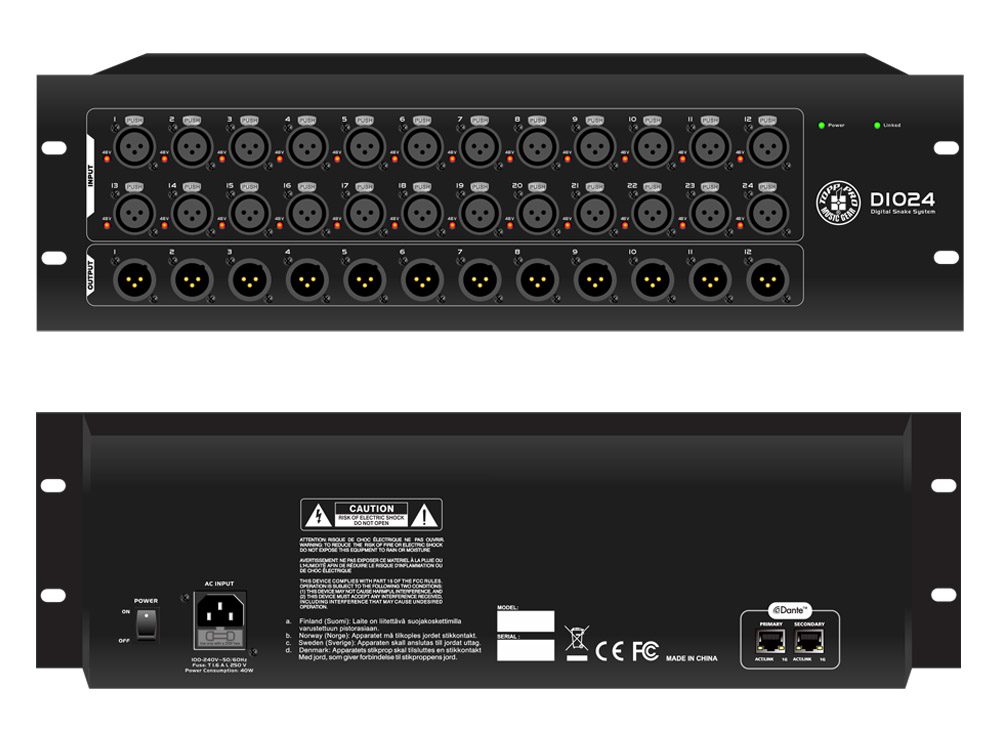

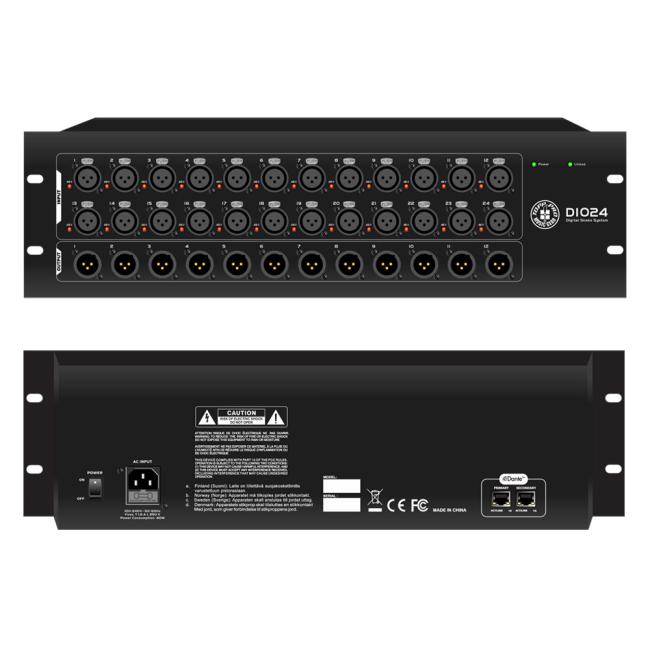

DIO24 (Universal Digital Dante Snake)

Topp Pro
> > SKU: DIO24_V2

Digital Dante Snake

  • 24 x 12-XLR E/S
  • DIO24 sólo es compatible con DM48.20

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Digital Dante Snake

    • 24 x 12-XLR E/S
    • DIO24 sólo es compatible con DM48.20



    Microphone input Electronically   balanced
    Frequency   Response to Main Output 20Hz~20KHz at 0dBu ±1dB
    Distortion   (THD&N) to Main Output <0.03% at 0dBu 1KHz
    SNR   (Signal to Noise Ratio) 108dB
    Maximum   Input Level +20dBu
    Phantom   Power (+/-3V) +48VDC
    EIN   (Input noise) 125dB
    XLR outputs
    Maximum   Output Level +20dBu
    System Crosstalk Adjacent Channels
    Input   to Output (at +20dBu 1KHz) -70dBu
    Noise (Bus noise)
    Digital Audio
    ADC   Dynamic Range -91dBu
    DAC   Dynamic Range 114dB
    Internal   Processor 32-bit, floating point
    ADC,   DAC bit depth 32-bit
    Impedances
    Microphone   input 6.8KΩ
    Output 240Ω
    Operating   free-air temperature range 0ºC~40ºC
    Storage   temperature range -20ºC ~60ºC
