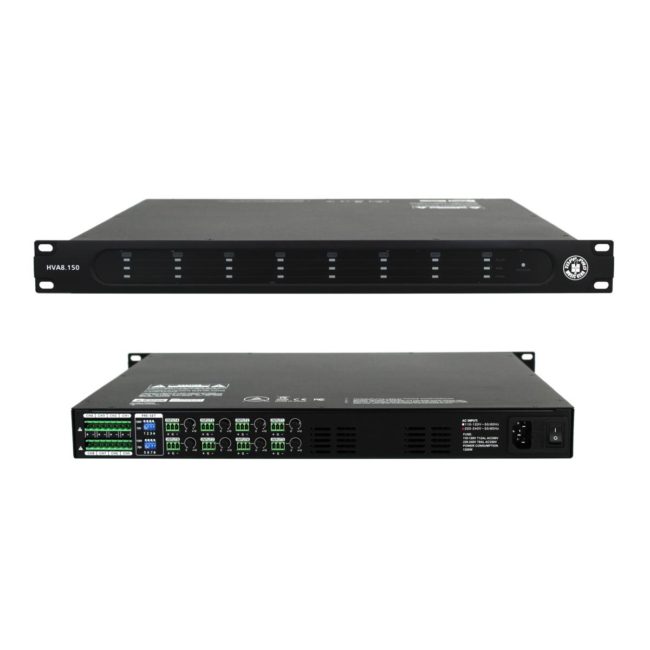

HVA8.150 (Amplificador de instalación de clase D de 8×135 W 100/70 voltios)

Amplificador de instalación clase D de 8 canales 1 unidad de rack – 8x135W 100/70 voltios

    Consultar precios

    Descripción

    Amplificador de instalación clase D de 8 canales 1 unidad de rack – 8x135W 100/70 voltios



    HVA8.150
    Power 70V (RMS) 150 W x 8 / 135W x 8 (One Channel Driven – 150 W x 8 / 135W x 8 (All Channel Driven)
    Power 100V (RMS) 150 W x 8 / 135W x 8 (One Channel Driven) – 150 W x 8 / 135W x 8 (All Channel Driven)
    Input Sensitivity (Limiter Off) 0.9 – 1.1V (+0/-1dBv)
    Input Impedance 20KΩ balanced or 10KΩ unbalanced
    Frequency Response 20Hz~20KHz (+0/-1dB)
    Voltage Gain (100V)
    THD + N <0.1% (Ref. 1KHz 1/8 Rated Power, A-Weighted)
    S/N Ratio >95dB (Ref. Rated Power, A-Weighted)
    Crosstalk (Below Rated Power) >70dB
    Damping Factor (1KHz, 8W) >200
    Power/Output Circuity Switching Power Class-D
    Protections Full short circuit, open circuit, thermal, ultrasonic, and RF protection stable into reactive or mismatched loads, turn ON/OFF, muting, tried crowbar.
    Controls Rear: On/Off Power Switch, Volume Channel 1 to 8, 70V/ 100V selector
    Indicators POWER: 1 green LED – PROTECTION: 2 red LED – SIGNAL: 8 green LED – CLIP & PROTECTION: 8 red LED – POWER: 1 green LED
    Connectors Inputs: Euro Block – Outputs: Euro Block
    Power Supply AC: 110-120V or 220~240V 50/60Hz
    Dimension (HxWxD) 44 x 483 x 360 mm / 1.73″ x 19.02″ x 14.17″
    Weight 7 kg / 15.43 lbs
