HPA
SKU: HPAZONER25

The HPA Zoner 25 is an ideal mixer-zoner for multi-zone audio installations, offering flexible and precise management with up to 5 zones. Connect two sources per zone, control the level individually and enjoy professional quality thanks to the balanced XLR connectors.
The HPA Zoner 25 is a versatile mixer-zoner designed to efficiently manage multi-zone audio systems. With the ability to manage up to 5 separate zones, this device is ideal for complex installations requiring precise and controlled audio distribution.

Each zone can accommodate up to 2 audio sources, providing unparalleled flexibility to meet various sound needs.

The Zoner 25 allows sources 1 and 2 to be routed to all 5 zones with individual level control, ensuring maximum customization of audio in each zone.

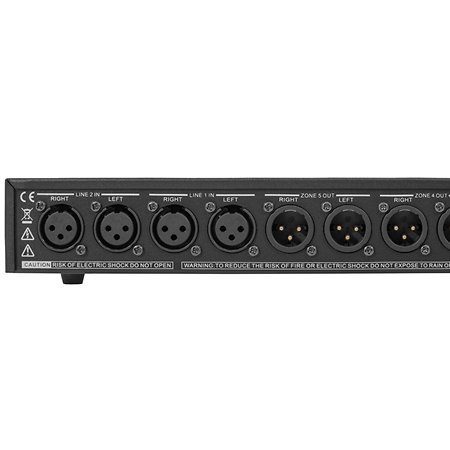

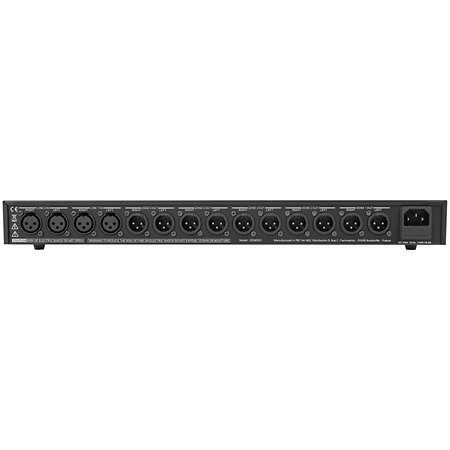

Source 1 and 2 inputs feature balanced L/R XLR connectors, ensuring optimal sound quality and compatibility with professional equipment.

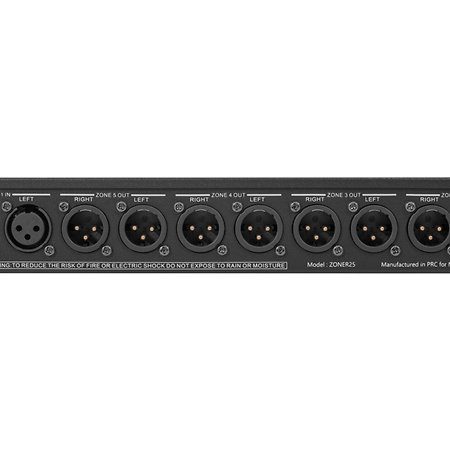

Likewise, the zone outputs are also on balanced L/R XLR connectors, facilitating integration into existing audio systems.

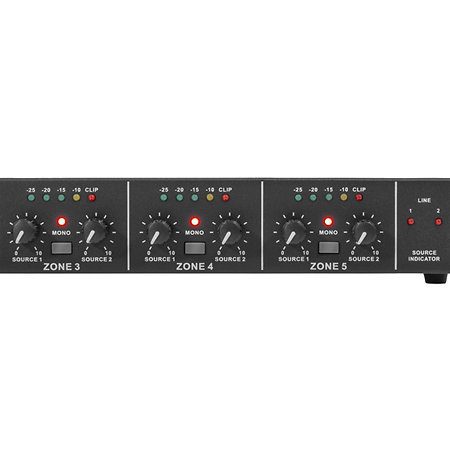

This mixer-zoner features switches to select sources in mono or stereo mode per zone, providing additional flexibility based on the specific needs of each environment.

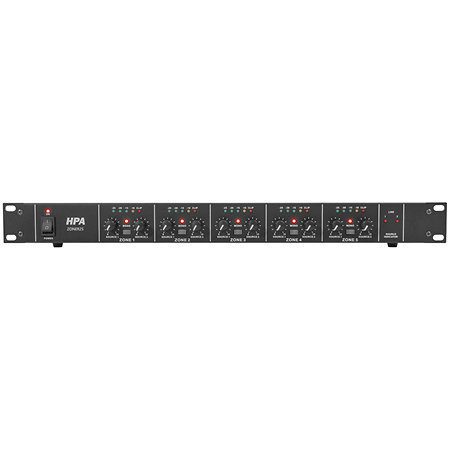

Visualization LEDs by zone and by source allow rapid and efficient visual monitoring, thus simplifying the management of the entire audio system.

With an input impedance of 47 kohms and an output impedance of 200 ohms, the HPA Zoner 25 guarantees high compatibility and performance.

The maximum gain of +6 dB and the signal-to-noise ratio of 90dB, with a total harmonic distortion (THD) of less than 0.5%, ensure impeccable sound quality.


  • HPA Zoner 25
  • Mixer-zone
  • 5 areas
  • Up to 2 sources can be connected to each zone
  • Routing from sources 1 and 2 to the 5 zones with individual level control
  • Source 1 and 2 L/R inputs on balanced XLR
  • Output / Zone L/R on balanced XLR connectors
  • Mono/stereo source switch per zone
  • LED display by zone and source
  • Input impedance: 47 kohms
  • Output impedance: 200 ohms
  • Max. gain : +6 dB
  • Signal/noise ratio: 90 dB – THD: <0.5%
  • Standard 19″ rack format: 1U
  • Weight: 2.4 kg
    • Consultar precios

      ⓘ PRECIOS SIN IVA

      Descripción

      The HPA Zoner 25 is a versatile mixer-zoner designed to efficiently manage multi-zone audio systems. With the ability to manage up to 5 separate zones, this device is ideal for complex installations requiring precise and controlled audio distribution.

      Each zone can accommodate up to 2 audio sources, providing unparalleled flexibility to meet various sound needs.

      The Zoner 25 allows sources 1 and 2 to be routed to all 5 zones with individual level control, ensuring maximum customization of audio in each zone.

      Source 1 and 2 inputs feature balanced L/R XLR connectors, ensuring optimal sound quality and compatibility with professional equipment.

      Likewise, the zone outputs are also on balanced L/R XLR connectors, facilitating integration into existing audio systems.

      This mixer-zoner features switches to select sources in mono or stereo mode per zone, providing additional flexibility based on the specific needs of each environment.

      Visualization LEDs by zone and by source allow rapid and efficient visual monitoring, thus simplifying the management of the entire audio system.

      With an input impedance of 47 kohms and an output impedance of 200 ohms, the HPA Zoner 25 guarantees high compatibility and performance.

      The maximum gain of +6 dB and the signal-to-noise ratio of 90dB, with a total harmonic distortion (THD) of less than 0.5%, ensure impeccable sound quality.

    • HPA Zoner 25
    • Mixer-zone
    • 5 areas
    • Up to 2 sources can be connected to each zone
    • Routing from sources 1 and 2 to the 5 zones with individual level control
    • Source 1 and 2 L/R inputs on balanced XLR
    • Output / Zone L/R on balanced XLR connectors
    • Mono/stereo source switch per zone
    • LED display by zone and source
    • Input impedance: 47 kohms
    • Output impedance: 200 ohms
    • Max. gain : +6 dB
    • Signal/noise ratio: 90 dB – THD: <0.5%
    • Standard 19″ rack format: 1U
    • Weight: 2.4 kg
    •
