The HPA AM-1700 is a Class H power amplifier, offering a robust power of 2x 500 W RMS at 8 ohms and 2x 850 W RMS at 4 ohms, with a bridged mode potential of 1700 W RMS. Equipped with XLR inputs and speakON outputs, this amplifier integrates advanced protections and efficient cooling, perfect for professional applications.
The HPA AM-1700 power amplifier delivers an impressive 2x 500 W RMS into 8 ohms and 2x 850 W RMS into 4 ohms. This amplifier can also be bridged to deliver up to 1700 W RMS into 8 ohms, meeting the demands of large-scale events.

The damping factor of over 500 ensures extreme control of the speakers, allowing for clear and precise sound reproduction. With adjustable input sensitivity options of 0.775 V, 1 V and 2 V, the HPA AM-1700 easily adapts to different audio sources, while maintaining an input impedance of 20 kOhms in balanced mode and 10 kOhms in unbalanced mode.

The 102 dB signal-to-noise ratio and a THD of just 0.1% at 1 kHz ensure pure audio quality with minimal noise, even at high output levels. Its extended frequency response of 20 Hz to 20 kHz, with a tolerance of ±1.5 dB, promises audio fidelity across the entire sound spectrum.

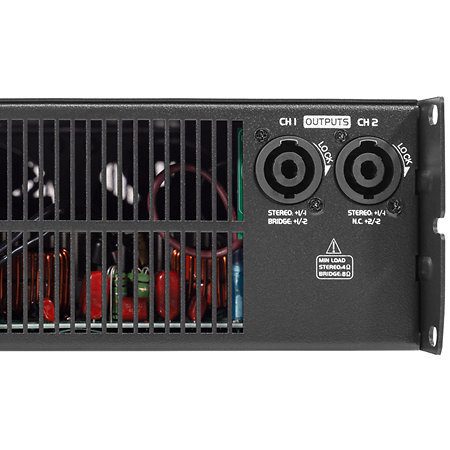

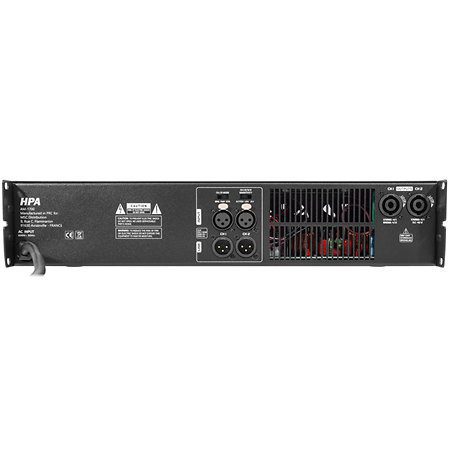

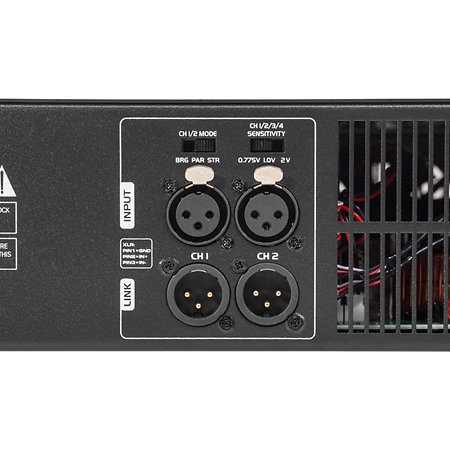

Connections couldn’t be simpler with XLR inputs and speakON outputs, facilitating integration into any professional PA system. The mode switch allows easy switching between stereo and bridge configurations, increasing the amplifier’s versatility in different usage contexts.

For increased durability, the HPA AM-1700 is equipped with advanced protections against electrical, thermal and electronic hazards.

An efficient fan cooling system keeps the unit at an optimal temperature, and the ‘soft start’ function helps extend the life of internal components by reducing stress during start-up.


  • HPA AM-1700
  • Class H power amplifier
  • Power into 8 ohms: 2x 500 W RMS
  • Power into 4 ohms: 2x 850 W RMS
  • Bridge 8 power: 1700 W RMS
  • Damping factor: >500
  • Adjustable input sensitivity: 0.775 / 1 / 2 V
  • Input impedance: 20 kohms balanced
  • Input impedance: 10 kohms unbalanced
  • Signal / noise ratio: 102 dB
  • THD: 0.1% at 1 kHz
  • Frequency response: 20 Hz – 20 kHz +/- 1.5 dB
  • Inputs: XLR
  • Outputs: speakON
  • Stereo and bridge mode switch
  • Electronic, thermal, electrical protections
  • Cooling by fans
  • Soft start
  • Dimensions: 482 x 88 x 350 mm
  • Net weight: 11 kg
    • Consultar precios

      ⓘ PRECIOS SIN IVA

      Descripción

      The HPA AM-1700 power amplifier delivers an impressive 2x 500 W RMS into 8 ohms and 2x 850 W RMS into 4 ohms. This amplifier can also be bridged to deliver up to 1700 W RMS into 8 ohms, meeting the demands of large-scale events.

      The damping factor of over 500 ensures extreme control of the speakers, allowing for clear and precise sound reproduction. With adjustable input sensitivity options of 0.775 V, 1 V and 2 V, the HPA AM-1700 easily adapts to different audio sources, while maintaining an input impedance of 20 kOhms in balanced mode and 10 kOhms in unbalanced mode.

      The 102 dB signal-to-noise ratio and a THD of just 0.1% at 1 kHz ensure pure audio quality with minimal noise, even at high output levels. Its extended frequency response of 20 Hz to 20 kHz, with a tolerance of ±1.5 dB, promises audio fidelity across the entire sound spectrum.

      Connections couldn’t be simpler with XLR inputs and speakON outputs, facilitating integration into any professional PA system. The mode switch allows easy switching between stereo and bridge configurations, increasing the amplifier’s versatility in different usage contexts.

      For increased durability, the HPA AM-1700 is equipped with advanced protections against electrical, thermal and electronic hazards.

      An efficient fan cooling system keeps the unit at an optimal temperature, and the ‘soft start’ function helps extend the life of internal components by reducing stress during start-up.

    • HPA AM-1700
    • Class H power amplifier
    • Power into 8 ohms: 2x 500 W RMS
    • Power into 4 ohms: 2x 850 W RMS
    • Bridge 8 power: 1700 W RMS
    • Damping factor: >500
    • Adjustable input sensitivity: 0.775 / 1 / 2 V
    • Input impedance: 20 kohms balanced
    • Input impedance: 10 kohms unbalanced
    • Signal / noise ratio: 102 dB
    • THD: 0.1% at 1 kHz
    • Frequency response: 20 Hz – 20 kHz +/- 1.5 dB
    • Inputs: XLR
    • Outputs: speakON
    • Stereo and bridge mode switch
    • Electronic, thermal, electrical protections
    • Cooling by fans
    • Soft start
    • Dimensions: 482 x 88 x 350 mm
    • Net weight: 11 kg
    •
