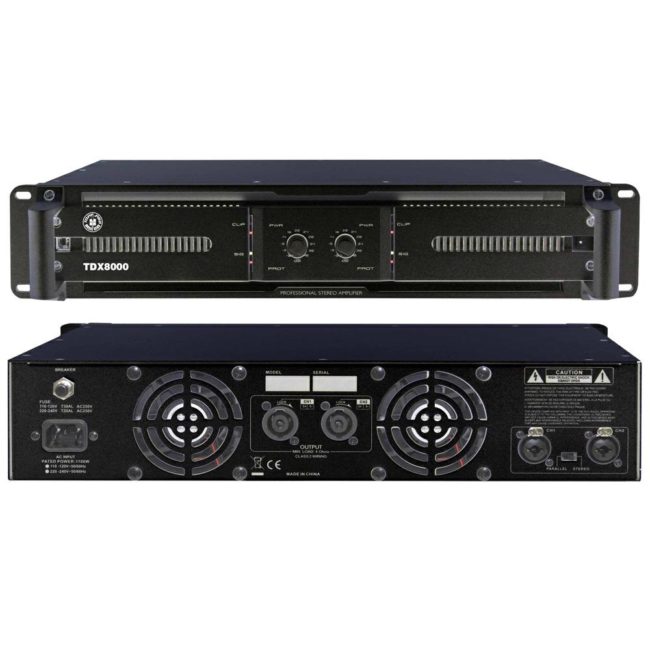

TDX8000 (TD4000) (Amplificador de clase D)

Amplificador clase D de 2 canales.

Potencia 2x2000W RMS en 4ohm o 2x1200W RMS en 8ohm.

Ocupa 2 unidades de rack.

Peso: 5 kg.

    Consultar precios

    Descripción

    Amplificador clase D de 2 canales.

    Potencia 2x2000W RMS en 4ohm o 2x1200W RMS en 8ohm.

    Ocupa 2 unidades de rack.

    Peso: 5 kg.



    Model TDX 8000
    Power (Both channels Driven) 2000 W x 2/4Ω (RMS)
    Input Sensitivity (Limiter Off) 0.9 – 1.1V (+0/-1dBv)
    Input Impedance 20KΩ balanced or 10KΩ unbalanced
    Frequency Response (At 10dB below Rated Output Power) 20Hz~20KHz (+0/-1dB)
    Voltage Gain 40dB (+/-0.5dB)
    THD + N <0.1% (Ref. 1kHz 1/8 Rated Power, A-Weighted)
    S/N Ratio >100dB (Ref. 1kHz, A-Weighted)
    Crosstalk >70dB (Below Rated Power)
    Damping Factor (1KHz, 8W) >200
    Power / Output Circuity Switching Power Class-D
    Protections Full short circuit, open circuit, thermal, ultrasonic, and RF protection stable into reactive or mismatched loads, turn ON/OFF, muting, tried crowbar
    Controls Front: AC switch (soft-start), Input level control / Rear: stereo, parallel selector
    Indicators POWER & SIGNAL: 2 green LED CLIP & PROTECTION: 2 red LED
    Connectors Inputs: NEUTRIK COMBO XLR/TRX / Outputs: SPEAKON
    Power Supply AC: 110-120V or 220~240V 50/60Hz
    Dimension (HxWxD) 44 x 483 x 360 mm / 1.73″ x 19.02″ x 14.17″
    Weight 5.0 kg / 11.02 lbs
