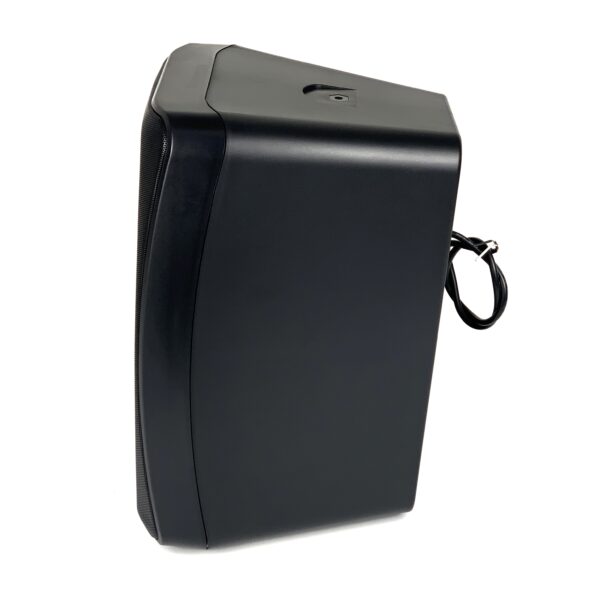

WRS-8 (Altavoz pasivo 70/100V)

Topp Pro
> > SKU: WRS8-sistem

Altavoz pasivo de 2 vías con woofer de 8″ y tweeter de 1″.
Apto para uso en interiores y exteriores, gracias a la certificación IP55.
Puede utilizarse con tensión constante 70V/100V con potencia de 10,20,40,80W o transformador bypass con potencia de 80W en 8ohm.

Color: Negro

    Consultar precios

    También te recomendamos…

    Descripción

    Altavoz pasivo de 2 vías con woofer de 8″ y tweeter de 1″.
    Apto para uso en interiores y exteriores, gracias a la certificación IP55.
    Puede utilizarse con tensión constante 70V/100V con potencia de 10,20,40,80W o transformador bypass con potencia de 80W en 8ohm.

    Color: Negro



    Model WRS-8 / WRS-8W
    System Type 2-Way Passive Speaker Cabinet
    Standard Loudspeaker for voice alarm systems for fire detection and fire alarm system
    Environment Type Type B (Outdoor applications)
    Transducer Low 8″ ferrite woofer, 1,2″ voice coil
    Transducer Driver 1″ Neodymium Tweeter
    Rated Noise Power 80 W (100V and 70V line)
    Rated Impedance 100V line: 125Ω (80 W) / 250Ω (40 W) / 500Ω (20 W) / 1.0kΩ (10 W) 70V Line: 62Ω (80 W) / 125Ω (40 W) / 250Ω (20 W) / 500Ω (10 W) Bypass: 8 Ohms
    Sensitivity 500Hz-5kHz pink noise: 87dB (1W, 1m) 100Hz-10kHz pink noise, according to EN54-24: 75dB (1W, 4m) 100Hz-10kHz pink noise, converted based on EN54-24: 87dB (1W, 1m)
    Max SPL 100Hz-10kHz pink noise, according to EN54-24: 92dB (80 W, 4m) 100Hz-10kHz pink noise, converted based on EN54-24: 105dB (80 W, 1m)
    Coverage Angle (H x V) 500Hz: 162° x 140° / 1kHz:114° x 123° / 2kHz: 171° x 52° / 4kHz: 131° x 97°
    Protection Rate IP55
    Cable Connection Steatite terminal x 2 speaker cable (Ø 6.6mm)
    Finish Enclosure : ABS + PC / Mesh speaker grill : surface-treated steel plate Speaker Wall bracket: surface-treated steel plate, painted joint bracket, screw and stainless steel cable
    Dimensions (HxWxD) 406 x 250 x 251 mm / 16” x 9.8” x 10”
    Net Weight 6.4 kg (14.1 lbs)
