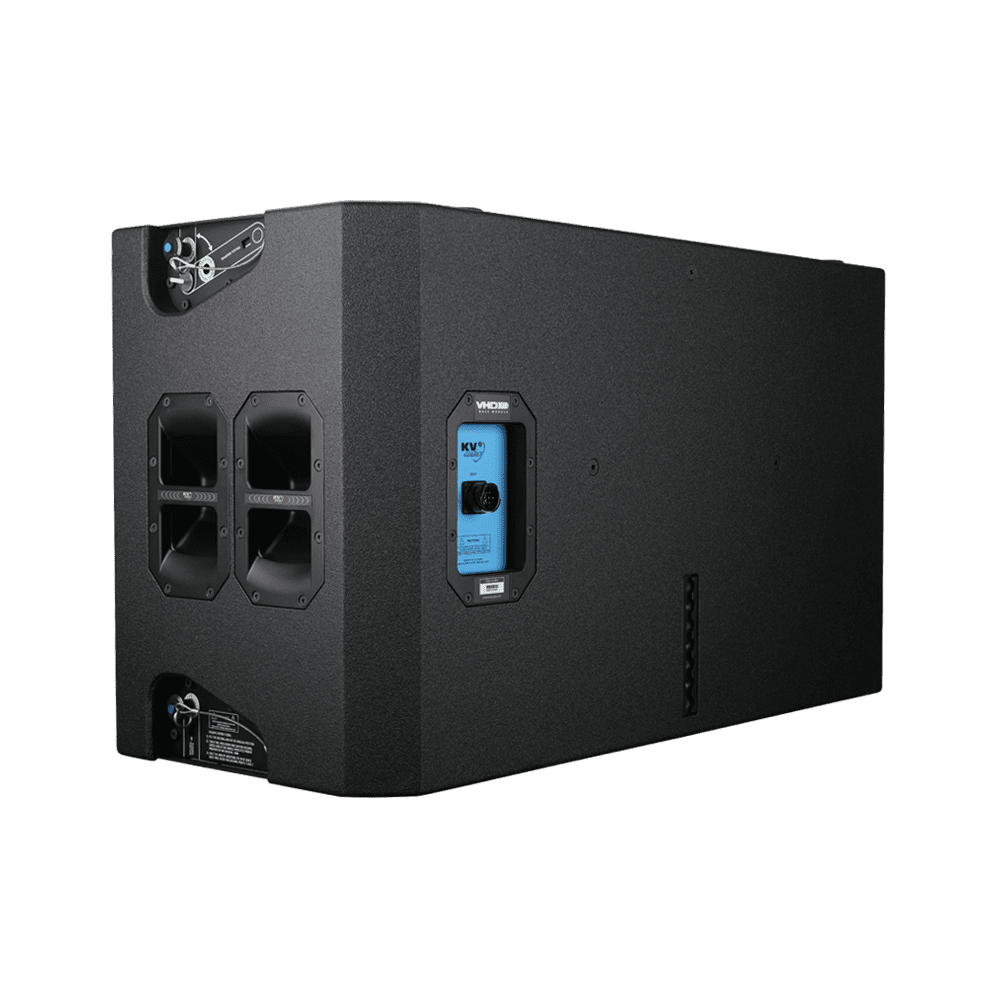

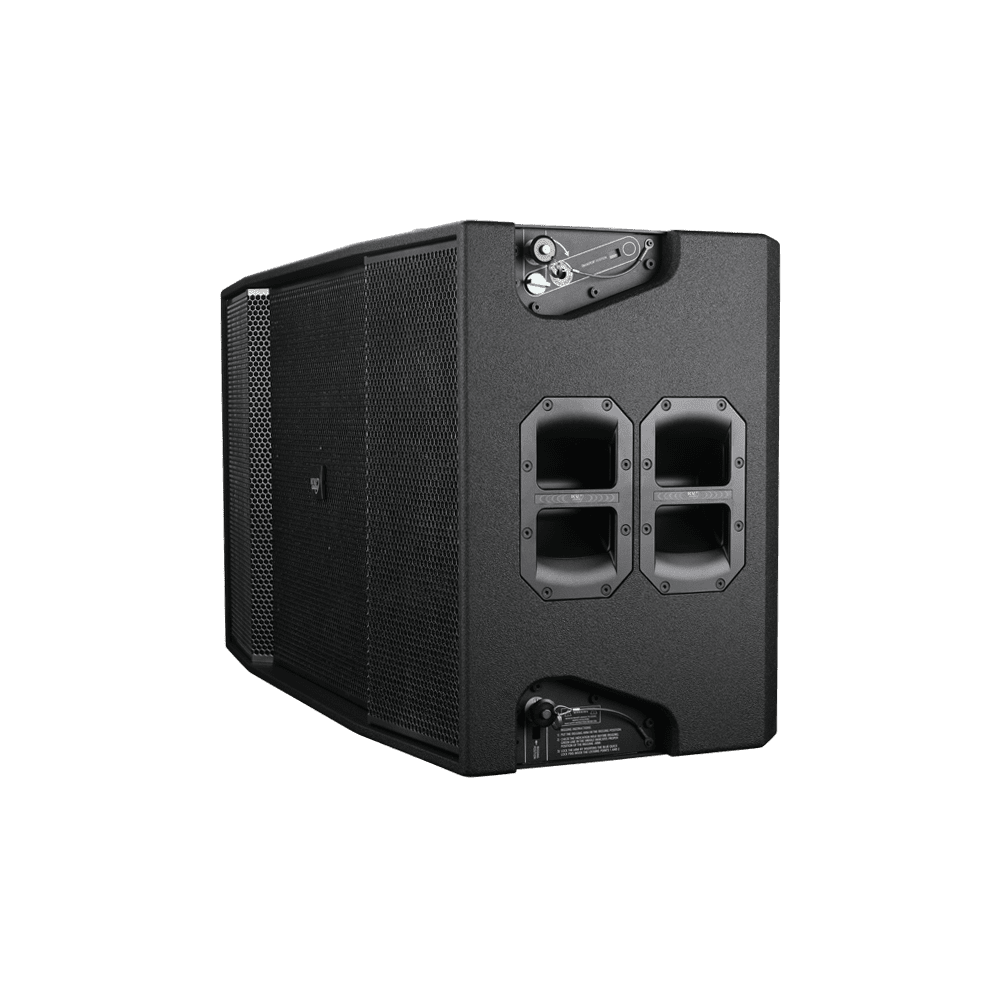

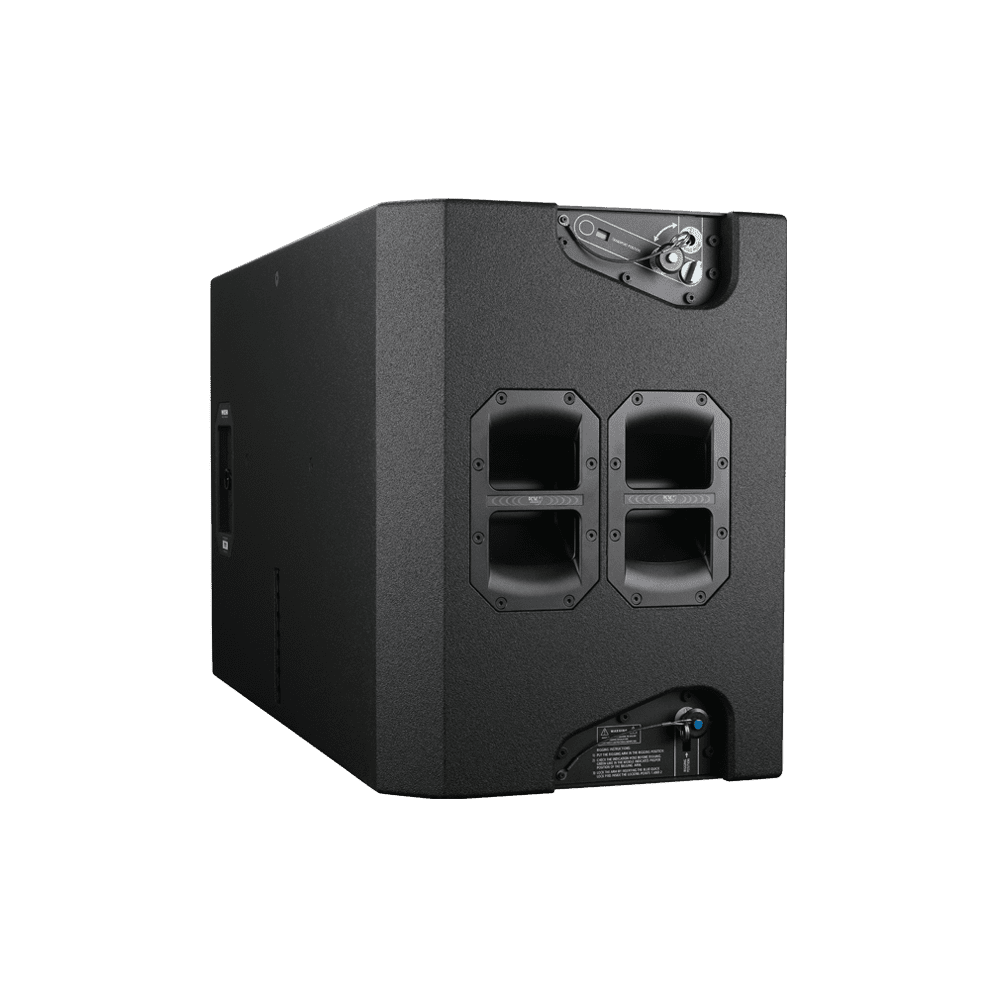

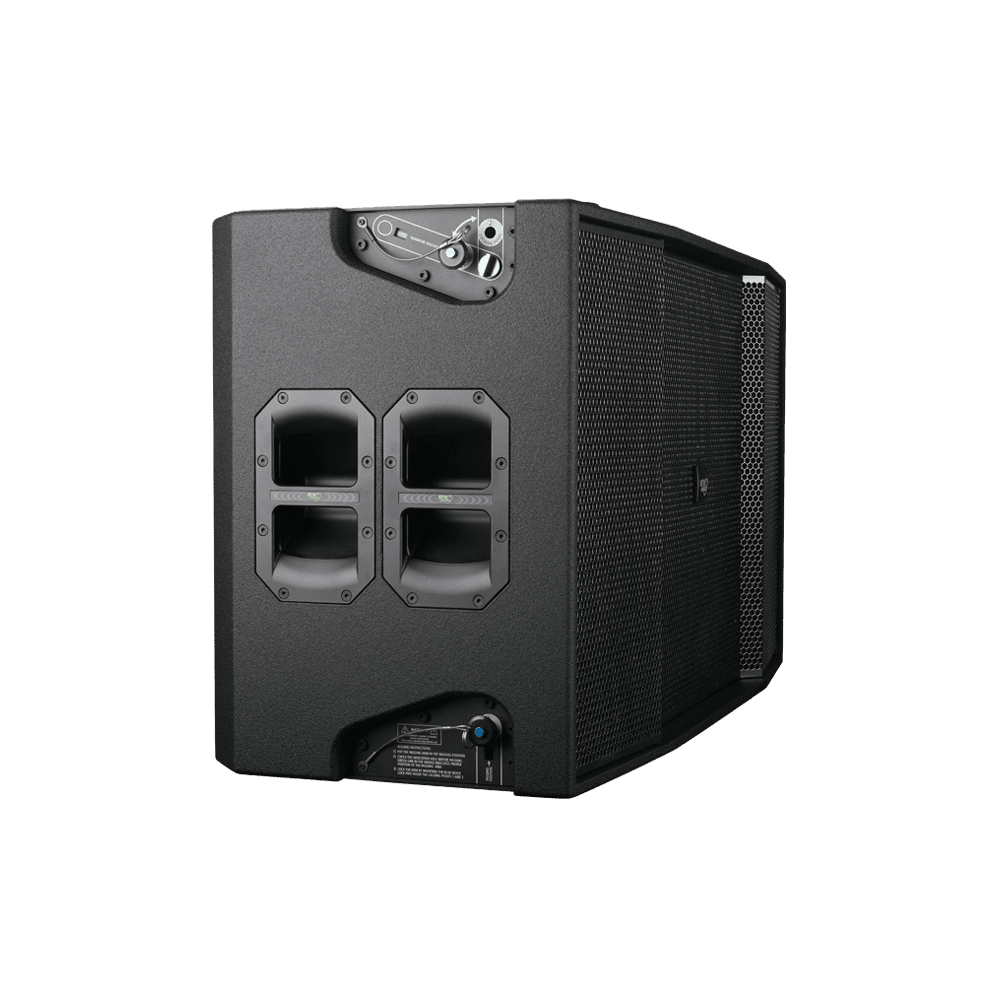

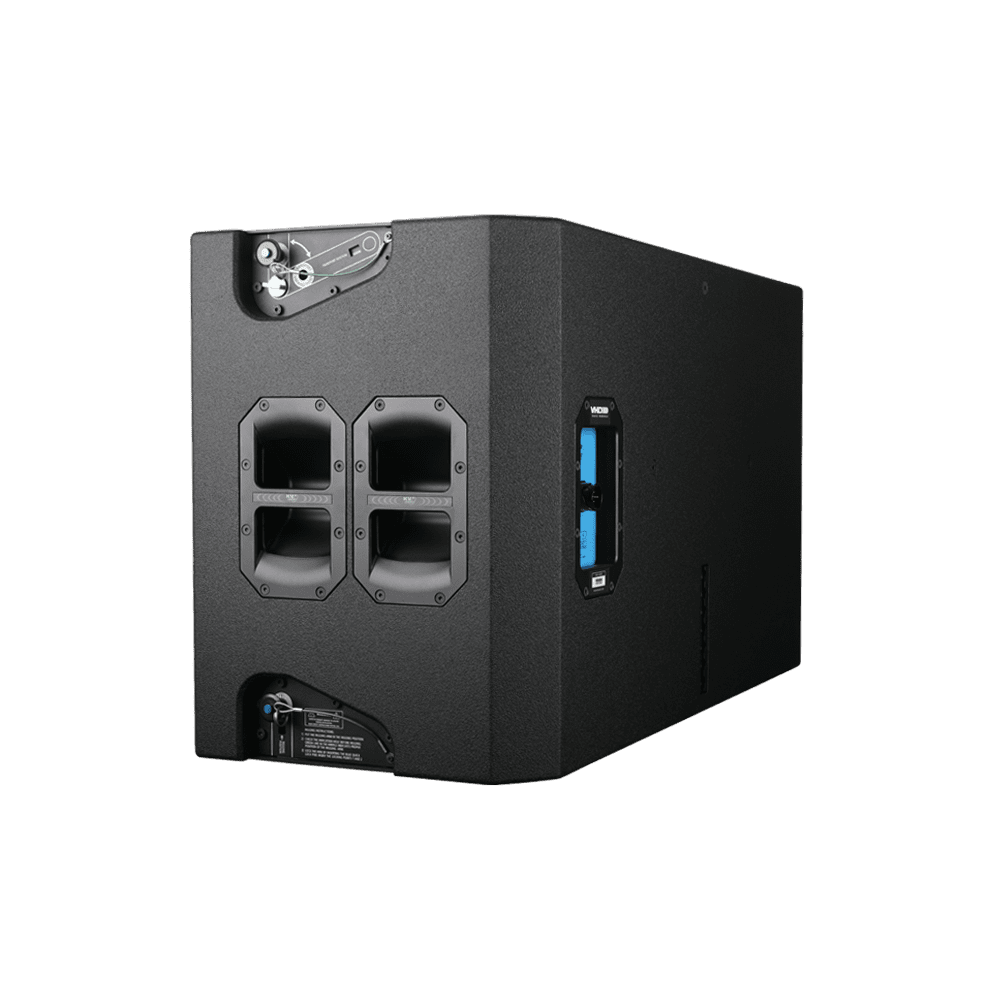

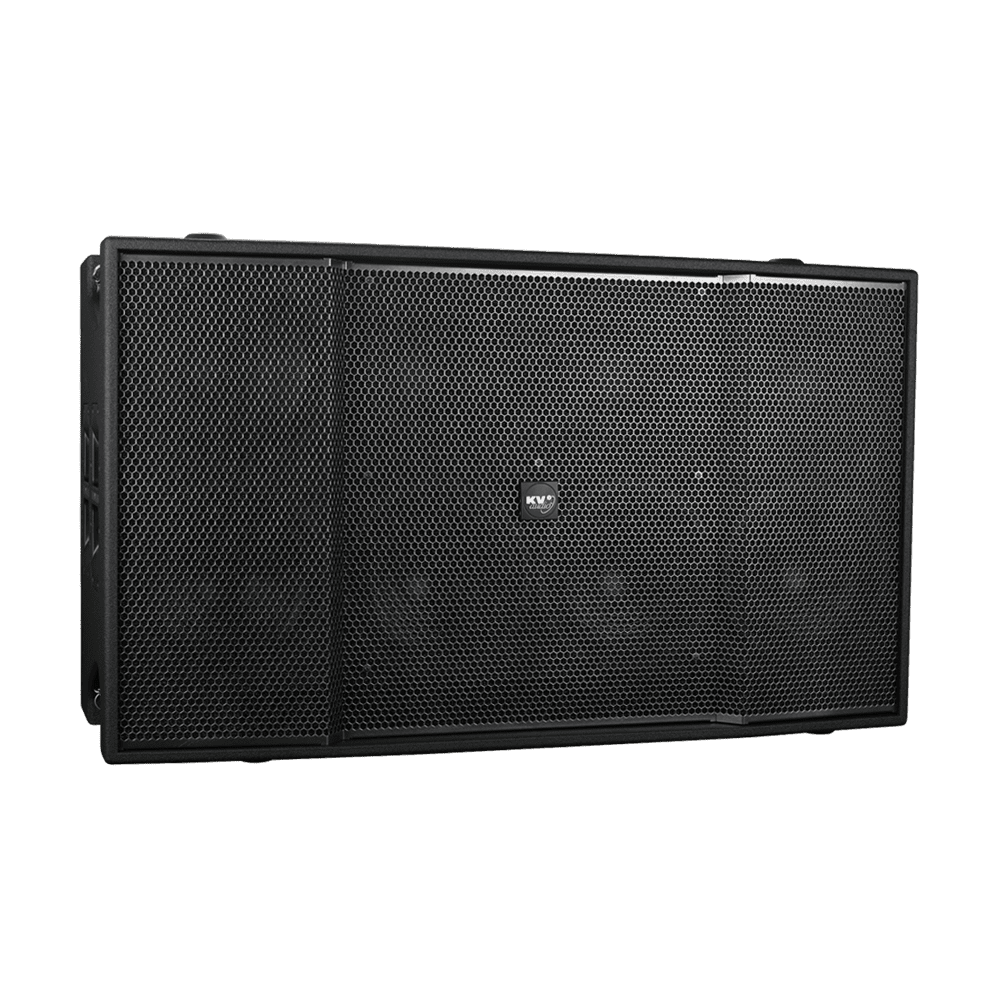

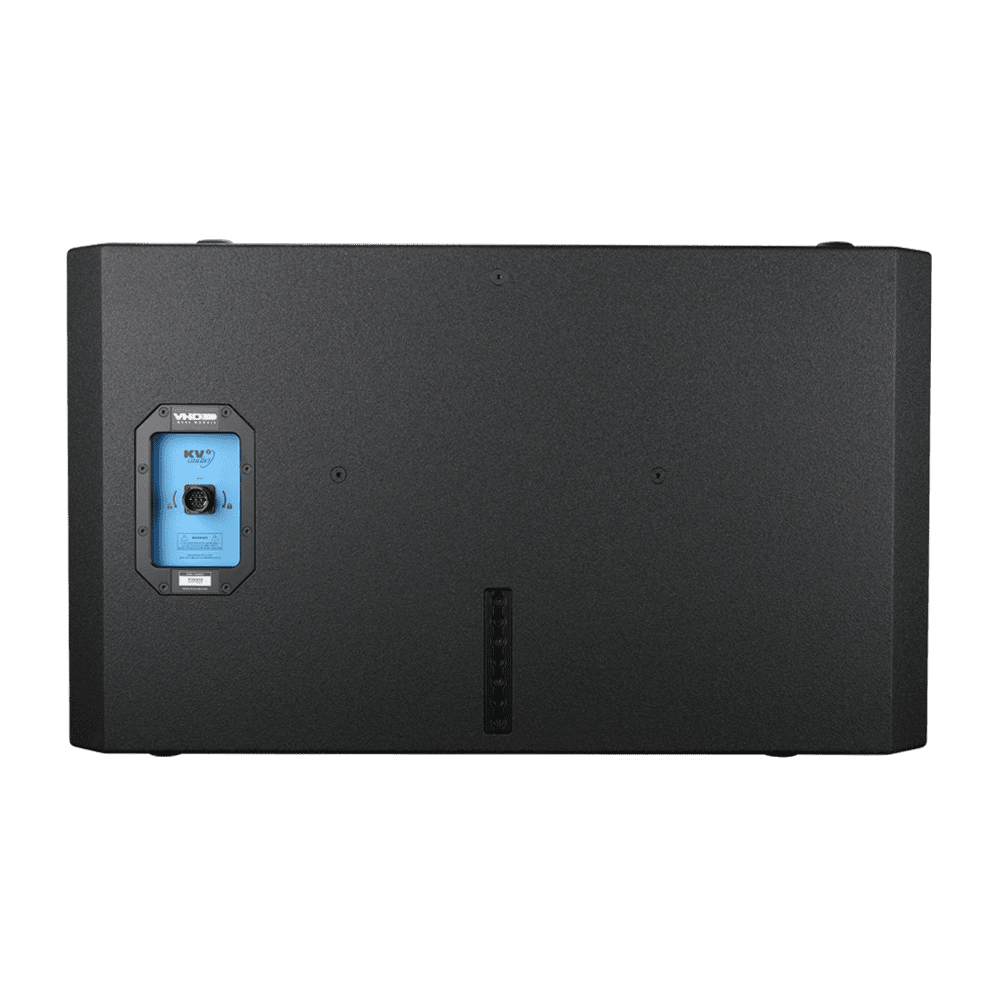

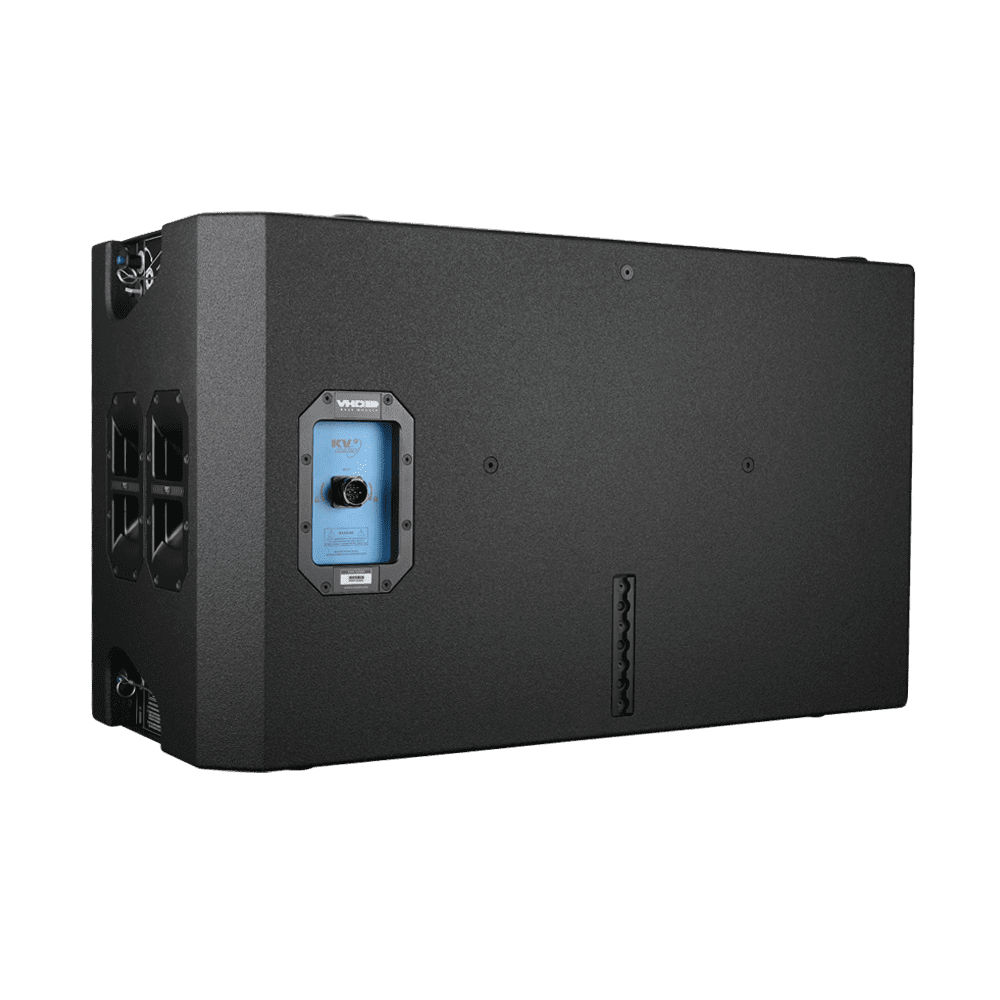

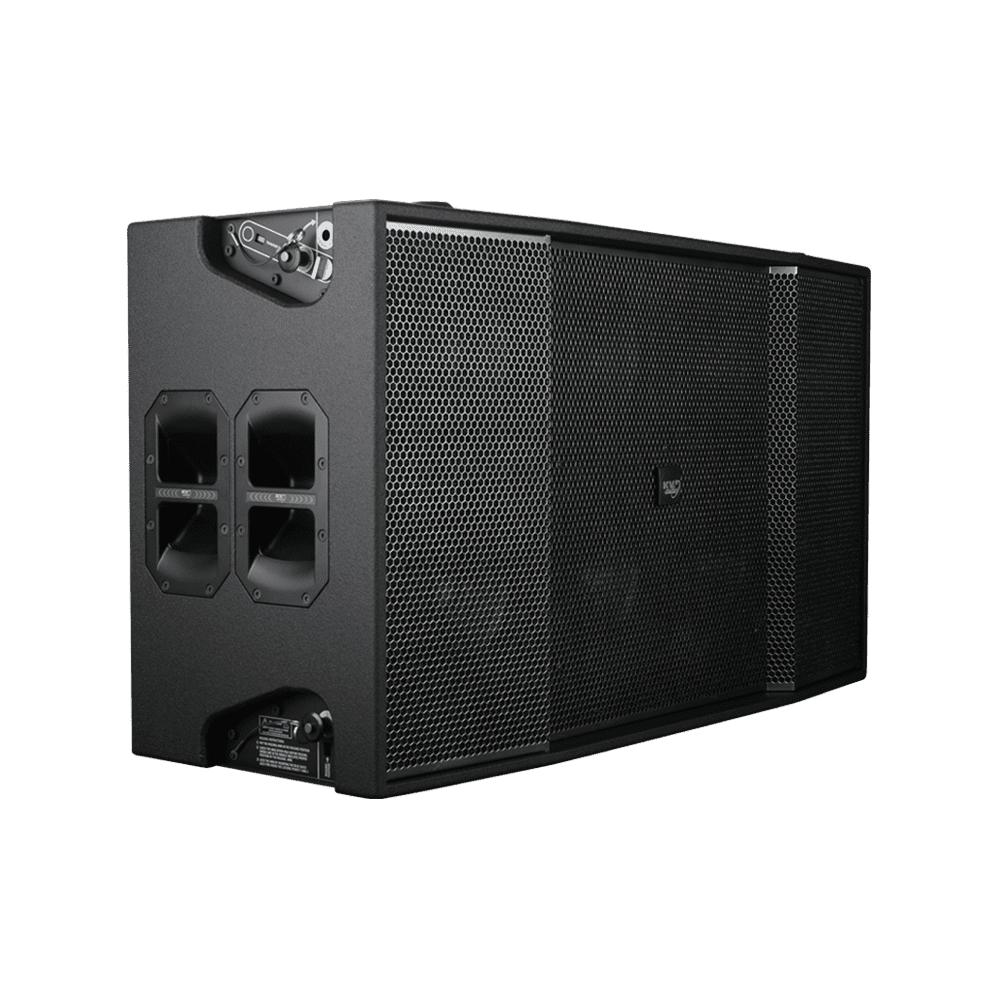

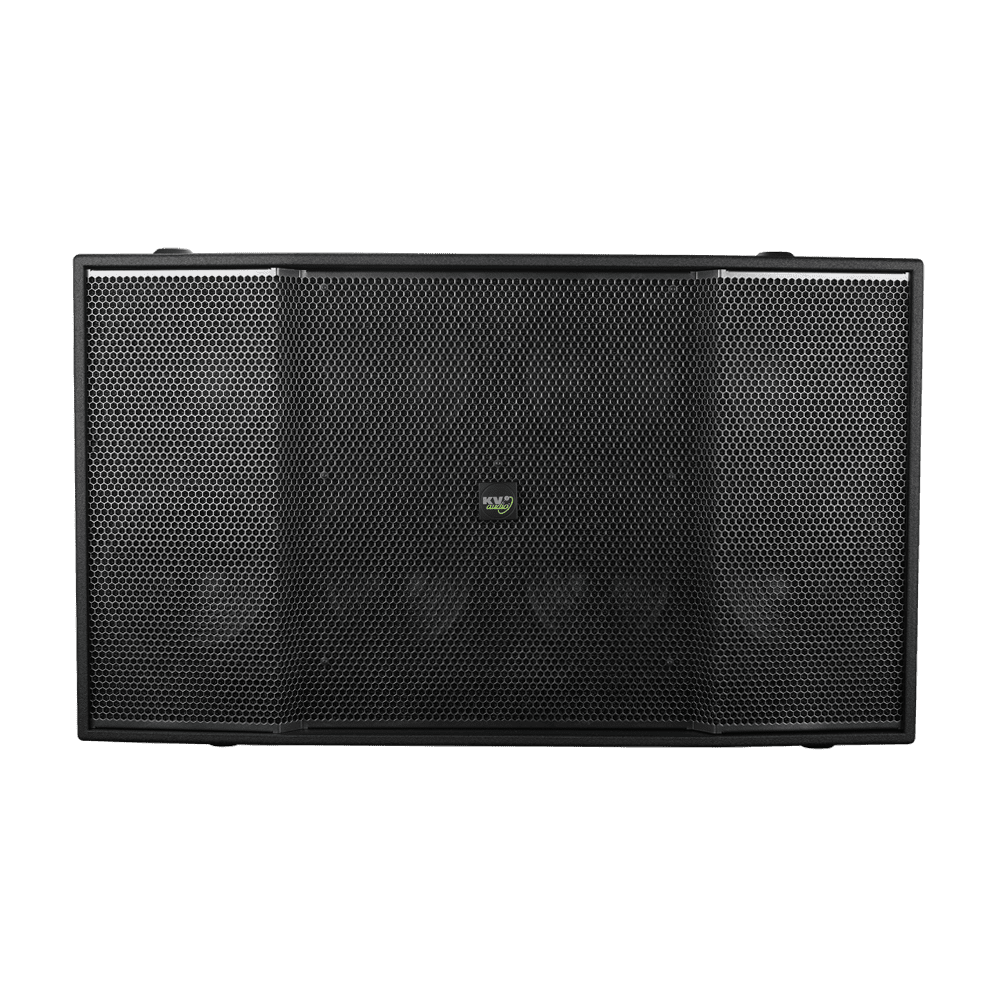

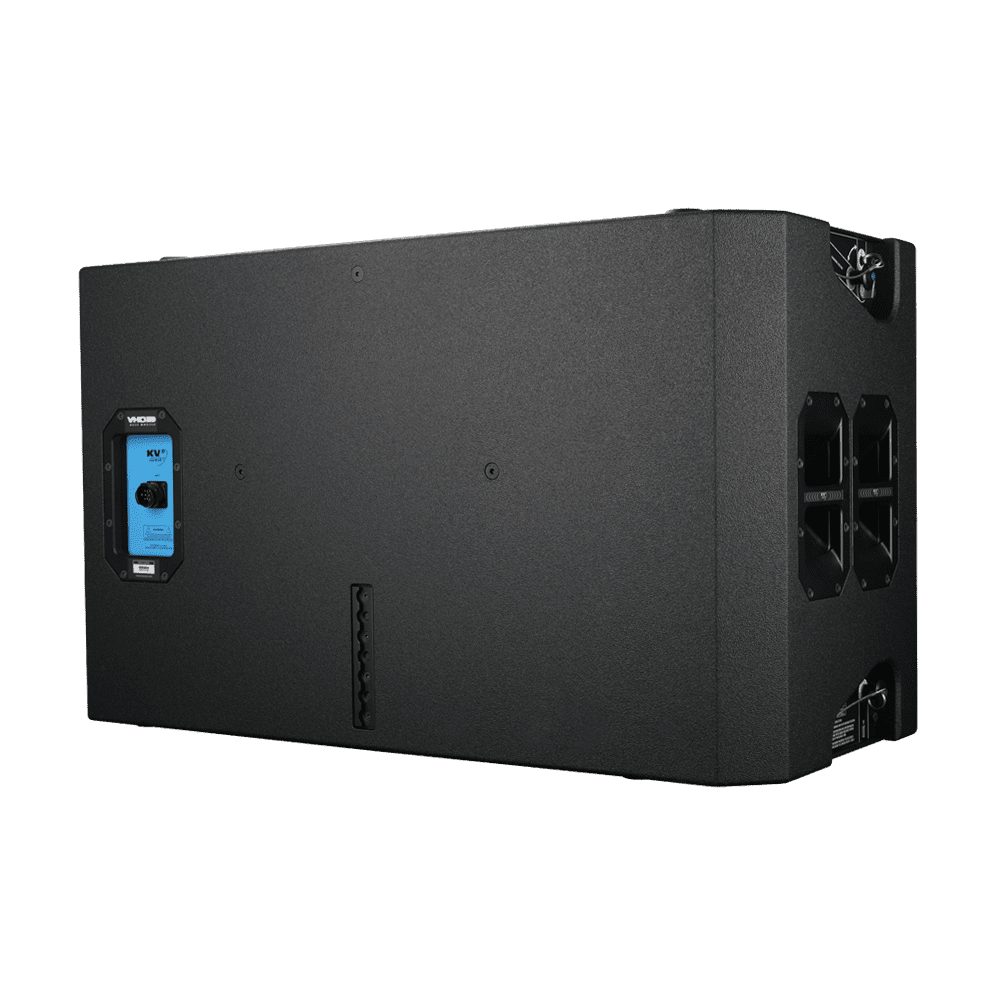

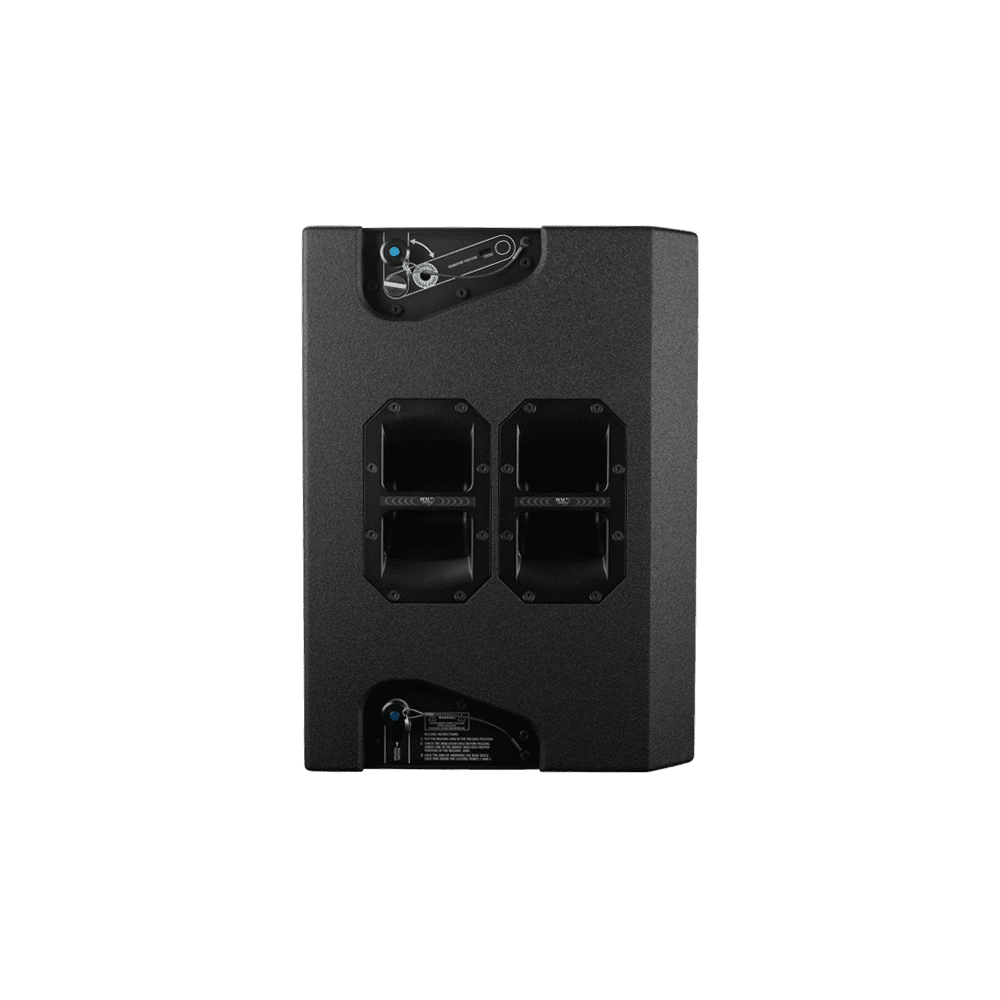

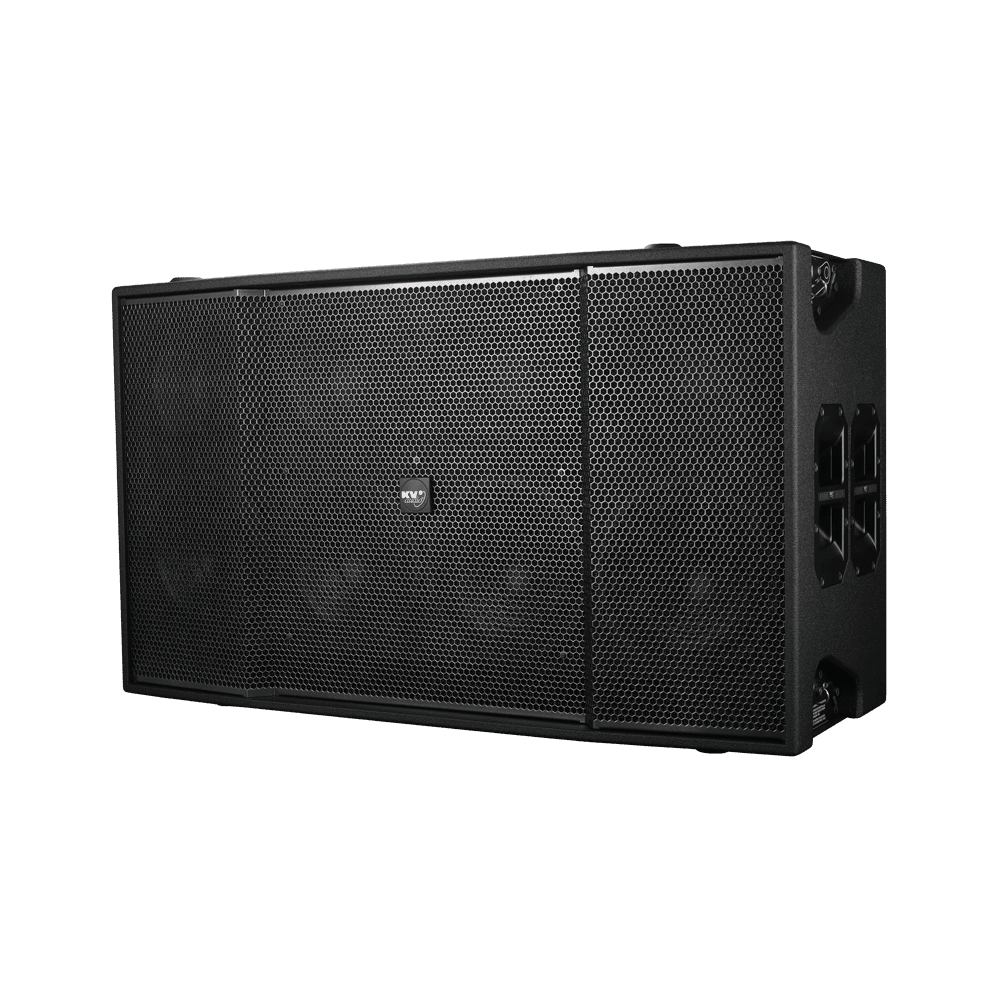

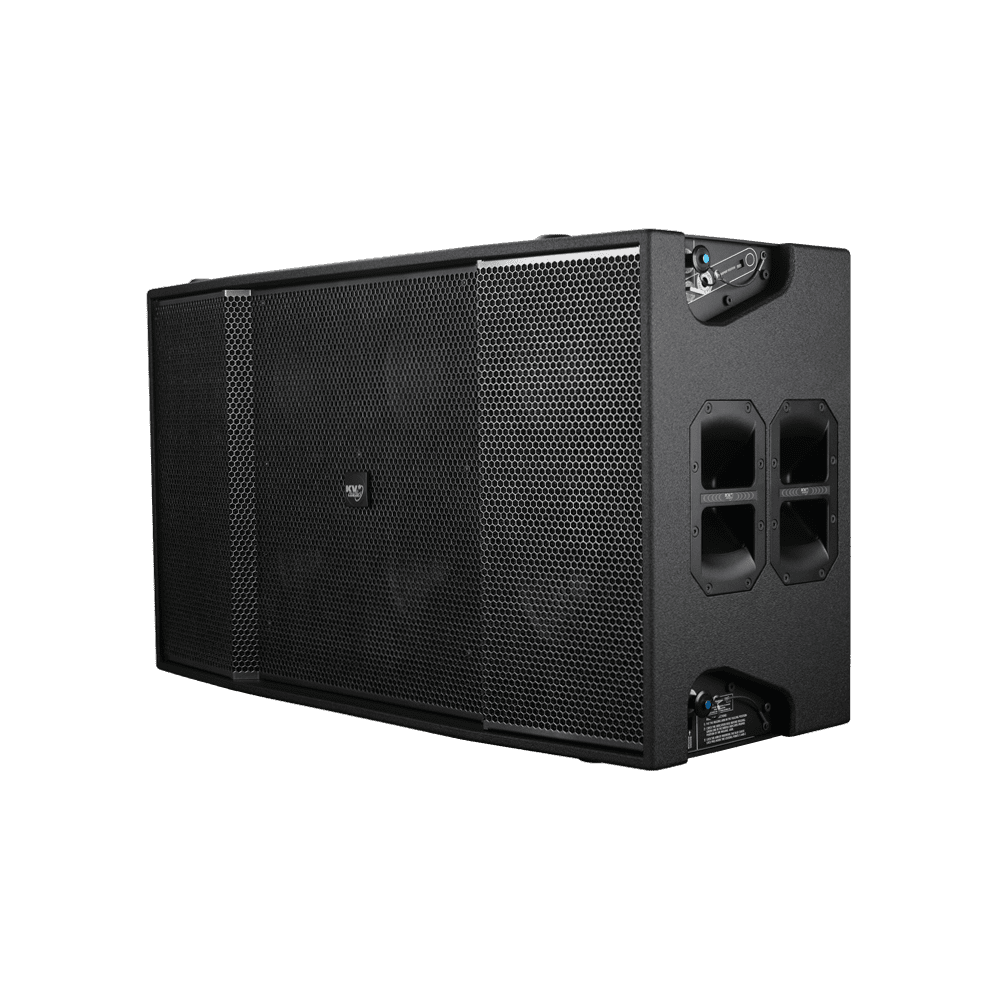

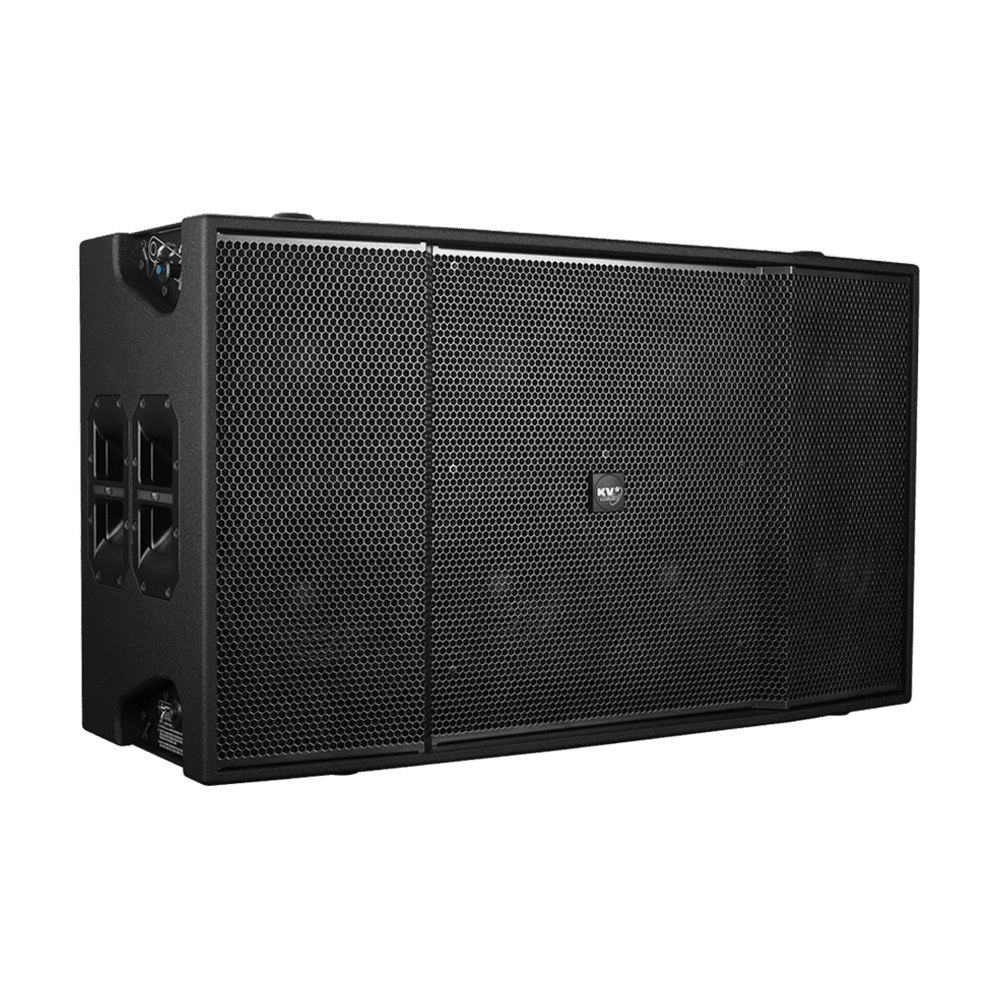

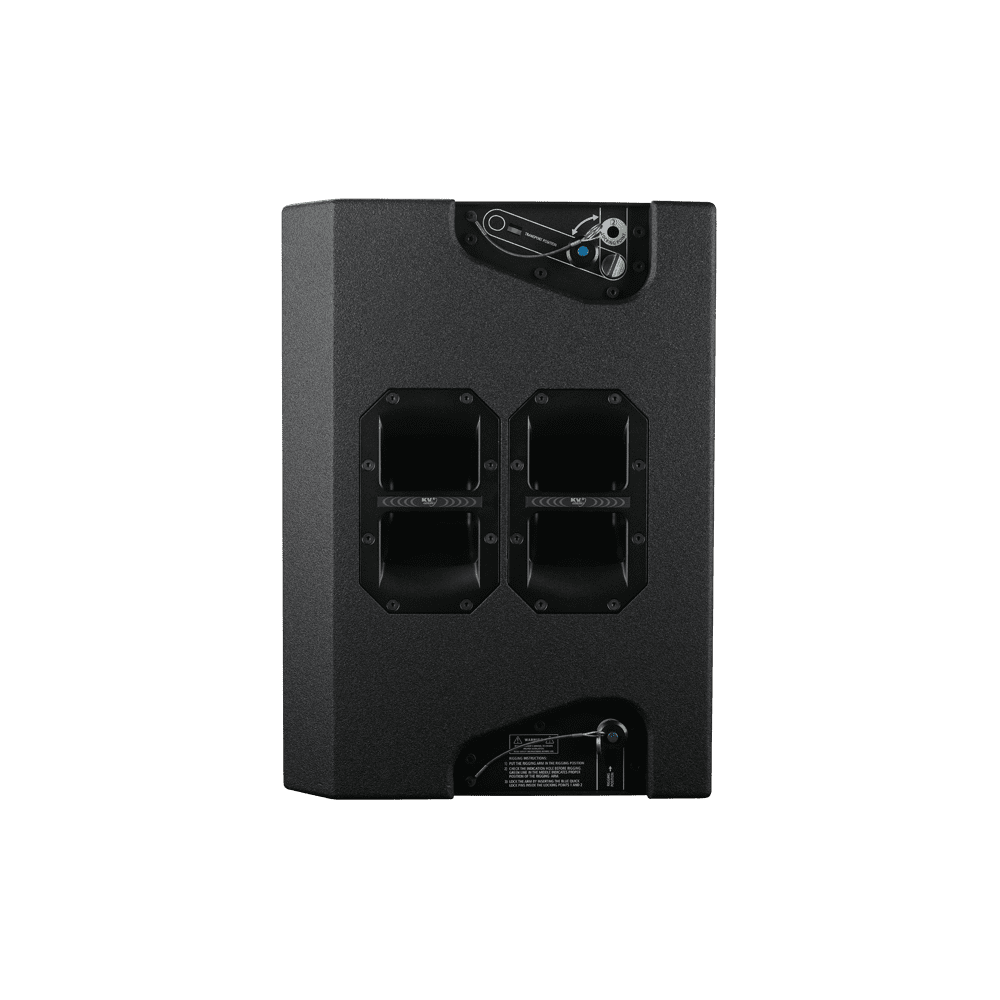

VHD8.10 Low Mid Module
Cuando se colocan varios controladores de medios graves en un solo eje, se suman y proporcionan un aumento considerable en la cantidad de energía de medios graves presente y disponible en el rango de 200 Hz a 500 Hz. Se necesita mucha más energía en esta área que en los rangos de frecuencia más altos, por lo que este efecto sumador ayuda a generar margen dinámico en el sistema y mantiene equilibrado el sonido general. Para proporcionar la energía necesaria en los medios bajos, necesaria para cubrir audiencias muy grandes, KV2 desarrolló la caja de expansión de medios bajos VHD8.10. Este gabinete lleva otros 8 parlantes de diez pulgadas con carga frontal y 3 de estos gabinetes se agregan a cada VHD5. 0. Esto proporciona un total de 32 altavoces de diez pulgadas que brindan el espacio adicional necesario en la banda media baja y una proyección extendida de estas frecuencias a distancia.
Aplicaciones
Diseñado como un gabinete dedicado de medios bajos para acompañar al módulo de medios altos VHD5.0 como parte del sistema VHD5
- Salas de conciertos de tamaño mediano a grande
- Instalación fija
- Eventos al aire libre
Código de producto
KVV 987 343
Descripción
Cuando se colocan varios controladores de medios graves en un solo eje, se suman y proporcionan un aumento considerable en la cantidad de energía de medios graves presente y disponible en el rango de 200 Hz a 500 Hz. Se necesita mucha más energía en esta área que en los rangos de frecuencia más altos, por lo que este efecto sumador ayuda a generar margen dinámico en el sistema y mantiene equilibrado el sonido general. Para proporcionar la energía necesaria en los medios bajos, necesaria para cubrir audiencias muy grandes, KV2 desarrolló la caja de expansión de medios bajos VHD8.10. Este gabinete lleva otros 8 parlantes de diez pulgadas con carga frontal y 3 de estos gabinetes se agregan a cada VHD5. 0. Esto proporciona un total de 32 altavoces de diez pulgadas que brindan el espacio adicional necesario en la banda media baja y una proyección extendida de estas frecuencias a distancia.
Aplicaciones
Diseñado como un gabinete dedicado de medios bajos para acompañar al módulo de medios altos VHD5.0 como parte del sistema VHD5
- Salas de conciertos de tamaño mediano a grande
- Instalación fija
- Eventos al aire libre
Código de producto
KVV 987 343
Configurations
VHD5 – A
VHD5 – B
VHD5 – C
VHD5 – DVHD5 – A
Description
The VHD5 is a Constant Power Point Source System designed for large audiences, extremely long throw and intended to be flown at a minimum height of 10 metres.
One side of the full system with three VHD8.10 Low Mid modules, one VHD5.0 Mid Hi and a VHD5.1 downfill. Amplification provided by three rack amplifiers: VHD5000 for Mid-Hi, VHD5000S for Low Mid, and VHD5100 for downfill. Everything is distributed by a single multicable through the Power Unit.
With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.
Products
| Count | Product | Type |
|---|---|---|
| 1 | VHD5.0 Mid Hi | MID-HI |
| 3 | VHD8.10 Low Mid | Low Mid |
| 1 | VHD5.1 Downfill | MID-HI |
| 1 | VHD5000 | Amplifier |
| 1 | VHD5000S | Amplifier |
| 1 | VHD5100 | Amplifier |
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | VHD5 Power unit | VHD5 Power unit |
| 1 | VHD5 Tilt flybar | VHD5 Tilt flybar |
| 1 | VHD5 Pan flybar | VHD5 Pan flybar |
| 1 | VHD5 Multicable | VHD5 Multicable |
| 1 | VHD5 Extension cable | VHD5 Extension cable |
| 1 | VHD5 Downfill bracket | VHD5 Downfill bracket |
Images
VHD5 – B
Description
The VHD5 is a Constant Power Point Source System designed for large audiences, extremely long throw and intended to be flown at a minimum height of 10 metres.
One side of the full system with two VHD8.10 Low Mid modules and one VHD5.0 Mid Hi. Amplification provided by two rack amplifiers: VHD5000 for Mid-Hi, VHD5000S for Low Mid.
Everything is distributed by a single multicable through the Power Unit. With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.
Products
| Count | Product | Type |
|---|---|---|
| 1 | VHD5.0 Mid Hi | MID-HI |
| 3 | VHD8.10 Low Mid | Low Mid |
| 1 | VHD5000 | Amplifier |
| 1 | VHD5000S | Amplifier |
| 1 | VHD5100 | Amplifier |
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | VHD5 Power unit | VHD5 Power unit |
| 1 | VHD5 Tilt flybar | VHD5 Tilt flybar |
| 1 | VHD5 Pan flybar | VHD5 Pan flybar |
| 1 | VHD5 Multicable | VHD5 Multicable |
| 1 | VHD5 Extension cable | VHD5 Extension cable |
Images
VHD5 – C
Description
The VHD5 is a Constant Power Point Source System designed for large audiences, long throw and intended to be flown at a minimum height of 10 metres.One side of the full system with two VHD8.10 Low Mid modules, one VHD5.0 Mid Hi and a VHD5.1 downfill.
Amplification provided by three rack amplifiers: VHD5000 for Mid-Hi, VHD5000S for Low Mid, and VHD5100 for downfill. Everything is distributed by a single multicable through the Power Unit.
With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.
Products
| Count | Product | Type |
|---|---|---|
| 1 | VHD5.0 Mid Hi | MID-HI |
| 2 | VHD8.10 Low Mid | Low Mid |
| 1 | VHD5.1 Downfill | MID-HI |
| 1 | VHD5000 | Amplifier |
| 1 | VHD5000S | Amplifier |
| 1 | VHD5100 | Amplifier |
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | VHD5 Power unit | VHD5 Power unit |
| 1 | VHD5 Tilt flybar | VHD5 Tilt flybar |
| 1 | VHD5 Pan flybar | VHD5 Pan flybar |
| 1 | VHD5 Multicable | VHD5 Multicable |
| 1 | VHD5 Extension cable | VHD5 Extension cable |
| 1 | VHD5 Downfill bracket | VHD5 Downfill bracket |
Images
VHD5 – D
Description
The VHD5 is a Constant Power Point Source System designed for large audiences, long throw and intended to be flown at a minimum height of 10 metres. One side of the full system with two VHD8.10 Low Mid modules and one VHD5.0 Mid Hi.
Amplification provided by three rack amplifiers: VHD5000 for Mid-Hi and VHD5000S for Low Mid. Everything is distributed by a single multicable through the Power Unit.
With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.
Products
| Count | Product | Type |
|---|---|---|
| 1 | VHD5.0 Mid Hi | MID-HI |
| 2 | VHD8.10 Low Mid | Low Mid |
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | VHD5 Power unit | VHD5 Power unit |
| 1 | VHD5 Tilt flybar | VHD5 Tilt flybar |
| 1 | VHD5 Pan flybar | VHD5 Pan flybar |
| 1 | VHD5 Multicable | VHD5 Multicable |
| 1 | VHD5 Extension cable | VHD5 Extension cable |
Images
Accesories
VHD5 Extension cable
VHD5 Flybar case
VHD5 Multicable
VHD5 Pan flybar
VHD5 Power unit
VHD5 Rack case
VHD5 Tilt flybar
VHD5.0, VHD8.10 Cart
VHD8.10 Padded cover with cartVHD5 Extension cable
Gallery
Product code
KVV 987 409
Description
Extension cable for VHD5 System (25 m)
VHD5 Flybar case
Gallery
Product code
KVV 987 414
Description
Flybar Case for VHD5.0 Flybar
VHD5 Multicable
Gallery
Product code
KVV 987 364
Description
Multicable for VHD5 System.
VHD5 Pan flybar
3D view
Gallery
Product code
KVV 987 413
Description
Pan Flybar for VHD5.0
Downloads
VHD5 Pan Flybar 3D DWG
VHD5 Pan Flybar 3D DWG
VHD5 Rigging Manual
VHD5 Rigging Manual
VHD5 Pan flybar 3D DWG
VHD5 Pan flybar 3D DWG
VHD5 Pan flybar SKP
VHD5 Pan flybar SketchUp
VHD5 Power unit
Gallery
Product code
KVV 987 363
Description
VHD5.0 dedicated Power Unit
Downloads
VHD5 Power unit 3D DWG
VHD5 Power unit 3D DWG
VHD5 Power unit SKP
VHD5 Power unit SketchUp
VHD5 Rack case
Gallery
Product code
KVV 987 365
Description
Rack case for VHD5000, VHD5000S, VHD5100 amplifiers, Power unit and 1 spare rack position.
VHD5 Tilt flybar
3D view
Gallery
Product code
KVV 987 420
Description
Tilt Flybar for VHD5.0
Downloads
VHD5 Tilt Flybar 3D DWG
VHD5 Tilt Flybar 3D DWG
VHD5 Rigging Manual
VHD5 Rigging Manual
VHD5 Tilt Flybar SketchUp
VHD5 Tilt Flybar SketchUp
VHD5.0, VHD8.10 Cart
Gallery
Product code
KVV 987 369
Description
Cart for VHD5.0, VHD8.10
Downloads
VHD5.0, VHD8.10 Cart 3D DWG
VHD5.0, VHD8.10 Cart 3D DWG
VHD5.0, VHD8.10 Cart SKP
VHD5.0, VHD8.10 Cart SketchUp
VHD8.10 Padded cover with cart
Gallery
Product code
KVV 987 371
Description
Padded Cover for VHD8.10 used with cart
System Acoustic Performance
| Max SPL Long-term | 135dB |
| Max SPL Peak | 141dB |
| -3dB Response | 45Hz to 400Hz (45Hz to 1100Hz when used standalone) |
| -10dB Response | 45Hz to 400Hz (45Hz to 4200Hz when used standalone) |
| Sensitivity | 104dB |
| Impedance | 4Ω |
| Crossover Point | 400Hz |
Mid Bass Section
| Acoustic Design | Front Loaded – Bass Reflex |
| Mid-bass Amplifier Requirement | VHD5000S |
| Woofer Size / Voice Coil Diameter | 8 x 10” / 2″ |
| Diaphragm Material | Epoxy Reinforced Cellulose |
| Magnet Type | Neodymium / Ferrite |
Cabinet
| Cabinet Material | Baltic birch |
| Handles | 4 |
| Color | Black (wear resistant polymer coating) |
Physical Dimensions
| Height | 640mm (25.20″) |
| Width | 1110mm (43.7″) |
| Depth | 500mm (19.69″) |
| Weight | 78 kg (172 lbs) |
Product code
KVV 987 343
