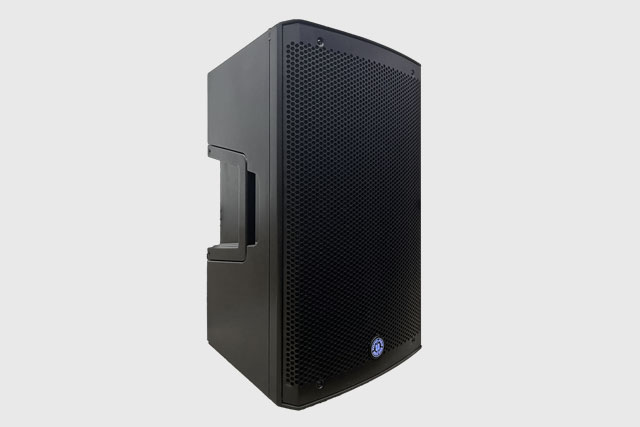

ZP10A

4000W – 129dB Total System Peak Power

DSP Enhanced Bass Response

High Efficiency Class D Amplifier

    Consultar precios

    Descripción

    Especificaciones

    Model Active ZP-10A
    System Type 2-WAY 10″ Active Vented Loudspeaker System
    Power System Bi-AMP DSP Processor, 1000W continuous RMS (Class D LF-650W+ HF-350W), 4000W peak (2600W LF + 1400W HF)
    Continuous Power LOW: 650W / HIGH:350W
    Program Power LOW: 1300W / HIGH:700W
    Transducer Low 10″ (246mm), cone
    Transducer High 1″ Throat Compression Driver
    Crossover Frequency 3.0kHz
    Maximum SPL 129dB (peak), 126dB (continuous) (dB-SPL @ 1 m)
    Frequency Response 54Hz – 20kHz (-3 dB)
    Frequency Range 48Hz – 20kHz (-10 dB)
    Horn Coverage 90° horizontal x 60° vertical (nominal)
    DSP Preset Modes LIVE-MUSIC-SPEECH-MONITOR
    Connectors 2 x XLR+1/4” (6.35mm) TRS combo inputs (Line/Mic ), 1 x 3.5 Stereo AUX IN, 1 x Stereo BT (app control), 1 x XLR mix output (Link), 1 x IEC power cable input
    Bluetooth Stereo Stereo L/R-VOL-Pair-Link Switch (app control)
    Controls Volume Control knob, AC Power switch, Line / Mic toggle switch, DSP Preset Switch, BT Pair and Link Switch
    Indicators Signal / Clip Limiter LED, Four DSP Mode LEDs, BT Pair-Link LED, Power Switch LED
    Power Connection: IEC, Voltage: 110–120V~, 220–240V~, 50/60Hz, switchable, Fuse: 100–120V T10AL AC250V, or 220–240V T5AL AC250V, Consumption: 800W
    Electronic Protections Electronic clip, thermal and transducer overdrive protection
    Enclosure Trapezoidal, injection-molded, polypropylene with perforated steel grille, 2 x Handles (left and right sides)
    Mounting / Installation 36mm standard pole-mount, suspended with integral M10 points, wedge monitor
    Dimensions (HxWxD) 528mm x 332mm x 315mm (20.8″ x 13.1″ x 12.4″)
    Weight 27.1 lbs / 12.3 kg
