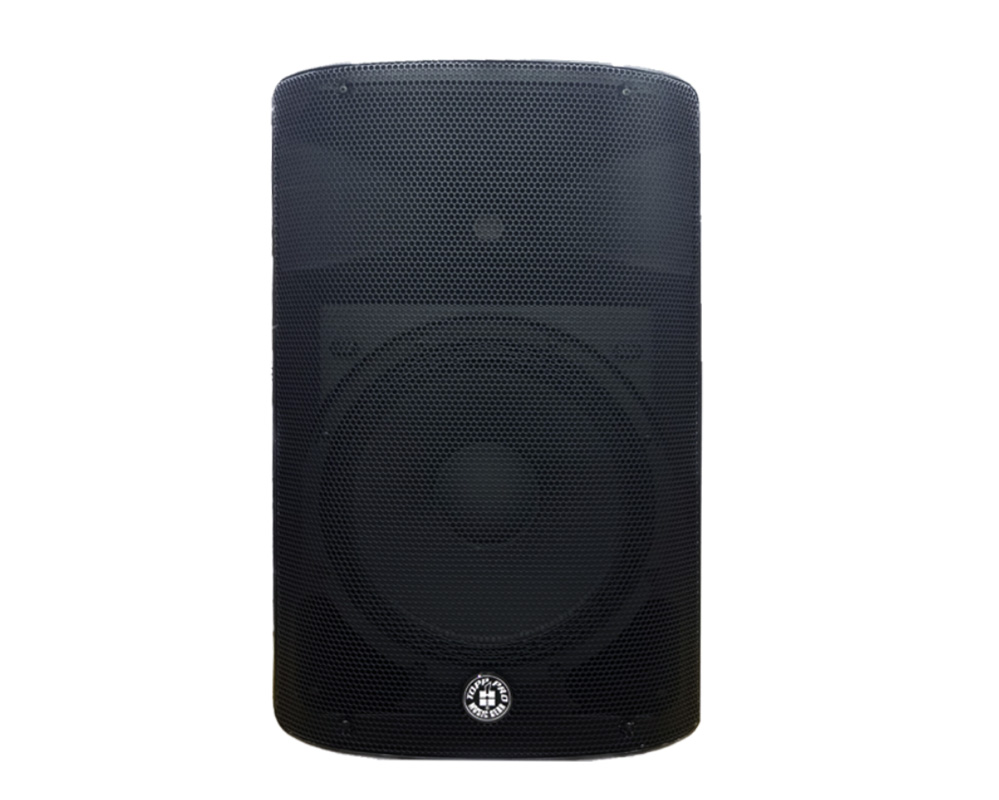

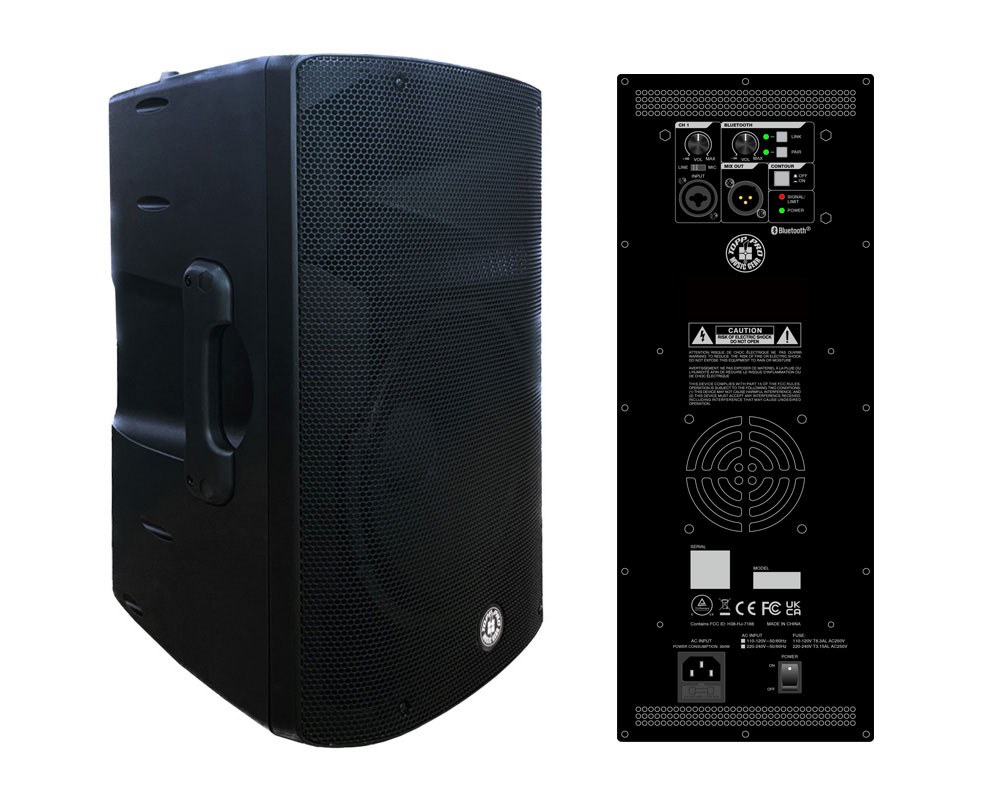

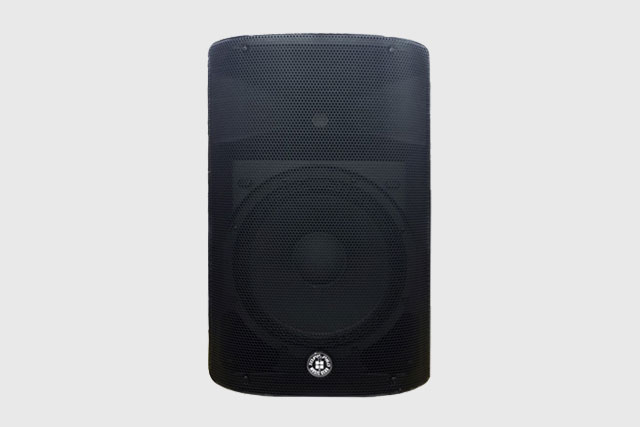

X12A MKII

1600W – 122dB Total System Peak Power

Stereo Bluetooth

Active Plastic Speaker

    Consultar precios

    Descripción

    Especificaciones

    Model X12A MKII
    System Type 2-Way Active Ported Loudspeaker
    Power System Class D SMPS (Bi-AMP, LF 3500W/RMS + HF 50W/RMS), 1600W Peak
    Continuous Power (350W / LF + 50W / HF)
    Program Power (700W / LF + 100W / HF)
    Transducers 12″ (305mm) Woofer – 1″ (25mm) Neodymium compression driver, 1″ (25mm)
    Crossover Frequency 2kHz
    Max SPL at 1m 122dB (peak), 90dB (continuous) (dB-SPL @ 1m)
    Frequency Response 65Hz – 20kHz (-3dB)
    Frequency Range 55Hz – 20kHz (-10dB)
    Horn Coverage H° x V° 90° horizontal x 60° vertical (nominal)
    Equalization Contour Switch, emphasizes low and high frequencies by +3 dB
    Connector XLR balanced input (Line / Mic); XLR mix output (Link); IEC power cable input
    Bluetooth Stereo Stereo L/R-VOL-Pair-Link Switch
    Controls Volume Control knob / Power Switch / Contour Switch / Line & Mic toggle Switch
    Indicators Power ON with Green LED, Clip Limiter with Red LED; Bluetooth Pair/Link LED
    Power 110V-120V / 50-60Hz or 220V-240V / 50-60Hz
    Electronic Protections Thermal / Overload / Analog limiter / Compressor
    Enclosure Construction Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top
    Mounting Standard 36mm pole socket, wedge monitor
    Dimensions (HxWxD) 602 x 381 x 348 mm (23.7″ x 15″ x 13.7″)
    Net Weight 30.31 lb. / 13.75 kg
