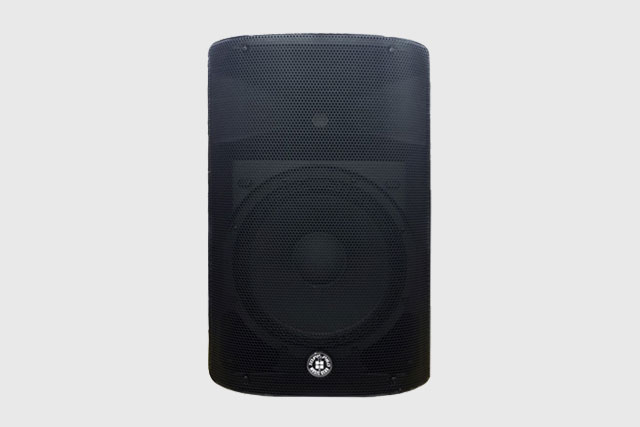

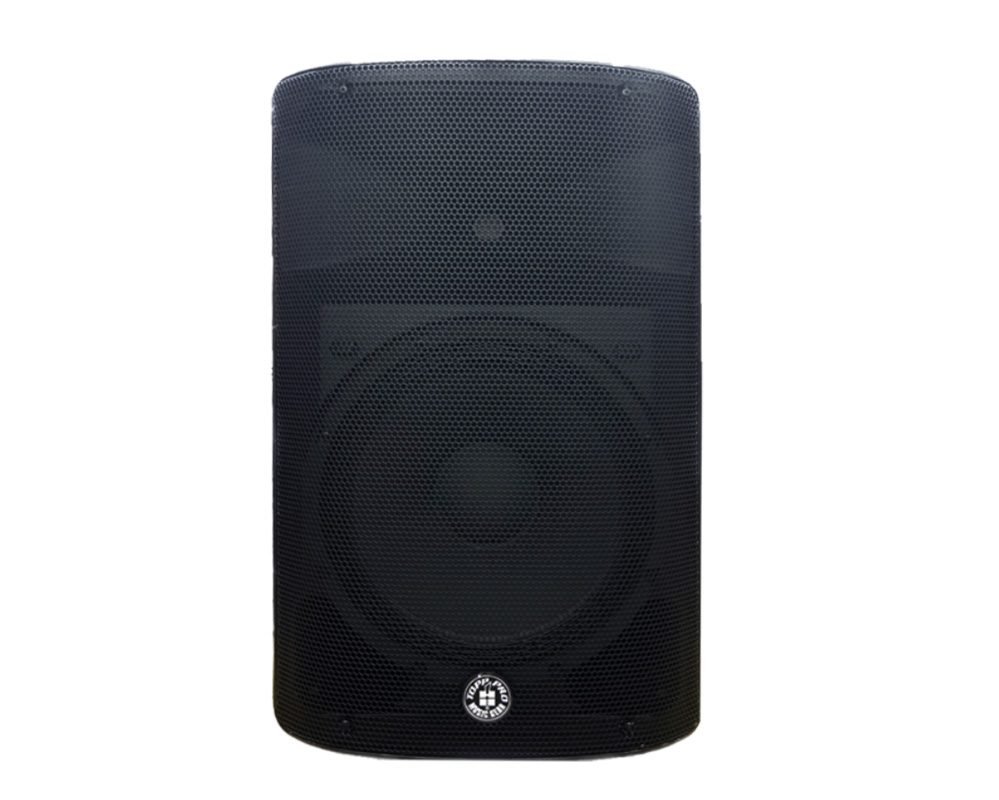

X10A MKII

1600W – 117dB Total System Peak Power

Stereo Bluetooth

Active Plastic Speaker

    Consultar precios

    Descripción

    Especificaciones

    Model X10A MKII
    System Type 2-Way Active Ported Loudspeaker
    Power System Class D SMPS (Bi-AMP, LF 120W/RMS + HF 30W/RMS), 600W Peak
    Continuous Power (120W / LF + 30W / HF)
    Program Power (240W / LF + 650W / HF)
    Transducers 10″ (254mm) Woofer – 1″ (25mm) Ferrite compression driver, 1″ (25mm)
    Crossover Frequency 2.5kHz
    Max SPL at 1m 117dB (peak), 89dB (continuous) (dB-SPL @ 1m)
    Frequency Response 72Hz – 20kHz (-3dB)
    Frequency Range 65Hz – 20kHz (-10dB)
    Horn Coverage H° x V° 90° horizontal x 60° vertical (nominal)
    Equalization Contour Switch, emphasizes low and high frequencies by +3 dB
    Connector XLR balanced input (Line / Mic); XLR mix output (Link); IEC power cable input
    Bluetooth Stereo Stereo L/R-VOL-Pair-Link Switch

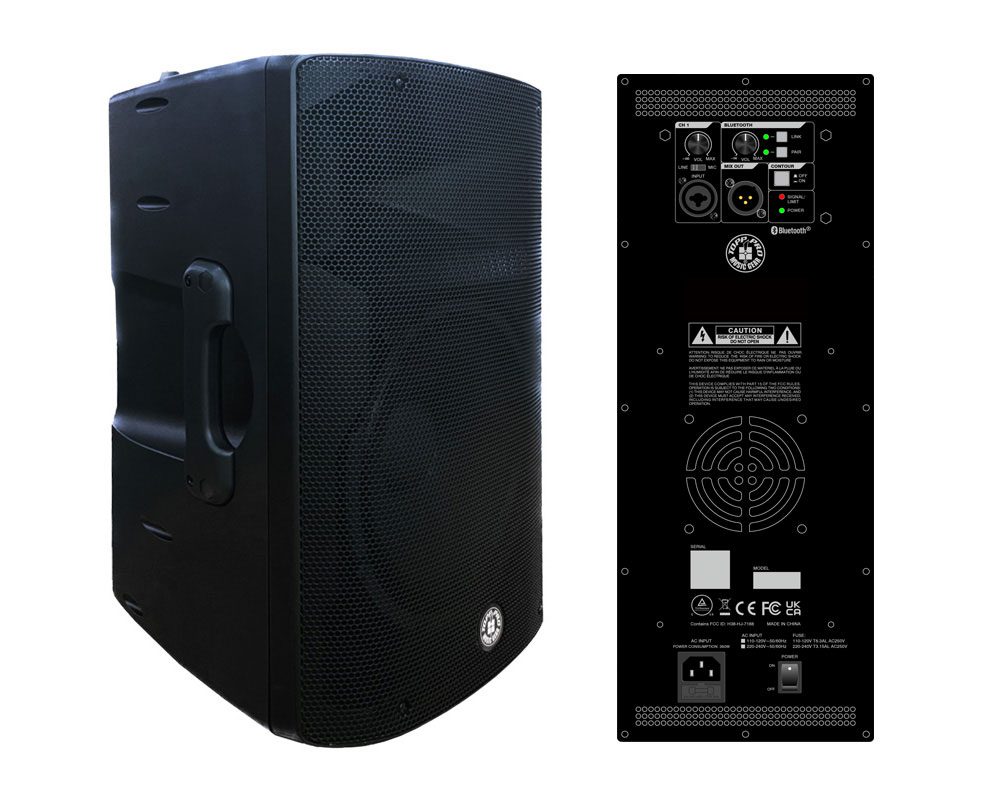

    Controls Volume Control knob / Power Switch / Contour Switch / Line & Mic toggle Switch
    Indicators Power ON with Green LED, Clip Limiter with Red LED; Bluetooth Pair/Link LED
    Power 110V-120V / 50-60Hz or 220V-240V / 50-60Hz
    Electronic Protections Thermal / Overload / Analog limiter / Compressor
    Enclosure Construction Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top
    Mounting Standard 36mm pole socket, wedge monitor
    Dimensions (HxWxD) 462 x 287 x 277mm (18.2″ x 11.3″ x 10.9″)
    Net Weight 15.6 lb. / 7.08 kg
