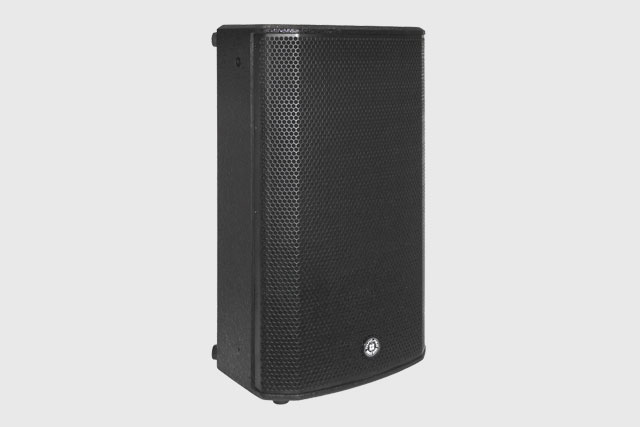

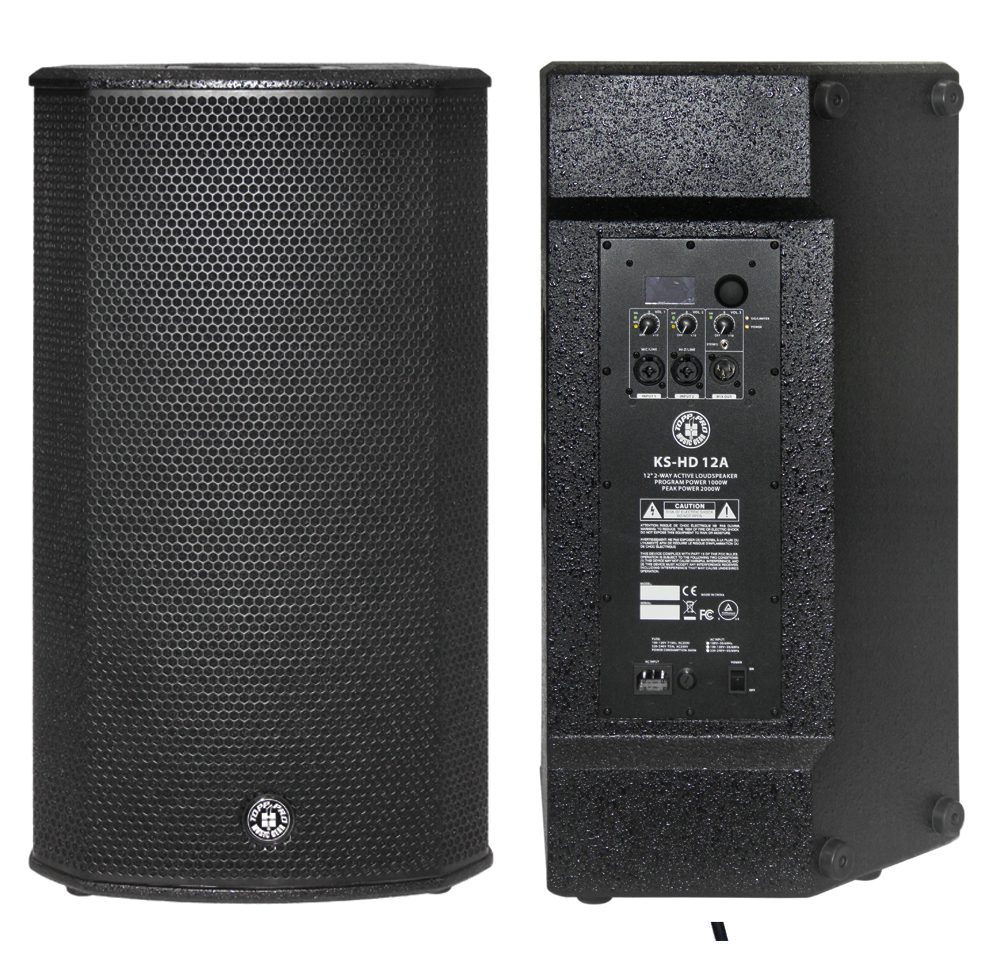

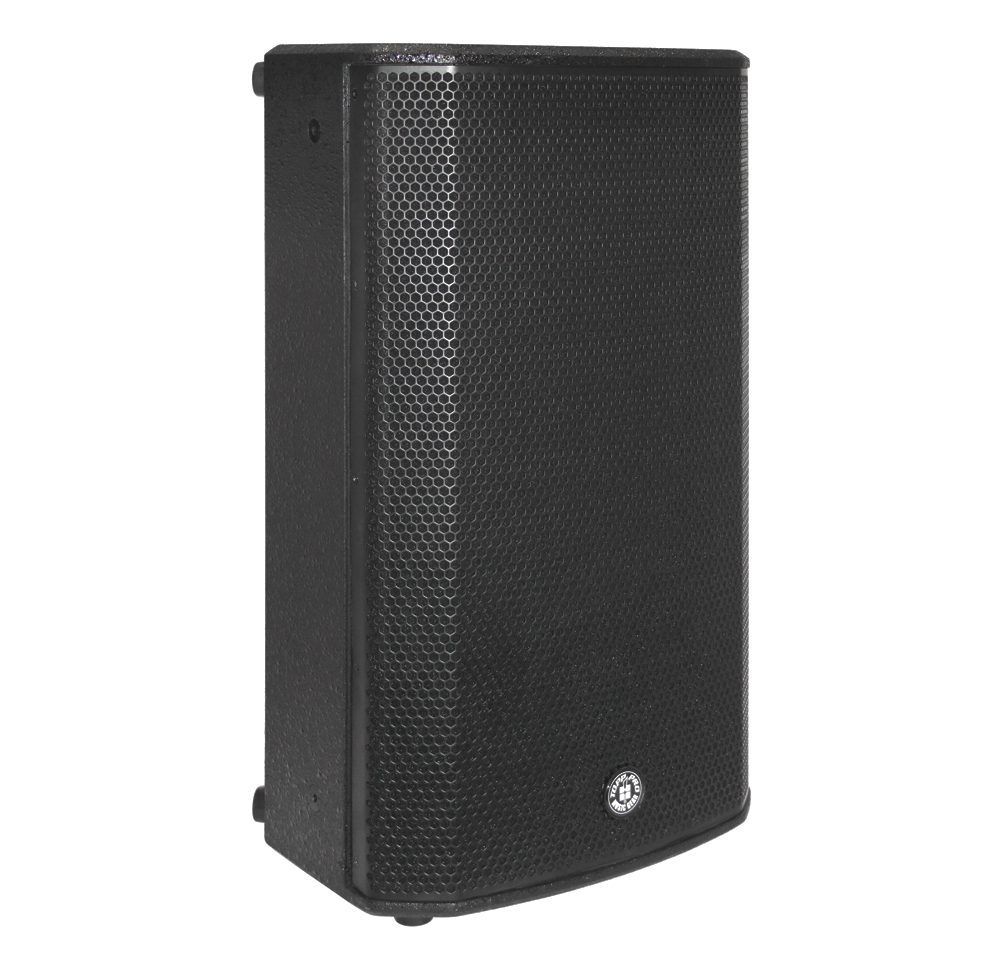

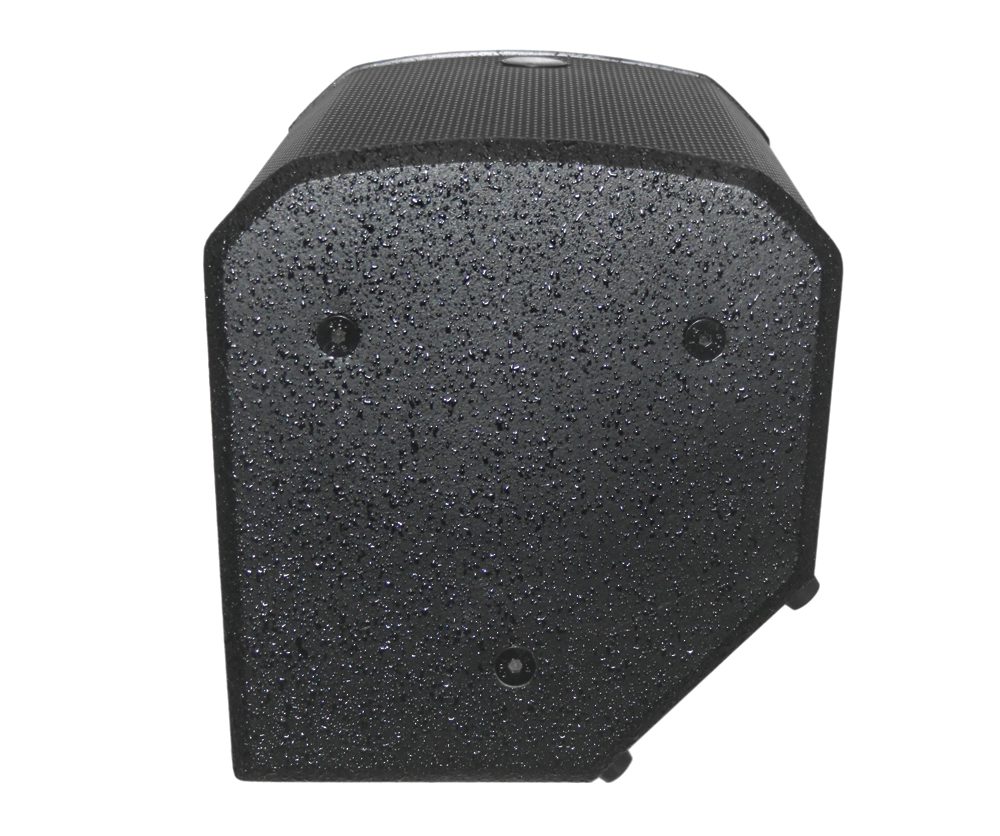

KS HD12A

Power 2000W Program

Transducer Low 12″ Woofer, 3″ Voice Coil

Transducer High 1″ exit, 1.75″ Voice Coil

    Consultar precios

    Descripción

    Especificaciones

    Model Active KS HD12A
    System Configuration Multi-purpose, 2-way Active Loudspeaker with DSP/OLED
    LF Transducer 12″ (305mm) Woofer, 3″ Voice coil
    HF Transducer 1″ exit, ferrite magnet compression driver with 1.75″ edgewound copper clad aluminium voice coil
    Frequency Response (-6 dB) 48Hz-20KHz
    Frequency Range (-10 dB) 42Hz-20KHz
    Maximum Rated SPL 130dB Peak
    Crossover Frequency At 1.6KHz with 24dB filter slope, Linkwitz-Riley Type
    Power 2000W PROGRAM / 4000W PEAK

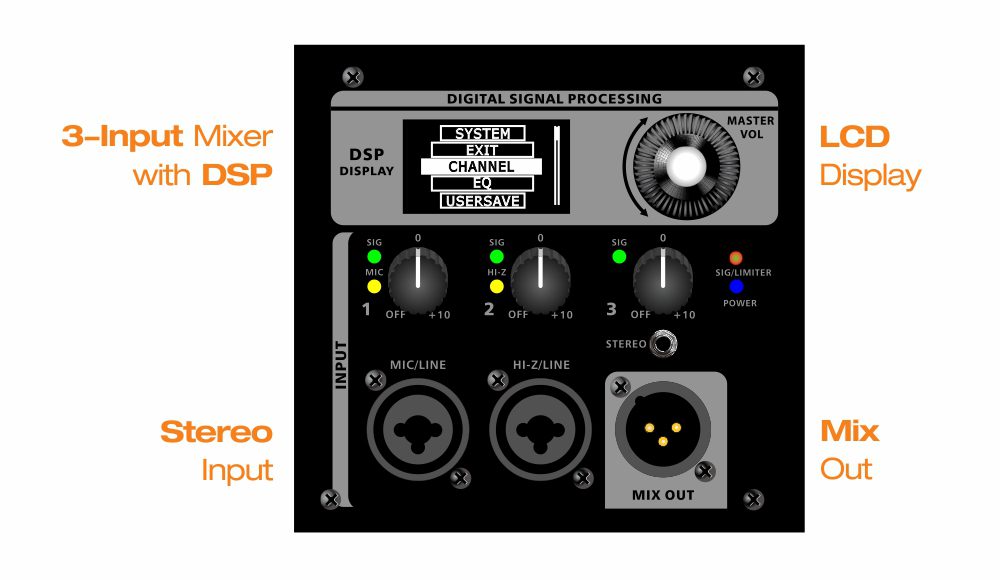

    Controls Power / 3 x Level / Rotary encoder
    Indicators Monochrome OLED Display 1.65″ x 1.1″ (42.04mm x 27.22mm), 2 x Power LED (front and rear), 3 x Input Signal LED, Input 1 MIC selected LED, Input 2 HI-Z selected LED, Limiter active LED
    Connectors 2 x locking XLR/F 1/4″ combo (Mic/Line Input and Hi-Z/Line Input), 1 x 3.5mm TRS (Stereo Input), 1 x XLR/M (Mix Output), 1 x locking IEC power connector
    AC Power Input 110-120V~50/60Hz or 220-240V~50/60Hz Switchable
    Enclosure Plywood cabinet,resistant black paint, rubber feet, metal handle, metal grille with black foam
    Attachment Points One metal standard pole-mount, 10 x M10 threaded inserts plus integrated Pull-Back
    Dimensions (HxWxD) 637 x 363 x 350 mm / 25.08″ x 14.29″ x 13.78″
    Net Weight 18.77 kg / 41.38 lbs
