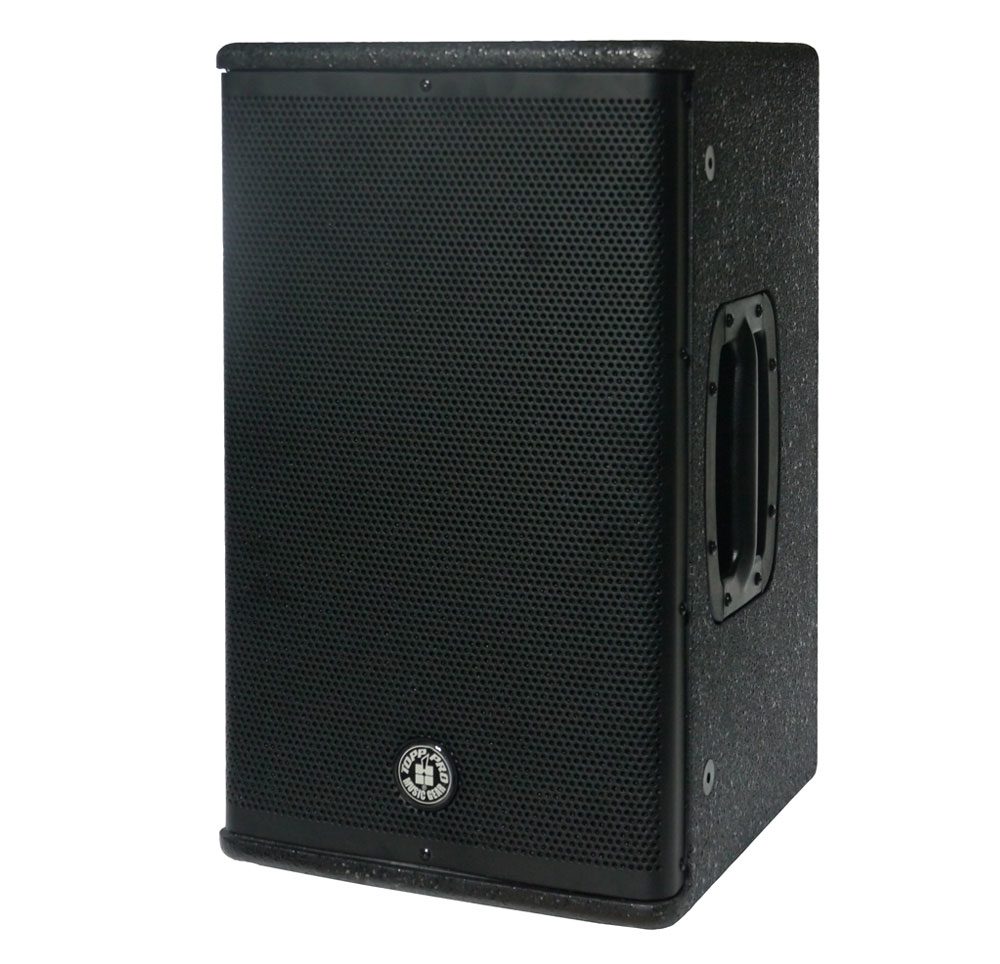

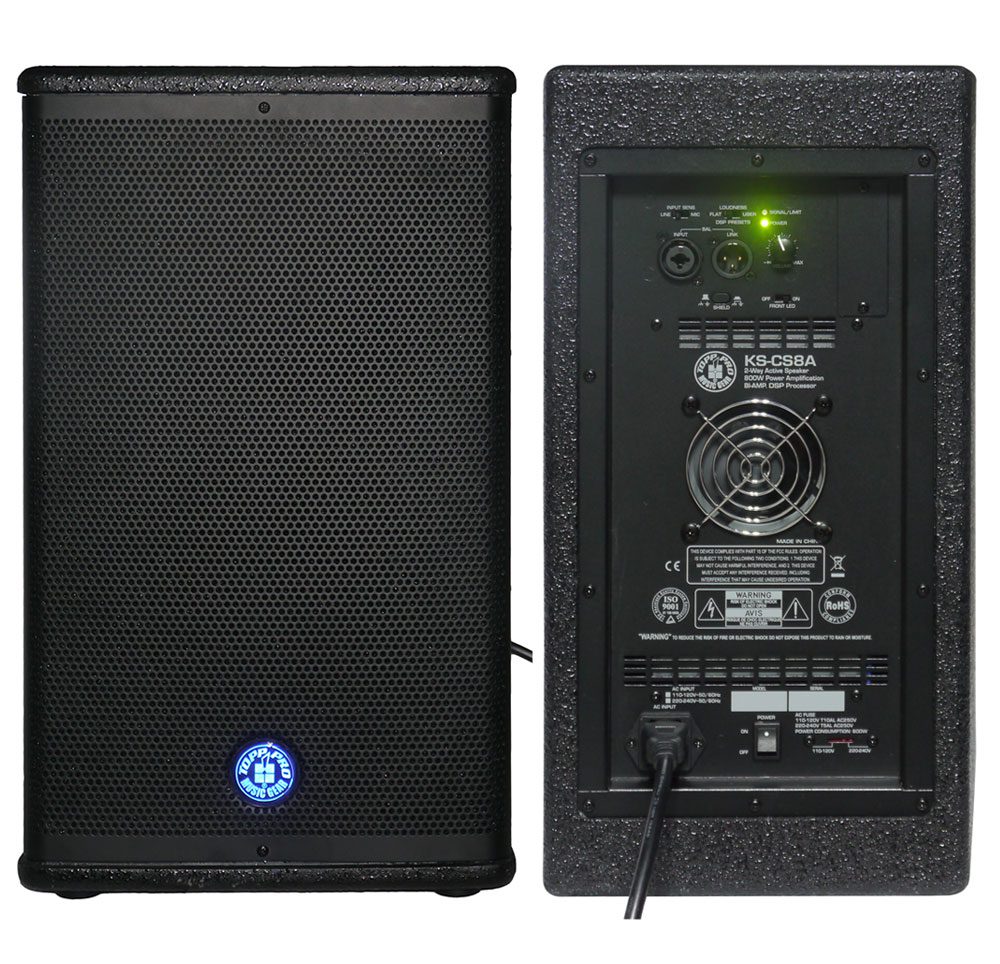

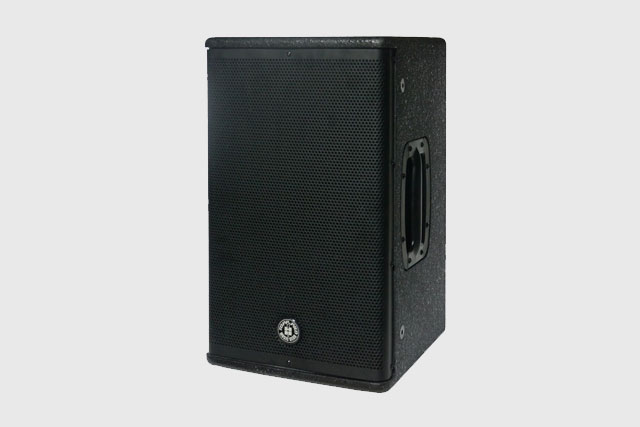

KS CS8A

POWER
1600W PROGRAM
TRANSDUCER LOW
8″ Woofer, 2″ Voice Coil
TRANSDUCER HIGH
1″ Driver, 1.75″ Voice Coil

    Consultar precios

    Descripción

    Especificaciones

    Model Active KS CS8A
    System Type 2-Way Active Vented Speaker with DSP
    Transducer Low 8″ Woofer, 2″ voice coil
    Transducer Driver 1″ Compression Driver, 1.75″ Voice Coil
    Frequency Response (-6dB) 60Hz – 20KHz
    Crossover Frequency At 1.8K Hz with 24dB filter slope, Linkwitz-Riley Type
    Max SPL 124dB Max.
    Power Rating 1600W (PROGRAM) / 3200W (PEAK)
    Input Connector Line / Mic – Combo / Link-XLR
    DSP Presets Flat / Loudness / User (Customer Sound)
    Line Input Combo Connector -6dBu
    External Controls Volume Control / Power ON with Green LED / Clip Limiter with Red LED / Ground Lift / Switch for Input Sens / Switch On for front Led / USB
    Electronic Protections Thermal / Convection-Fan / Overload / Digital Lim. / Compressor
    Power Supply 115V/230V Switchable
    Enclosure Construction Plywood cabinet, resistant black paint, metal grille with black foam, rubber feet, plastic handles
    Mounting One metal standard pole-mount, 10xM10 Flying Points
    Dimensions (HxWxD) 460 x 276.4 x 300mm / 18.11″ x 10.89″ x 11.81″
    Net Weight 15.93kg / 35.05Ibs
    Volume 2.554CFT
