KS CS10A

POWER
1600W PROGRAM
TRANSDUCER LOW
10″ Woofer, 2,5″ Voice Coil
TRANSDUCER HIGH
1″ Driver, 1.75″ Voice Coil

    Consultar precios

    Descripción

    Especificaciones

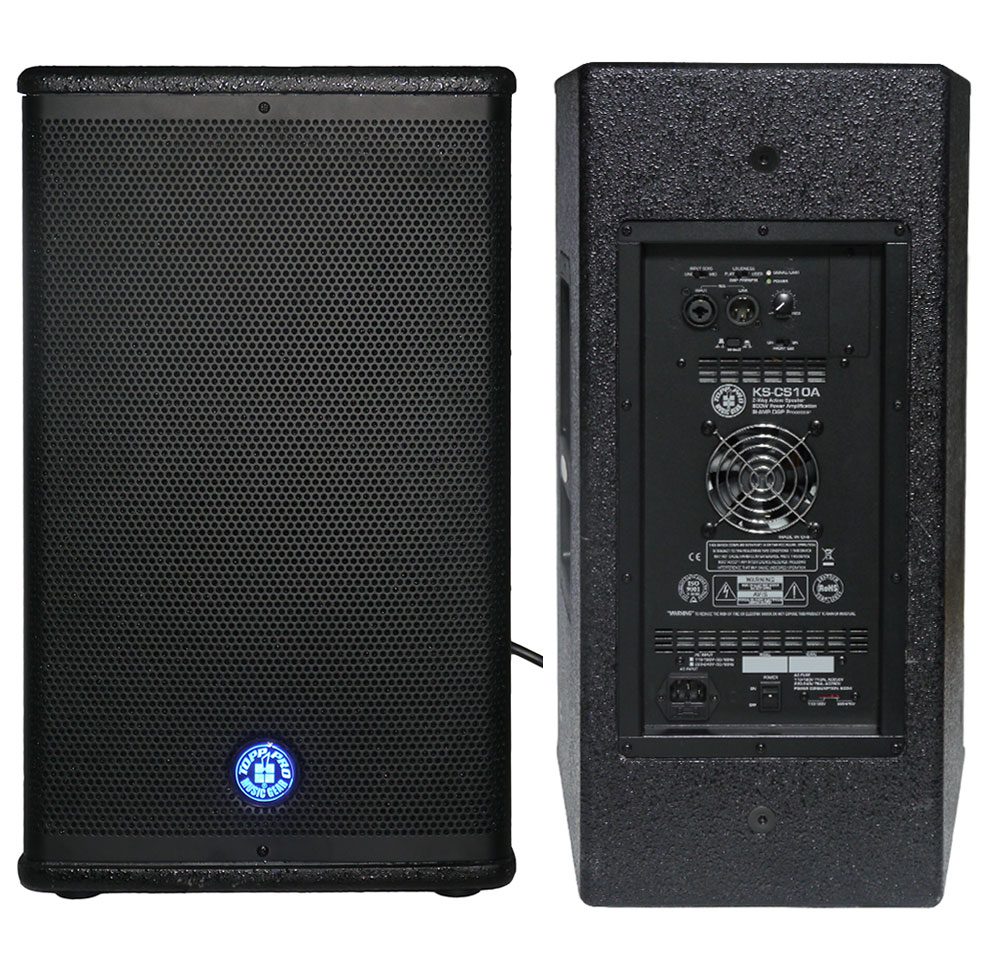

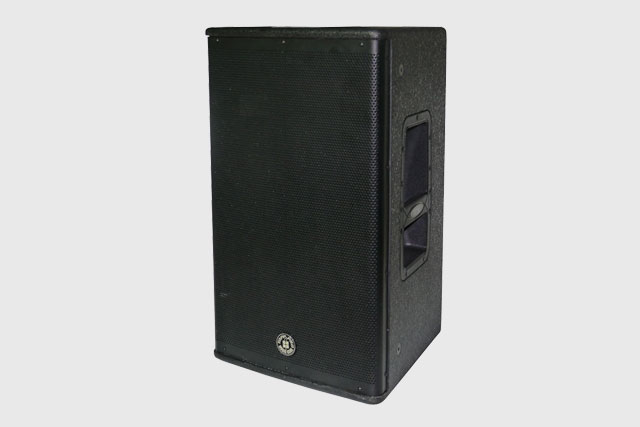

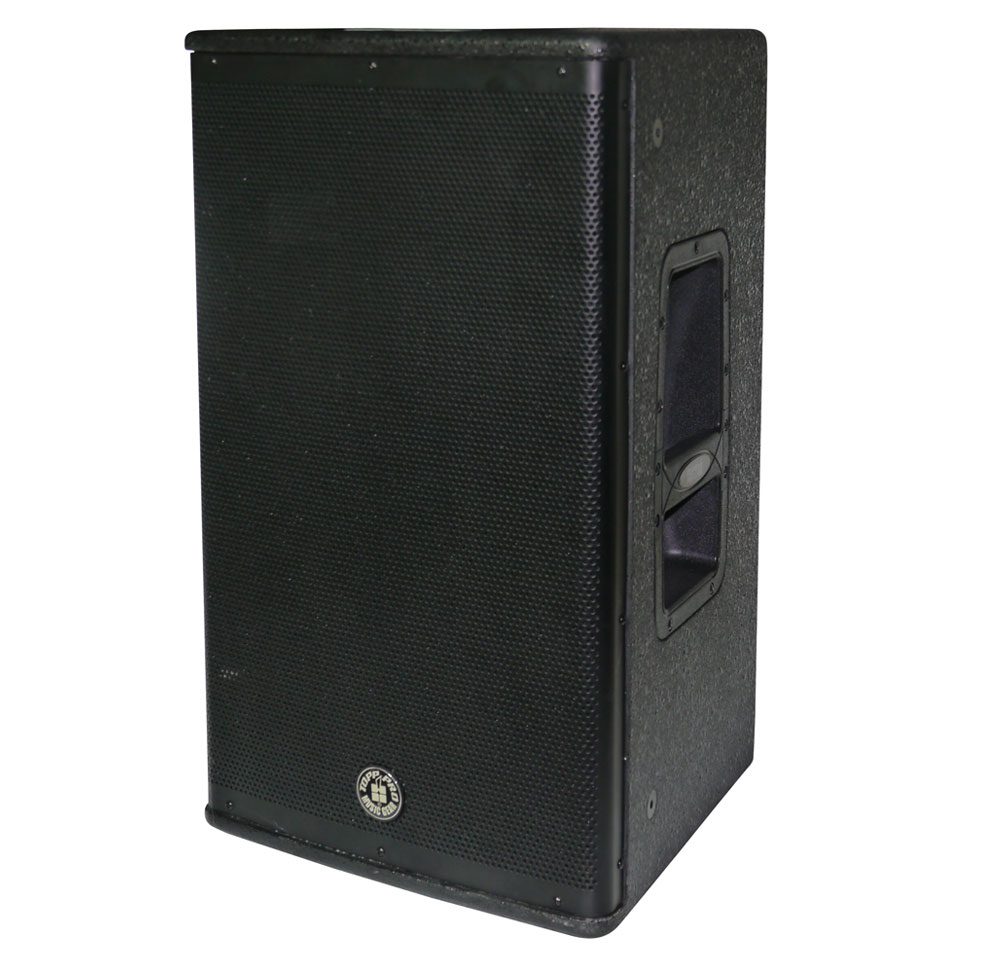

    Model Active KS CS10A
    System Type 2-Way Active Vented Speaker with DSP
    Transducer Low 10″ Woofer, 2.5″ voice coil
    Transducer Driver 1″ Compression Driver, 1.75″ Voice Coil
    Frequency Response (-6dB) 55Hz – 20KHz
    Crossover Frequency At 1.8K Hz with 24dB filter slope, Linkwitz-Riley Type
    Max SPL 126dB Max.
    Power Rating 1600W (PROGRAM) / 3200W (PEAK)
    Input Connector Line / Mic – Combo / Link-XLR
    DSP Presets Flat / Loudness / User (Customer Sound)
    Line Input Combo Connector -6dBu
    External Controls Volume Control / Power ON with Green LED / Clip Limiter with Red LED / Ground Lift / Switch for Input Sens / Switch On for front Led / USB
    Electronic Protections Thermal / Convection-Fan / Overload / Digital Lim. / Compressor
    Power Supply 115V/230V Switchable
    Enclosure Construction Plywood cabinet, resistant black paint, metal grille with black foam, rubber feet, plastic handles
    Mounting One metal standard pole-mount, 12xM10 Flying Points
    Dimensions (HxWxD) 583 x 333.2 x 325mm / 22.95″ x 13.12″ x 12.8″
    Net Weight 19.72kg / 43.49Ibs
    Volume 3.893CFT
