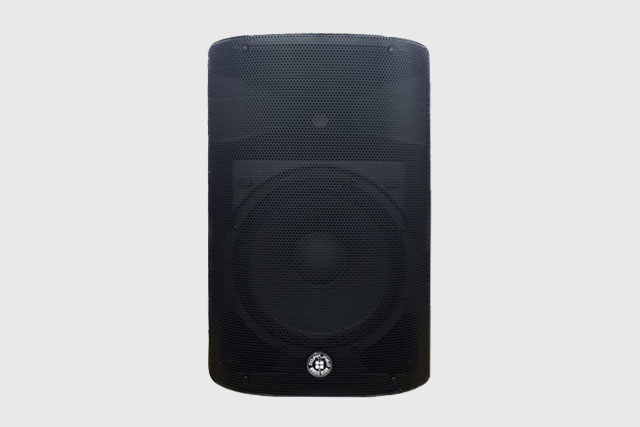

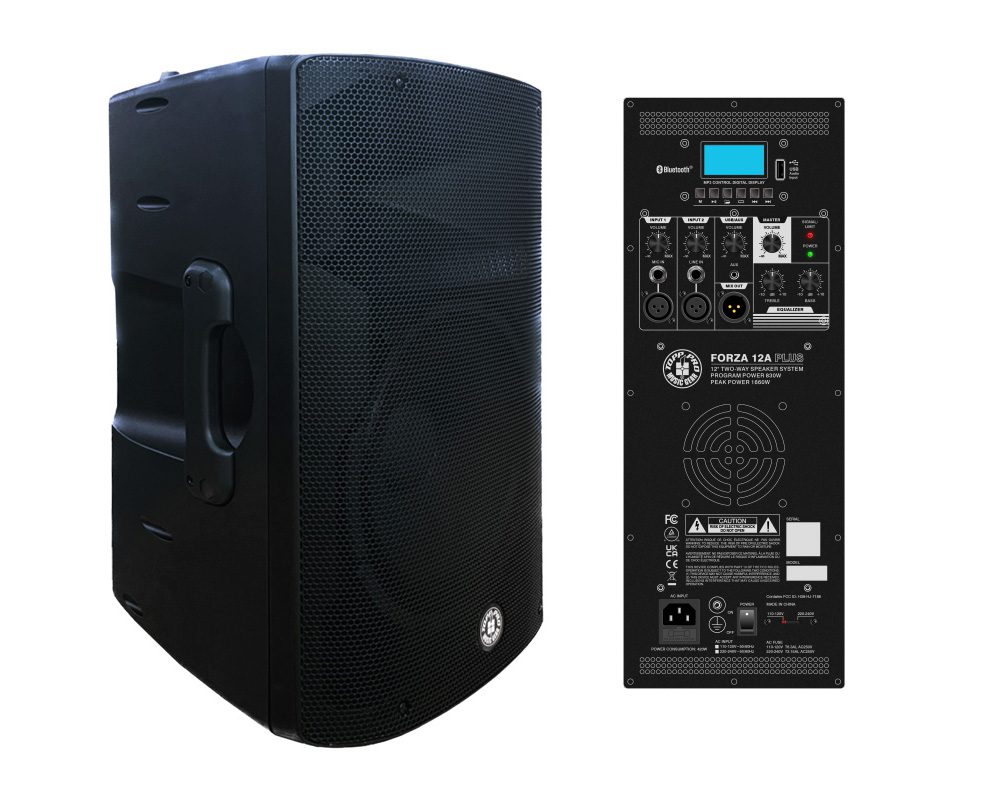

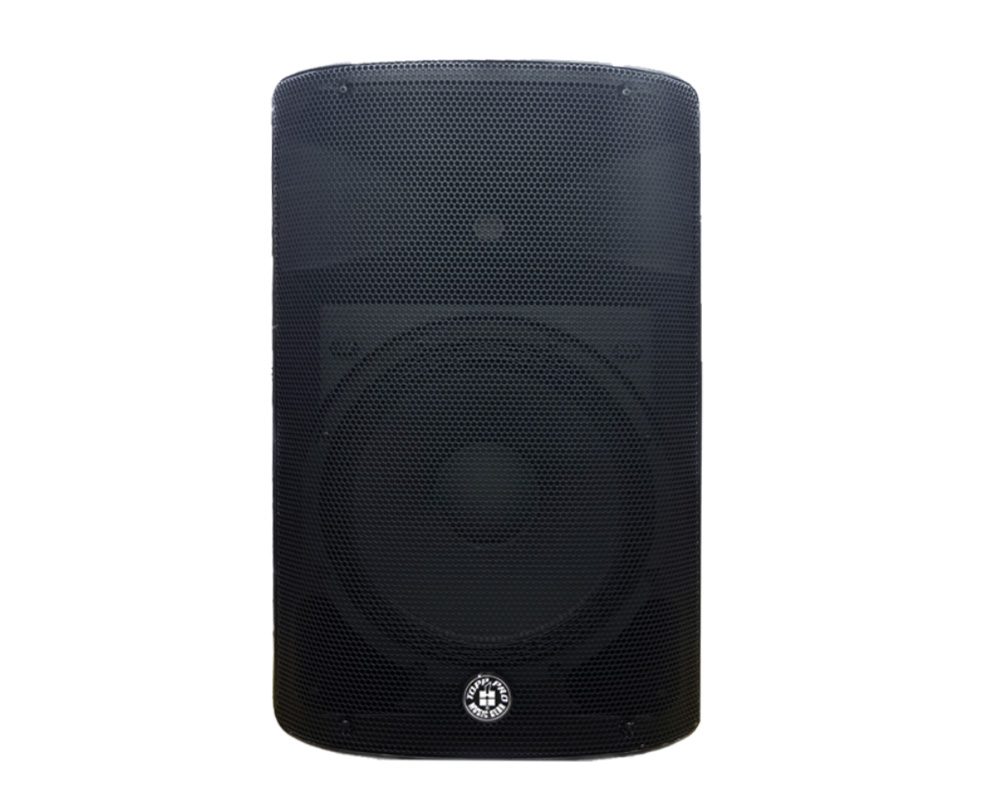

FORZA 12A PLUS

Topp Pro
> > SKU: FORZA 12A PLUS

1660W – 128dB Total System Peak Power

3 Channel Mixer (Mic / XLR / Line / Music Player)

2 band EQ / Master Volume / Mix Out

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Especificaciones

    Model FORZA 12A PLUS
    System Type 2-Way Active Plastic Loudspeaker
    Power System Class D SMPS (Bi-AMP, LF 350W / RMS + HF 35W / RMS), 1660W Peak
    Continuous Power 415W (Low: 350W / High: 65W)
    Program Power 830W
    Transducer Low 12.0″ (318mm) driver, 3.0″ (75mm) voice coil, 400W / 4 Ohms, Ferrite
    Transducer High 1.0″ (25mm) titanium-diaphragm compression driver, 1.35″ (35mm) voice coil, 8 Ohms / 20W
    Crossover Frequency 2.6KHz
    Max SPL 126dB (Peak), 94dB (Continuous) (dB-SPL@1m)
    Frequency Response 65Hz-20KHz (-3dB)
    Frequency Range 57Hz-20KHz (-10dB)
    Horn Coverage 90º horizontal x 60º Vertical (Nominal)
    Connectors Input 1-Mic with XLR x 1 & 6.3 jack / Input 2-Line with XLR x 1 & 6.3 jack x 1 & 3.5 jack x 1 / XLR Mix Output
    USB Player With USB / MP3 Player, Bluetooth (BT 5.3)
    Controls Input 1 & 2 and Master Volume Control / 2 Band EQ-High & Low
    Indicators Power ON with Green LED / Clip Limiter with Red LED
    Power Connection: IEC / Voltage: 110-120V~, 220-240V~, 50/60Hz, switchable / Fuse: 100-120V T6.3AL AC250V, or 220-240V T3.15AL AC250V / Consumption: 420W
    Protection Thermal / Overload / Analog Limiter / Compressor
    Enclosure Injection-Molded Polypropylene, Multi-Angle for Main or Monitor Applications, Metal Grille, Rubber Feet, 3 x Handles (Both Side and Top)
    Mounting / Installation 36mm Standard Pole-Mount / M10 x 4pcs Flying Points (Optional), Wedge Monitor
    Dimensions (HxWxD) 605 x 380 x 340 mm / 23.82″ x 14.96″ x 13.39″
    Net Weight 18.2 Kg / 40.12 Lbs
