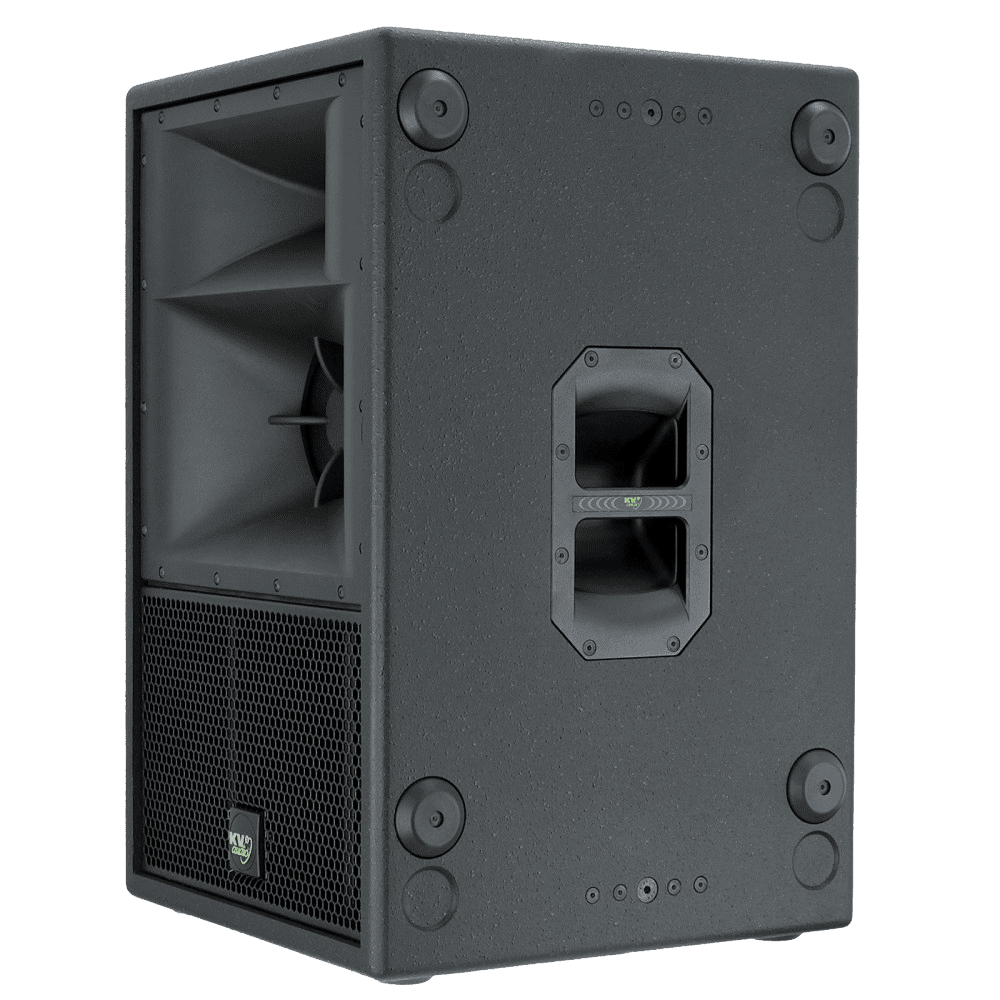

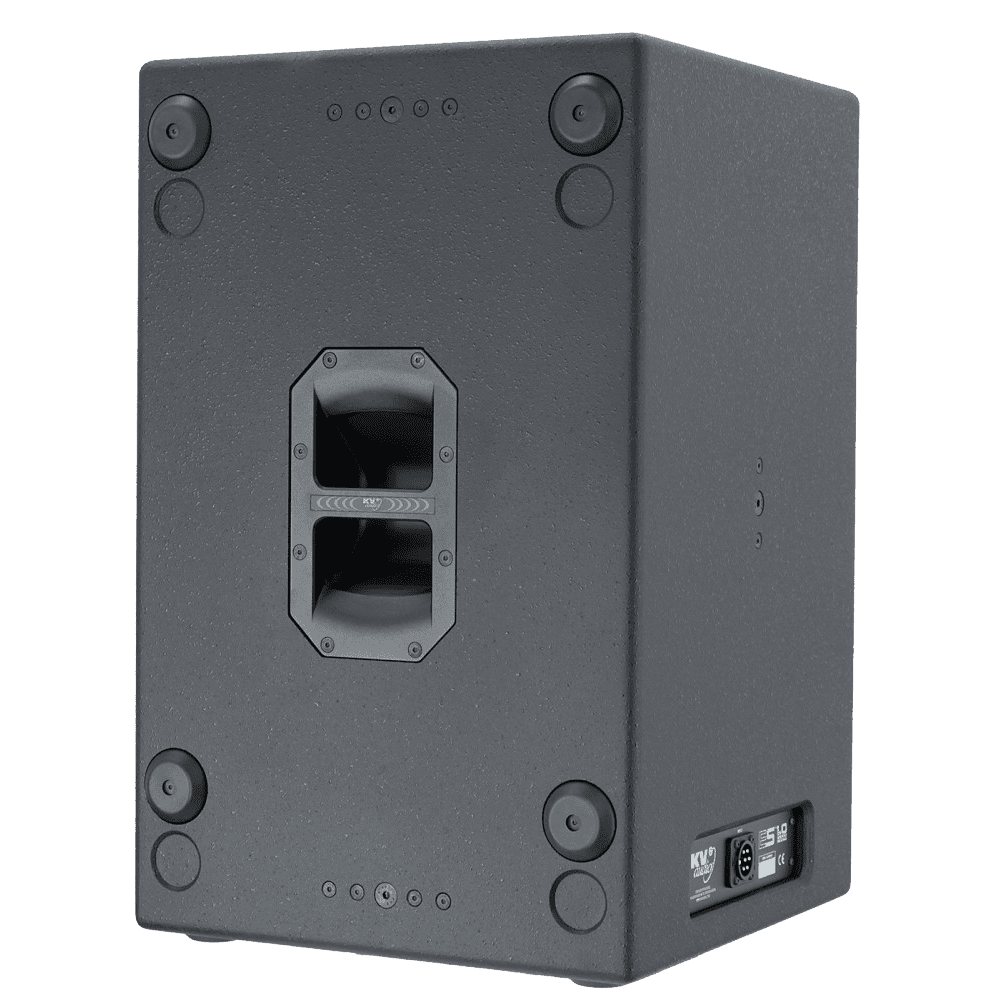

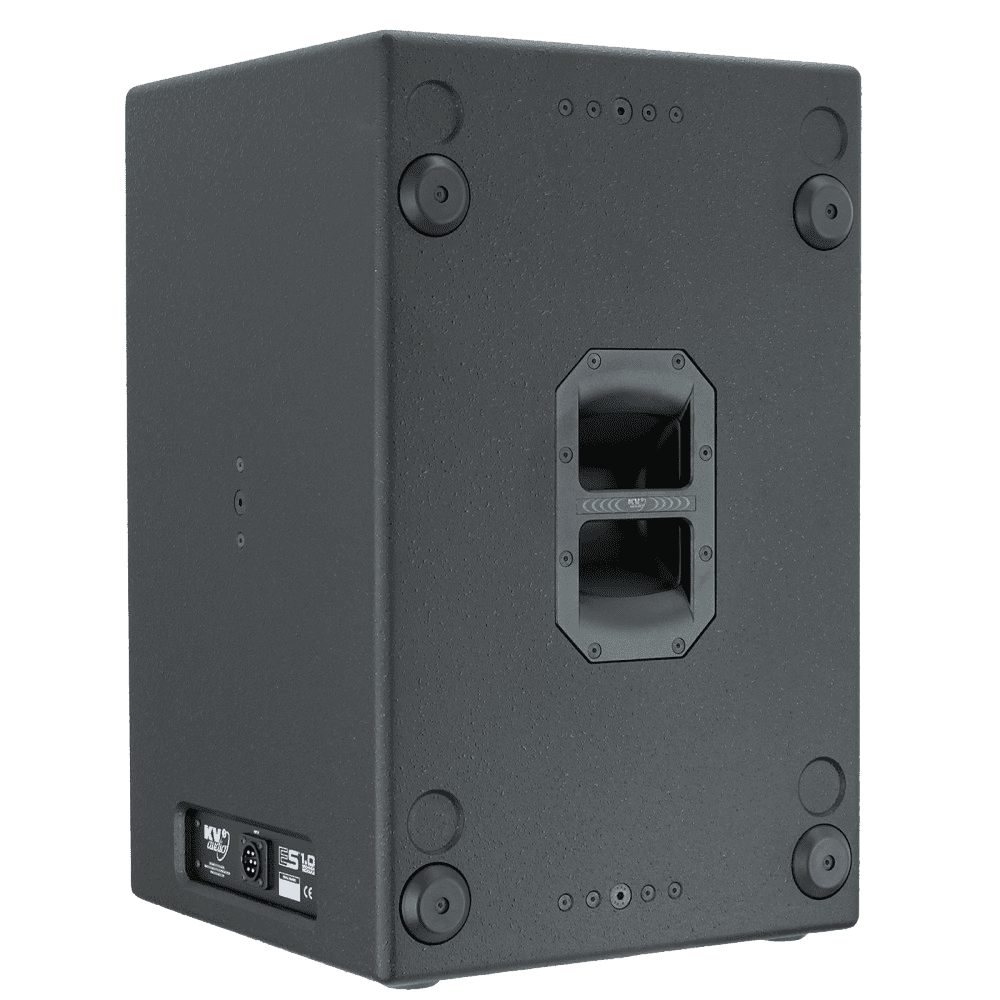

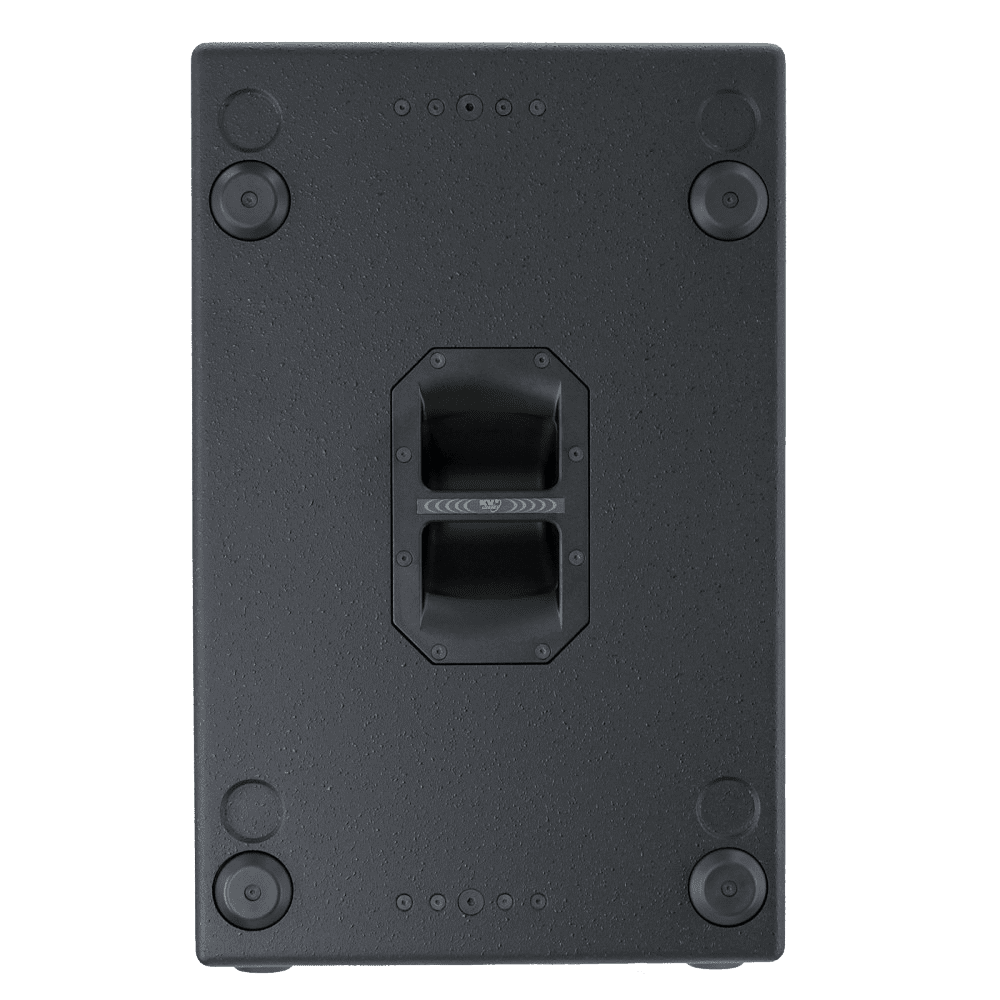

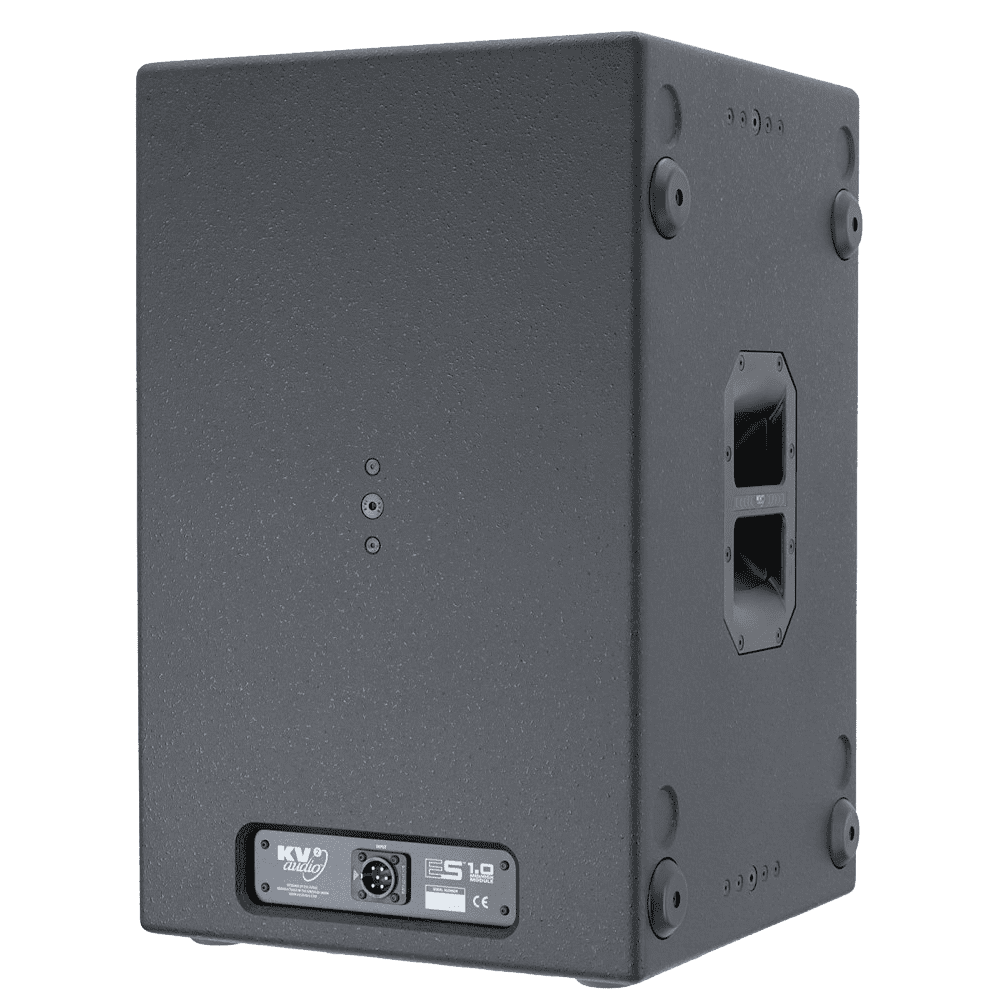

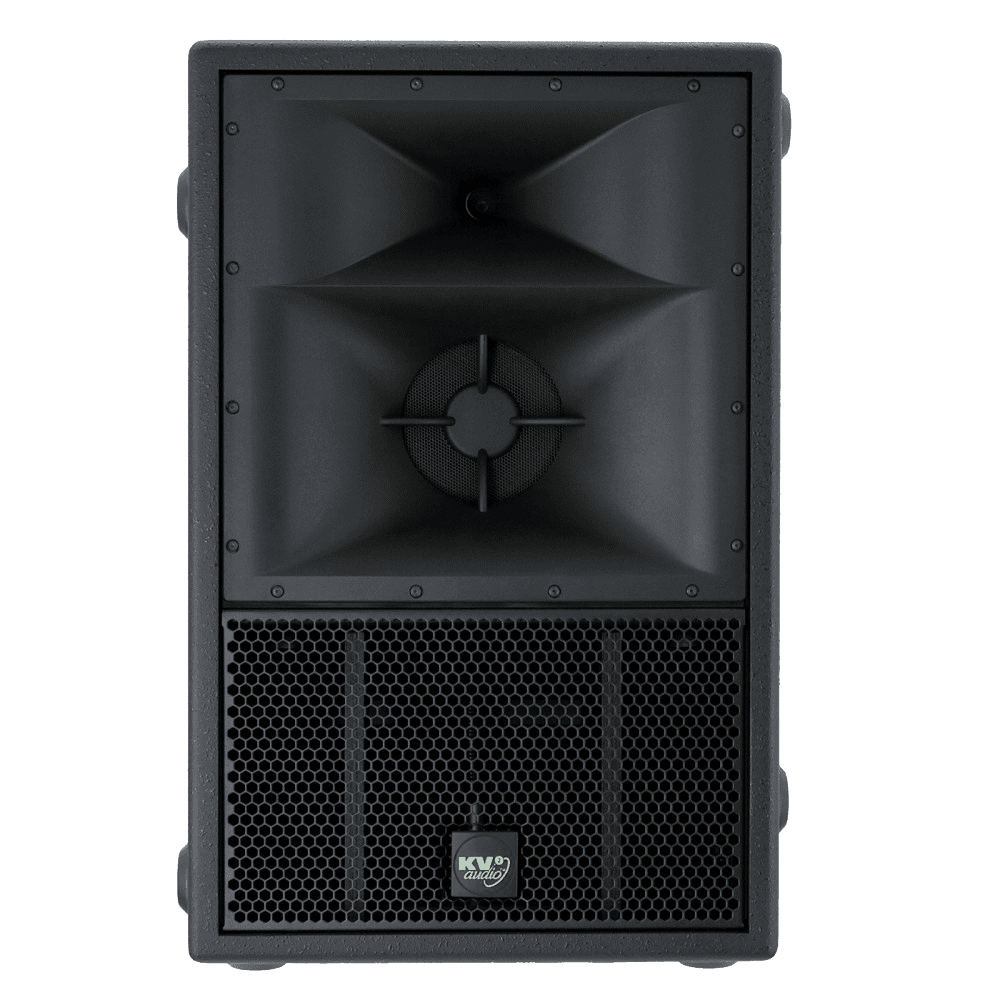

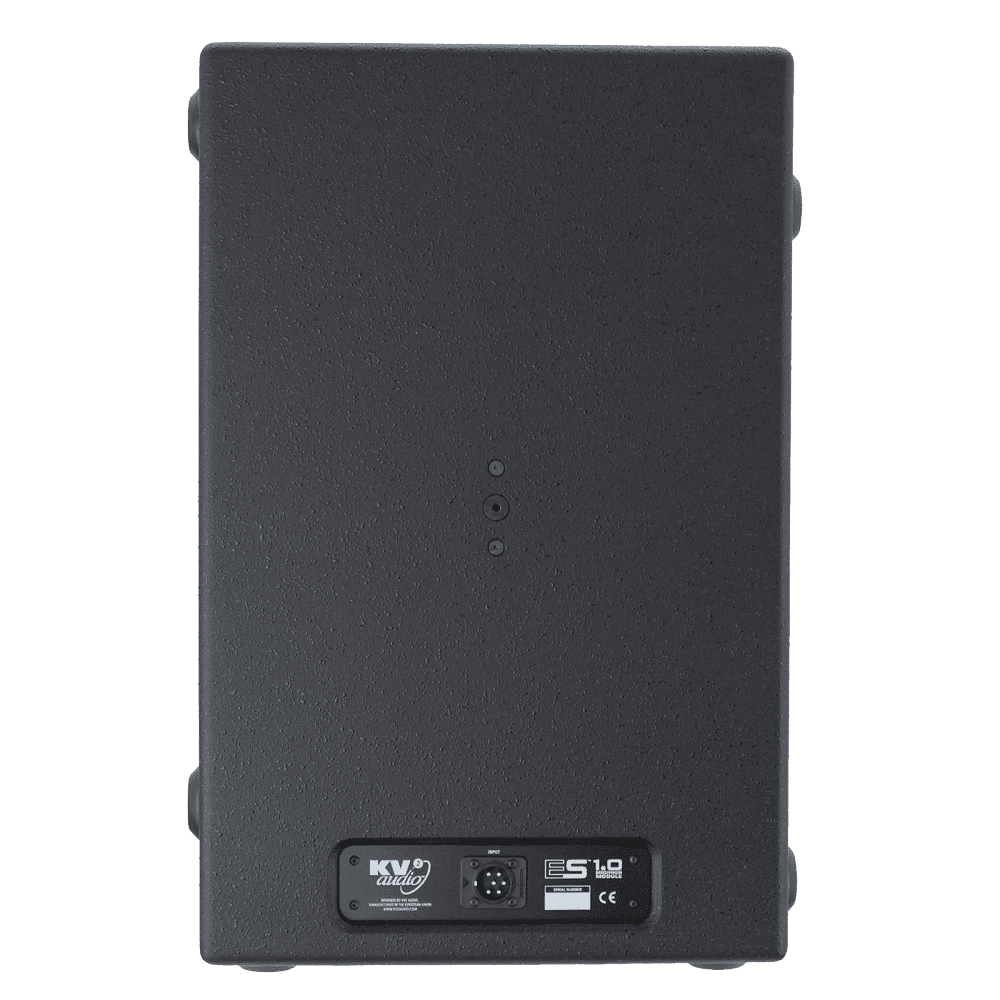

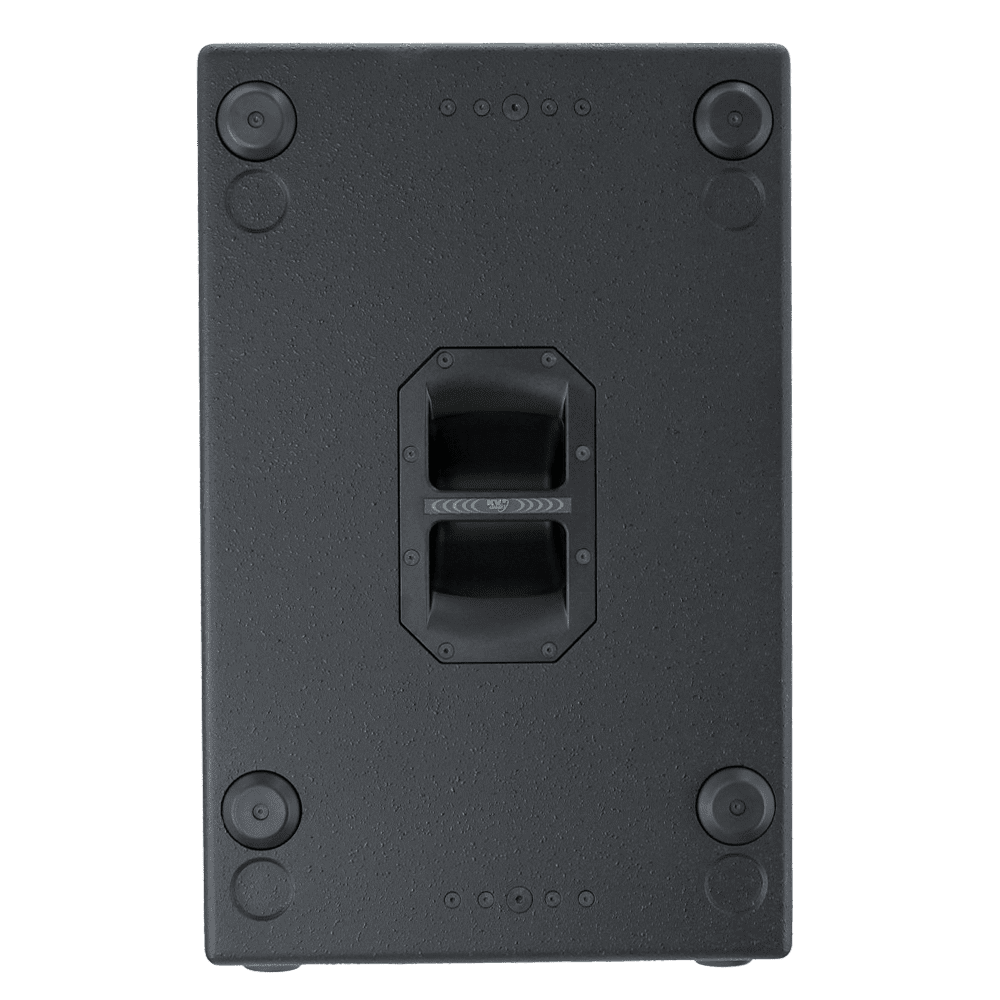

ES1.0 - The Core of Your ES System
ES1.0 - The Core of Your ES System - Imagen 2
ES1.0 - The Core of Your ES System - Imagen 3
ES1.0 - The Core of Your ES System - Imagen 4
ES1.0 - The Core of Your ES System - Imagen 5
ES1.0 - The Core of Your ES System - Imagen 6
ES1.0 - The Core of Your ES System - Imagen 7
ES1.0 - The Core of Your ES System - Imagen 8
ES1.0 - The Core of Your ES System - Imagen 9
ES1.0 - The Core of Your ES System - Imagen 10
ES1.0 - The Core of Your ES System - Imagen 11
ES1.0 - The Core of Your ES System - Imagen 12

ES1.0 – The Core of Your ES System

KV2AUDIO
SKU: ES1.0

El ES1.0 es un módulo de medios-altos/medio-graves de 3 vías, de salida muy alta, controlado de forma activa, diseñado como parte de un sistema ES completo, controlado por la unidad de control y amplificación EPAK2500/R. El ES1.0 es compacto, liviano y se puede combinar con una variedad de subwoofers de la serie ES. Como sistema único, ofrece una de las soluciones de refuerzo de sonido portátil de mayor calidad del mercado actual. Cuando se combina con otro ES1.0 (dos en horizontal por lado), se convierte en una herramienta aún más poderosa, proporcionando un SPL máximo de 139 dB y un alcance de hasta 40 metros para aplicaciones de hasta 3000 personas.

Aplicaciones

Diseñado específicamente como un gabinete compacto de medio alto y rendimiento extremadamente alto como parte de sistemas ES

  • Para presentaciones en vivo y reproducción de música
  • Conciertos en vivo de pequeños a grandes
  • Discotecas pequeñas y medianas
  • Casas de culto
  • PA portátil
  • Escalable a proyectos y sistemas multitarea más grandes

Código de producto

  • KVV 987 002 – ES1.0


    Consultar precios

    Descripción

    El ES1.0 es un módulo de medios-altos/medio-graves de 3 vías, de salida muy alta, controlado de forma activa, diseñado como parte de un sistema ES completo, controlado por la unidad de control y amplificación EPAK2500/R. El ES1.0 es compacto, liviano y se puede combinar con una variedad de subwoofers de la serie ES. Como sistema único, ofrece una de las soluciones de refuerzo de sonido portátil de mayor calidad del mercado actual. Cuando se combina con otro ES1.0 (dos en horizontal por lado), se convierte en una herramienta aún más poderosa, proporcionando un SPL máximo de 139 dB y un alcance de hasta 40 metros para aplicaciones de hasta 3000 personas.

    Características

    • Construcción profesional de abedul báltico con revestimiento de polímero resistente al desgaste
    • Salida sostenida de 131 dB, pico de 134 dB
    • Amplia dispersión controlada 90° x 40°, bocina giratoria de altura media para montaje en orientación vertical u horizontal
    • Controlador de compresión con diafragma de titanio de 1,75″ (44 mm) con conector de fase de geometría compleja y estructura magnética de neodimio para un mayor rendimiento, una distorsión increíblemente baja y una respuesta de frecuencia extendida
    • Controlador de rango medio de 6″ con bobina móvil de 1,75″ (44 mm) e imán de neodimio para mayor control y salida con distorsión y peso reducidos
    • Controlador de medios graves de 12″ cargado con bocina con un conjunto de bobina móvil de alta temperatura de 3″ (76 mm) interior/exterior, horneado con epoxi y estructura magnética de neodimio
    • Requisito activo de tres vías: 900 W del EPAK2500/R que proporcionan 600 W para los medios bajos de 12″, 200 W para los medios de 6″ y 100 W para el controlador de alta frecuencia
    • Diseño patentado de asa lateral para un manejo y transporte simplificados
    • Patas de alto impacto y baja fricción, ubicadas asimétricamente en tres lados, lo que permite la instalación vertical u horizontal del sistema, el bloqueo y el fácil movimiento del gabinete
    • Cuatro tirantes de esquina internos atados a ocho puntos de suspensión M10. Hay un total de 24 puntos de suspensión disponibles para aplicaciones de instalación personalizadas
    • Sombrero de copa para aplicaciones de montaje en postes
    • Opción de impermeabilización y acabados de pintura especiales disponibles bajo petición


    YouTube thumbnailYouTube icon

    Aplicaciones

    Diseñado específicamente como un gabinete compacto de medio alto y rendimiento extremadamente alto como parte de sistemas ES

    • Para presentaciones en vivo y reproducción de música
    • Conciertos en vivo de pequeños a grandes
    • Discotecas pequeñas y medianas
    • Casas de culto
    • PA portátil
    • Escalable a proyectos y sistemas multitarea más grandes

    Código de producto

    • KVV 987 002 – ES1.0


    Configurations

    ES Double – A



    Description

    Up to 2000 people. Number of bass boxes depends on music style. One side of stereo single system.

    Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



    Products

    Count Product Type
    2 ES1.0 MID-HI
    1 ES2.5 SUB
    2 ES1.8 SUB
    2 EPAK2500R or EPAK2500 AMP


    Accessories

    Count Accessory Title
    2 Cable MH60 Mid/Hi speaker cable MH60
    2 Cable LF40 Cable LF40
    1 Cable LF15 Cable LF15


    Images

    Front viewWiring

    ES Double – B



    Description

    Up to 2000 people. Number of bass boxes depends on music style. One side of stereo single system.

    Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



    Products

    Count Product Type
    2 ES1.0 MID-HI
    4 ES1.8 SUB
    2 EPAK2500R or EPAK2500 AMP


    Accessories

    Count Accessory Title
    1 ES System flybar and bracket ES System flybar and bracket
    2 Cable MH120 Cable MH120
    0 Cable LF15 Cable LF15
    2 Cable LF40 Cable LF40
    2 Cable LF15 Cable LF15


    Images

    Front viewWiring

    ES Double – C



    Description

    Up to 2000 people. Number of bass boxes depends on music style. One side of stereo single system.

    Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



    Products

    Count Product Type
    2 ES2.5 SUB
    2 ES1.0 MID-HI
    2 EPAK2500R or EPAK2500 AMP


    Accessories

    Count Accessory Title
    1 ES System flybar and bracket ES System flybar and bracket
    2 Cable MH120 Cable MH120
    2 Cable LF40 Cable LF40


    Images

    Front viewWiring

    ES Double – D



    Description

    Up to 2000 people. Number of bass boxes depends on music style. One side of stereo single system.

    Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



    Products

    Count Product Type
    2 ES1.0 MID-HI
    4 ES2.6 SUB
    2 EPAK2500R or EPAK2500 AMP


    Accessories

    Count Accessory Title
    1 ES System flybar and bracket ES System flybar and bracket
    2 Cable MH120 Cable MH120
    2 Cable LF40 Cable LF40
    2 Cable LF15 Cable LF15


    Images

    Front viewWiring

    ES Single – A1



    Description

    Up to 1000 people. Number of bass boxes and SUB LEVEL setup depend on music style. One side of stereo single system.

    Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



    Products

    Count Product Type
    1 ES1.0 MID-HI
    1 ES1.5 SUB
    1 EPAK2500R or EPAK2500 AMP


    Accessories

    Count Accessory Title
    1 Cable LF40 Cable LF40
    1 Cable MH60 Mid/Hi speaker cable MH60


    Images

    Front viewWiring

    ES Single – A2



    Description

    Up to 1000 people. Number of bass boxes depends on music style. One side of stereo single system.

    Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



    Products

    Count Product Type
    1 ES1.0 MID-HI
    2 ES1.5 SUB
    1 EPAK2500R or EPAK2500 AMP


    Accessories

    Count Accessory Title
    1 Cable MH60 Mid/Hi speaker cable MH60
    1 Cable LF40 Cable LF40
    1 Cable LF15 Cable LF15


    Images

    Front viewWiring

    ES Single – A3



    Description

    Up to 1000 people. Number of bass boxes depends on music style. One side of stereo single system.

    Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



    Products

    Count Product Type
    1 ES1.0 MID-HI
    3 ES1.5 SUB
    1 EPAK2500R or EPAK2500 AMP


    Accessories

    Count Accessory Title
    1 Cable MH60 Mid/Hi speaker cable MH60
    1 Cable LF40 Cable LF40
    2 Cable LF15 Cable LF15


    Images

    Front viewWiring

    ES Single – B1



    Description

    Up to 1000 people. Number of bass boxes depends on music style. One side of stereo single system.

    Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



    Products

    Count Product Type
    1 ES1.0 MID-HI
    2 ES1.5 SUB
    1 ES1.8 SUB
    1 EPAK2500R or EPAK2500 AMP


    Accessories

    Count Accessory Title
    1 Cable MH60 Mid/Hi speaker cable MH60
    1 Cable LF40 Cable LF40
    2 Cable LF15 Cable LF15


    Images

    Front viewWiring

    ES Single – B2



    Description

    Up to 1000 people. Number of bass boxes depends on music style. One side of stereo single system.

    Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



    Products

    Count Product Type
    1 ES1.0 MID-HI
    1 ES2.6 SUB
    1 ES1.8 SUB
    1 EPAK2500R or EPAK2500 AMP


    Accessories

    Count Accessory Title
    1 Cable MH60 Mid/Hi speaker cable MH60
    1 Cable LF40 Cable LF40
    1 Cable LF15 Cable LF15


    Images

    Front viewAlternative

    ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms

    Gallery

    Product code

    KVV 987 192



    Description

    – 2 pcs ARMS OF FB-0002
    – 8 pcs M10 screws
    – 8 pcs Quick-lock-pins 6mm included



    Downloads

    DWG

    ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG

    ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG

    SKP

    ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SKP

    ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SketchUp

    EPAK2500, EPAK2500R, ES1.0, ESR2800, ESR3000MkII, SL3000, SL412 Amphenol AP6 connector

    Gallery

    Product code

    KVV 987 050



    Description

    – female – cable mount



    EPAK2500, EPAK2500R, ES1.0, ESR2800, ESR3000MkII, SL3000, SL412 Amphenol AP6 connector

    Gallery

    Product code

    KVV 987 051



    Description

    – male – cable mount



    Cable Kit

    Gallery

    Product code

    KVV 987 047



    Description

    – consist of four high-quality Amphenol AP cable assemblies designed for use with ES Series – 2 pcs LF15 – 1pc LF40 – 1pc MH60



    Cable MH120

    Gallery

    Product code

    KVV 987 126



    Description

    – 6 wire speaker cable – AP6 connectors – 12m (40ft) length – for Mid/Hi Module hook-up



    Cable MH15

    Gallery

    Product code

    KVV 987 147



    Description

    – 6 wire speaker cable – AP6 connectors – 1,5m (5ft) length – for Mid/Hi Module connection – for VHD1.0 Mid/Hi Module daisy-chaining



    Cable MH180

    Gallery

    Product code

    KVV 987 127



    Description

    – 6 wire speaker cable – AP6 connectors – 18m (60ft) length – for Mid/Hi Module hook-up



    Mid/Hi speaker cable MH60

    Gallery

    Product code

    KVV 987 125



    Description

    – 6 wire speaker cable – AP6 connectors – 6m (20ft) – for Mid/Hi Module hook-up



    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels

    Gallery

    Product code

    KVV 987 031



    Description

    – with bolts nuts kit – 4 pcs in pack, rotating, blue
    – 16x M8x 25mm Screw Countersunk Hexagon Socket Head
    – 16x Nut Hexagon with blue plastic insert M8



    Downloads

    DWG

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG

    SKP

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SKP

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SketchUp

    ES Downfill bracket

    Gallery

    Product code

    KVV 987 311



    Description

    – 4 pcs Quick-lock-pins 6mm included
    – 4 pcs M10 hex screws included
    – 1pc allen key
    – 6mm included



    Downloads

    DWG

    ES Downfill bracket 3D DWG

    ES Downfill bracket 3D DWG

    SKP

    ES Downfill bracket SKP

    ES Downfill bracket SketchUp

    ES System flybar and bracket

    Gallery

    Product code

    KVV 987 191



    Description

    – 8 pcs M10 screws – 8 pcs Quick-lock-pins 6mm included – 4 pcs Quick-lock-pins 1/2inch included



    Downloads

    DWG

    ES System flybar and bracket 3D DWG

    ES System flybar and bracket 3D DWG

    SKP

    ES System flybar and bracket SKP

    ES System flybar and bracket SketchUp

    DWG

    ES System flybar and bracket 2D DWG

    ES System flybar and bracket 2D DWG

    ES1.0 Heavy duty cover

    Gallery

    Product code

    KVV 987 119



    Description

    – Durable material



    ES1.0 Full grille

    Gallery

    Product code

    KVV 987 131



    Description

    Optional full grille for ES1.0



    Downloads

    DWG

    ES1.0 Full grille 3D DWG

    ES1.0 Full grille 3D DWG

    SKP

    ES1.0 Full grille SKP

    ES1.0 Full grille SketchUp

    ES1.0, ES1.5 Cart

    Gallery

    Product code

    KVV 987 030



    Description

    – for 2pcs ES1.0 or ES 1.5 – wheels not included
    – 16x M8x 25mm Screw Countersunk Hexagon Socket Head
    – 16x Nut Hexagon with blue plastic insert M8



    Downloads

    DWG

    ES1.0, ES1.5 Cart 3D DWG

    ES1.0, ES1.5 Cart 3D DWG

    SKP

    ES1.0, ES1.5 Cart SKP

    ES1.0, ES1.5 Cart SketchUp

    ES1.0, ES1.5, ESD15 Horizontal bracket

    Gallery

    Product code

    KVV 987 035



    Description

    Horizontal bracket for ES1.0, ES1.5, ESD15 (or eventually for EX15 when positioned vertically) – including top hat cover adaptor plate and two connection bolts – black



    Downloads

    DWG

    ES1.0, ES1.5, ESD15 Horizontal Bracket 3D DWG

    ES1.0, ES1.5, ESD15 Horizontal Bracket 3D DWG

    SKP

    ES1.0, ES1.5, ESD15 Horizontal Bracket SKP

    ES1.0, ES1.5, ESD15 Horizontal Bracket SketchUp

    ES1.0, ES1.5, ESD15, EX15 Vertical bracket

    3D view

    Gallery

    Product code

    KVV 987 032



    Description

    Vertical bracket for ES1.0, ES1.5, ESD15, EX15 – including two connection bolts – black



    Downloads

    DWG

    ESD15 / ES1.0 / ES1.5 / EX15 Vertical Bracket 2D DWG

    ESD15 / ES1.0 / ES1.5 / EX15 Vertical Bracket 2D DWG

    DWG

    ES1.0, ES1.5, ESD15, EX15 Vertical Bracket 3D DWG

    ES1.0, ES1.5, ESD15, EX15 Vertical Bracket 3D DWG

  • Descripción
  • Especificaciones
  • Descargas

    • System Acoustic Performance

    Max SPL Long-term 131dB
    Max SPL Peak 137dB
    -3dB Response 130Hz to 20kHz
    -10dB Response 85Hz to 28kHz
    Impedance Low 16Ω Mid 8Ω High 8Ω
    Crossover Point 130Hz, 500Hz, 2.5kHz

    High Frequency Section

    Horn Coverage Horizontal / Vertical 90° x 40° rotatable
    High Frequency Amplifier Requirement 100W from EPAK 2500/R
    Throat Exit Diameter / Diaphragm Size 1″ / 1.75″
    Diaphragm Material Titanium
    Magnet Type Neodymium

    Mid Range Section

    Acoustic Design Horn Loaded
    Horn Coverage Horizontal / Vertical 90° x 40° rotatable
    Midrange Amplifier Requirement 200W from EPAK 2500/R
    Woofer Size / Voice Coil Diameter 6″ / 1.75″
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium

    Mid Bass Section

    Acoustic Design Horn Loaded
    Mid-bass Amplifier Requirement 600W from EPAK 2500/R
    Woofer Size / Voice Coil Diameter 12″ / 3″ / Inside Outside
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium

    Speaker Input

    Speaker Input AP6

    Cabinet

    Cabinet Material Baltic birch
    Handles 2
    Pole Mount 35 mm
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 700 mm (27.55″)
    Width 450 mm (17.71″)
    Depth 450 mm (17.71″)
    Weight 34 kg (74.8lbs)


    Product code

    • KVV 987 002 – ES1.0

    PDF

    Disarray – The correct theory of arraying KV2 boxes

    Disarray – The correct theory of arraying KV2 boxes



    PDF

    ES Cabinets Configurations User Guide

    – ES Series – Basic single and double configurations user guide



    PDF

    ES Flyware – Suspension and Rigging

    ES Flyware – Suspension and Rigging – English



    PDF

    ES1.0 Technical Data Sheet

    Download Product’s Data Sheet


    DWG

    Short joining bracket for ES system – 2D DWG

    Short joining bracket for ES system – 2D DWG


    DWG

    ES1.0, ES1.5, ESD15, EX15 Vertical Bracket 3D DWG

    ES1.0, ES1.5, ESD15, EX15 Vertical Bracket 3D DWG



    SKP

    ES1.0, ES1.5, ESD15, EX15 Vertical Bracket SKP

    ES1.0, ES1.5, ESD15, EX15 Vertical Bracket SketchUp



    DWG

    ES1.0, ES1.5, ESD15 Horizontal Bracket 3D DWG

    ES1.0, ES1.5, ESD15 Horizontal Bracket 3D DWG



    SKP

    ES1.0, ES1.5, ESD15 Horizontal Bracket SKP

    ES1.0, ES1.5, ESD15 Horizontal Bracket SketchUp



    DWG

    Long bracket for joining ES1.0 and ES1.8 or ES2.5 3D DWG

    Long bracket for joining ES1.0 and ES1.8 or ES2.5 3D DWG



    SKP

    Long bracket for joining ES1.0 and ES1.8 or ES2.5 SKP

    Long bracket for joining ES1.0 and ES1.8 or ES2.5 SketchUp



    DWG

    ES1.0 Full grille 3D DWG

    ES1.0 Full grille 3D DWG



    SKP

    ES1.0 Full grille SKP

    ES1.0 Full grille SketchUp



    DWG

    ES System flybar and bracket 3D DWG

    ES System flybar and bracket 3D DWG



    SKP

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SKP

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SketchUp



    DWG

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG



    DWG

    Short joining bracket for ES system – 3D DWG

    Short joining bracket for ES system – 3D DWG


    DWG

    ES System flybar and bracket 2D DWG

    ES System flybar and bracket 2D DWG


    SKP

    ES1.0 3D SKP

    ES1.0 3D SketchUp file


    DWG

    Long bracket for joining two ES1.0 or ES1.5 3D DWG

    Long bracket for joining two ES1.0 or ES1.5 3D DWG



    SKP

    Long bracket for joining two ES1.0 or ES1.5 SKP

    Long bracket for joining two ES1.0 or ES1.5 SketchUp



    DWG

    ES1.0, ES1.5 Cart 3D DWG

    ES1.0, ES1.5 Cart 3D DWG



    SKP

    ES1.0, ES1.5 Cart SKP

    ES1.0, ES1.5 Cart SketchUp



    SKP

    ES System flybar and bracket SKP

    ES System flybar and bracket SketchUp



    DWG

    ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG

    ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG



    SKP

    ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SKP

    ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SketchUp



    DWG

    ESD15 / ES1.0 / ES1.5 / EX15 Vertical Bracket 2D DWG

    ESD15 / ES1.0 / ES1.5 / EX15 Vertical Bracket 2D DWG



    DWG

    ESD15 / ES1.0 / ES1.5 Horizontal Bracket 2D DWG

    ESD15 / ES1.0 / ES1.5 Horizontal Bracket 2D DWG



    DWG

    ES1.0 2D DWG

    ES1.0 2D DWG



    PDF

    ES1.0 – 2D

    ES1.0 2D Drawings



    PDF

    Long bracket for joining two ES1.0 or ES1.5 PDF drawing

    Long bracket for joining two ES1.0 or ES1.5 PDF drawing



    PDF

    Long bracket for joining ES1.0 and ES1.8 or ES2.5 PDF drawing

    Long bracket for joining ES1.0 and ES1.8 or ES2.5 PDF drawing



    DWG

    ES Downfill bracket 3D DWG

    ES Downfill bracket 3D DWG



    SKP

    ES Downfill bracket SKP

    ES Downfill bracket SketchUp



    DWG

    Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG

    Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG



    SKP

    Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SKP

    Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SketchUp



    SKP

    ES Series SKP

    ES Series SketchUp model


    DWG

    Long bracket for joining two ES1.0 or ES1.5 – 3D DWG

    Long bracket for joining two ES1.0 or ES1.5 – 3D DWG



    DWG

    Long bracket for joining ES1.0 and ES1.8 or ES2.5 – 3D DWG

    Long bracket for joining ES1.0 and ES1.8 or ES2.5 – 3D DWG



    SKP

    Long bracket for joining two ES1.0 or ES1.5 – SketchUp

    Long bracket for joining two ES1.0 or ES1.5 – SketchUp



    DWG

    ES1.0 – 3D

    1:1 scale – clamping points – weight – dwg file



    GLL

    ES1.0 EASE Focus

    ES1.0 EASE Focus ver 4



    DWG

    ES1.0 3D DWG

    ES1.0 3D DWG



    SKP

    ES1.0 SKP

    ES1.0 SketchUp





    Más en Gama activa

    VHD5000

    Leer más

    TAP 20A

    Leer más

    FORZA 15A PLUS

    Añadir al carrito

    SL412 – Wide dispersion Active Driven System

    Leer más
